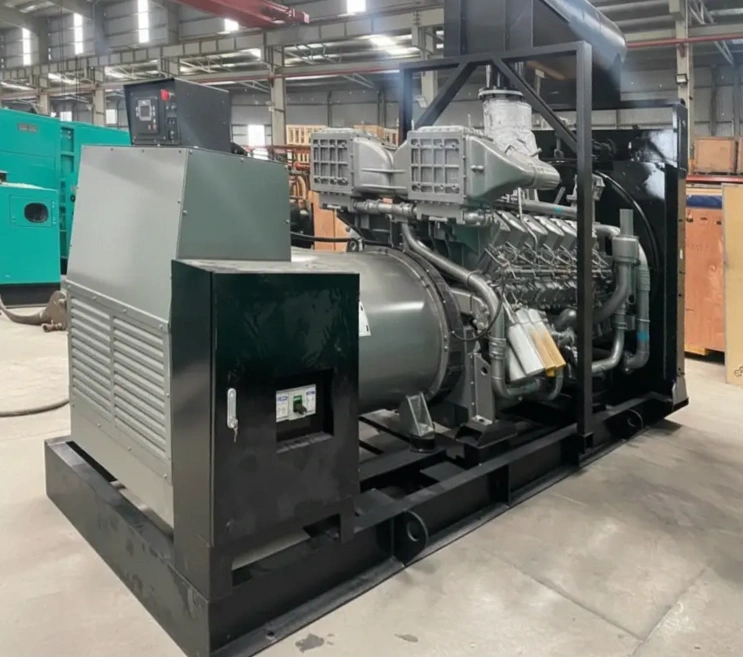

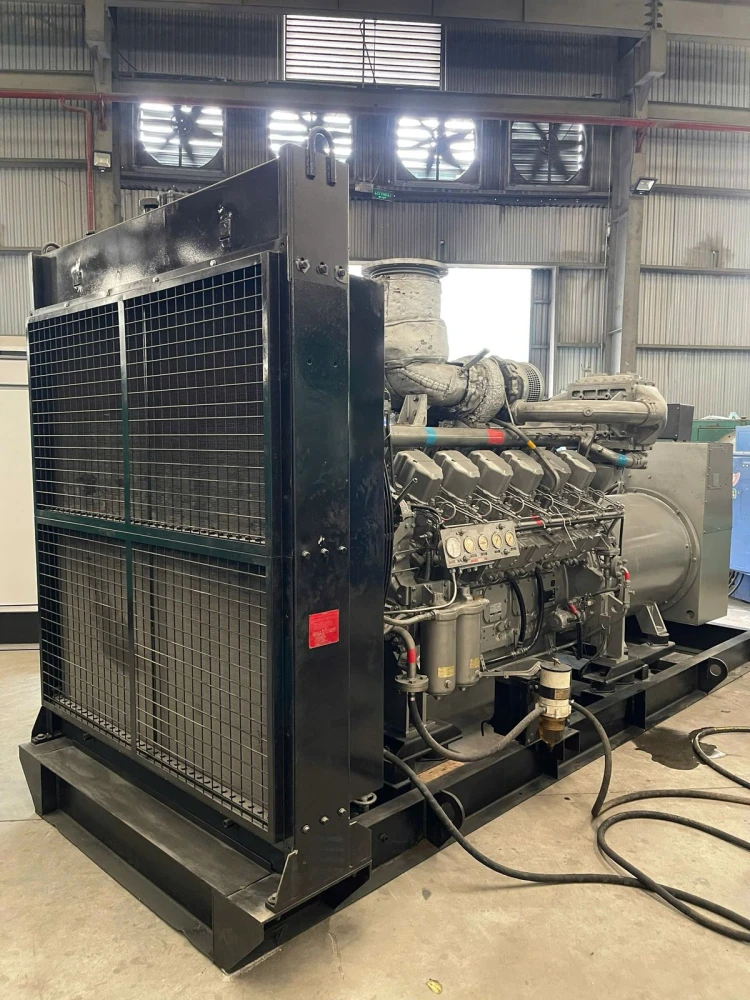

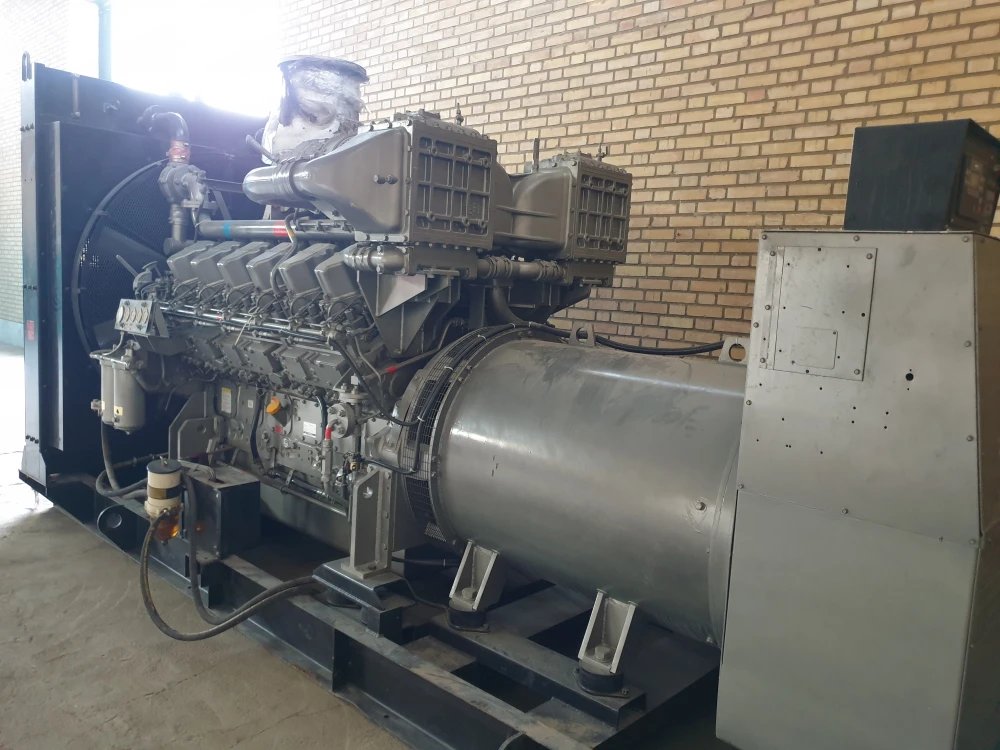

Yanmar TY-1100 | 1,100 kVA Diesel Generator
Engine
Alternator
Genset
Technical Specifications

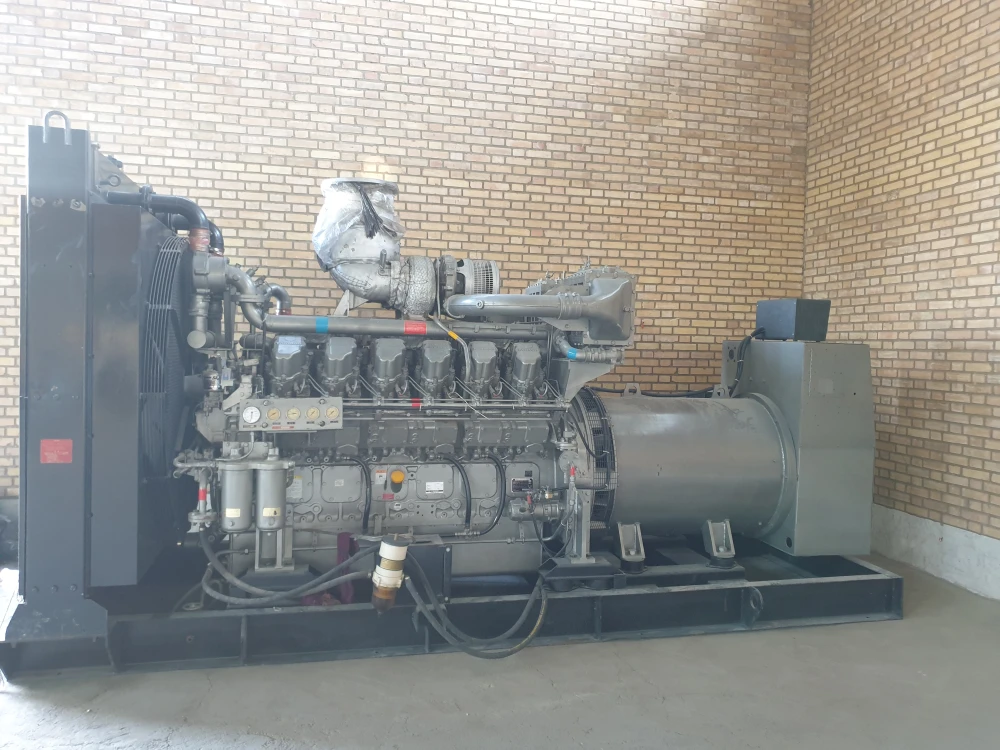

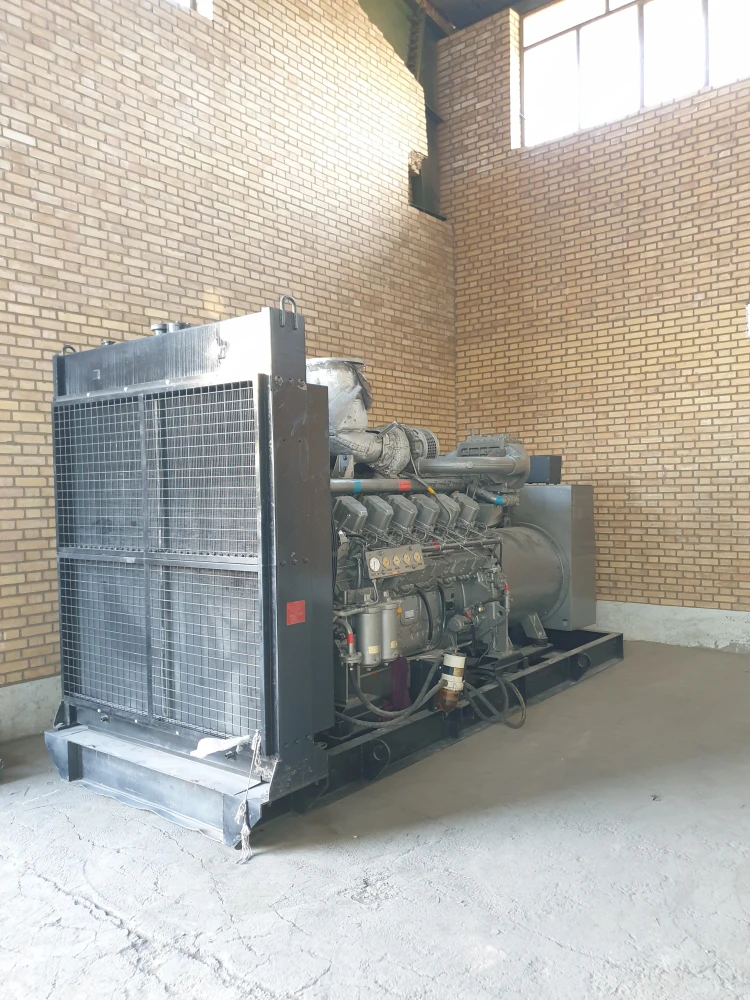

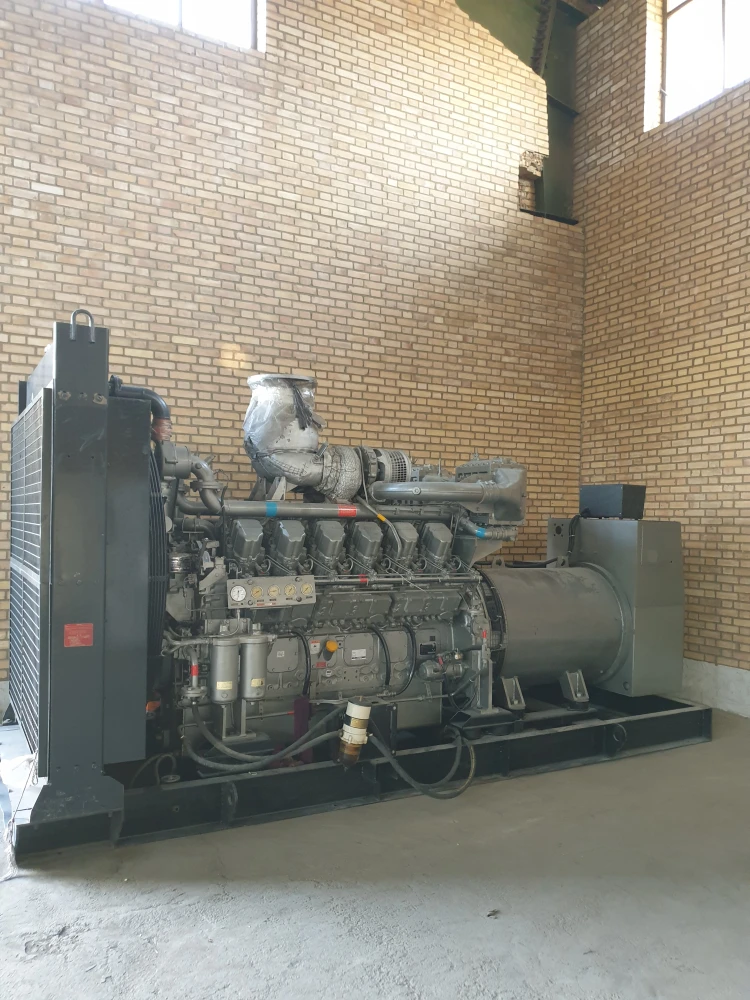

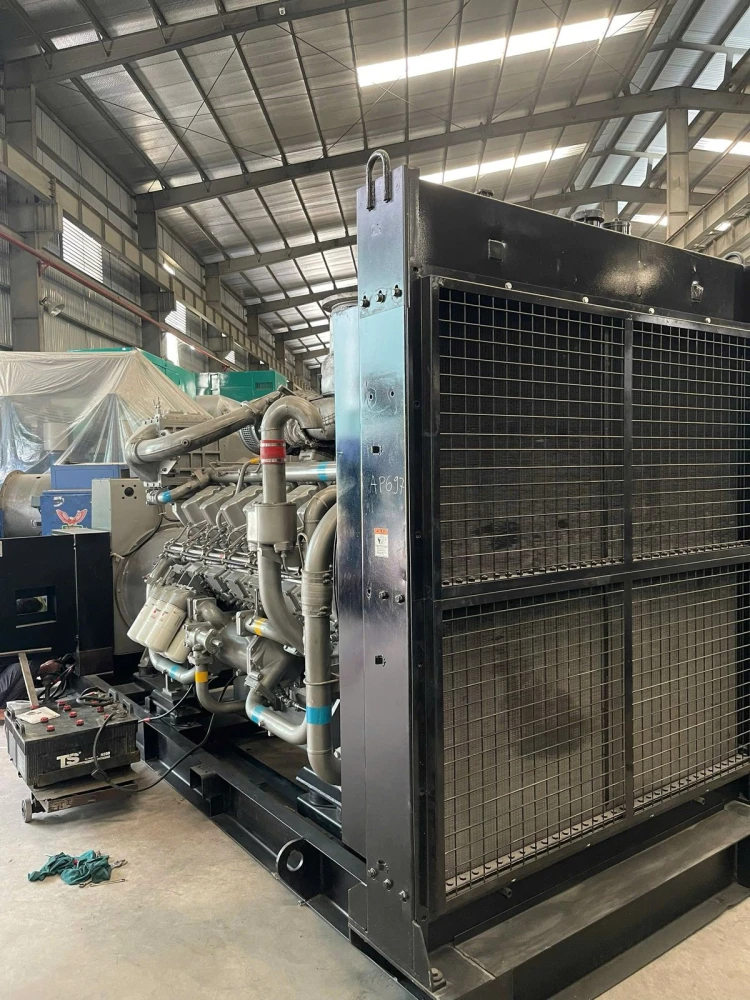

Diesel Generator Set
- Make and Model: Yanmar TY-1100
- Standby Rating Output (50Hz): 1,100
- Prime Rating Output (50Hz): 1,000
- Configuration (Open-set/Canopy): Open-set
- Year of Manufacture: 2016
- Condition: Used
- Runtime (hours): 500

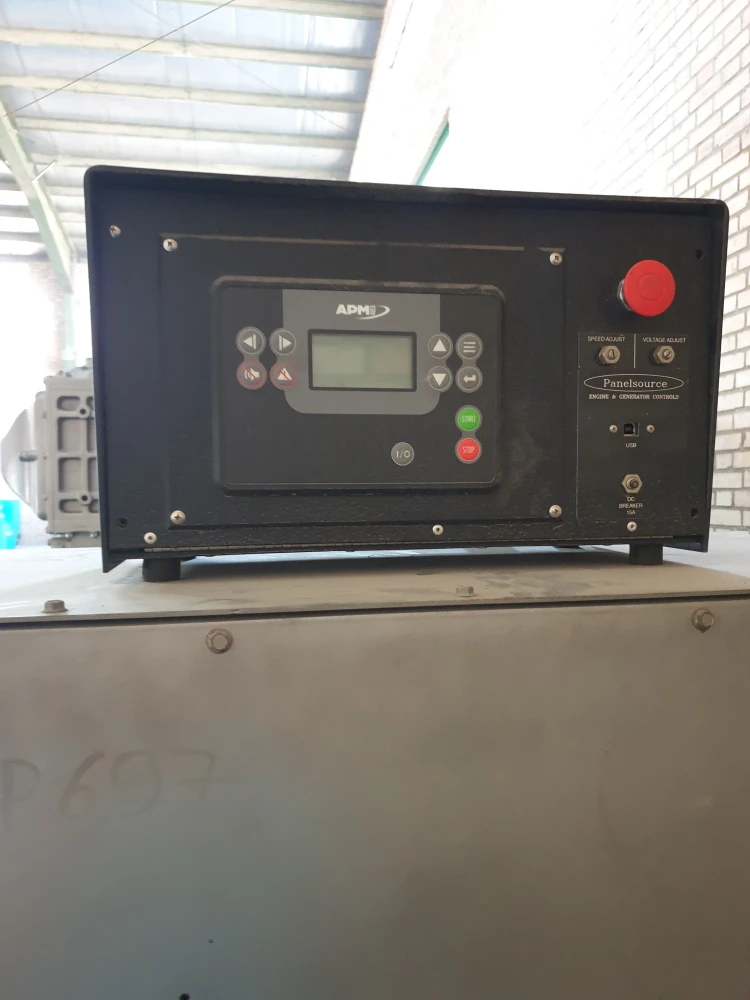

- Controller: Rehlko (Kohler Power Systems) APM403
- Availability: In Stock – Warehouse 2

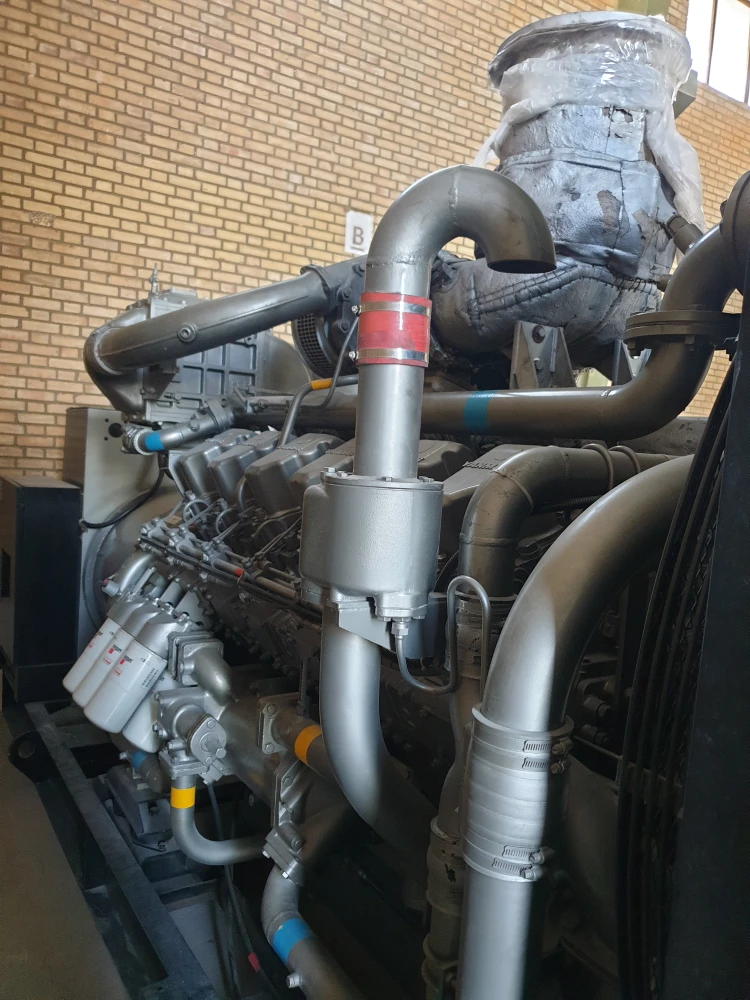

Engine

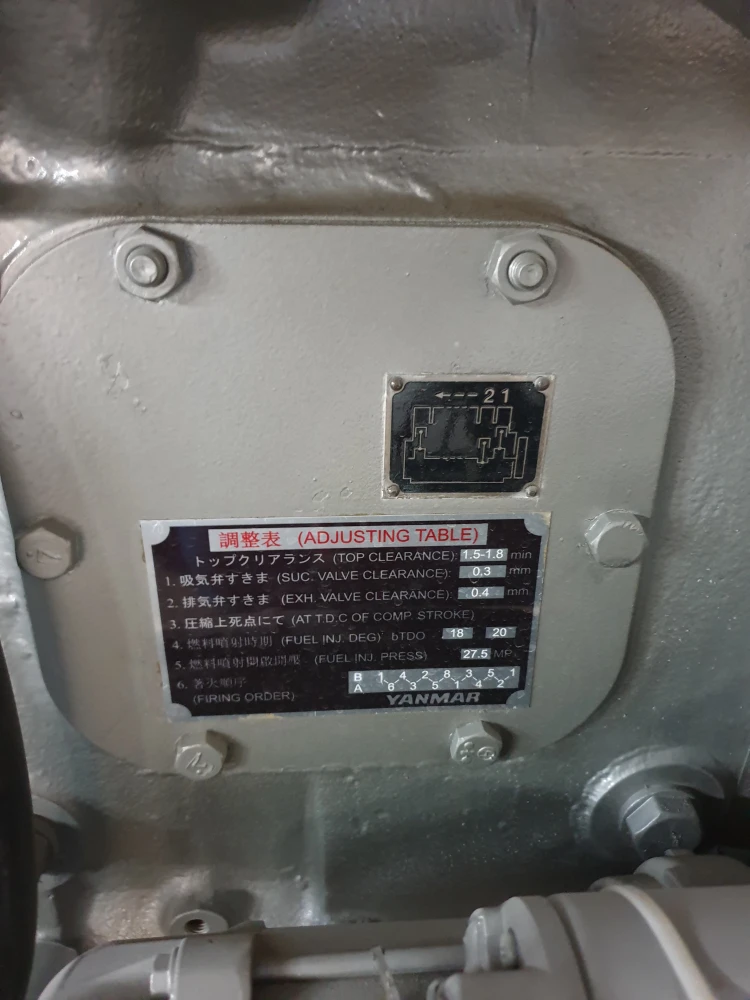

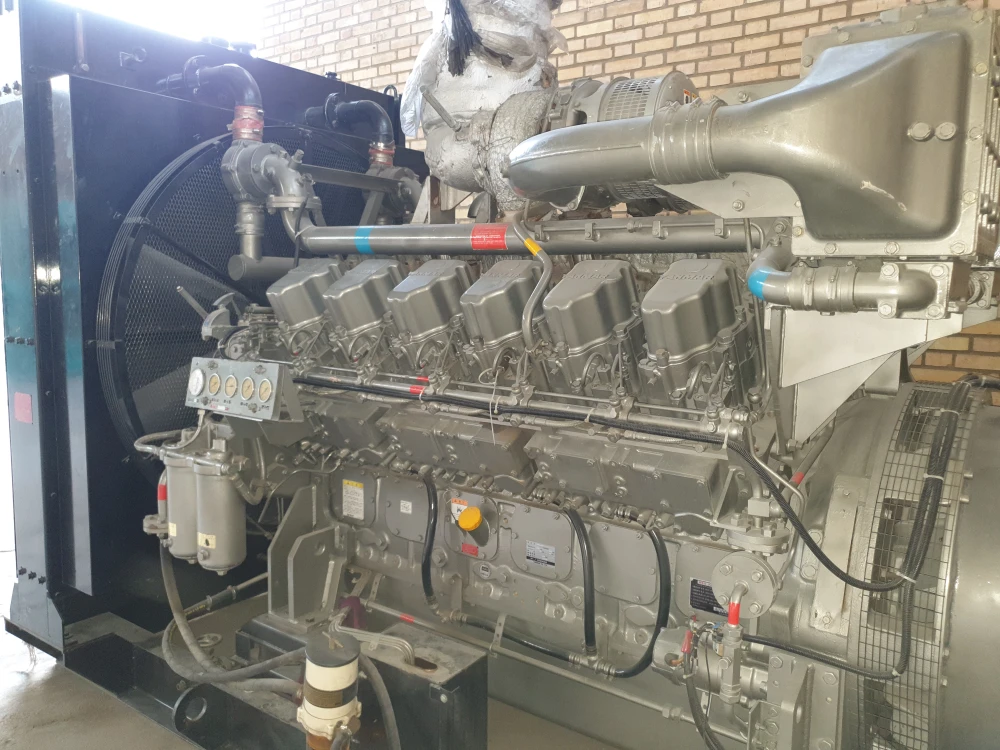

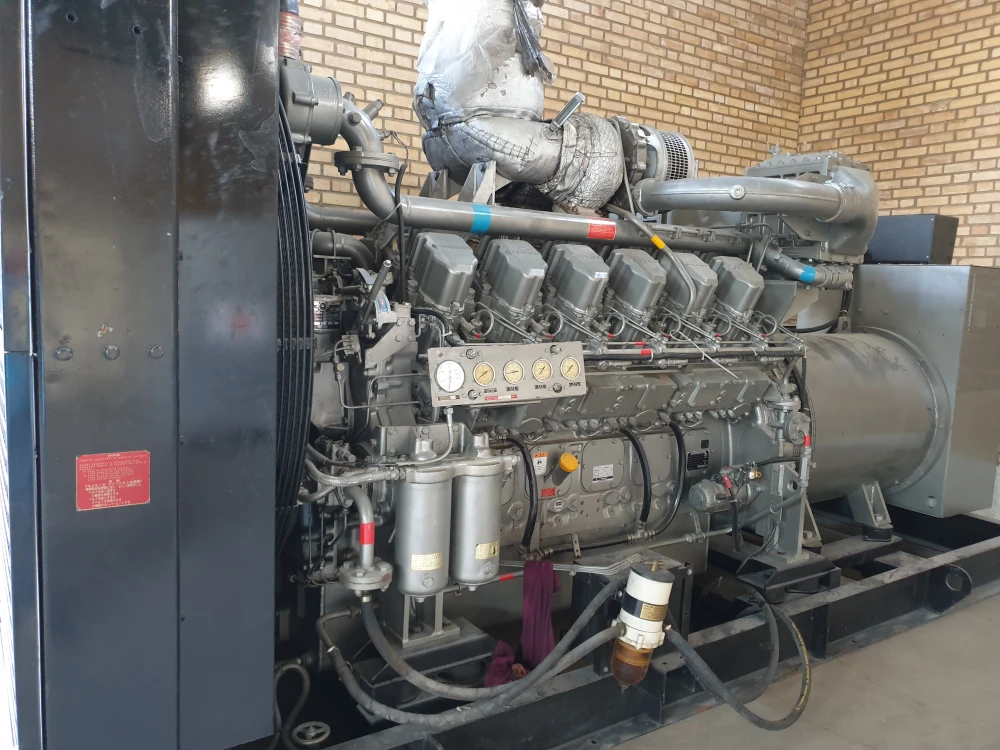

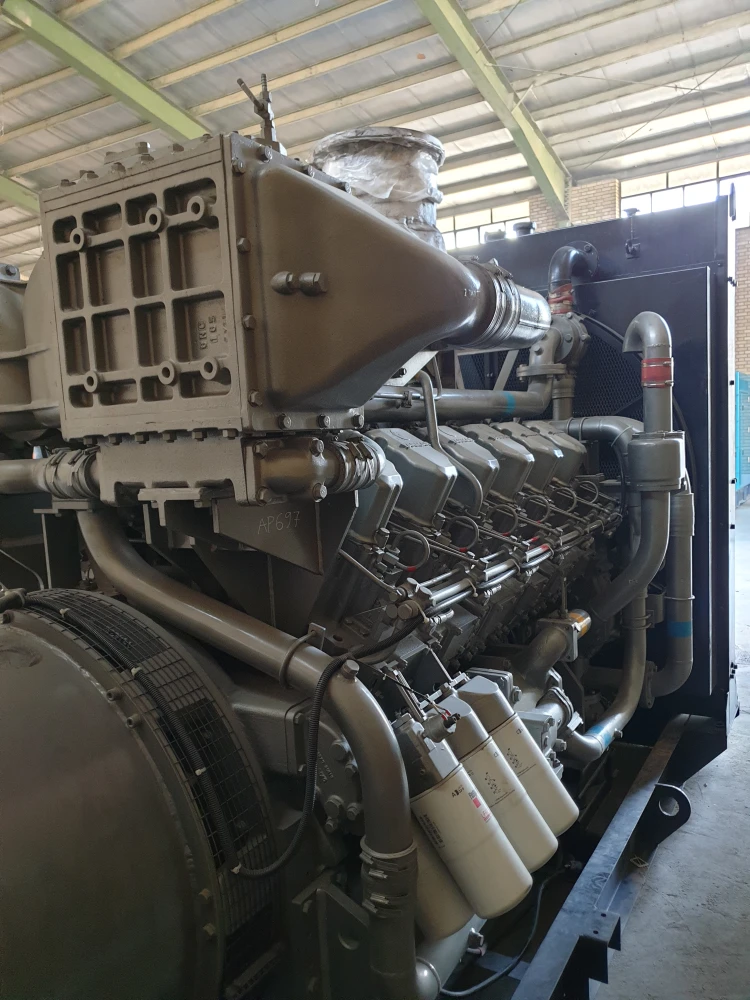

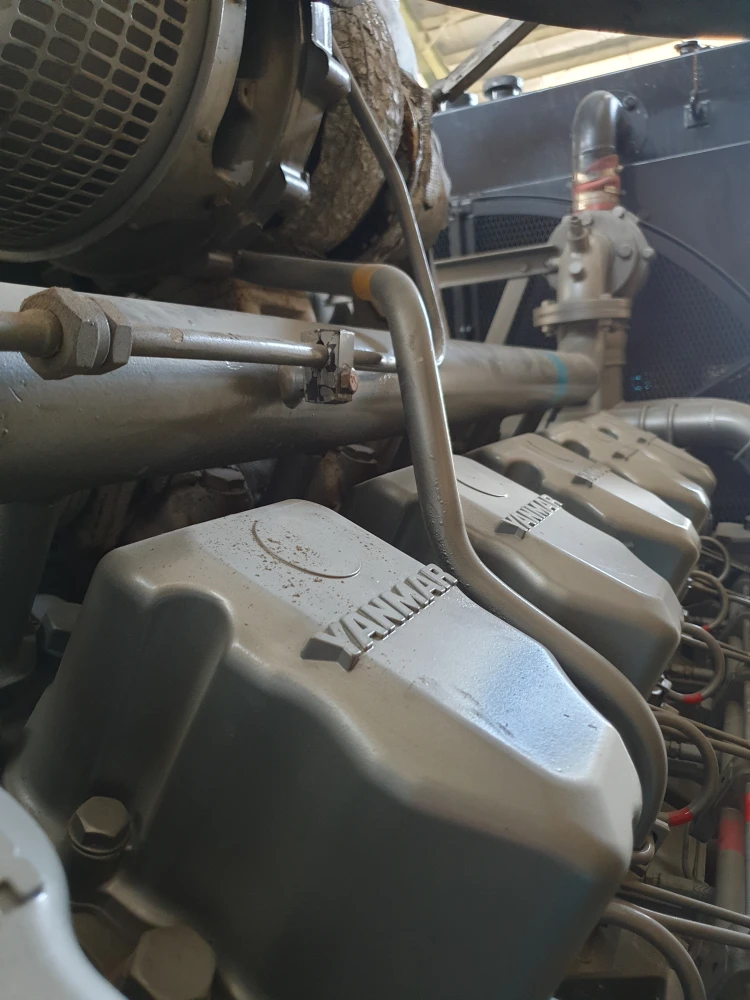

- Make and Model: Yanmar 12NHL-ETP
- Cylinders: V12
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 165 x 185
- Total Displacement (Litre): 47.46
- Fuel: Diesel
- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 170
- Coolant Capacity (Litre): 190
- Governor and Actuator Type: Electronic Governor, Electric Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 8,600
Alternator
- Make and Model: Marathon Electric 574ESL4036
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
