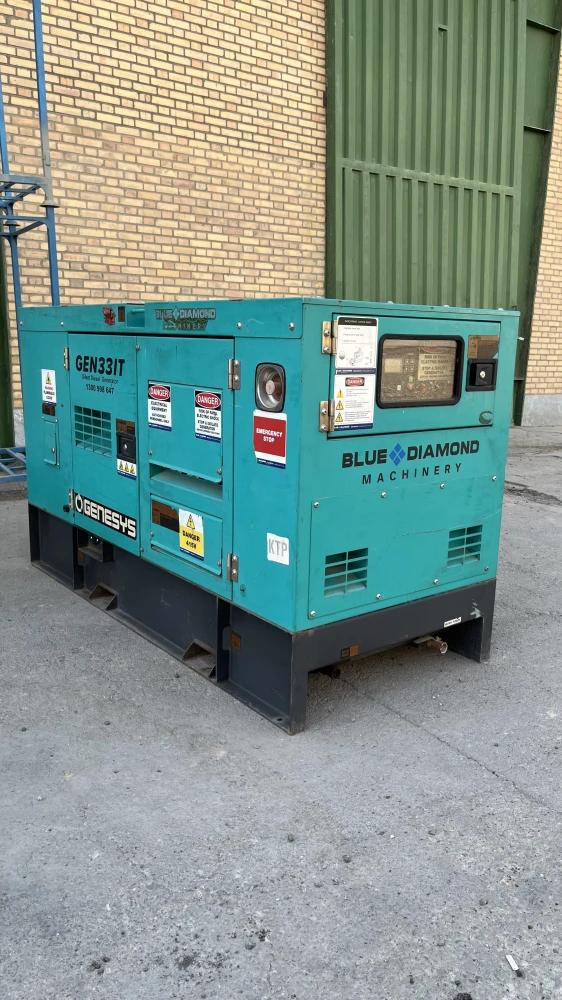

Blue Diamond GEN33IT | 33 kVA Silent Diesel Generator Powered by Isuzu
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Blue Diamond GEN33IT
- Standby Rating Output (50Hz): 33
- Prime Rating Output (50Hz): 30

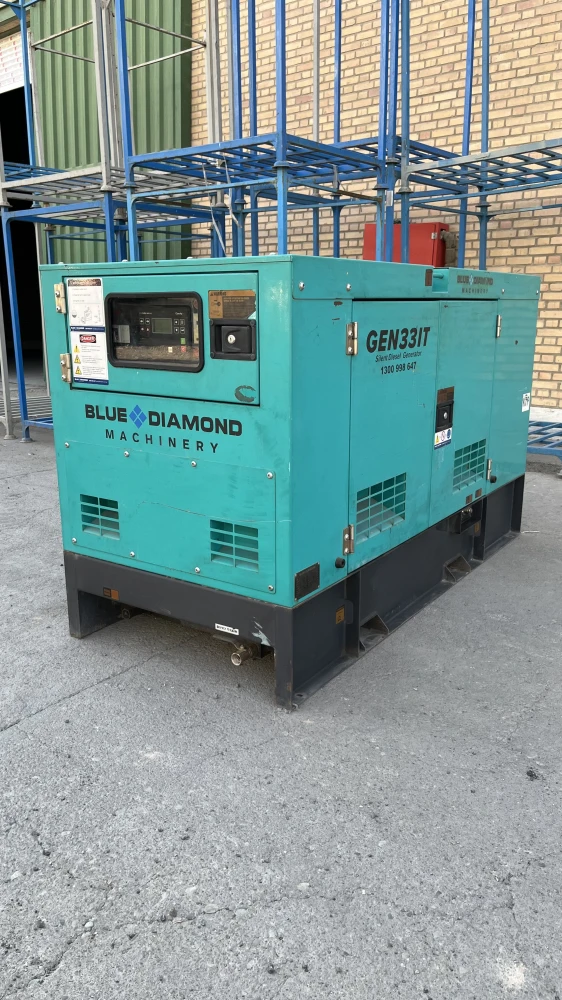

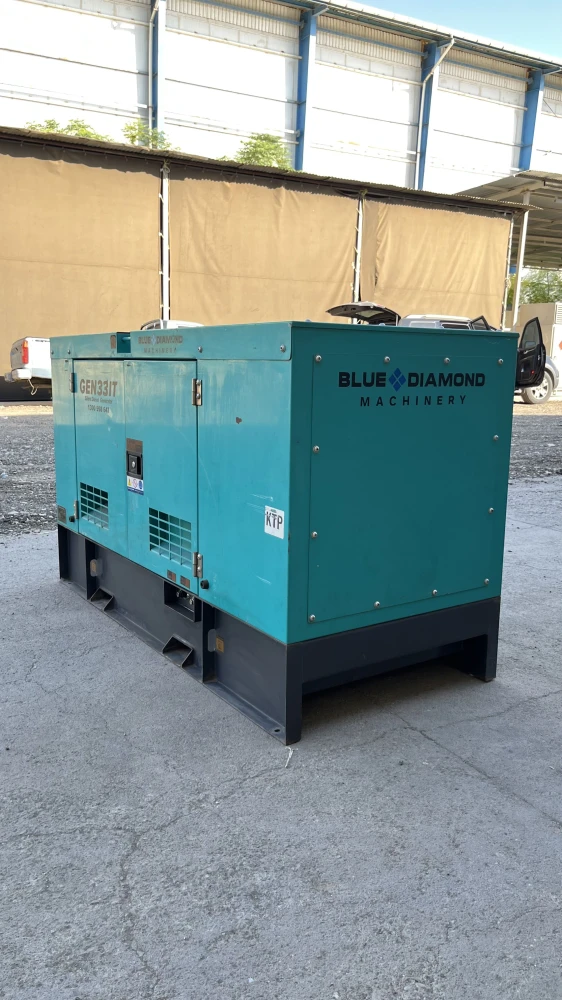

- Configuration (Open-set/Canopy): Silent Canopy Made by Blue Diamond
- Year of Manufacture: 2019
- Condition: Used
- Runtime (hours): 2,313

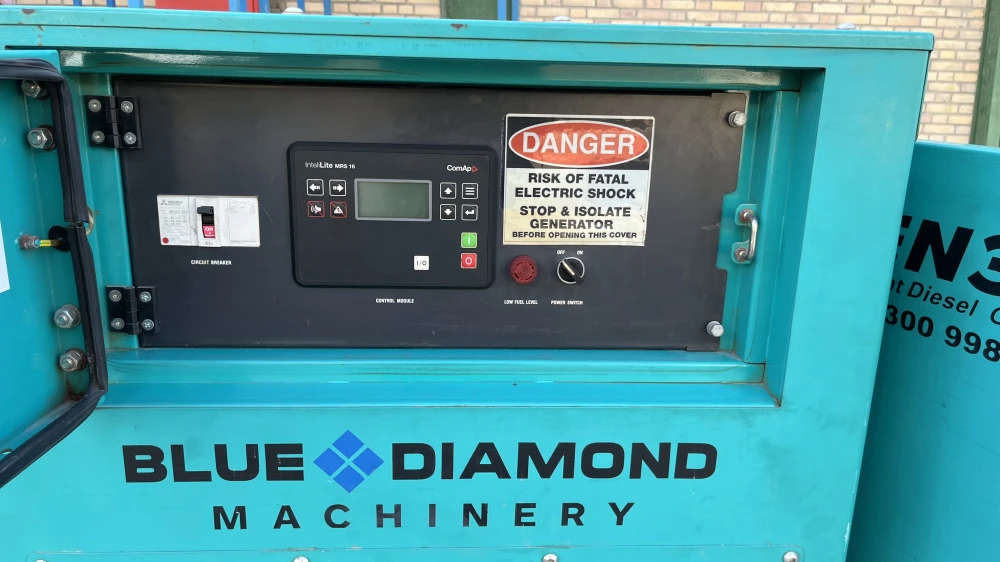

- Controller: ComAp InteliLite MRS 16
- Availability: In Stock – Warehouse 2

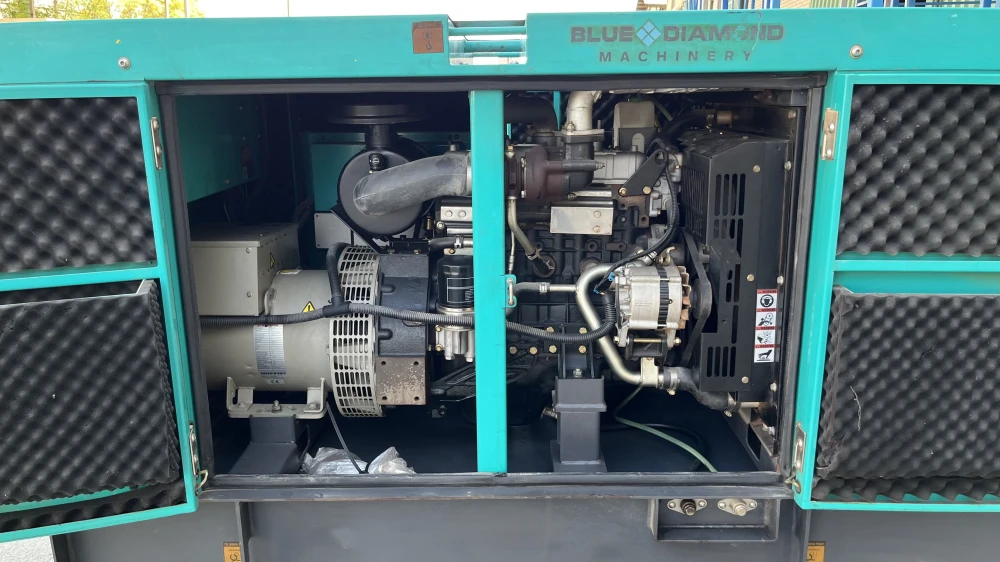

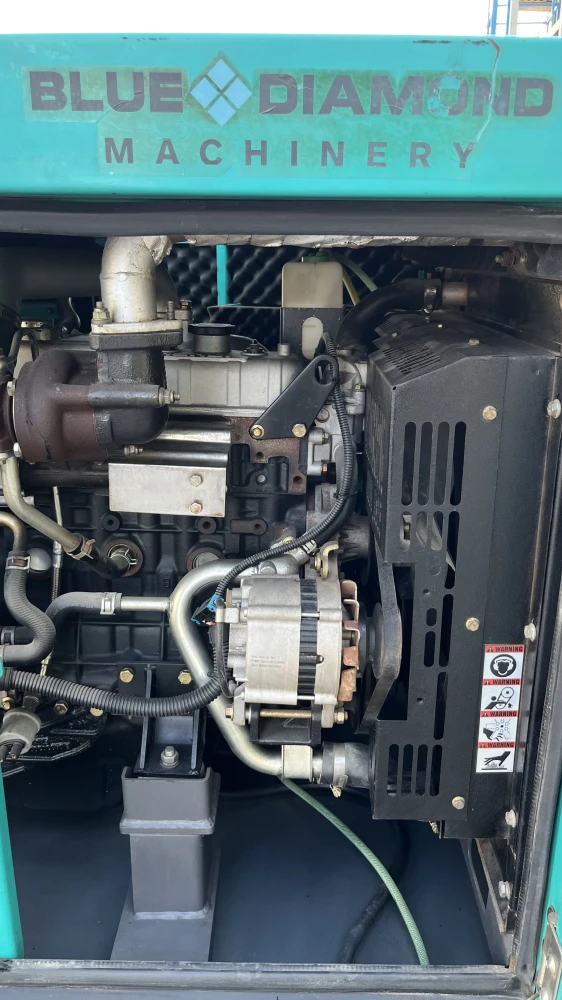

Engine

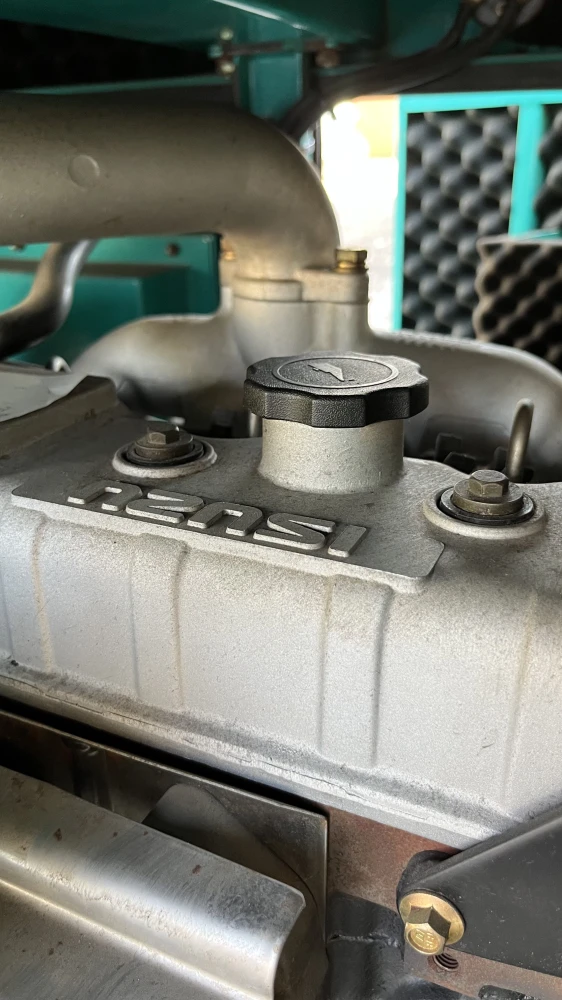

- Make and Model: Isuzu 4JB1T
- Cylinders: Inline-4
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 93 x 102
- Total Displacement (Litre): 2.77
- Fuel: Diesel

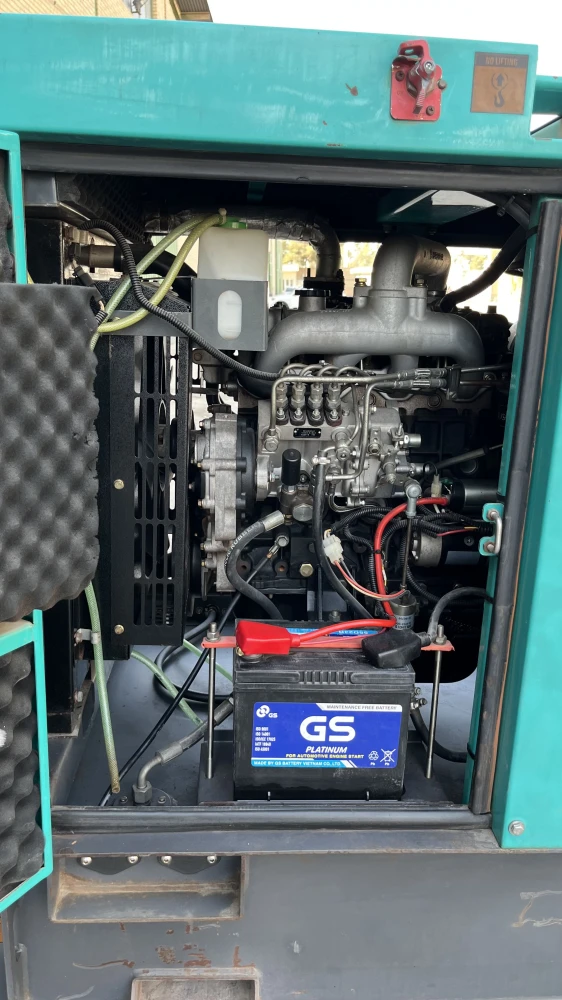

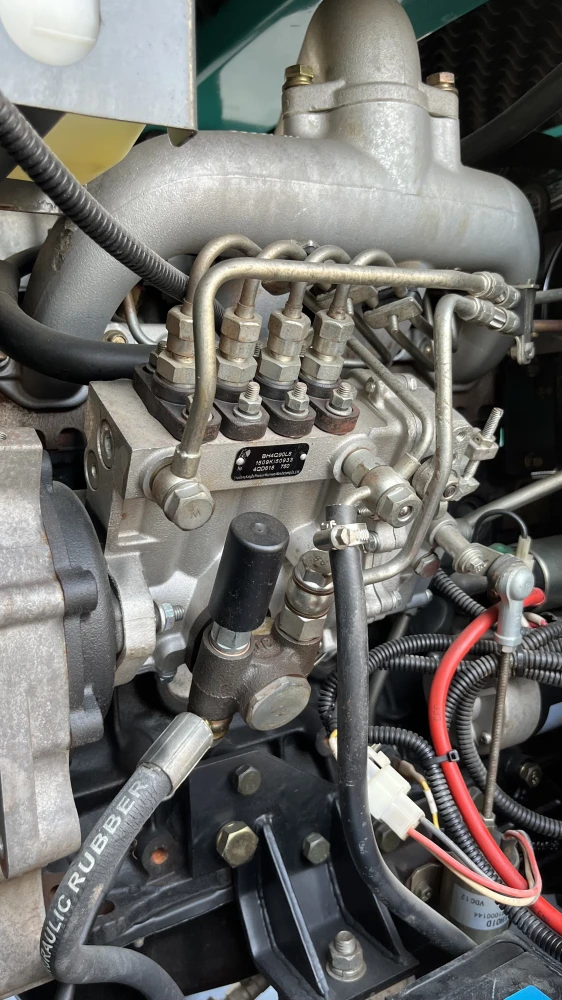

- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 9.5
- Coolant Capacity (Litre): 10
- Mounted Fuel Tank Capacity (Litre): 145
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Length (mm): 2,000
- Width (mm): 900
- Height (mm): 1,190
- Weight (kg): 1,100
Alternator
- Make and Model: Stamford S0L2-P1
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
