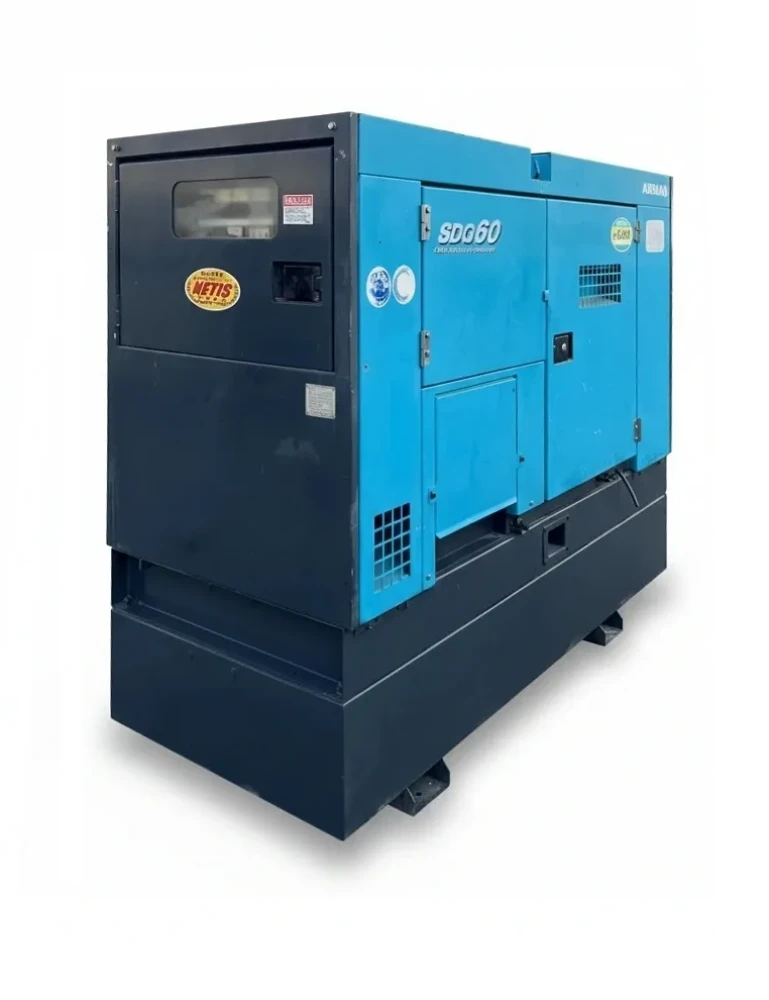

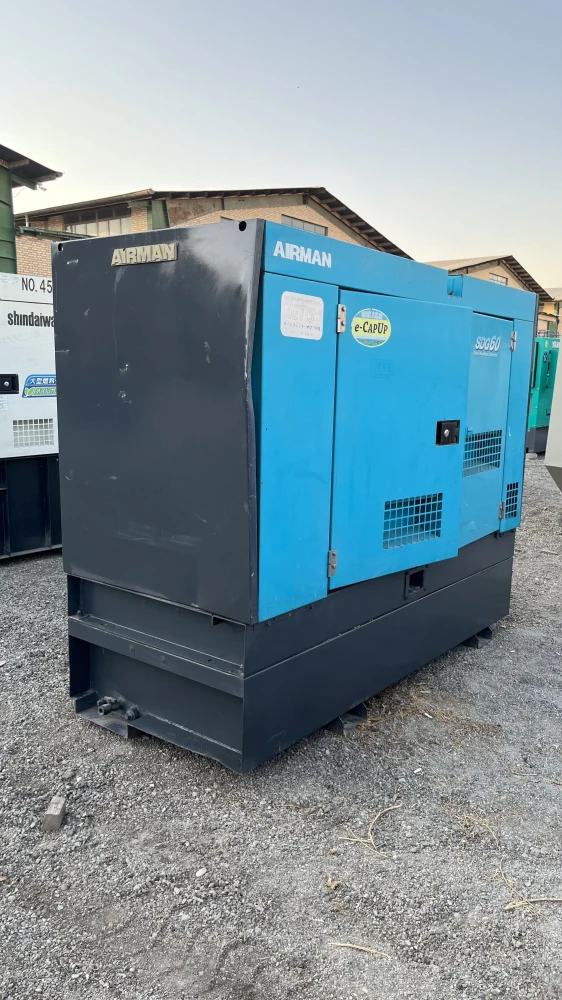

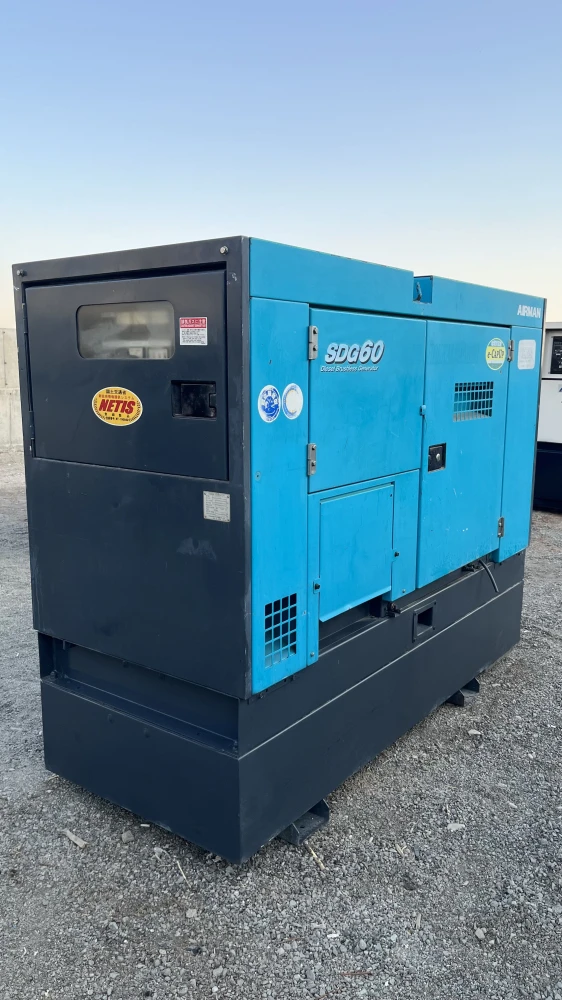

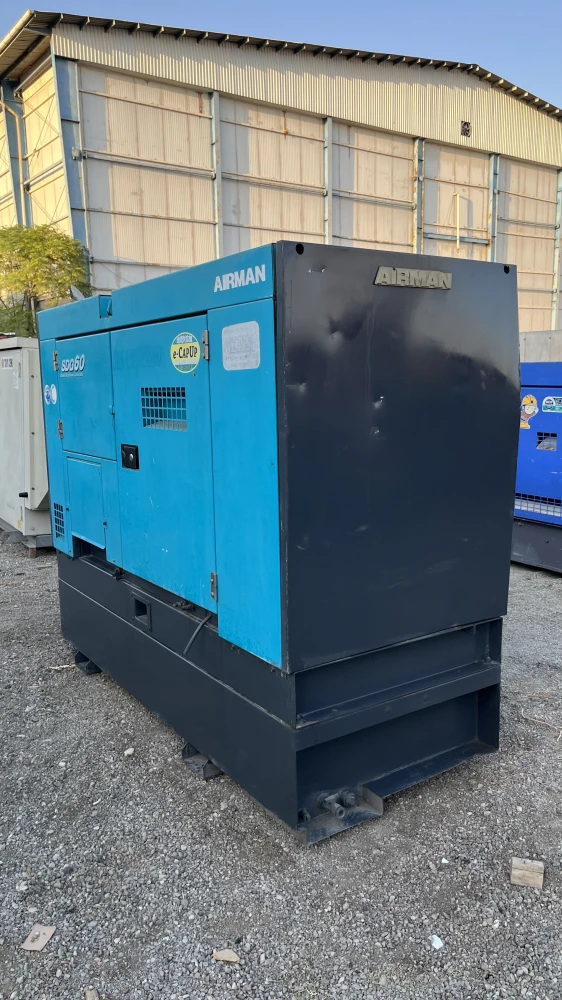

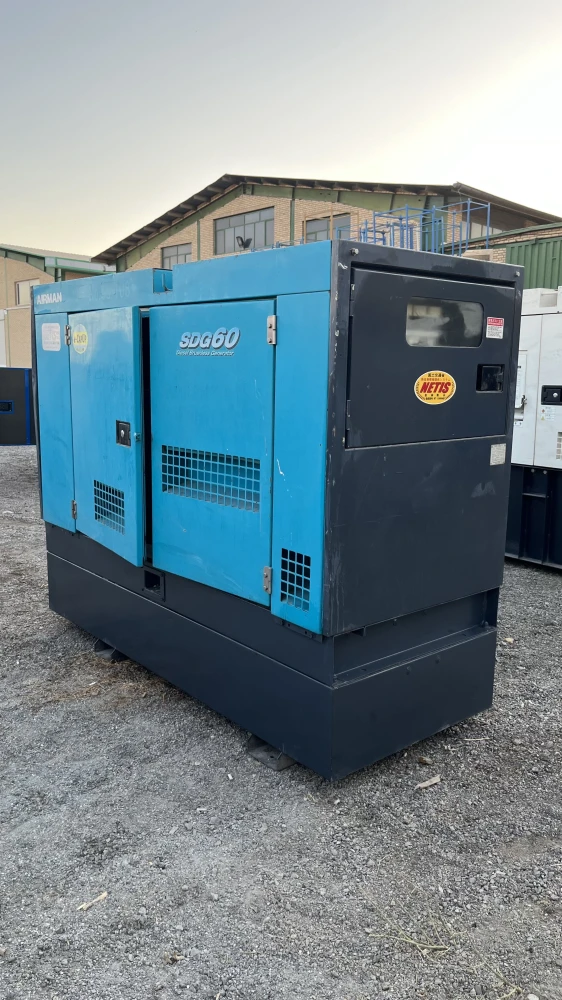

Airman SDG60S | 60 kVA Super Silent Diesel Generator Powered by Isuzu
Engine
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Airman SDG60S
- Standby Rating Output (60Hz): 66
- Prime Rating Output (60Hz): 60
- Standby Rating Output (50Hz): 55
- Prime Rating Output (50Hz): 50

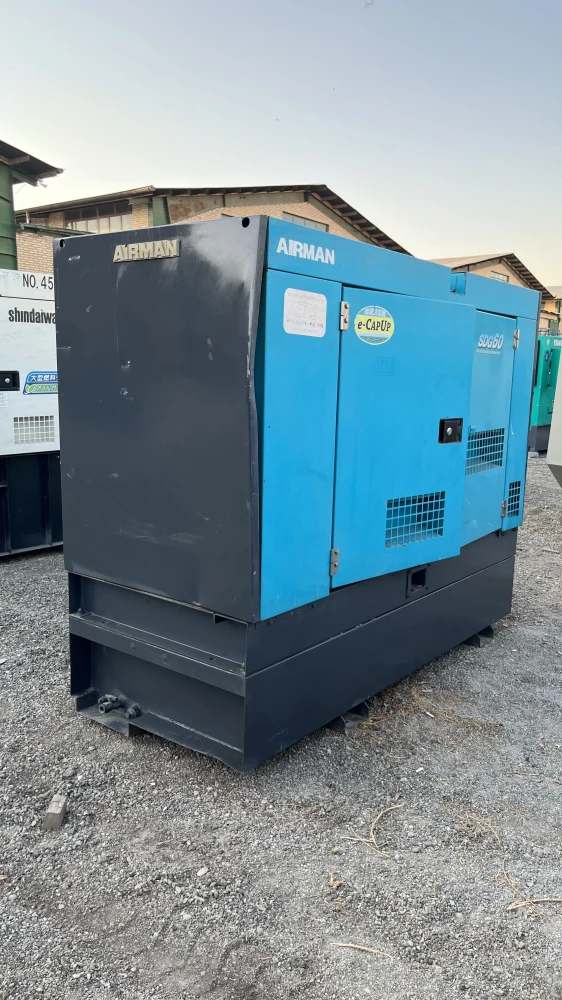

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Airman
- Condition: Used
- Runtime (hours): 18,162

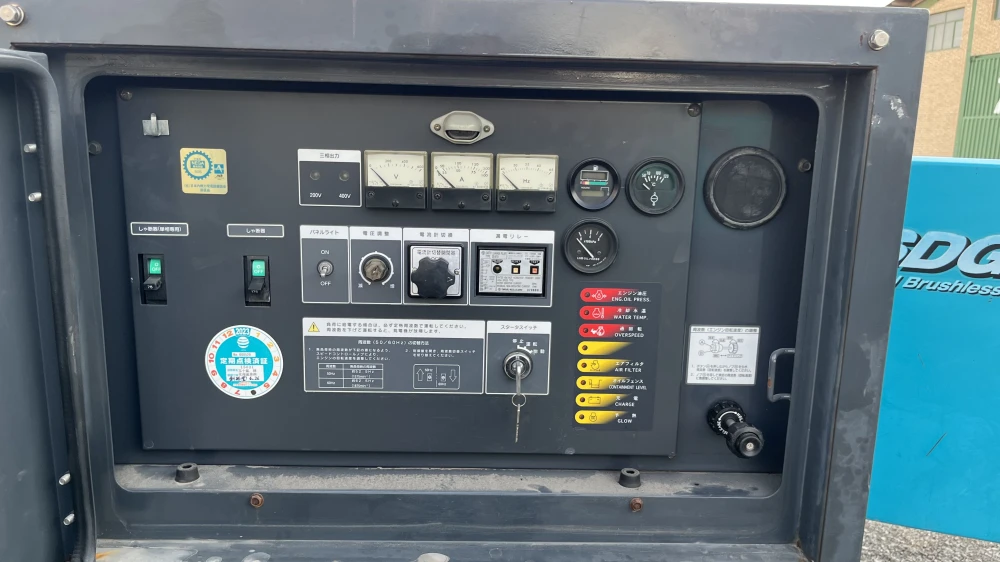

- Controller: Airman Exclusive Control Panel
- Availability: In Stock – Warehouse 2

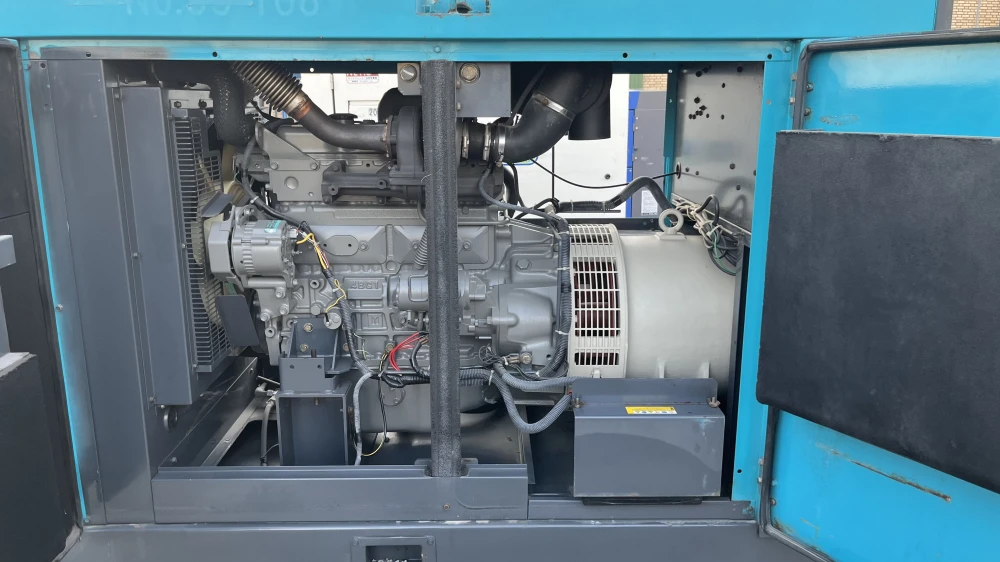

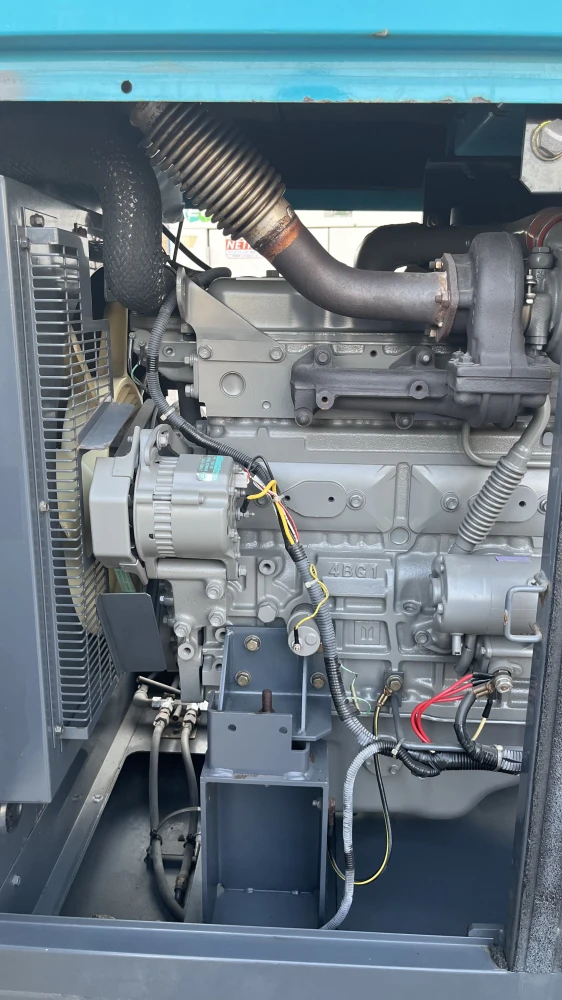

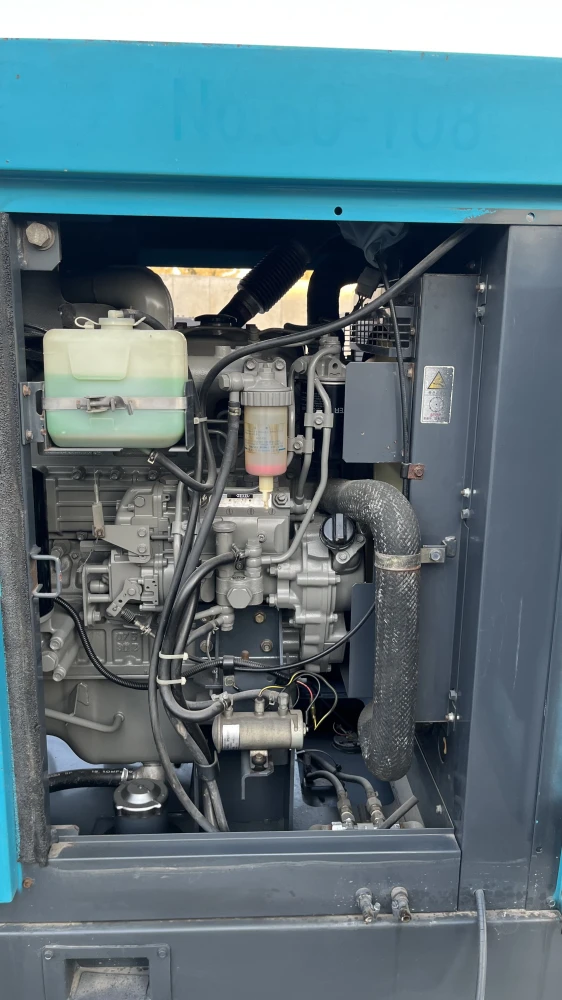

Engine
- Make and Model: Isuzu BB-4BG1TRD-01
- Cylinders: Inline-4

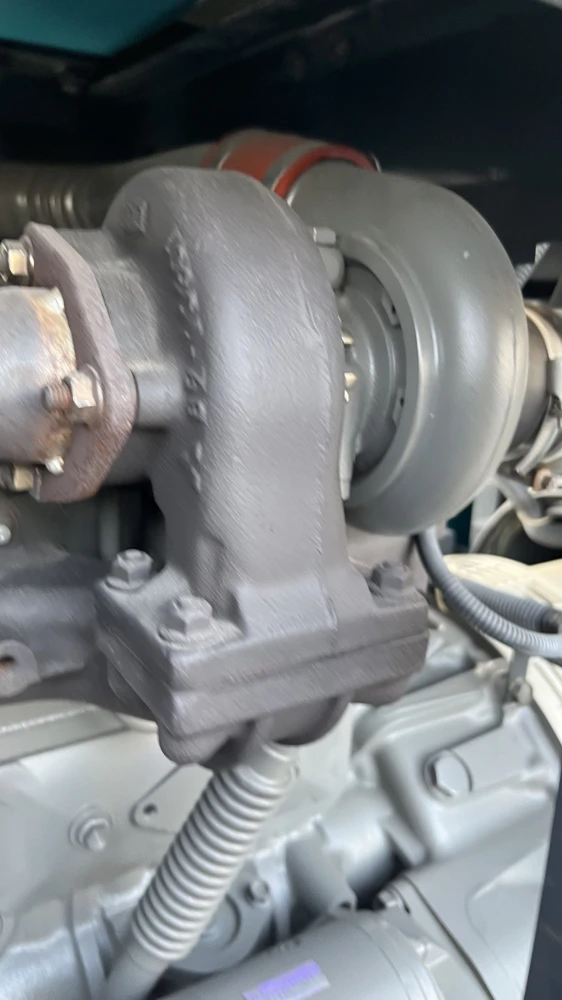

- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 105 x 125
- Total Displacement (Litre): 4.32
- Fuel: Diesel
- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 14
- Coolant Capacity (Litre): 15
- Mounted Fuel Tank Capacity (Litre): 420
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 1,640

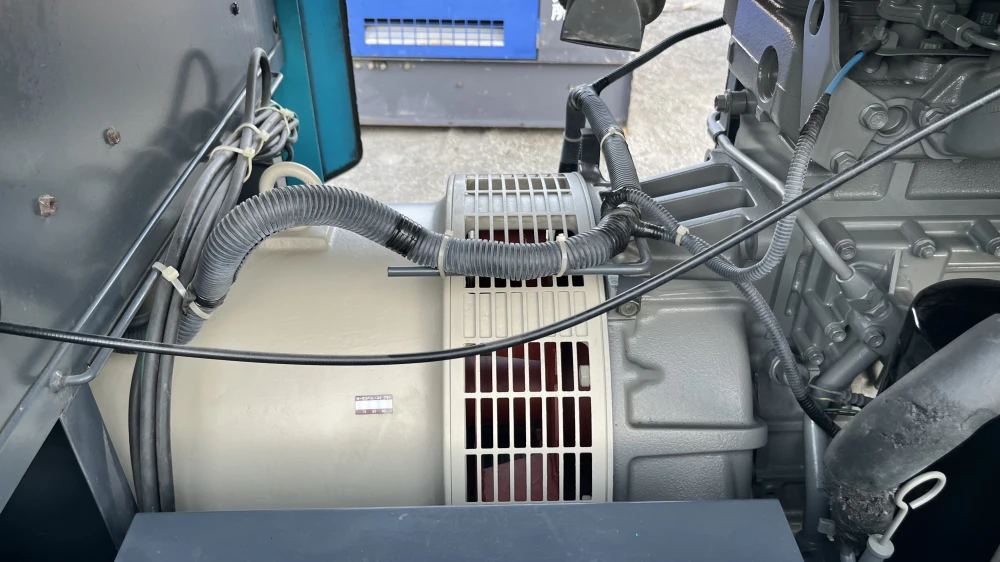

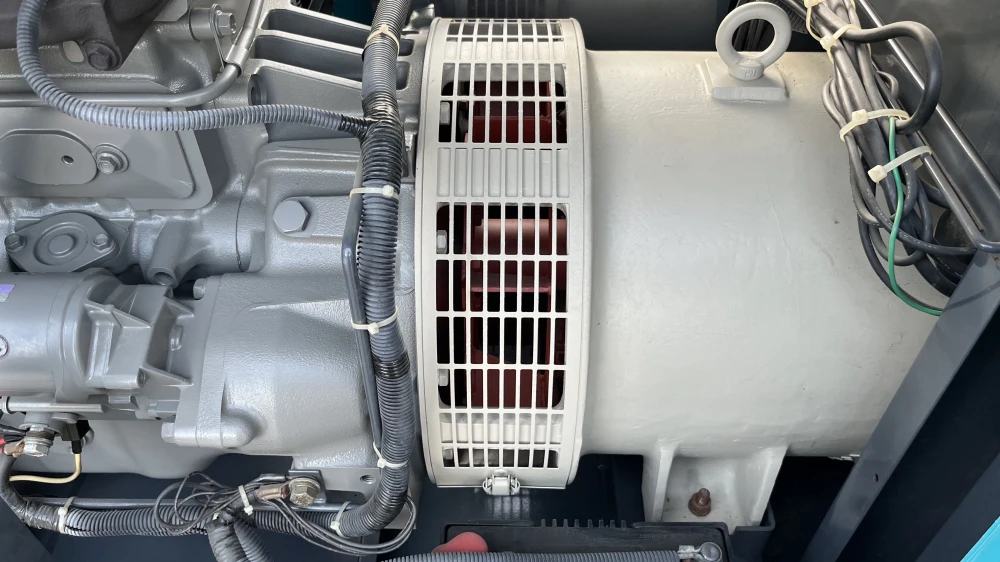

Alternator
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class F
