Denyo DCA-75I-S | 75 kVA Super Silent Diesel Generator Powered by Isuzu
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Denyo DCA-75I-S
- Standby Rating Output (60Hz): 79
- Prime Rating Output (60Hz): 75
- Standby Rating Output (50Hz): 69
- Prime Rating Output (50Hz): 65

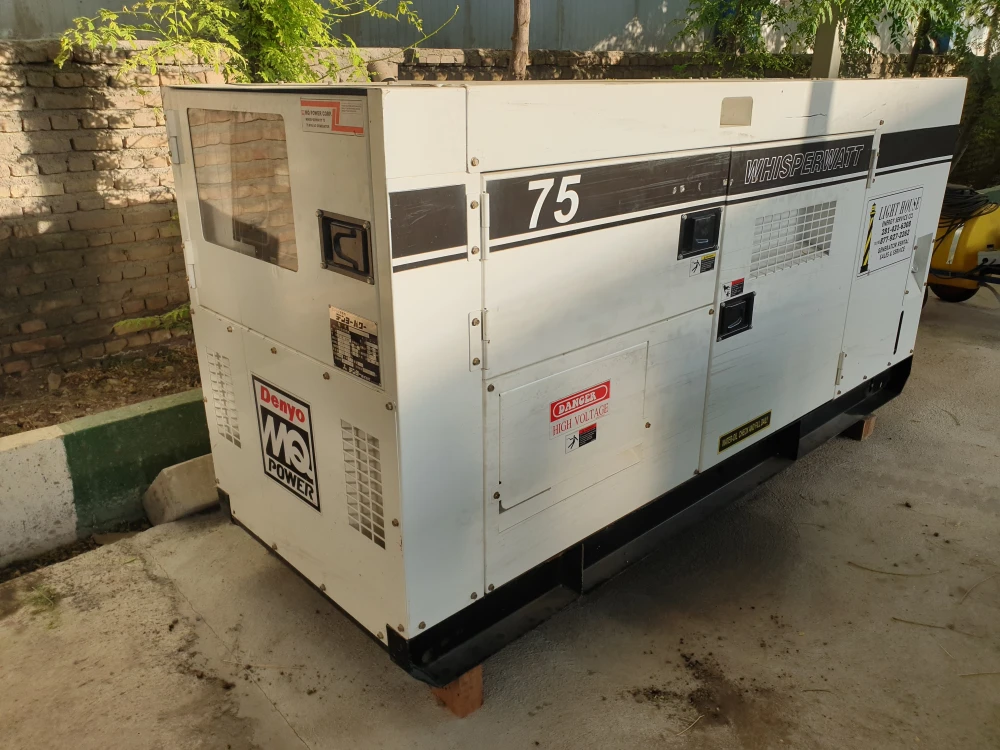

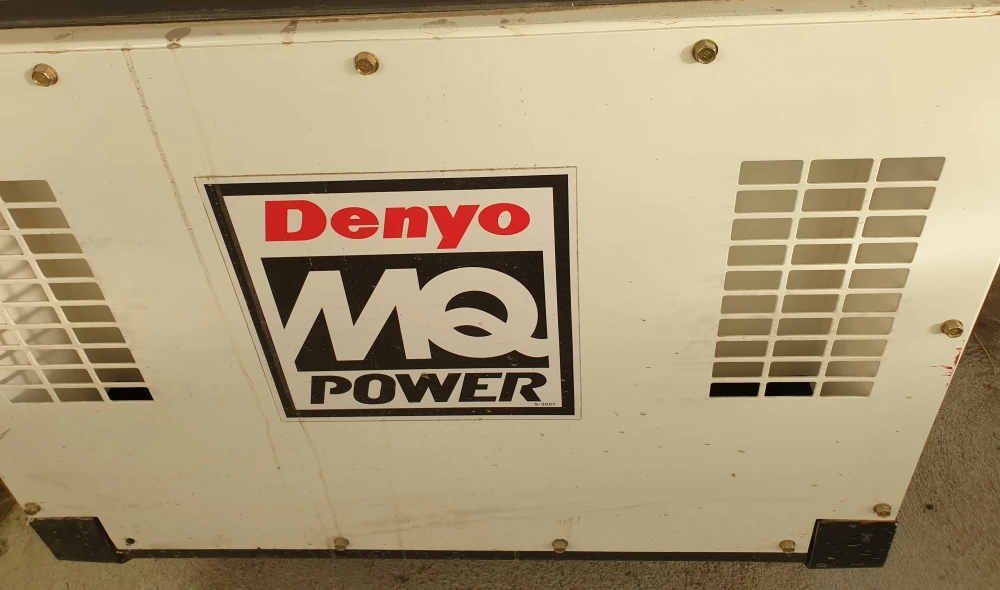

- Configuration (Open-set/Canopy): Super Silent Canopy Made by MQ Power
- Condition: Used

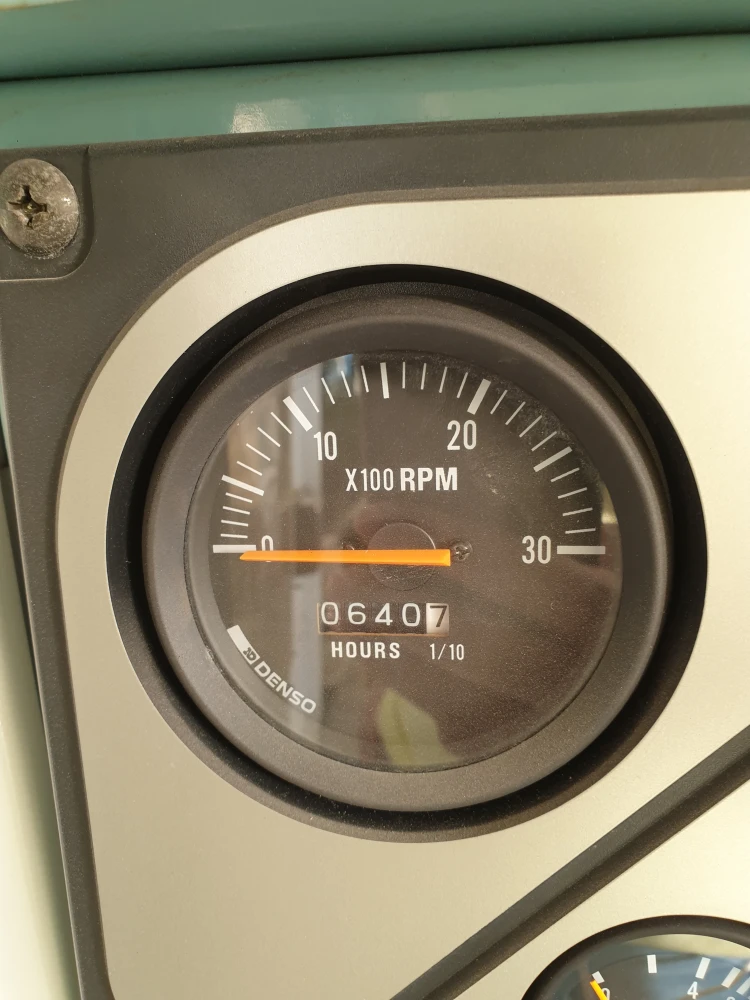

- Runtime (hours): 640

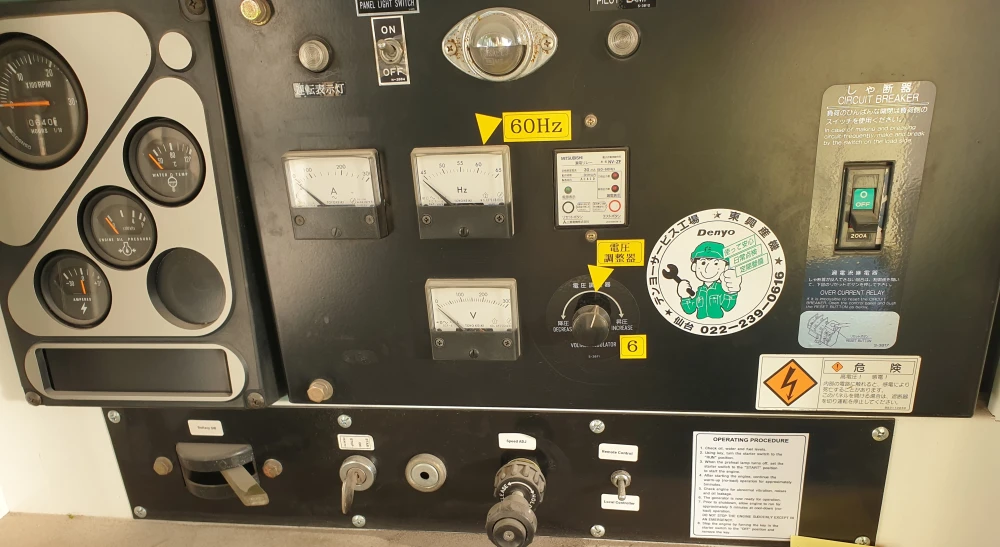

- Controller: Denyo Exclusive Control Panel
- Availability: In Stock – Warehouse 2

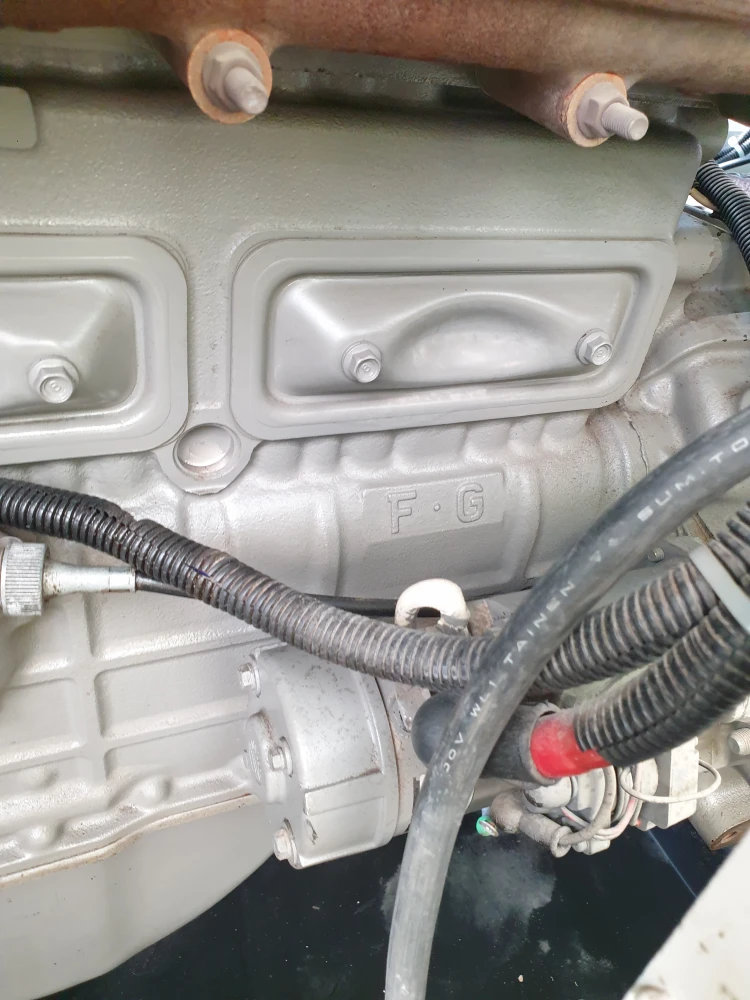

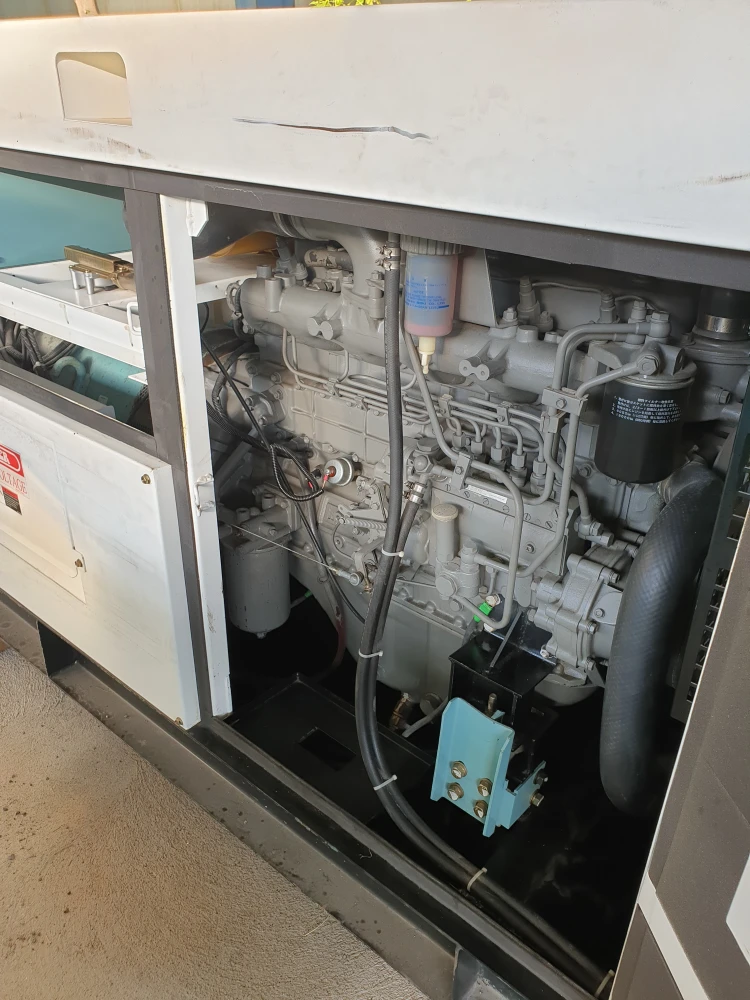

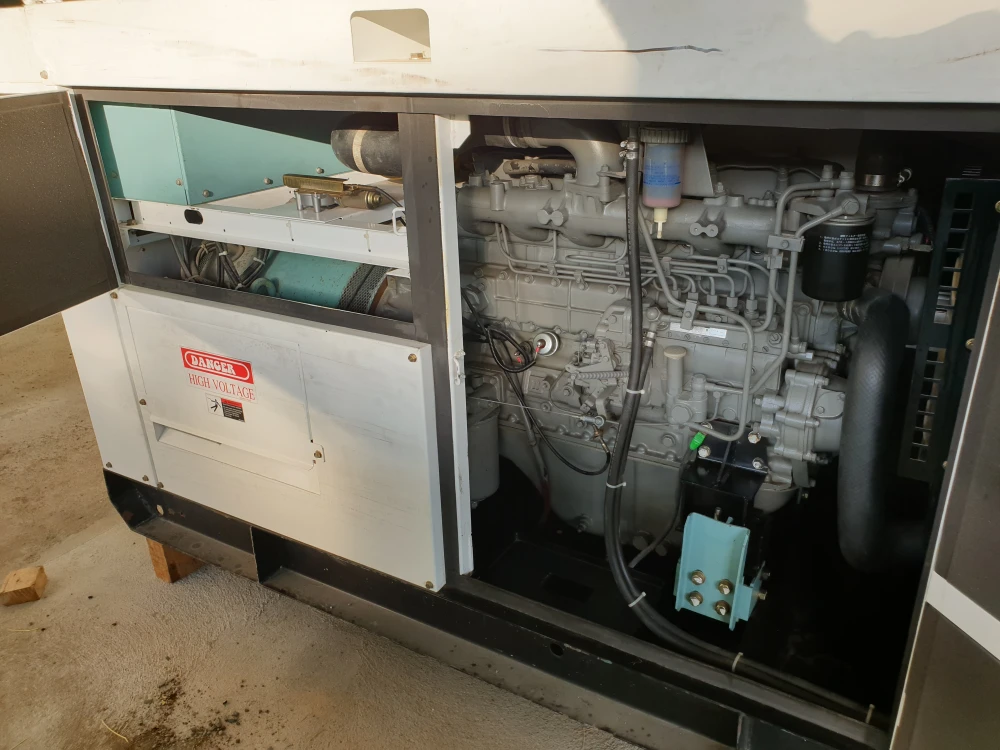

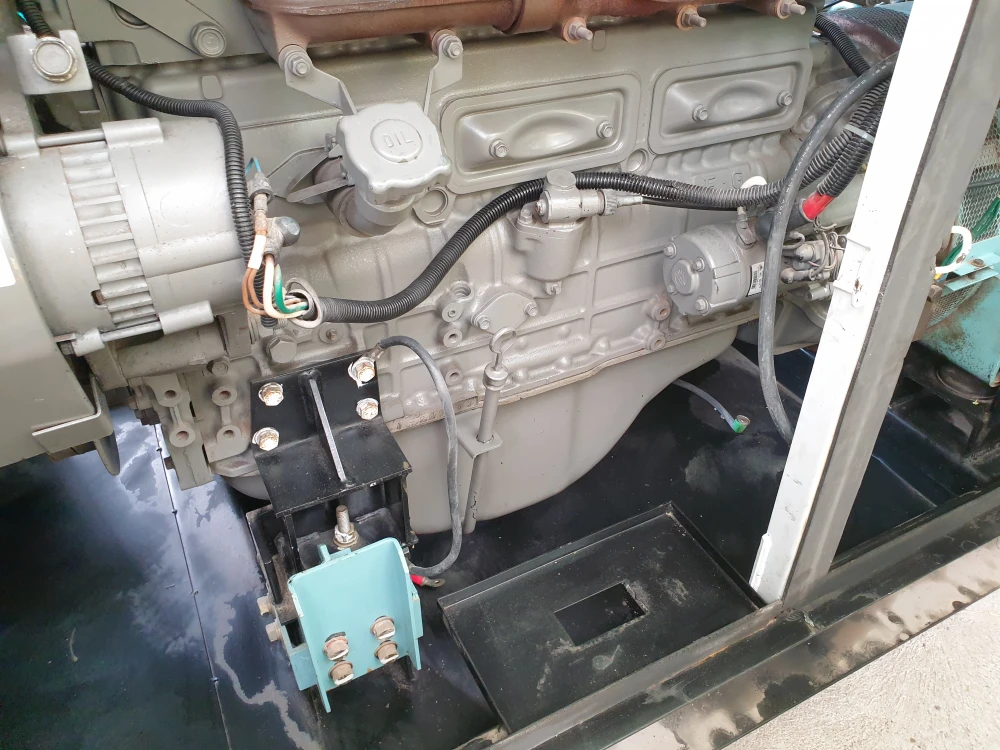

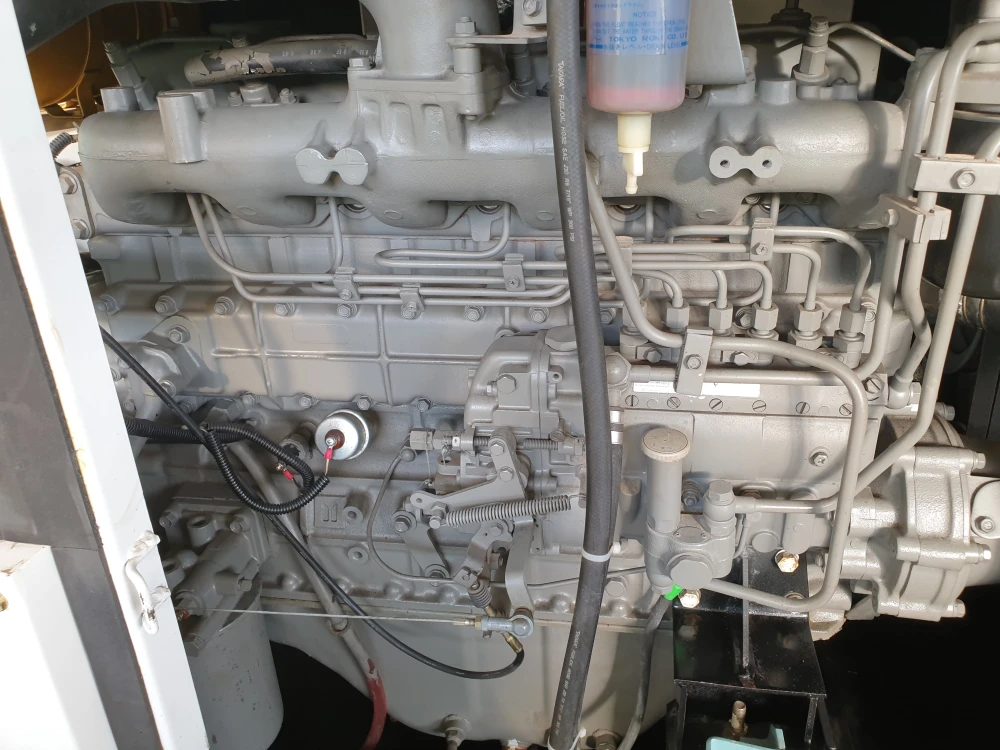

Engine

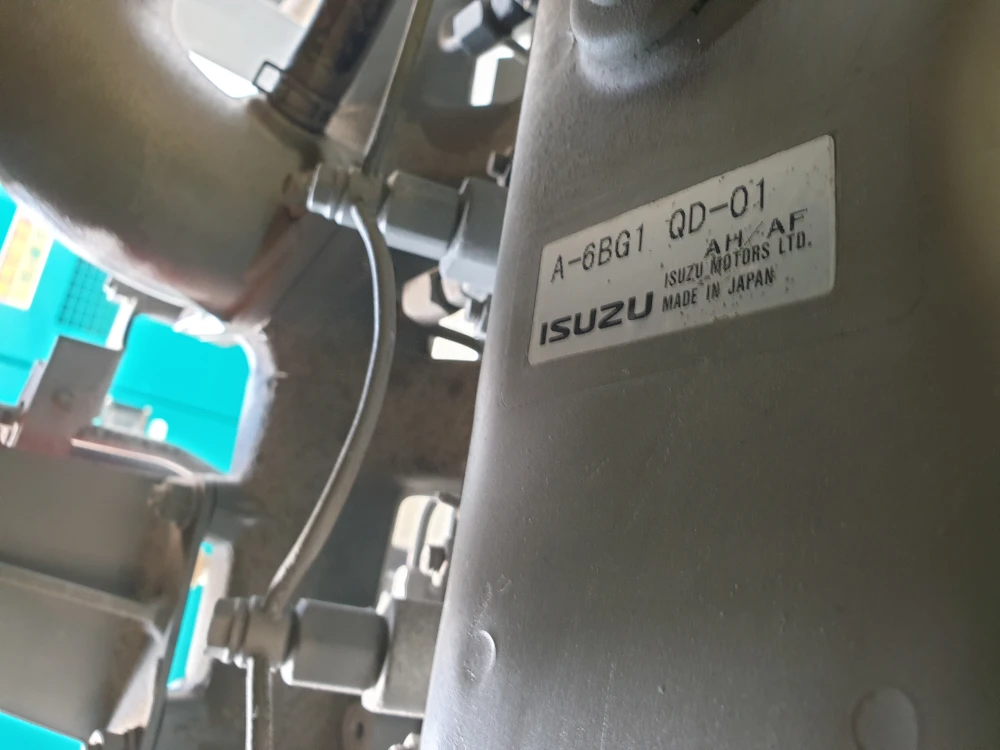

- Make and Model: Isuzu A-6BG1
- Cylinders: Inline-6
- Aspiration: Naturally Aspirated
- Bore x Stroke (mm): 105 x 125
- Total Displacement (Litre): 6.49
- Fuel: Diesel
- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 19.3
- Coolant Capacity (Litre): 23
- Mounted Fuel Tank Capacity (Litre): 155
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 1,100
Alternator
- Make and Model: Denyo DB-0831I
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
