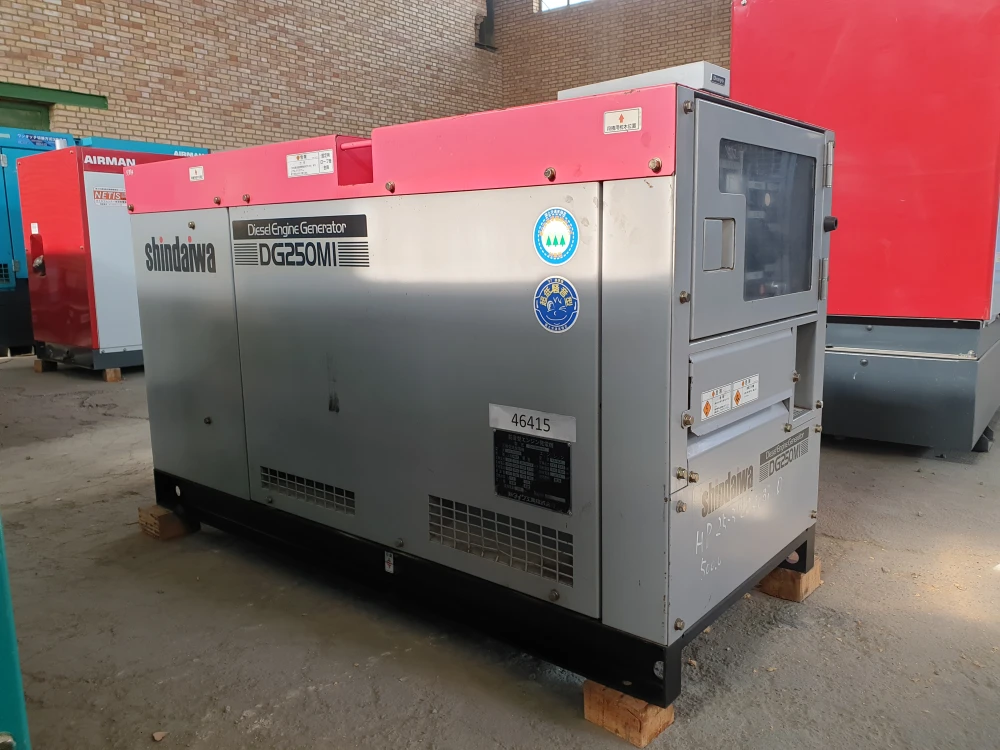

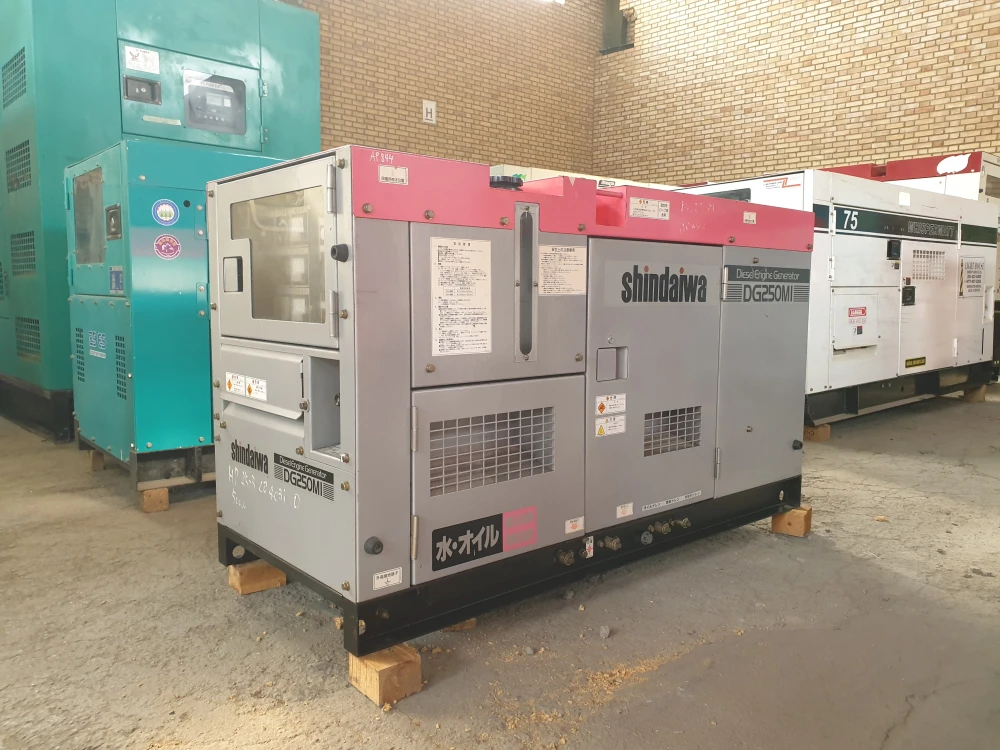

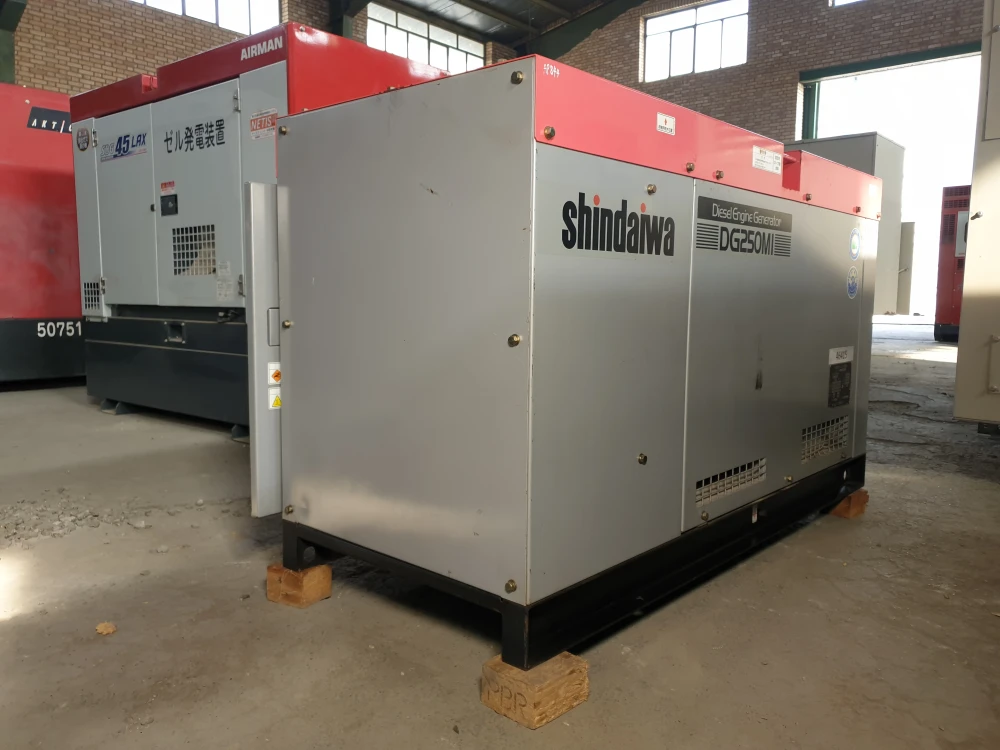

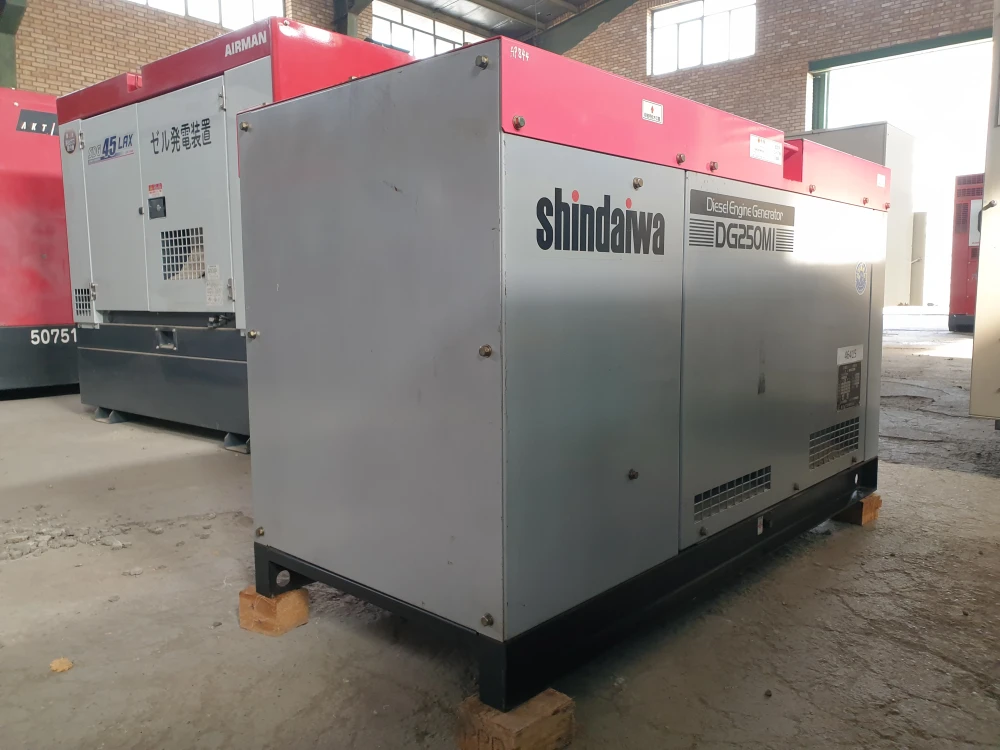

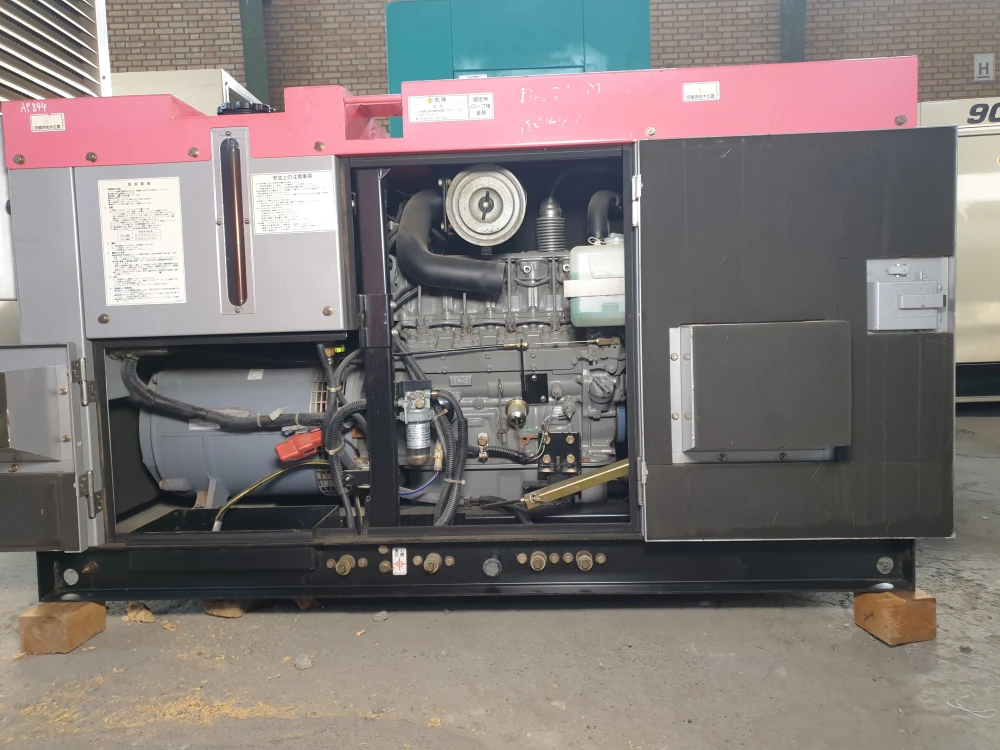

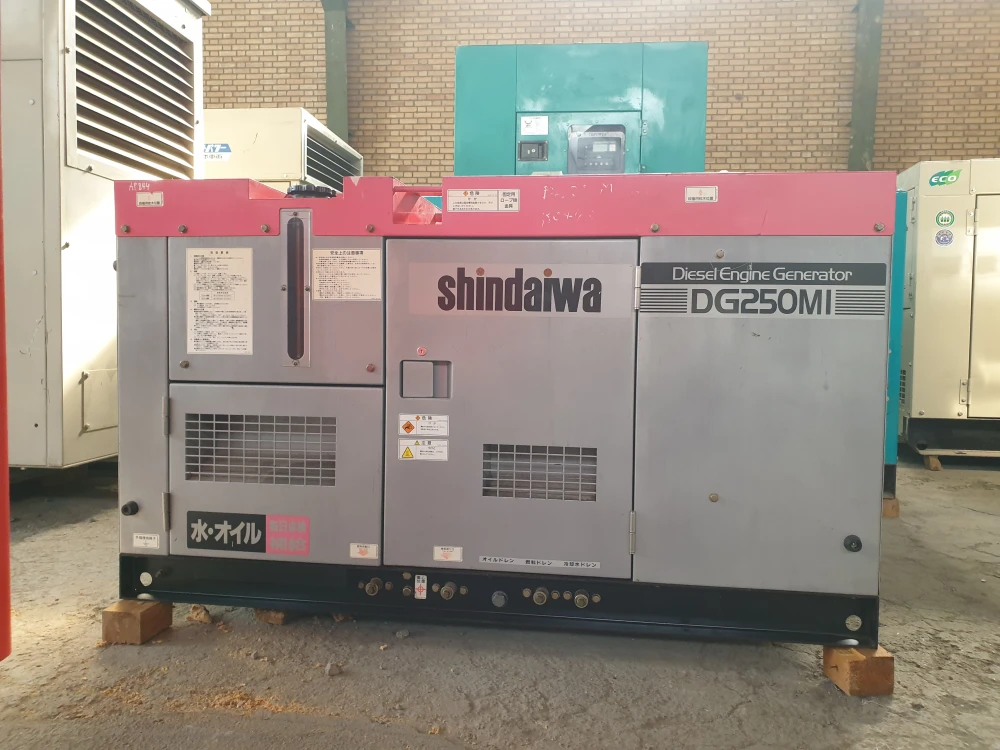

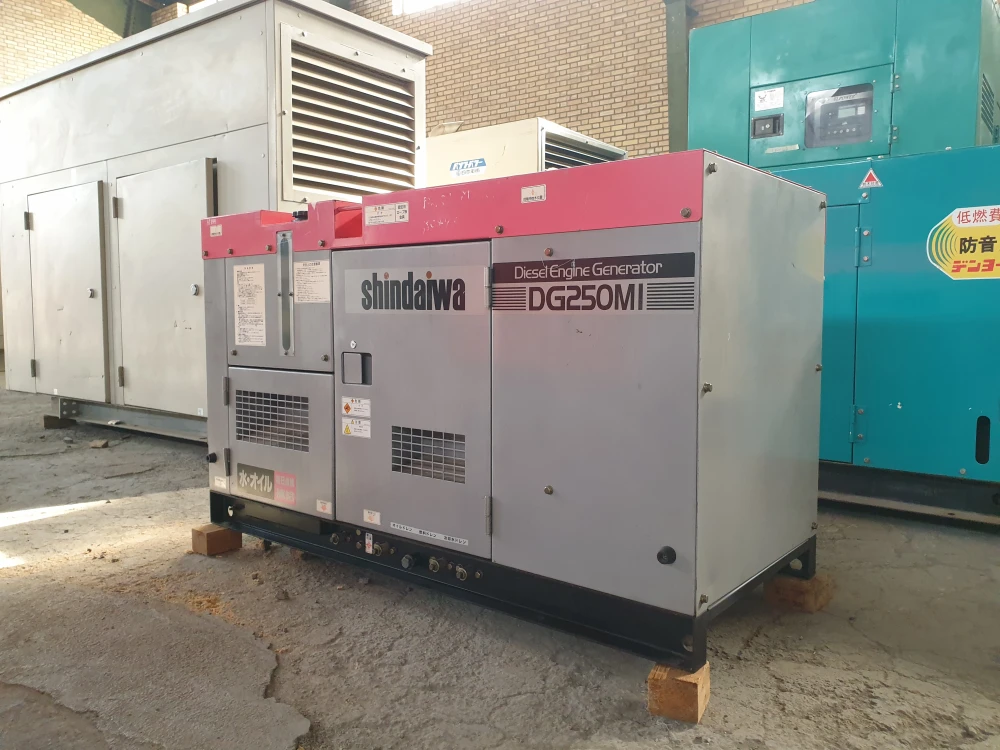

Shindaiwa DG250MI-Q1 | 25 kVA Super Silent Diesel Generator Powered by Isuzu
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Shindaiwa DG250MI-Q1
- Standby Rating Output (60Hz): 28
- Prime Rating Output (60Hz): 25
- Standby Rating Output (50Hz): 22
- Prime Rating Output (50Hz): 20

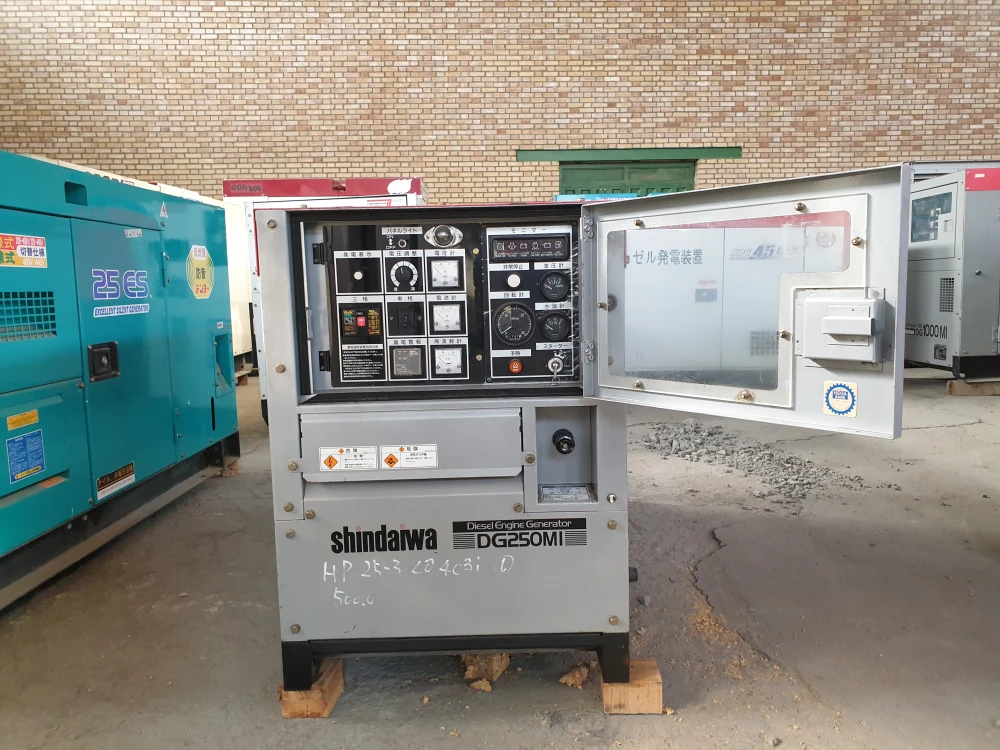

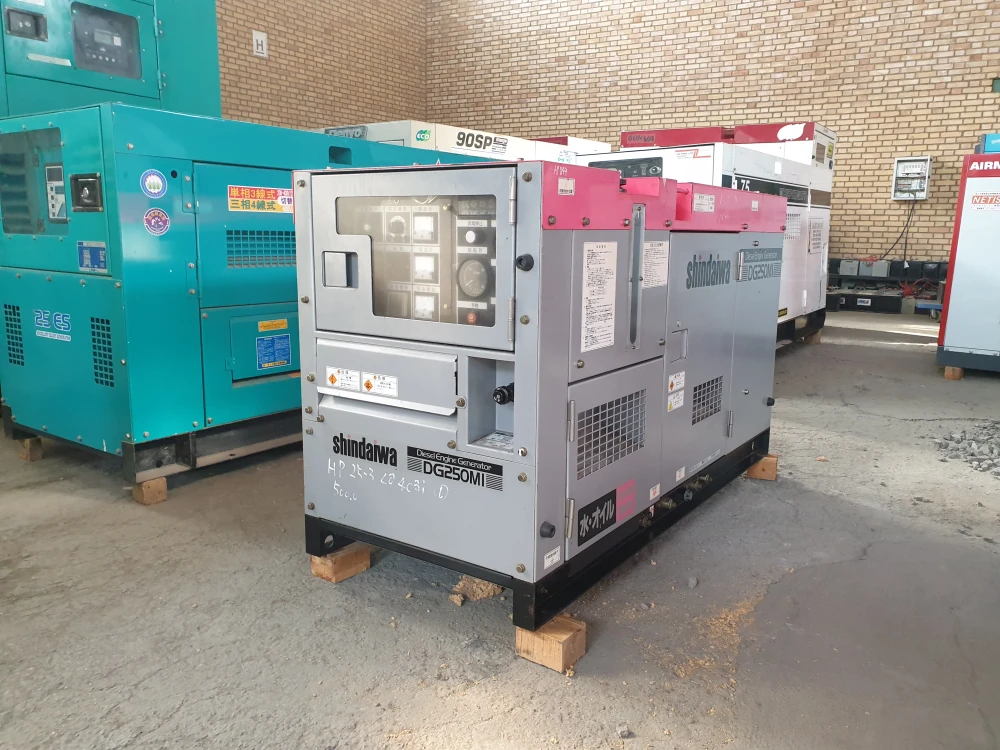

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Shindaiwa
- Condition: Used

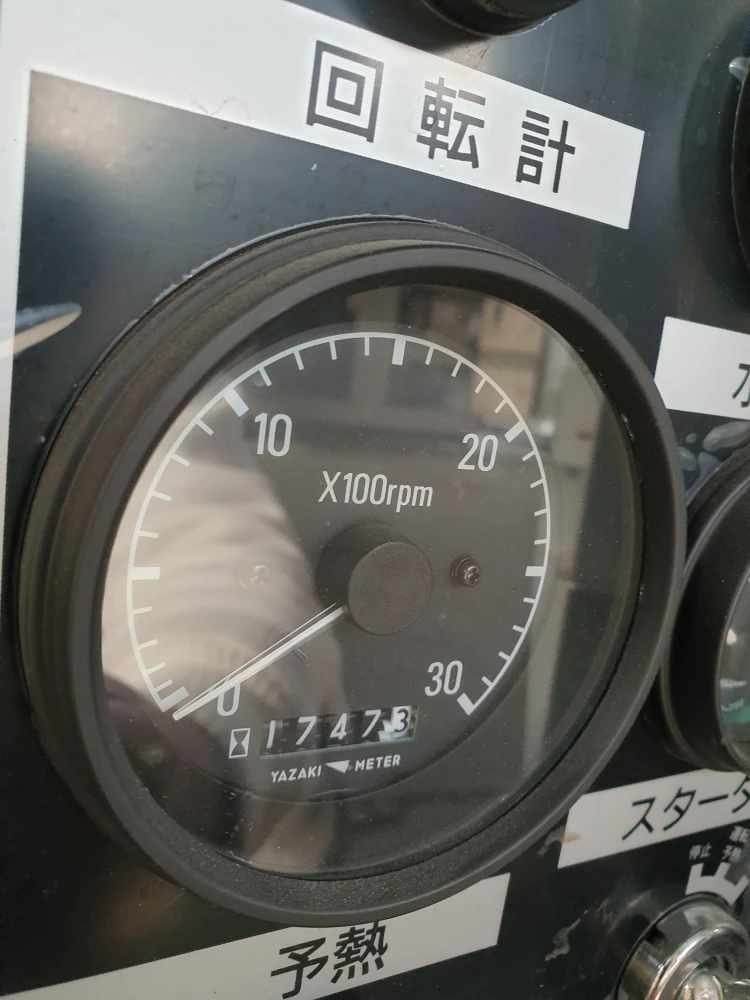

- Runtime (hours): 1,747

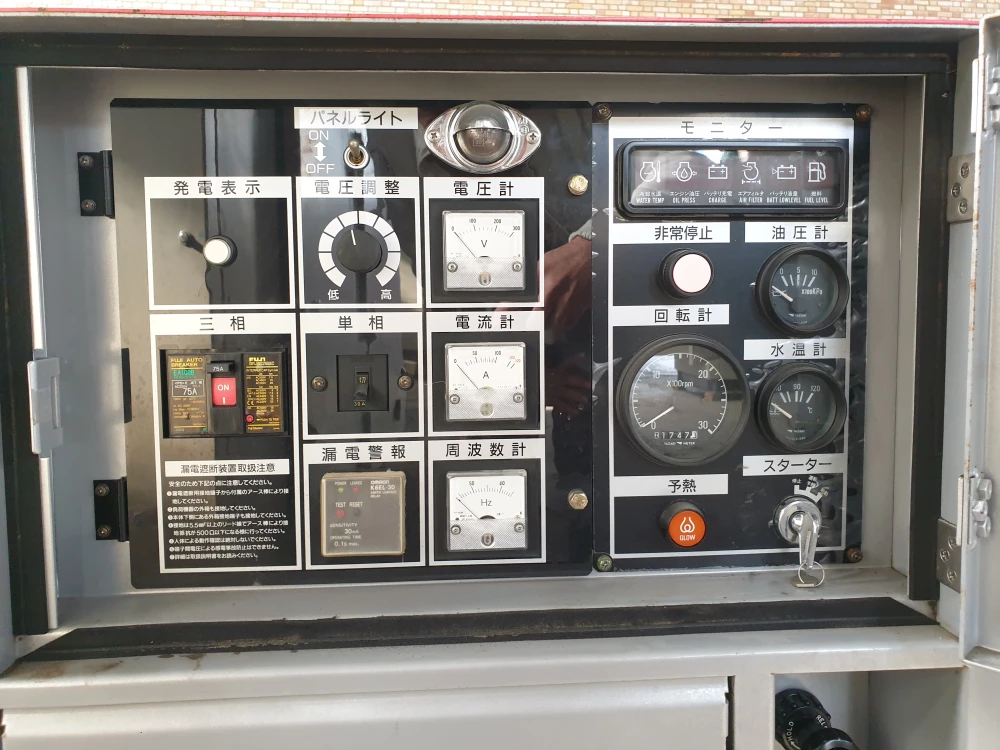

- Controller: Shindaiwa Exclusive Control Panel
- Availability: In Stock – Warehouse 2

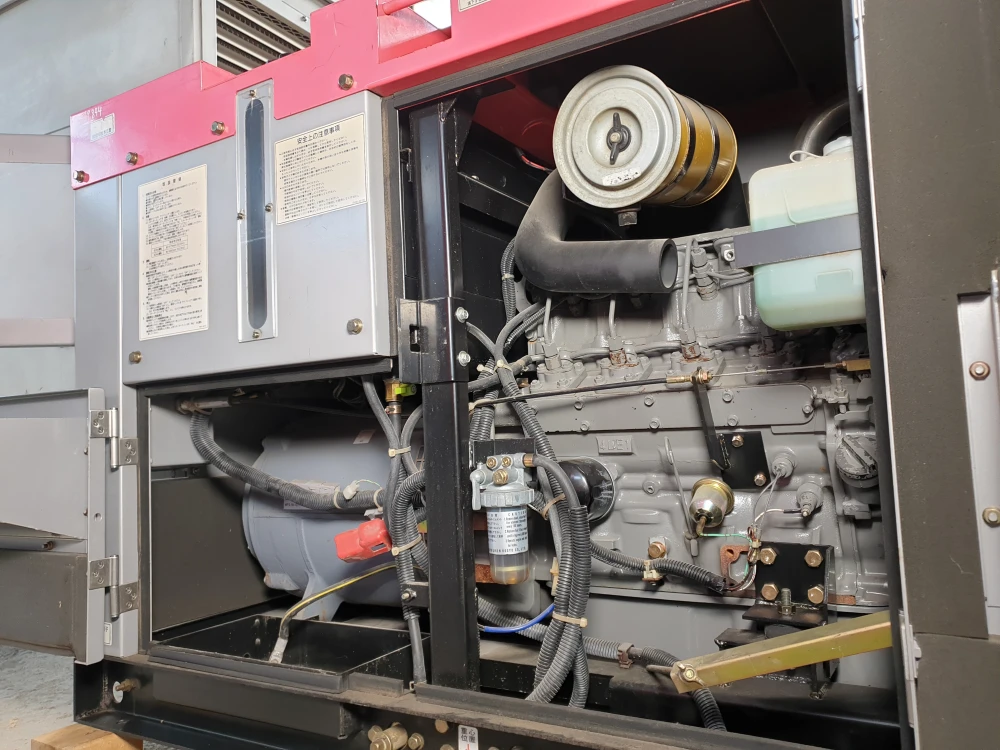

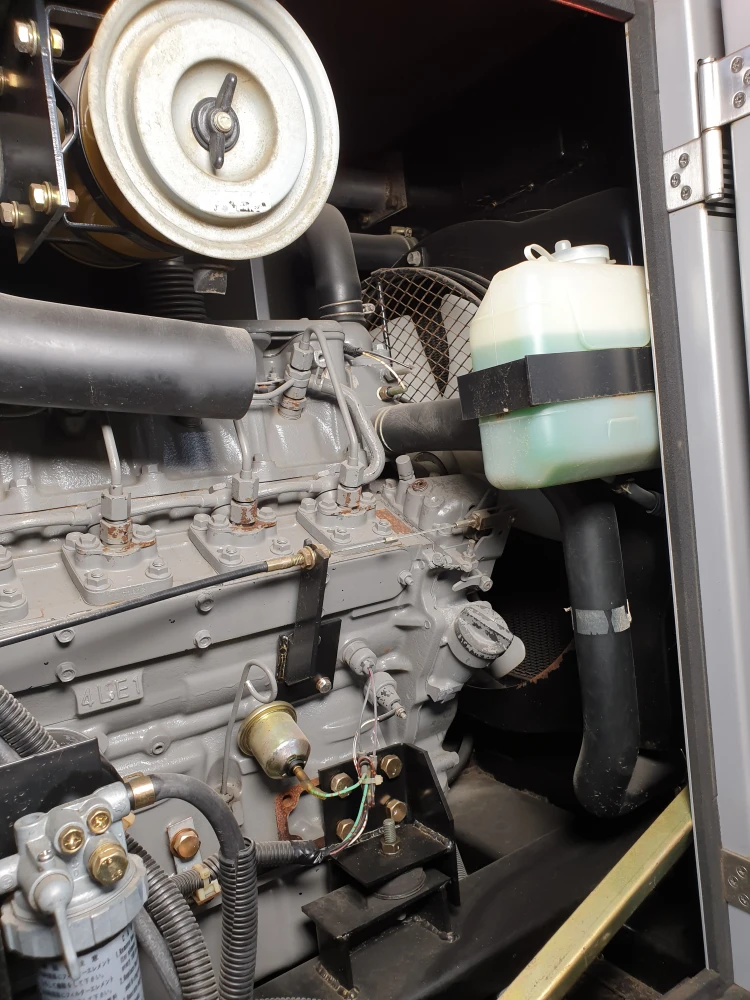

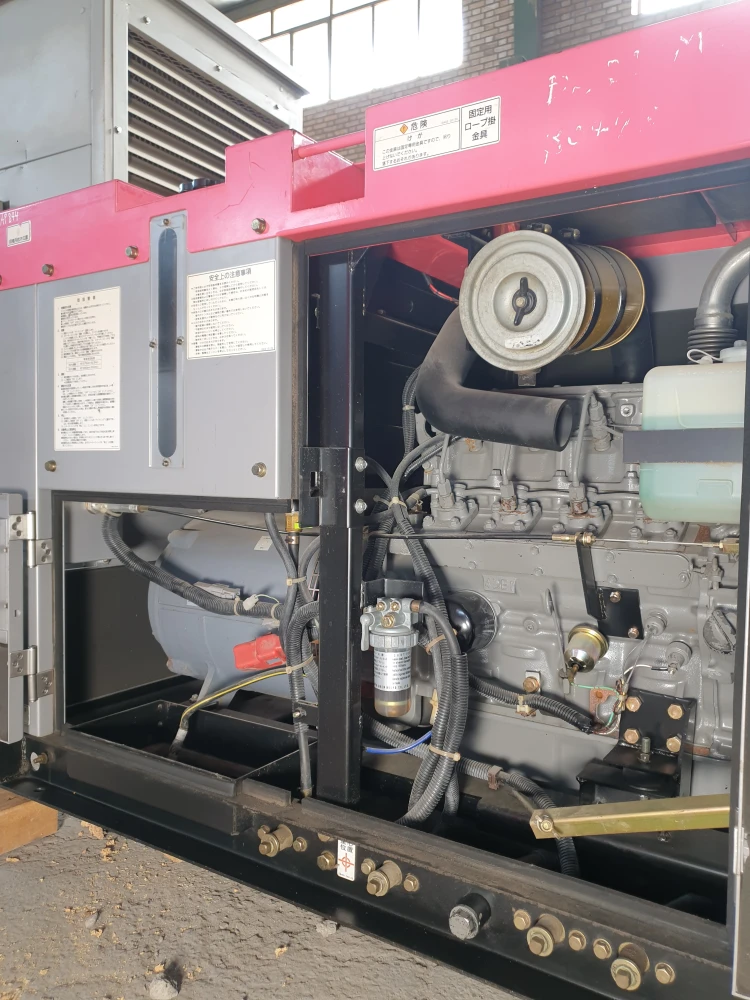

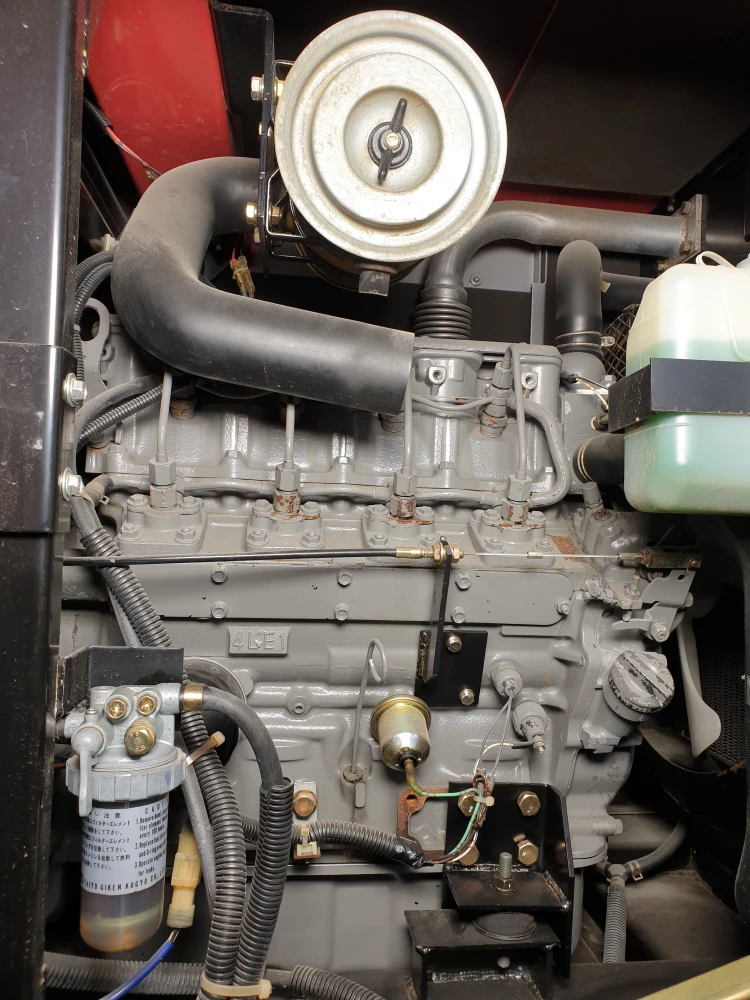

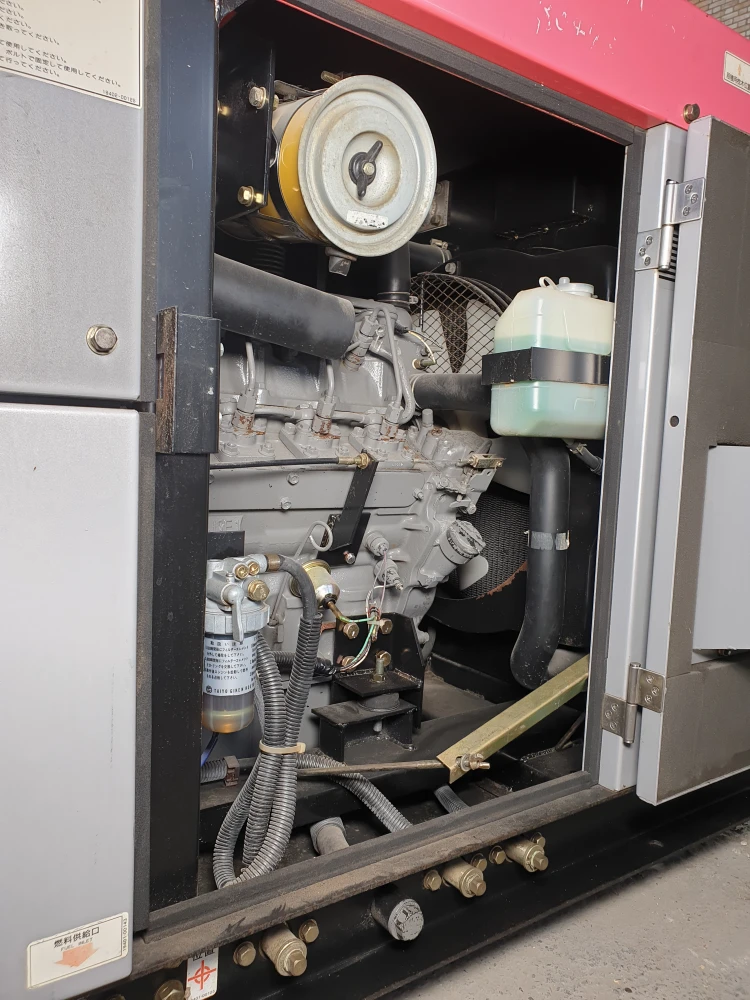

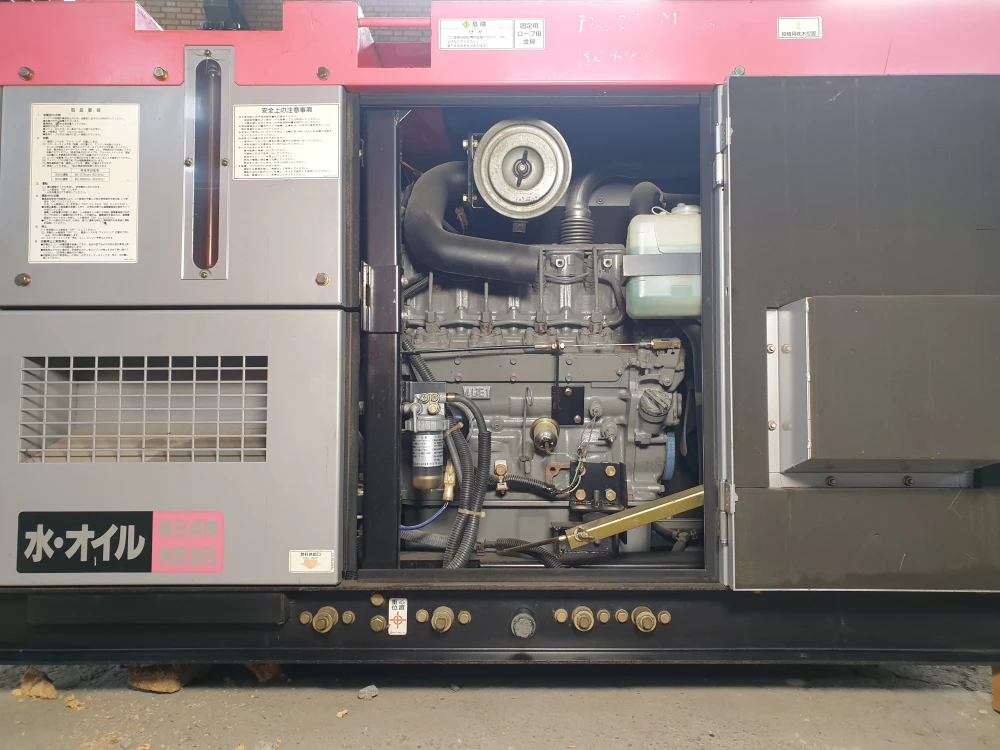

Engine

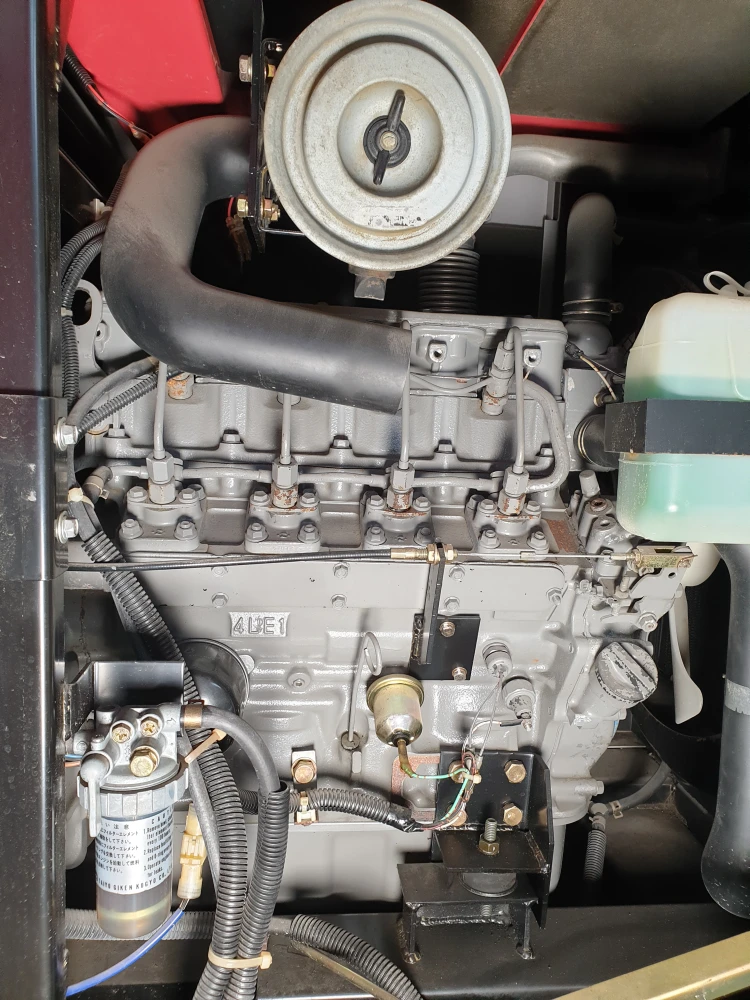

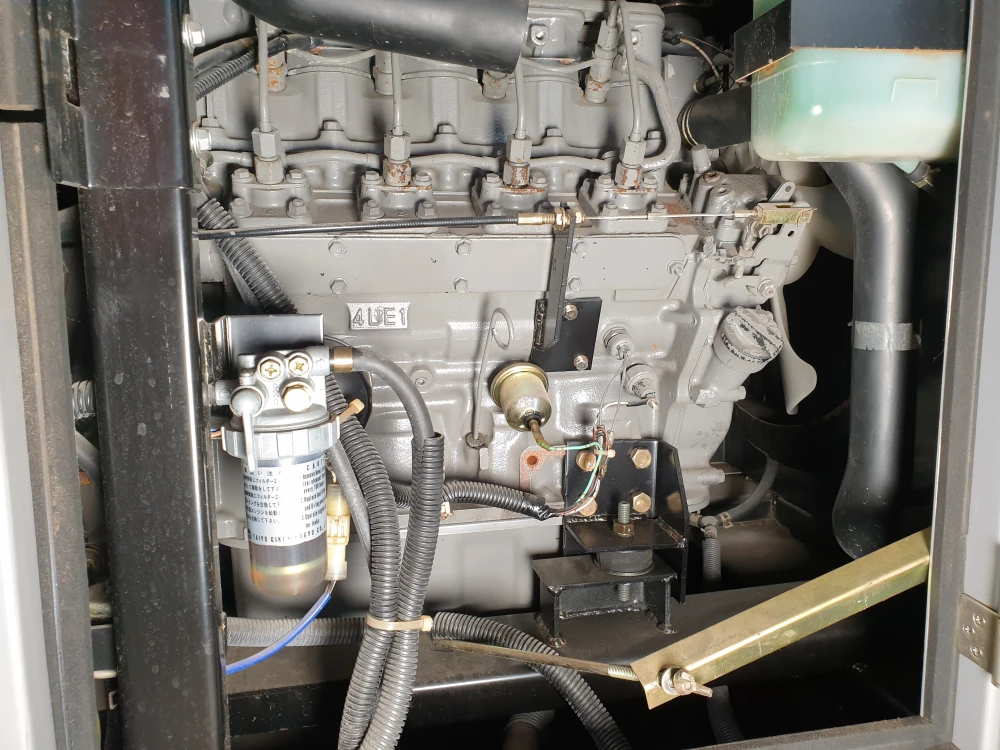

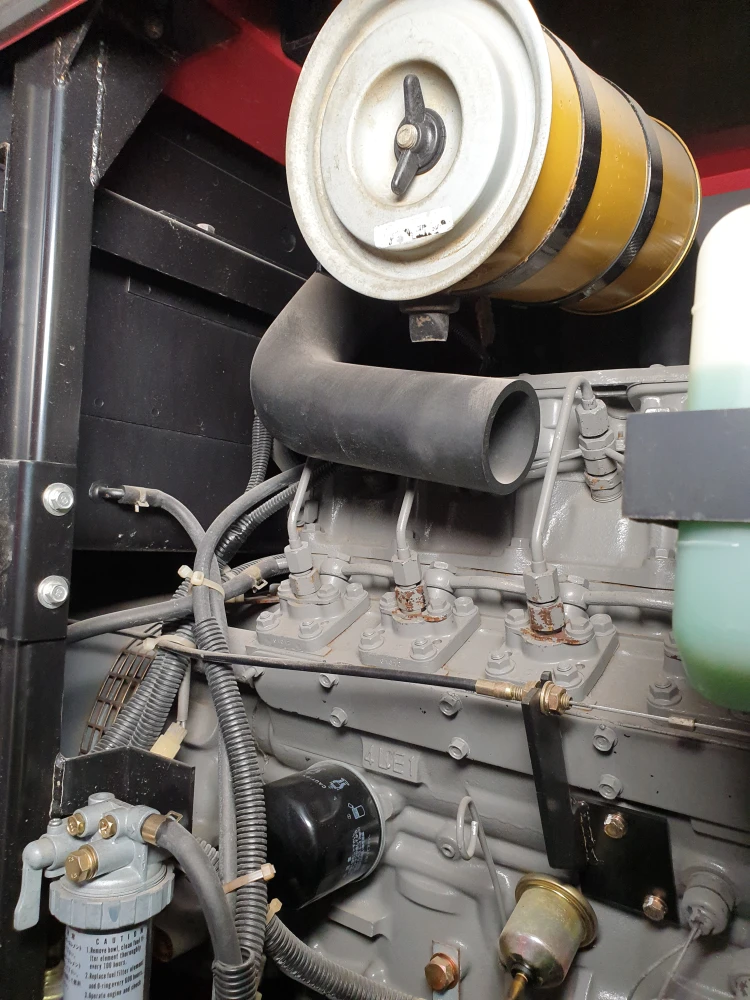

- Make and Model: Isuzu AA-4LE1
- Cylinders: Inline-4
- Aspiration: Naturally Aspirated
- Bore x Stroke (mm): 85 x 96
- Total Displacement (Litre): 2.17
- Fuel: Diesel
- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 8.5
- Coolant Capacity (Litre): 8.6
- Mounted Fuel Tank Capacity (Litre): 65
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 566
Alternator
- Make and Model: Shindaiwa SSG-3025SI
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
