Yanmar W06D-GH | 60 kVA Super Silent Diesel Generator
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make: Yanmar
- Standby Rating Output (60Hz): 66
- Prime Rating Output (60Hz): 60
- Standby Rating Output (50Hz): 55
- Prime Rating Output (50Hz): 50

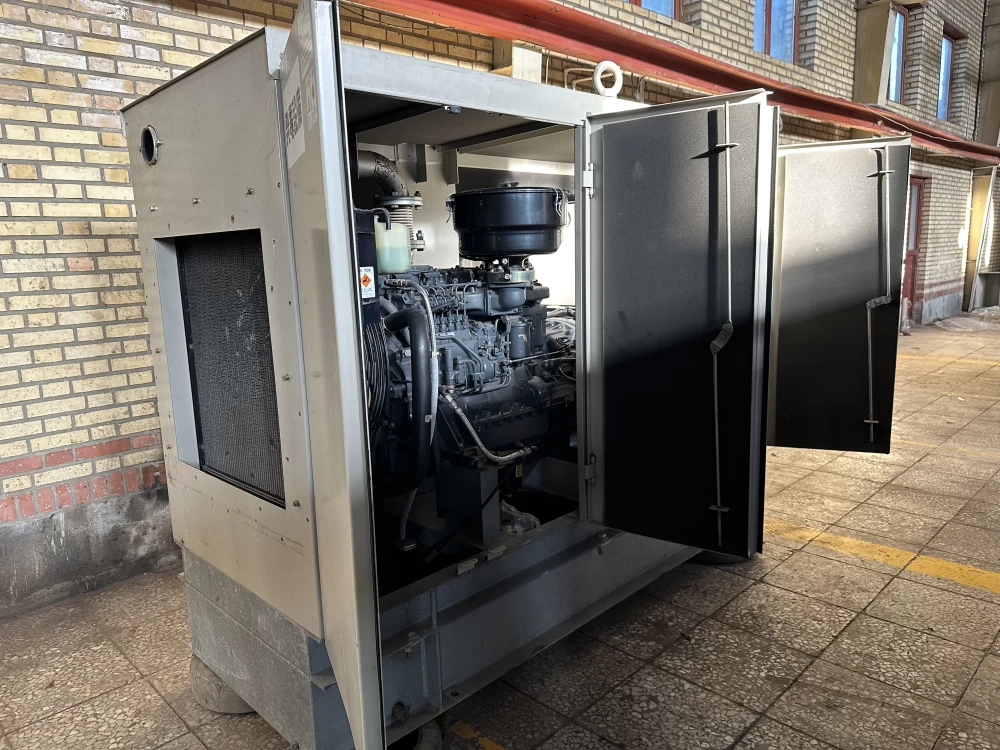

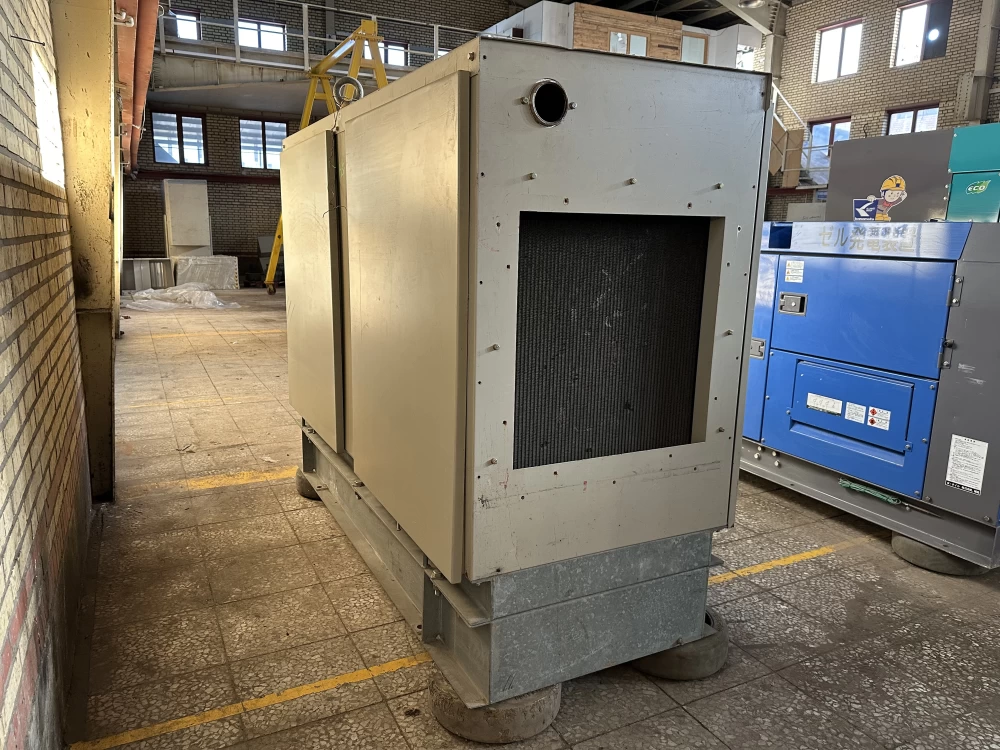

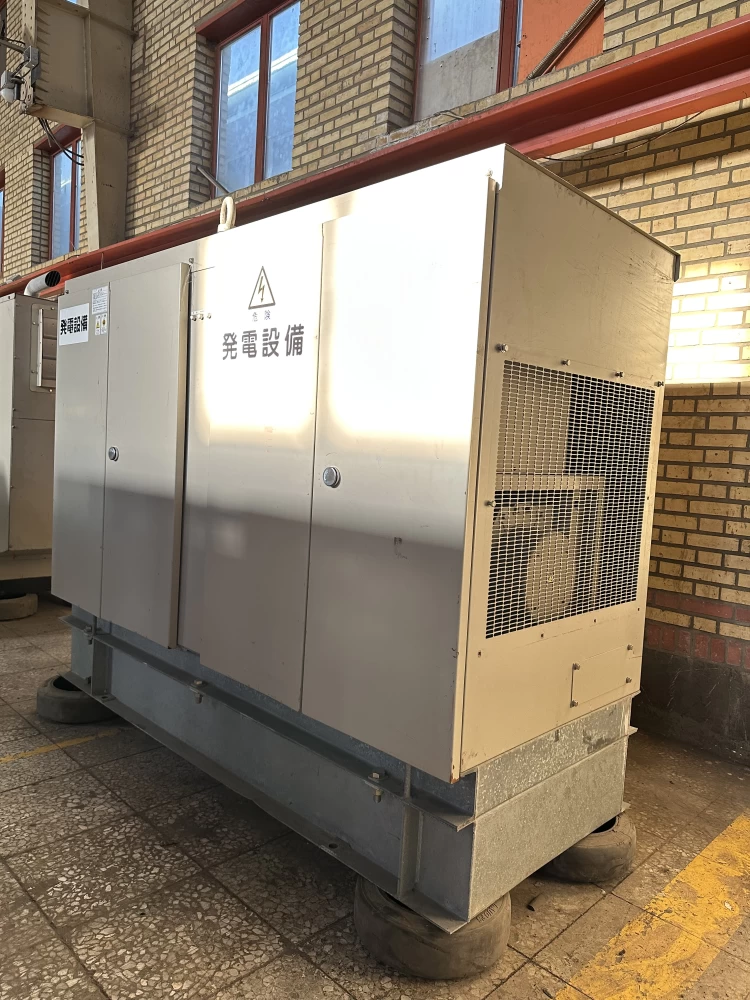

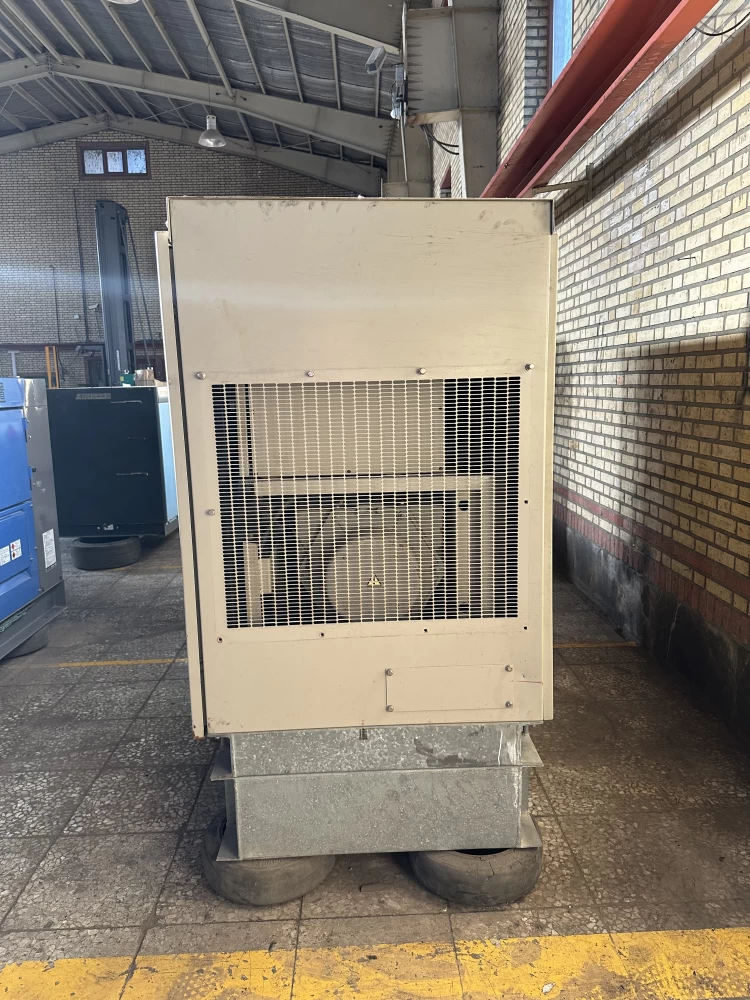

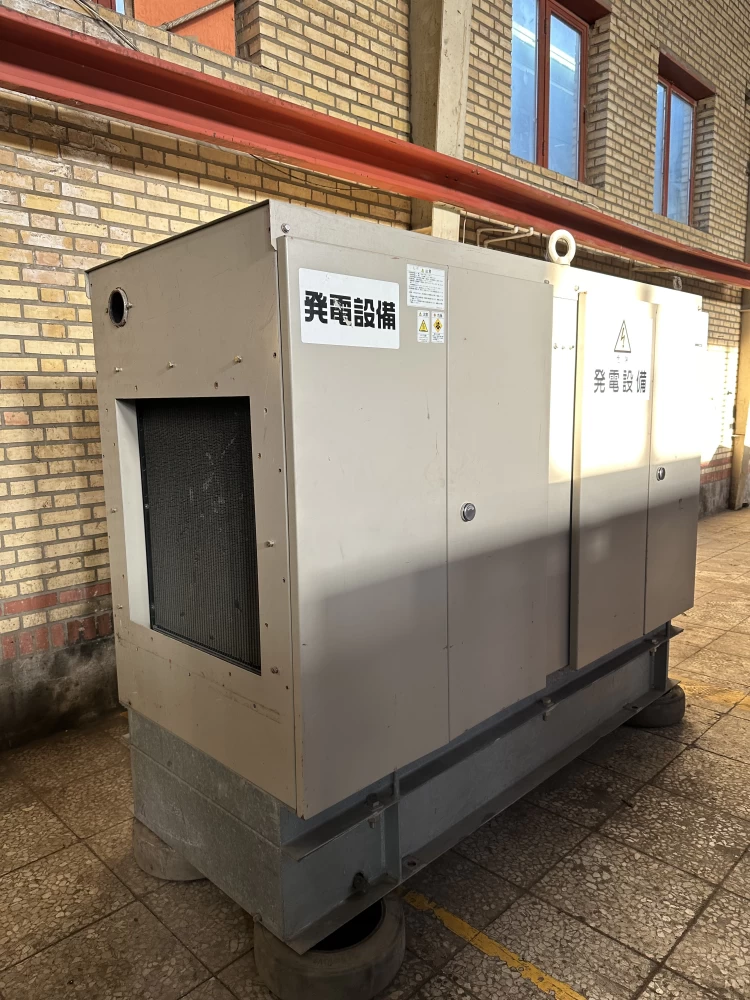

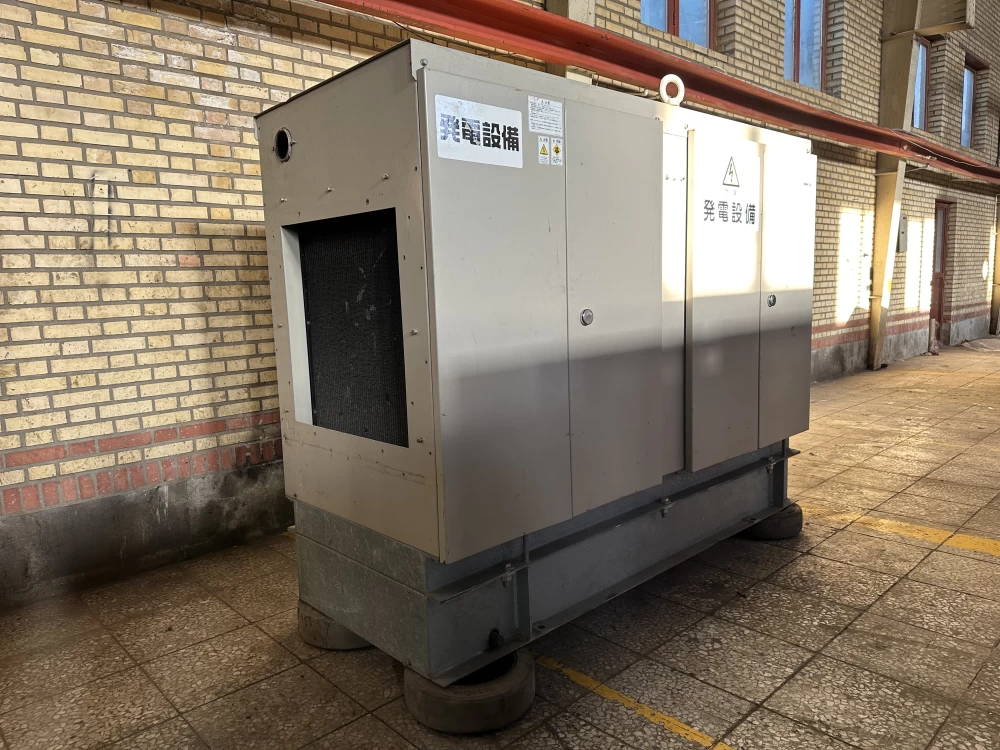

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Yanmar
- Year of Manufacture: 2000
- Condition: Almost New

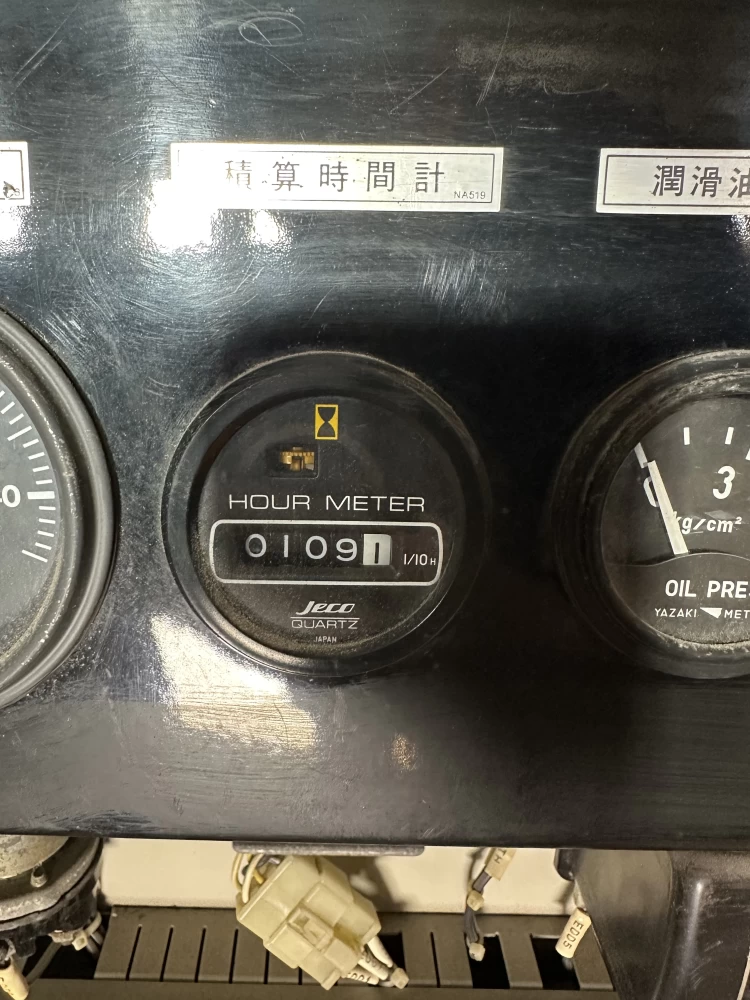

- Runtime (hours): 109

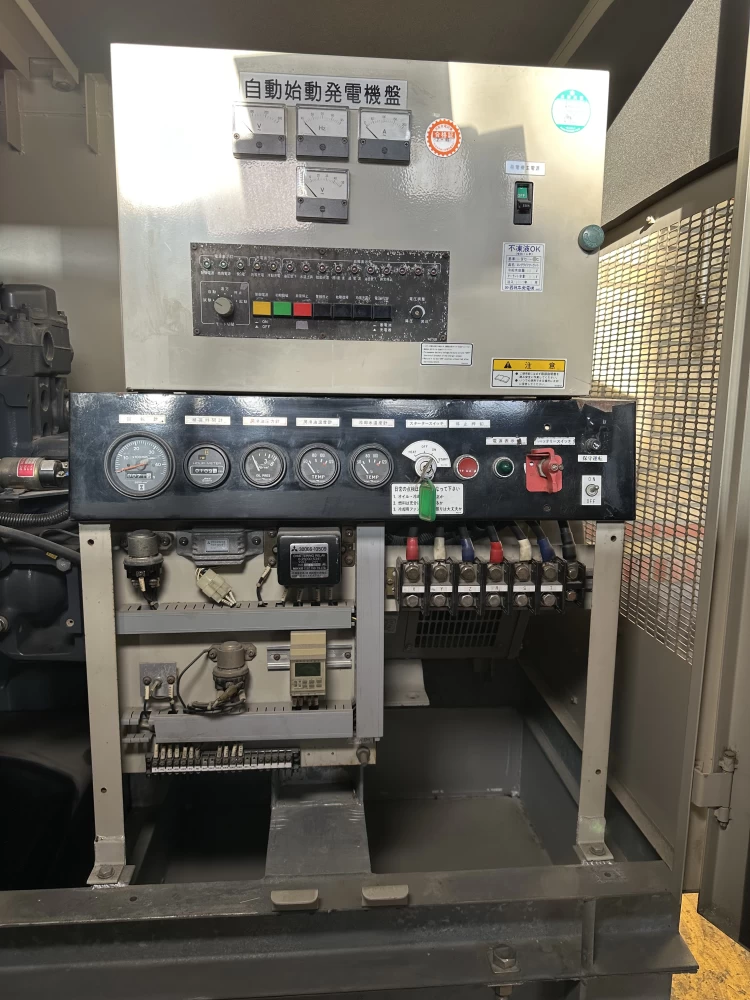

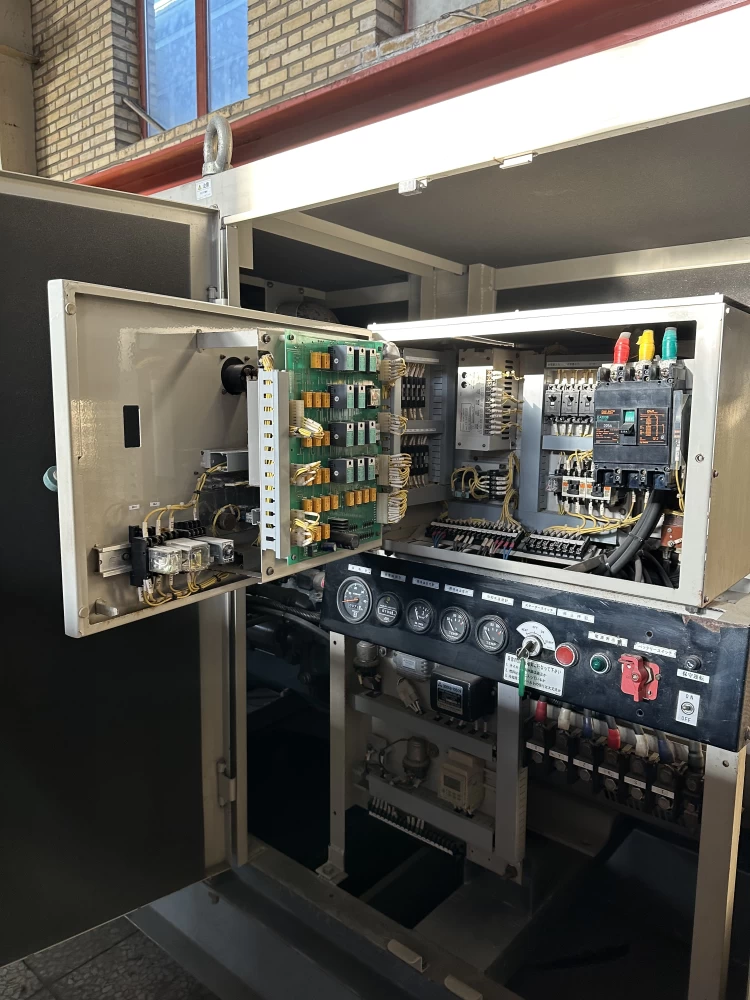

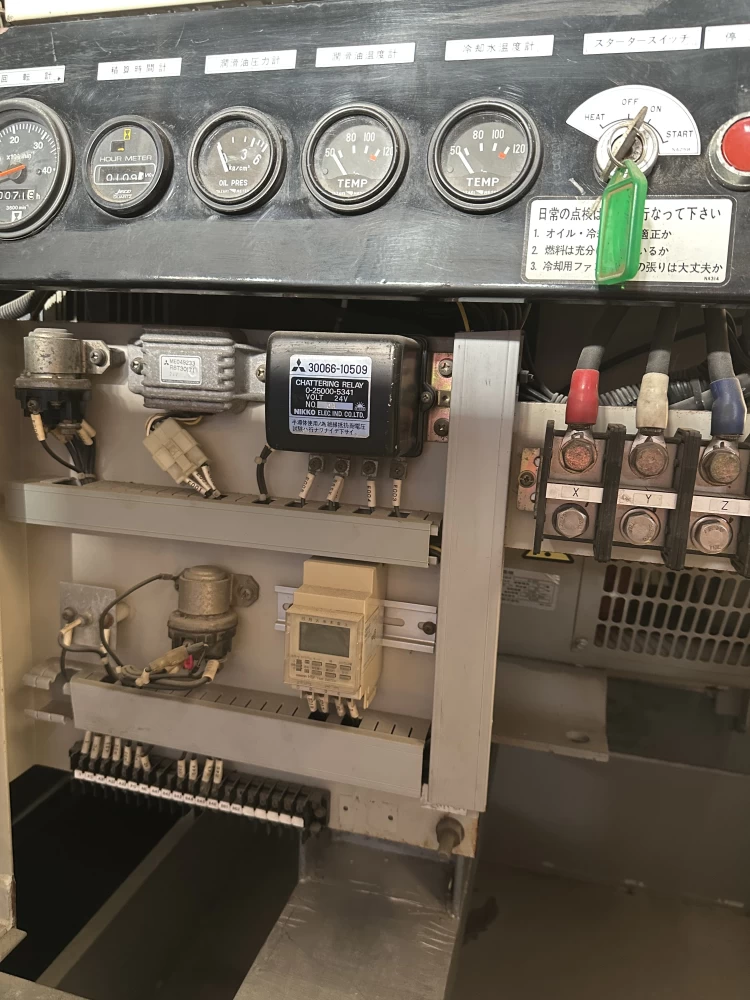

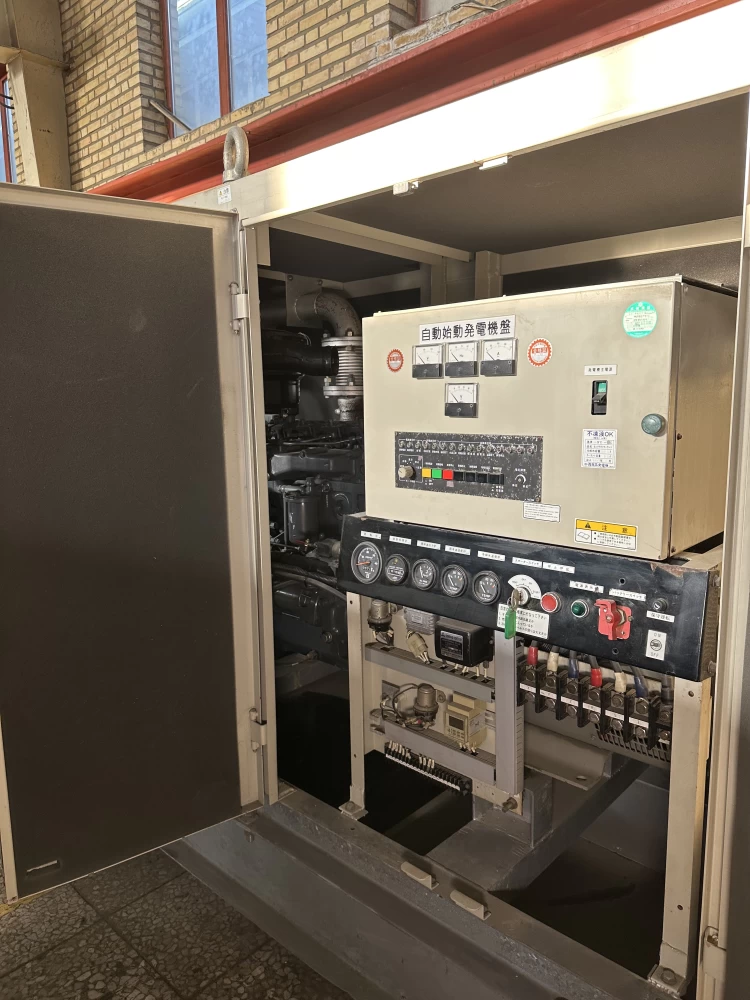

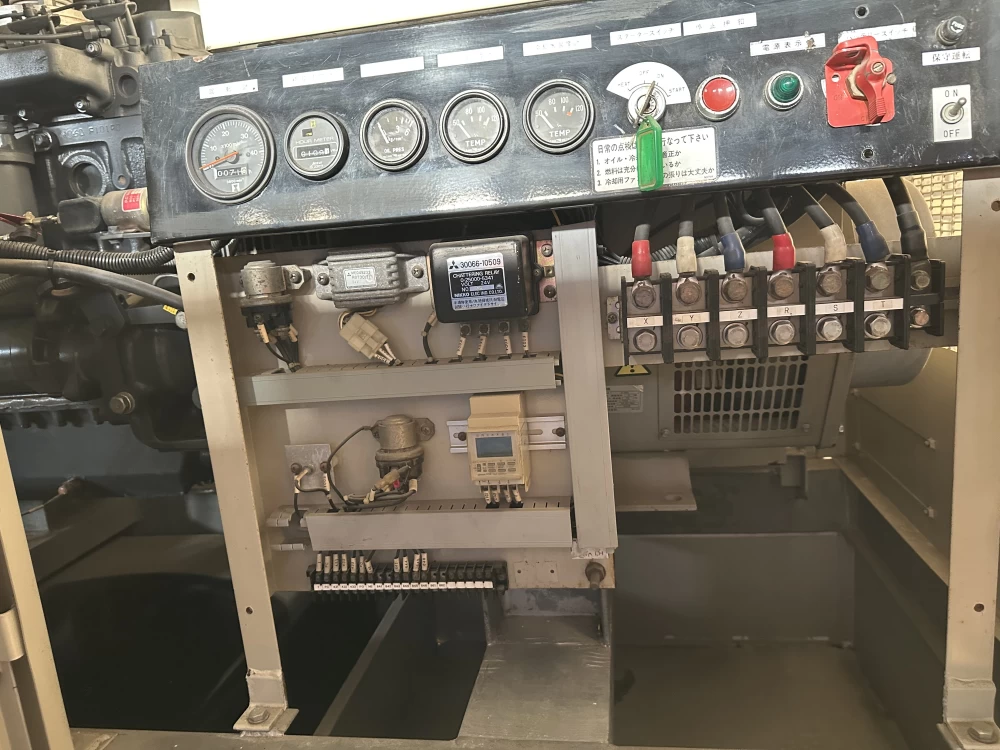

- Controller: Yanmar Exclusive Control Panel
- Availability: In Stock – Warehouse 3 (K)

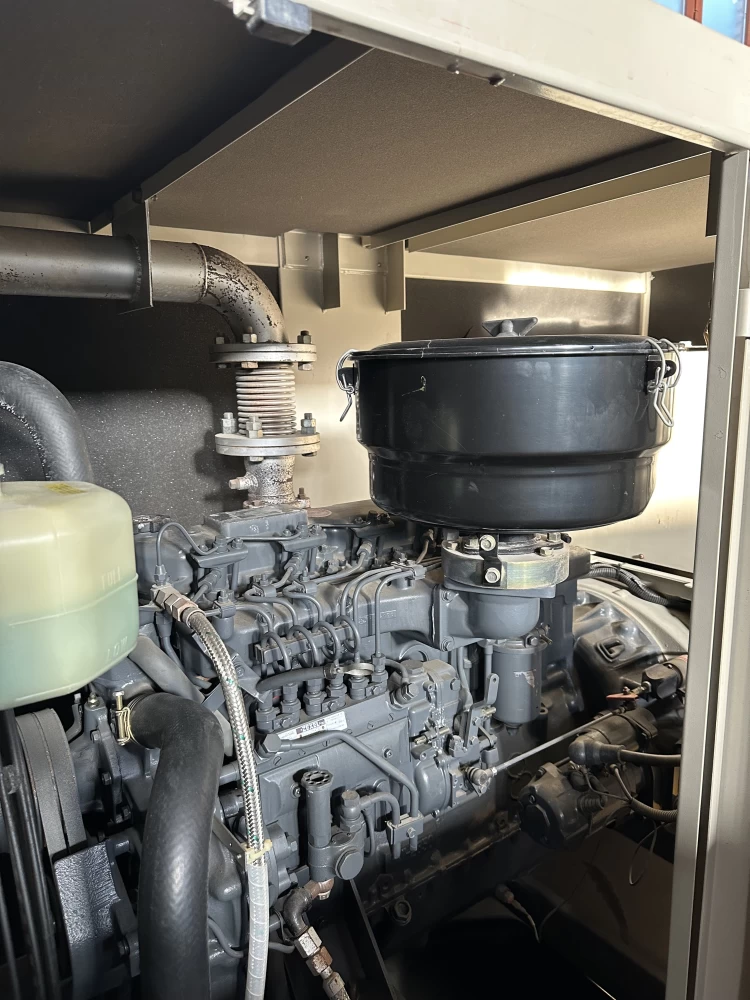

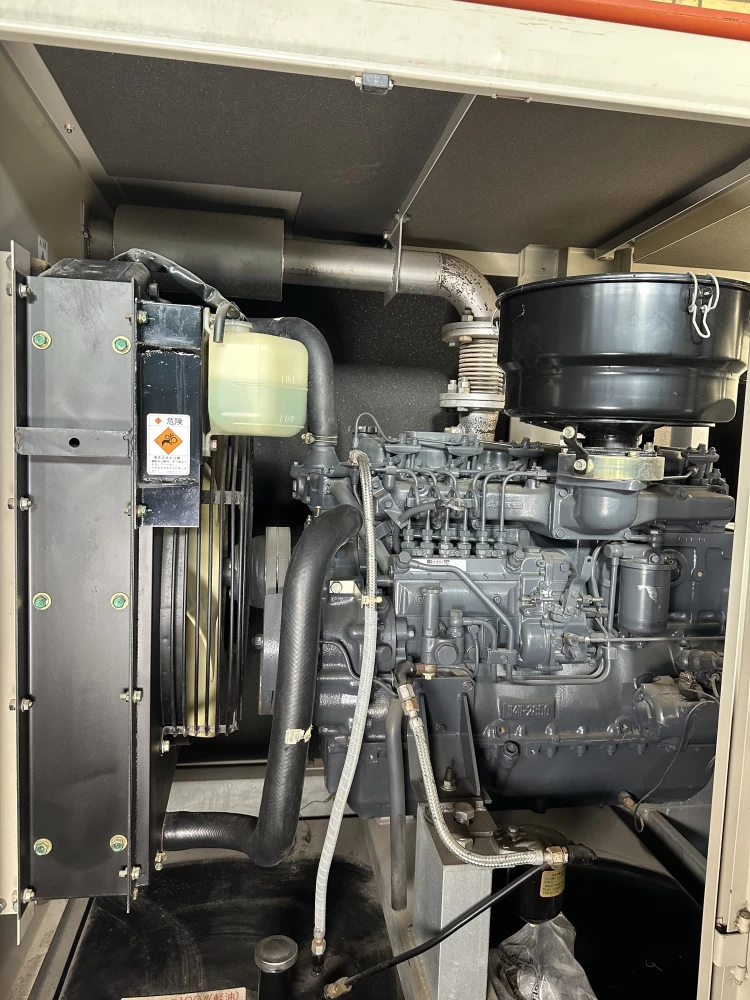

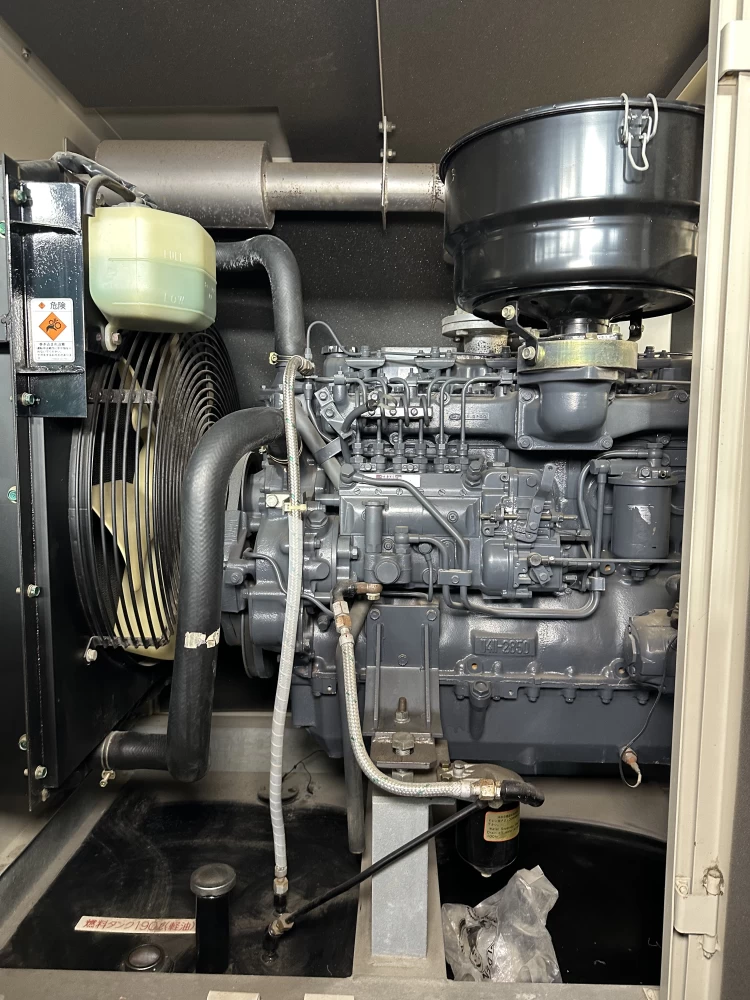

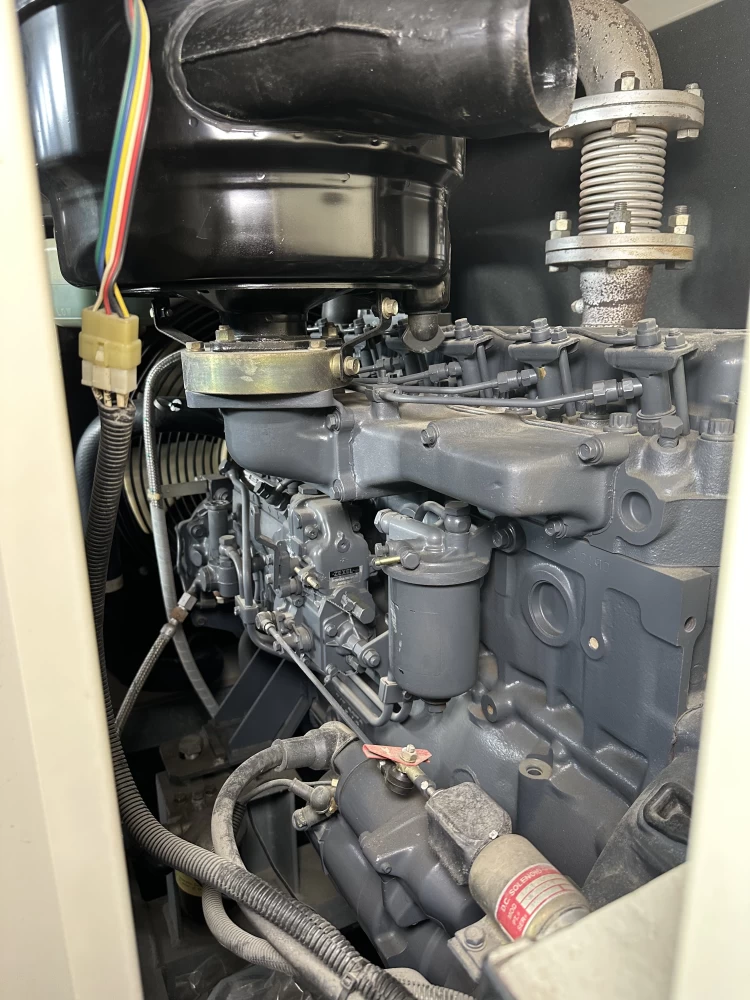

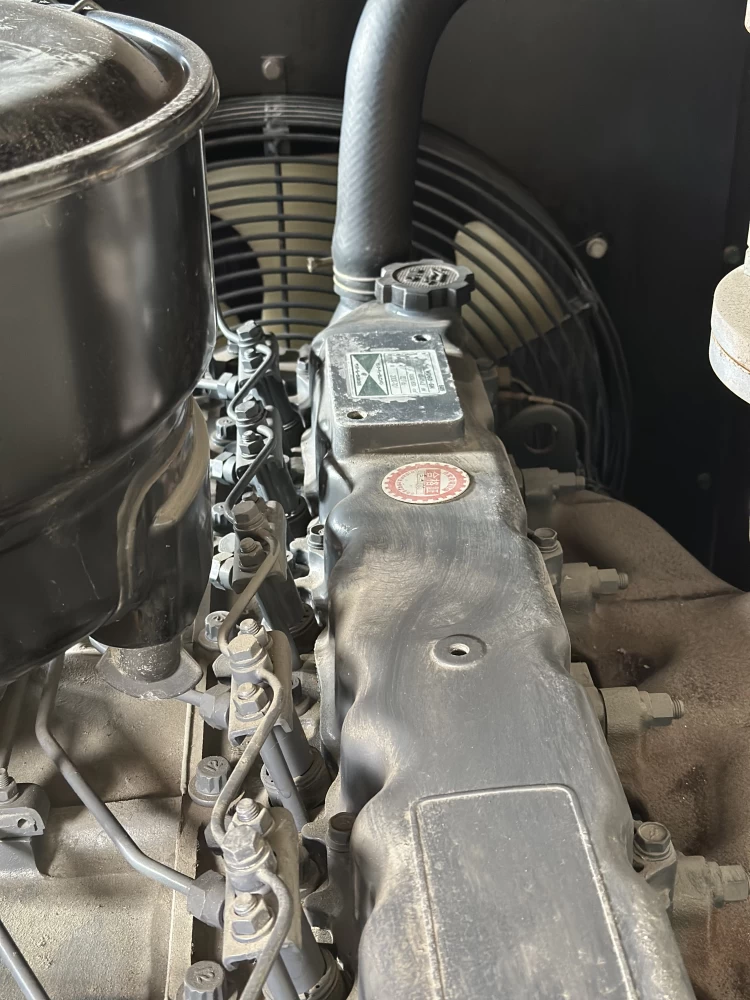

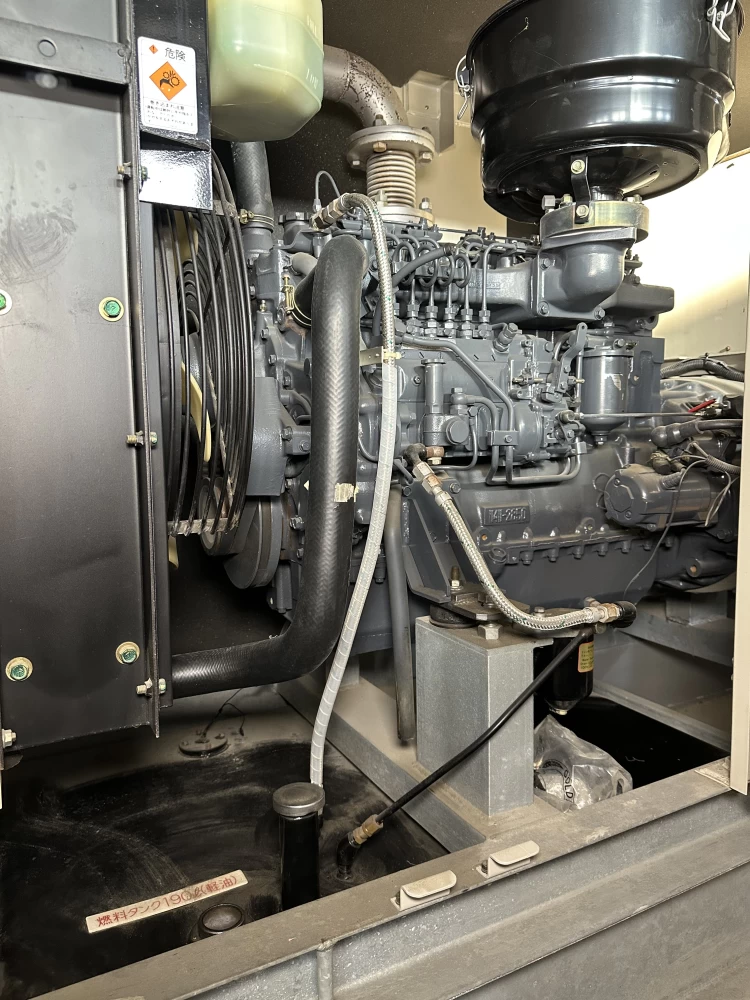

Engine

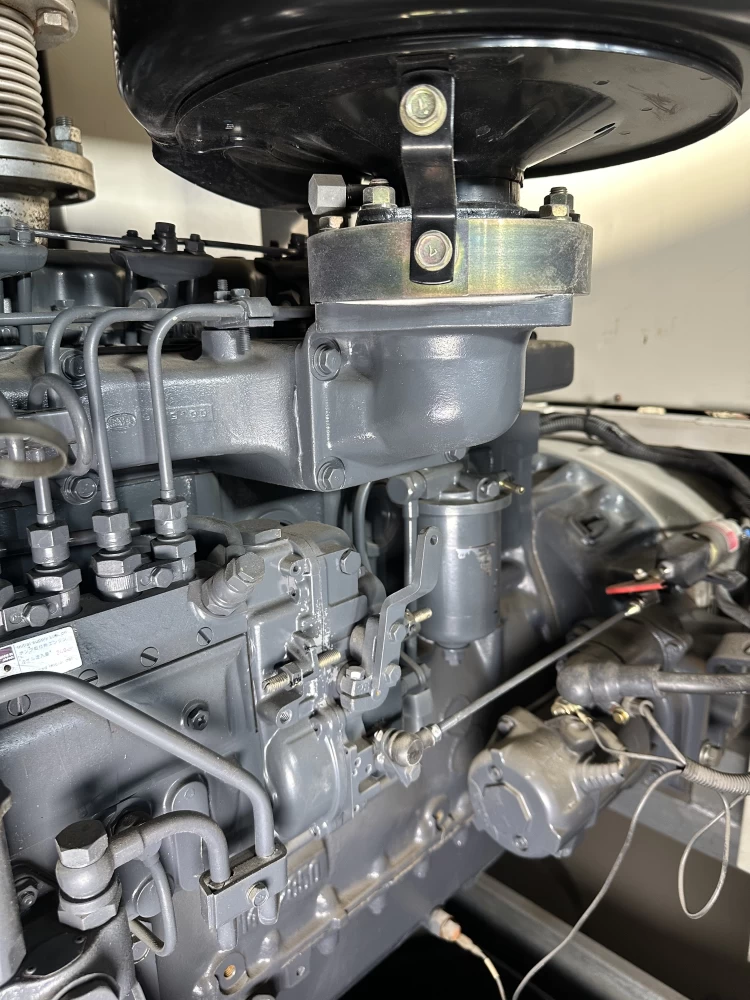

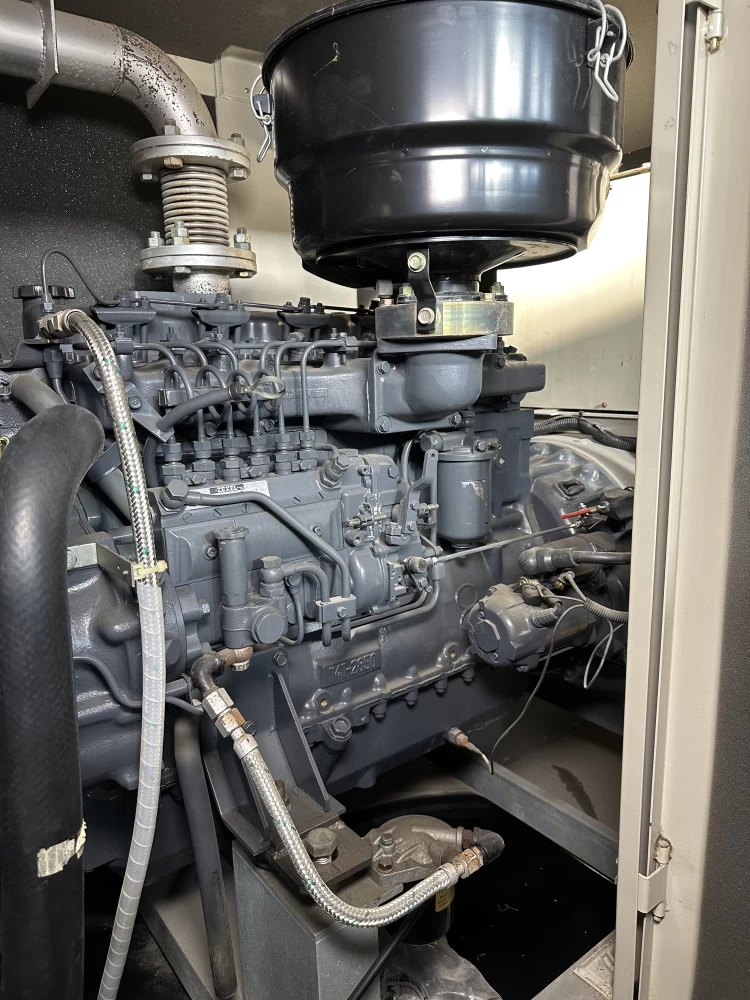

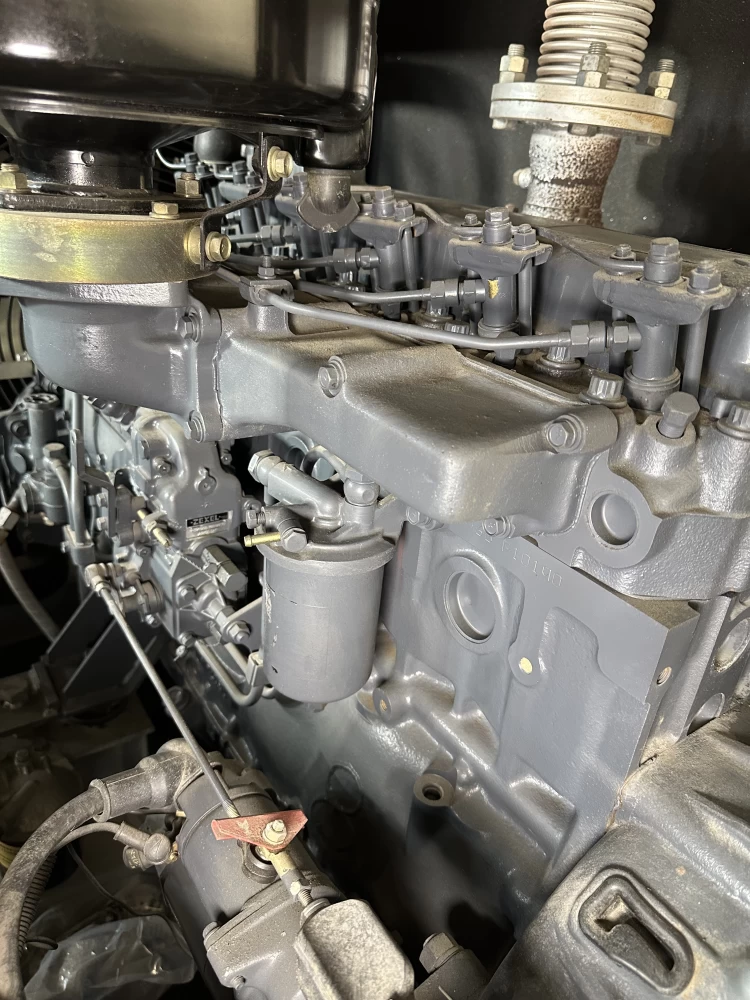

- Make and Model: Yanmar W06D-GH
- Cylinders: Inline-6
- Aspiration: Naturally Aspirated
- Bore x Stroke (mm): 104 x 113
- Total Displacement (Litre): 5.75
- Fuel: Diesel

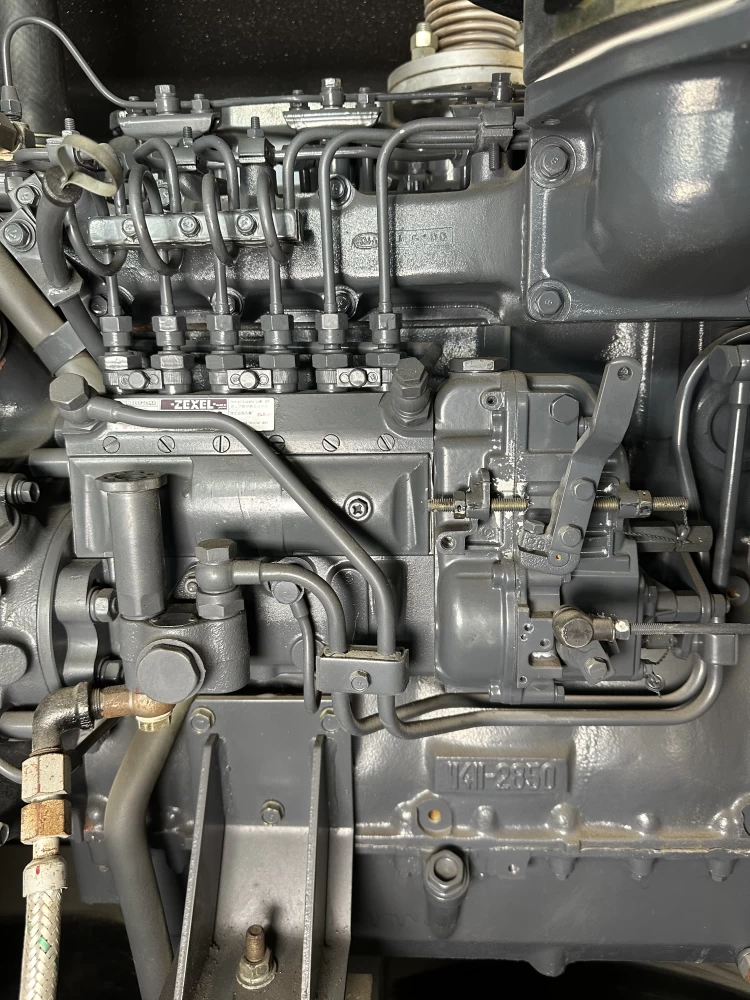

- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 14
- Coolant Capacity (Litre): 24

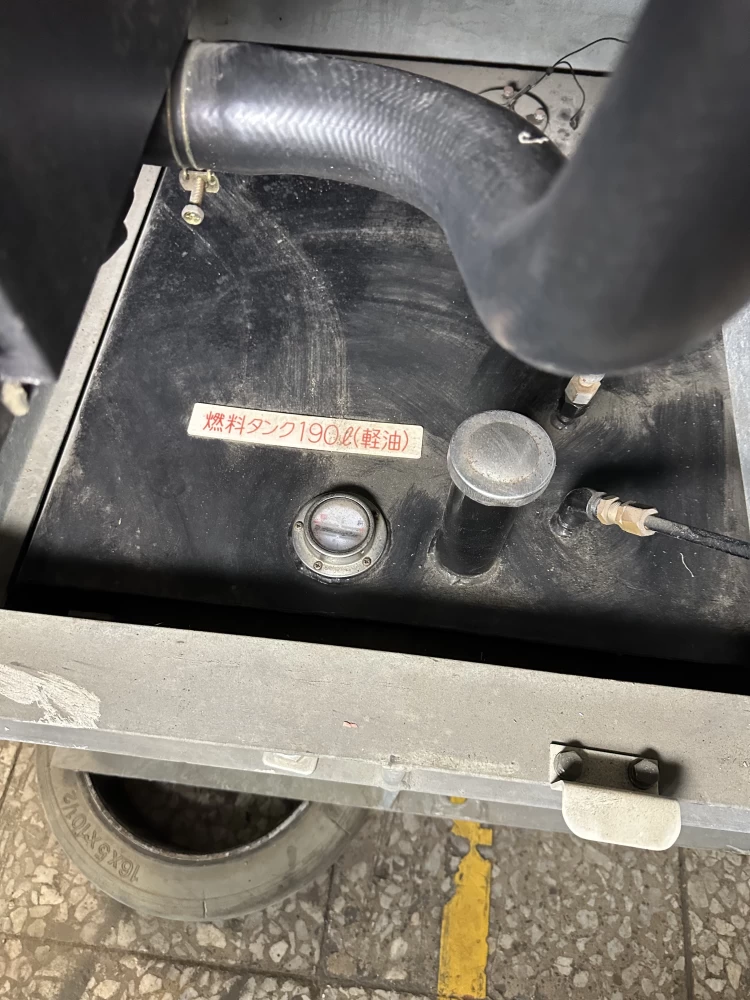

- Mounted Fuel Tank Capacity (Litre): 190
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Alternator
- Make and Model: Nishihatsu (Denyo) ECP28-VL/2
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class F
