Yanmar YEG-19SBS | 16 kVA Silent Diesel Generator
Engine
Genset
Technical Specifications
Diesel Generator Set

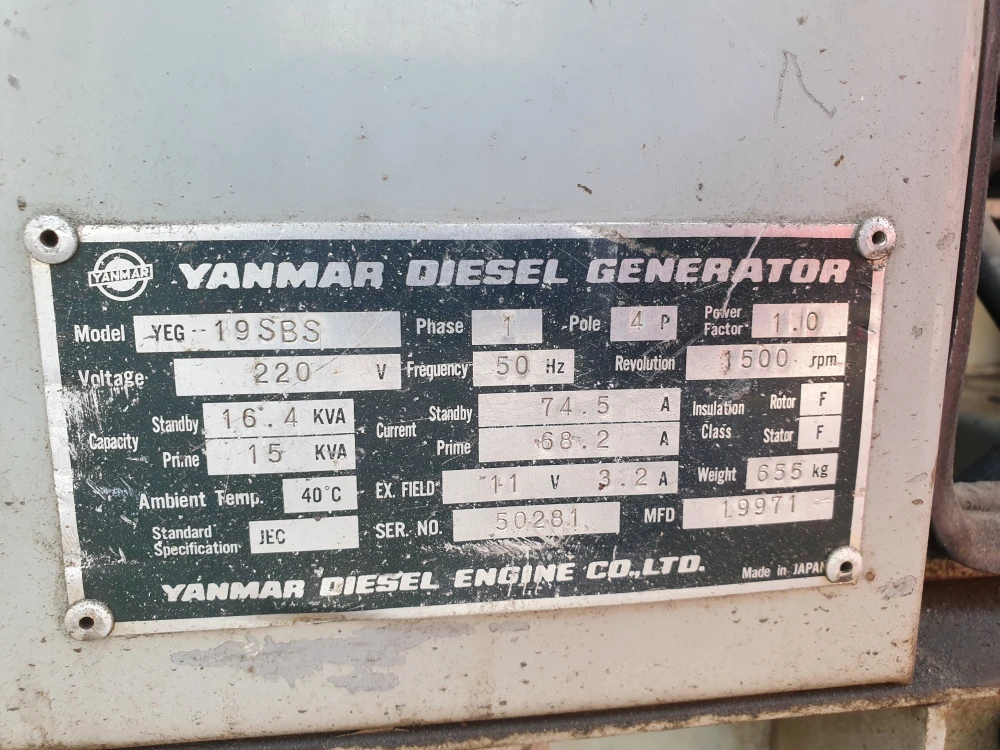

- Make and Model: Yanmar YEG-19SBS
- Standby Rating Output (50Hz): 16
- Prime Rating Output (50Hz): 15

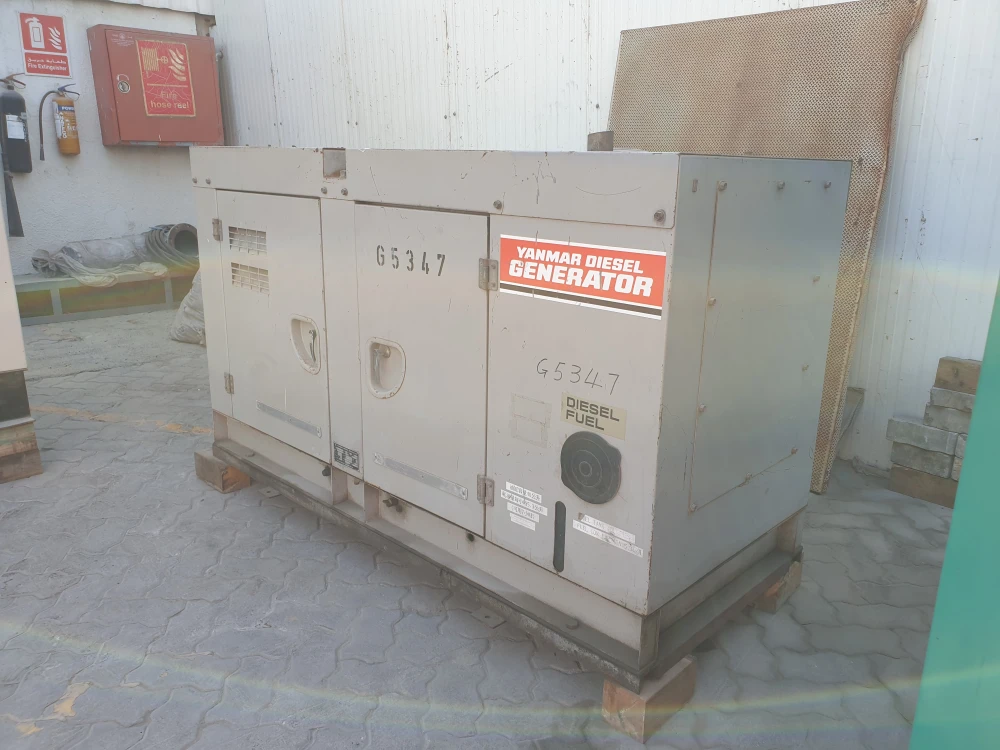

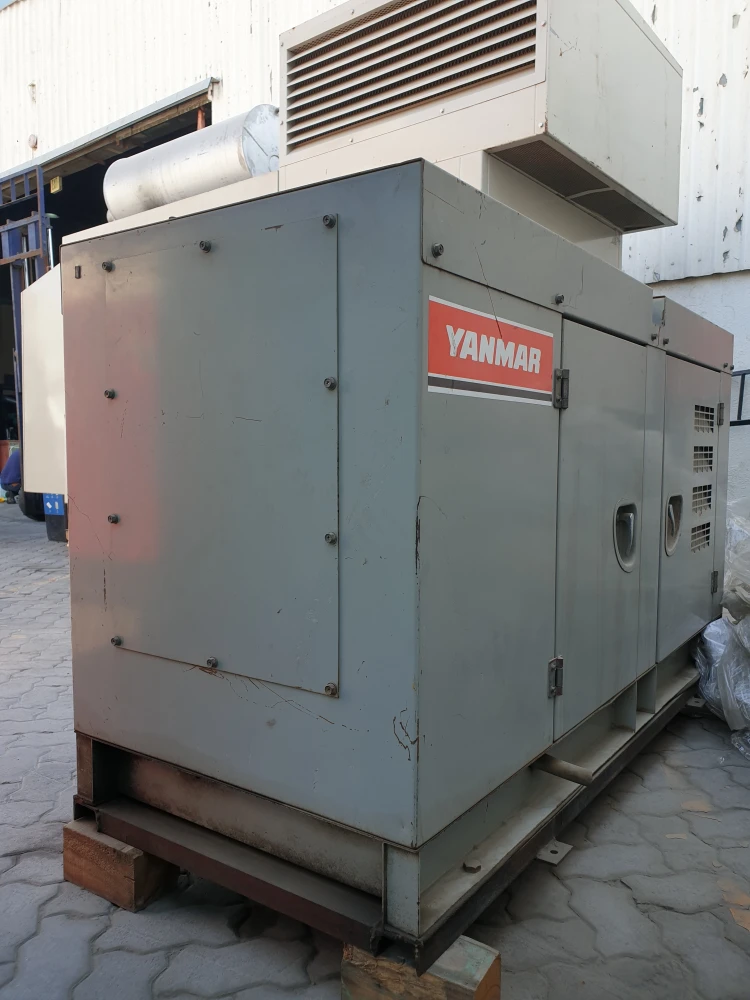

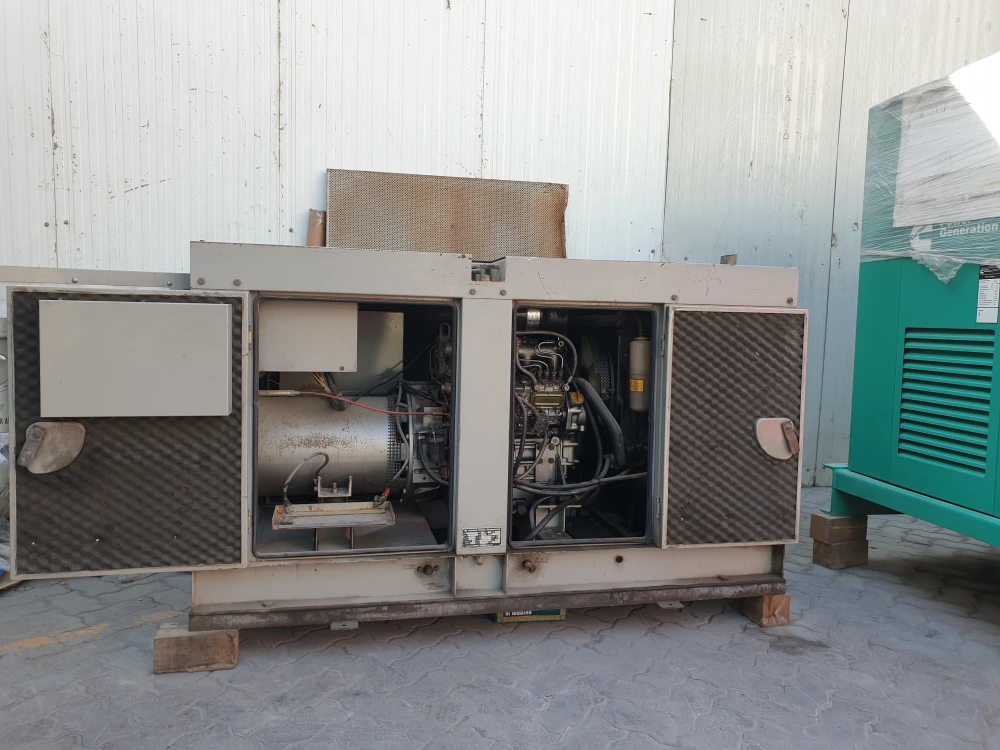

- Configuration (Open-set/Canopy): Silent Canopy Made by Yanmar
- Year of Manufacture: 1997
- Condition: Used
- Runtime (hours): 4,472

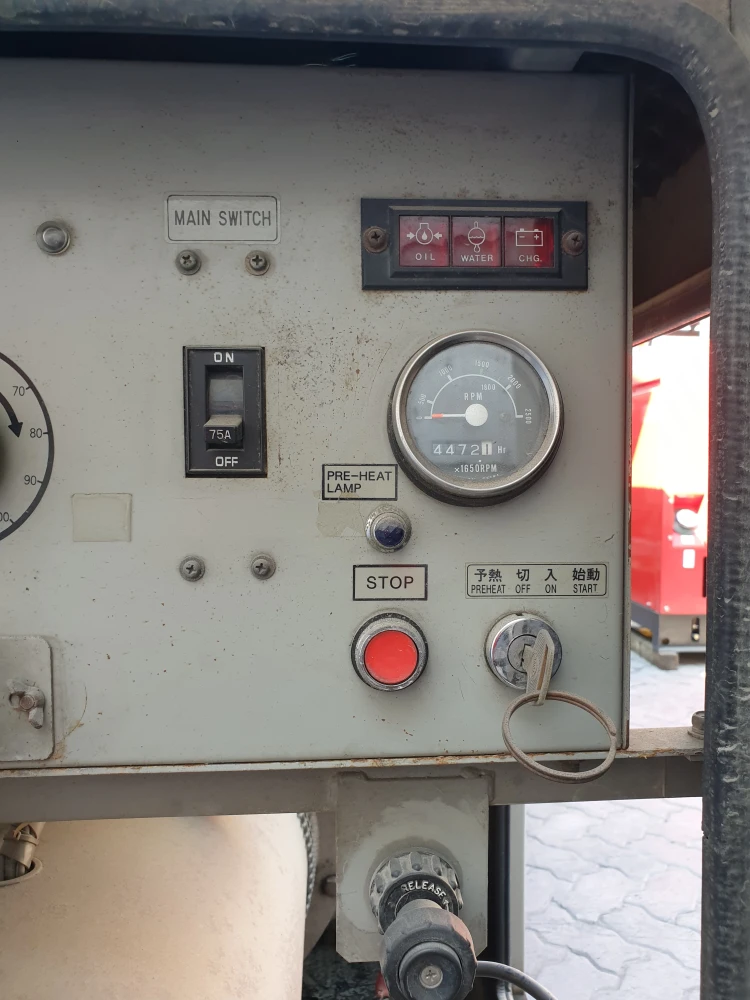

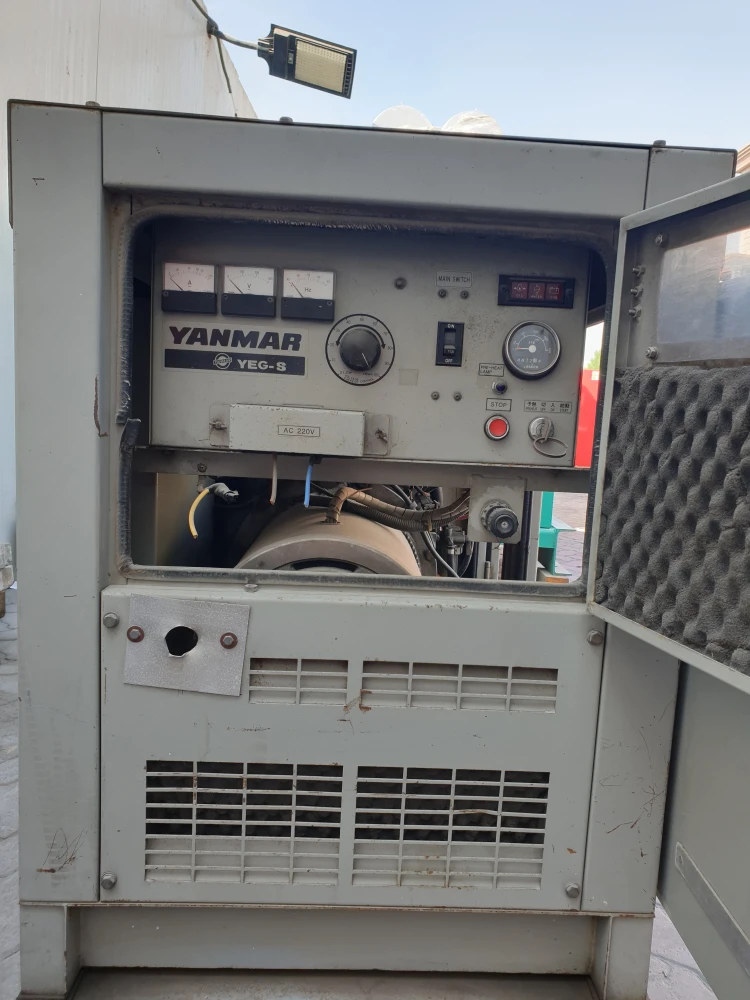

- Controller: Yanmar Exclusive Control Panel
- Availability: In Stock – Warehouse 1 (Sharjah)

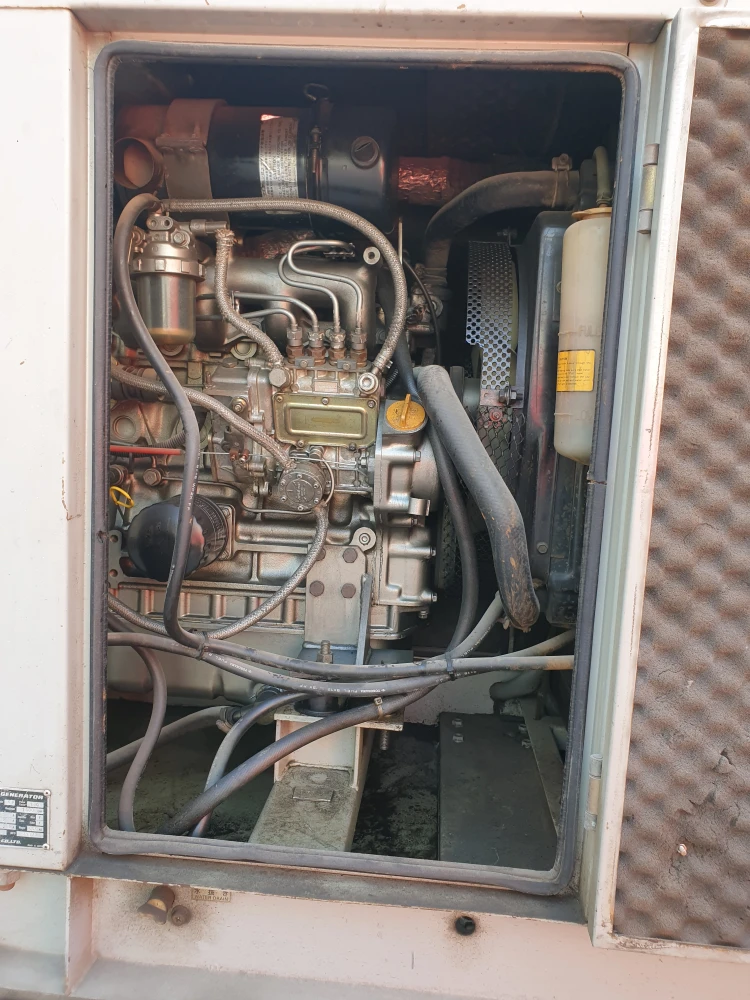

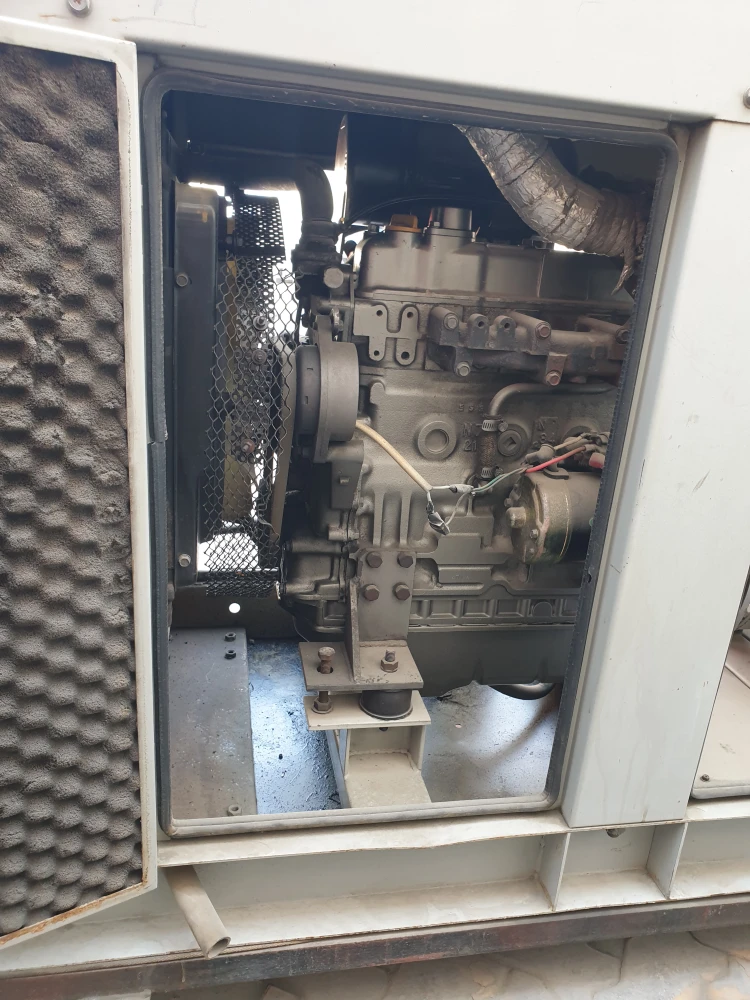

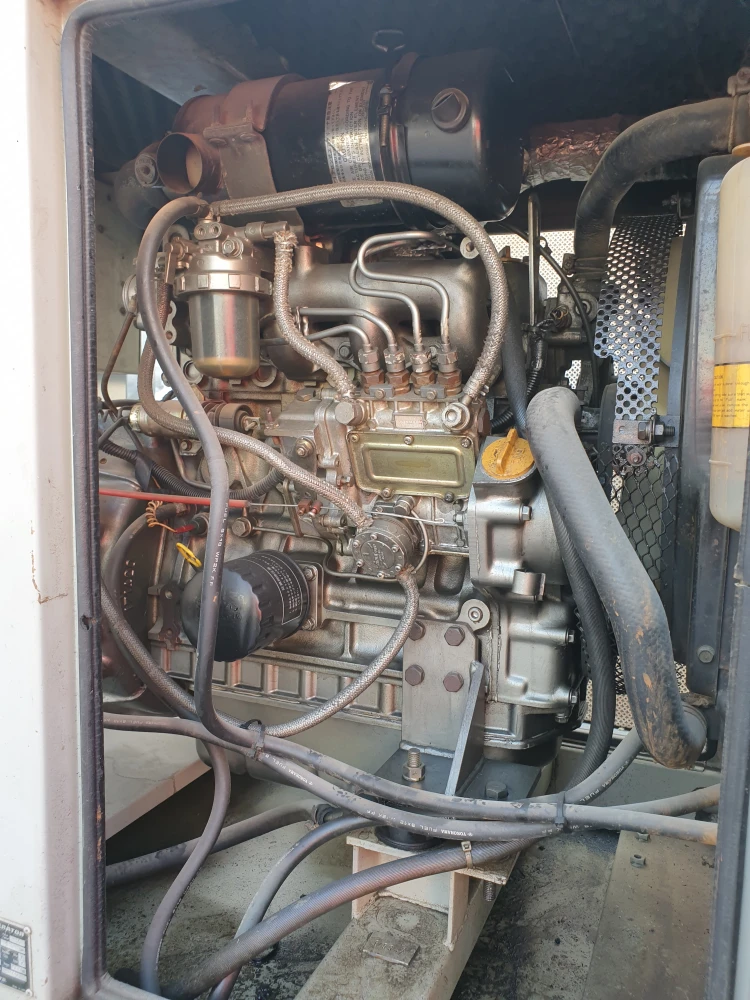

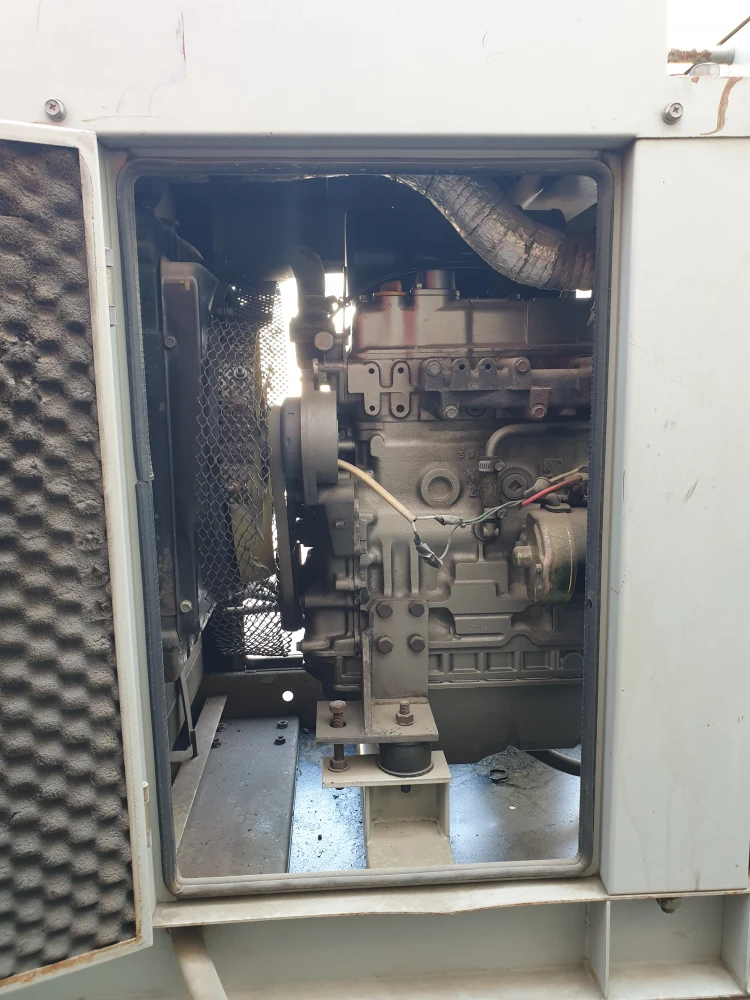

Engine
- Make and Model: Yanmar 4TN84TE-RGB1
- Cylinders: Inline-4
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 84 x 90
- Total Displacement (Litre): 1.99
- Fuel: Diesel
- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 7.4
- Coolant Capacity (Litre): 6
- Mounted Fuel Tank Capacity (Litre): 40
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 655

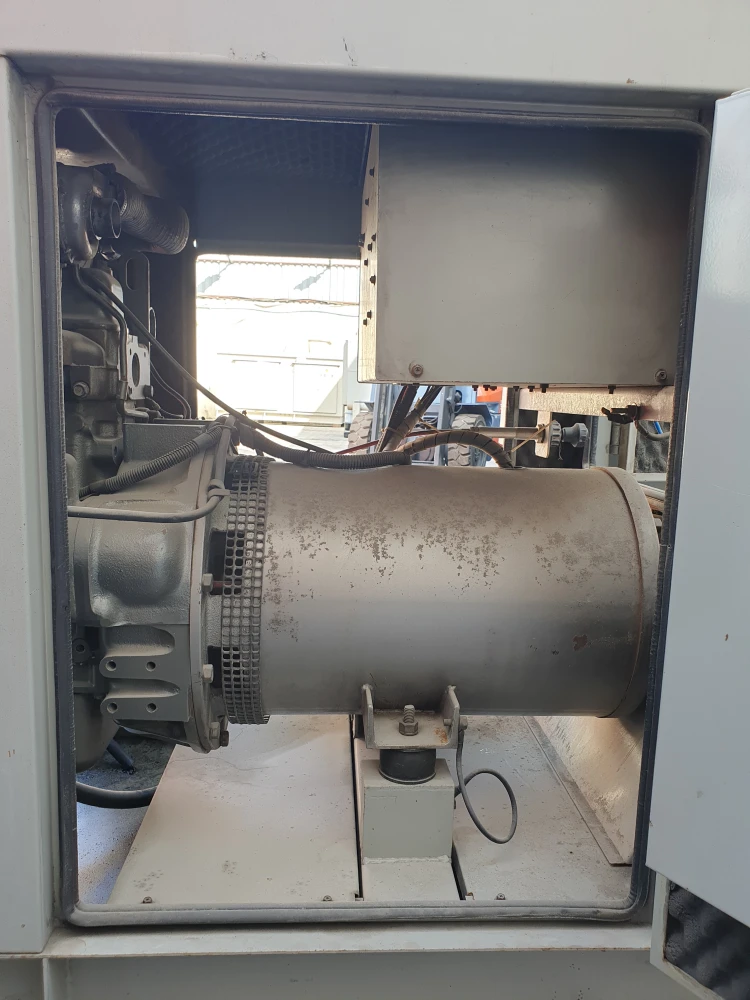

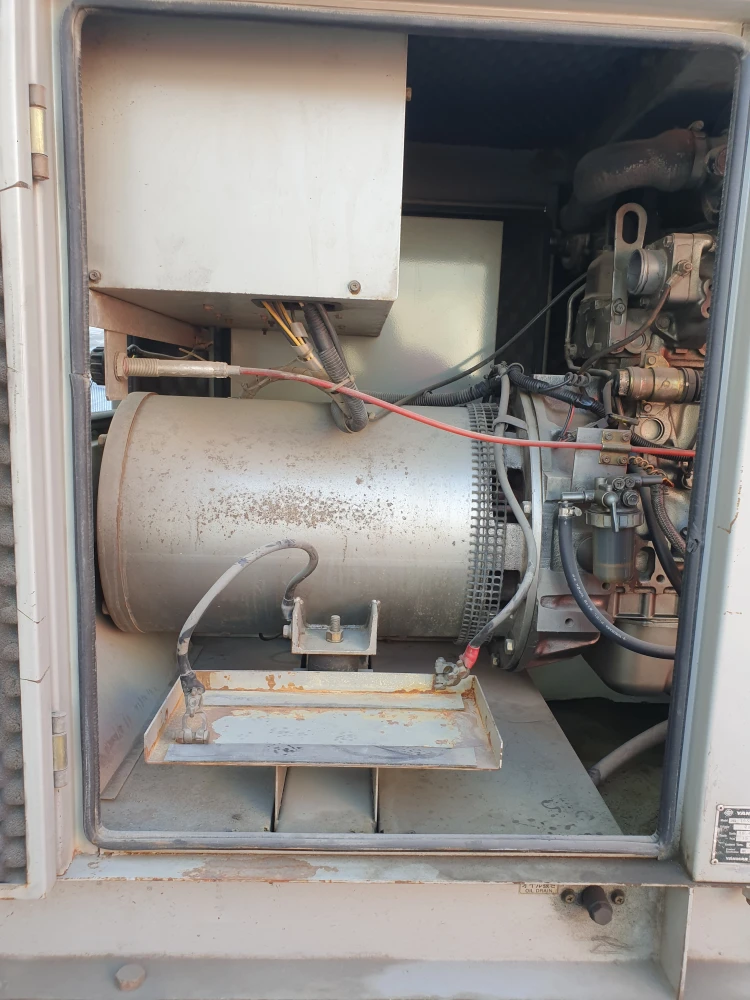

Alternator
- Voltage (V): 220
- Frequency (Hz): 50
- No. of Phases: Single-Phase
- Power Factor: 1
- Insulation: Class F
