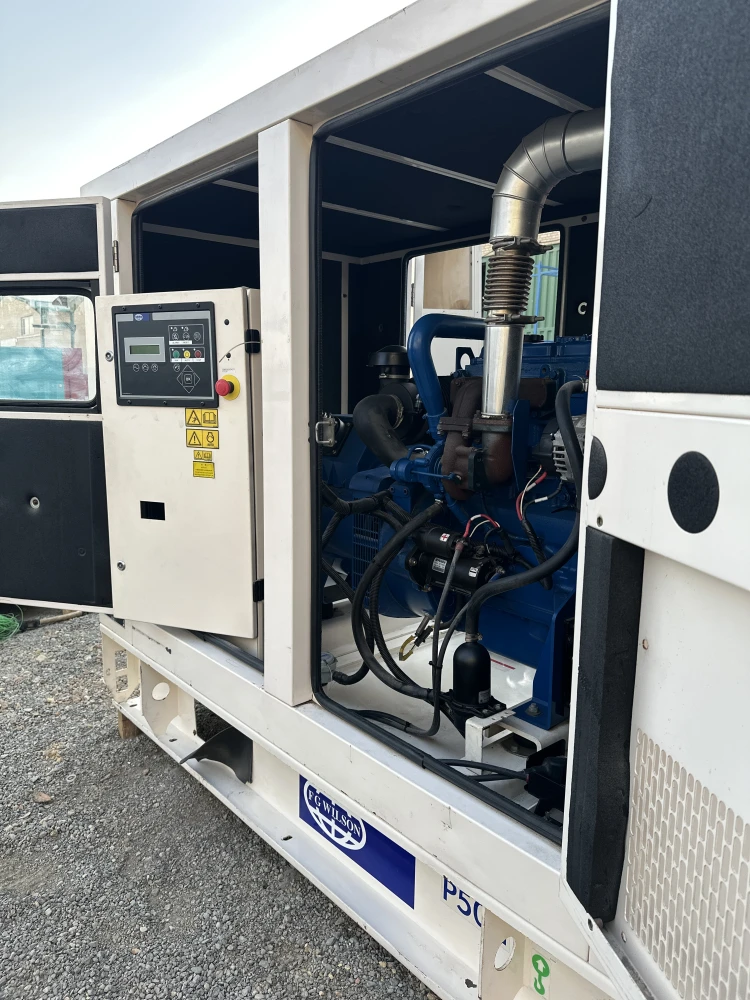

FG Wilson P50-1 | 50 kVA Silent Diesel Generator Powered by Perkins
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: FG Wilson P50-1
- Standby Rating Output (60Hz): 56
- Prime Rating Output (60Hz): 50
- Standby Rating Output (50Hz): 50
- Prime Rating Output (50Hz): 45

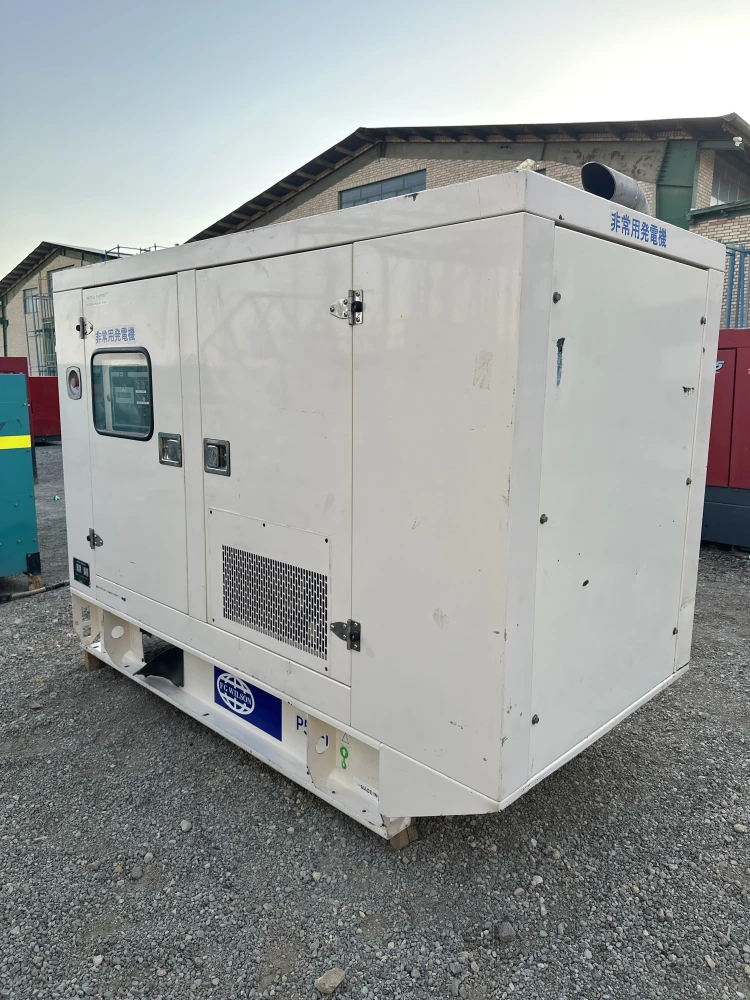

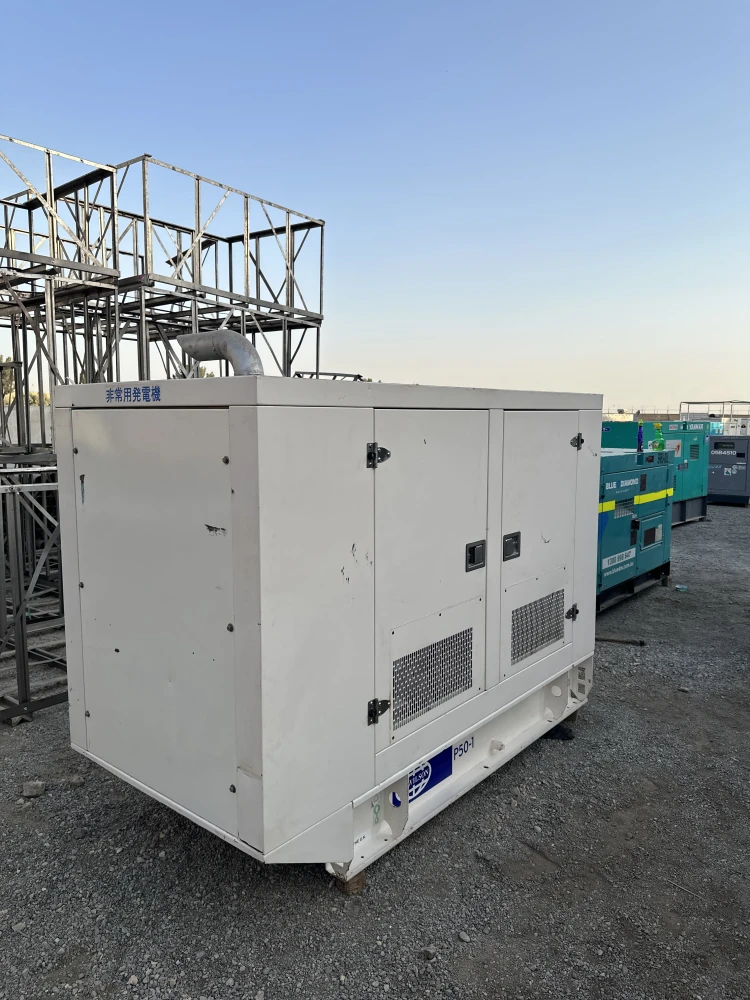

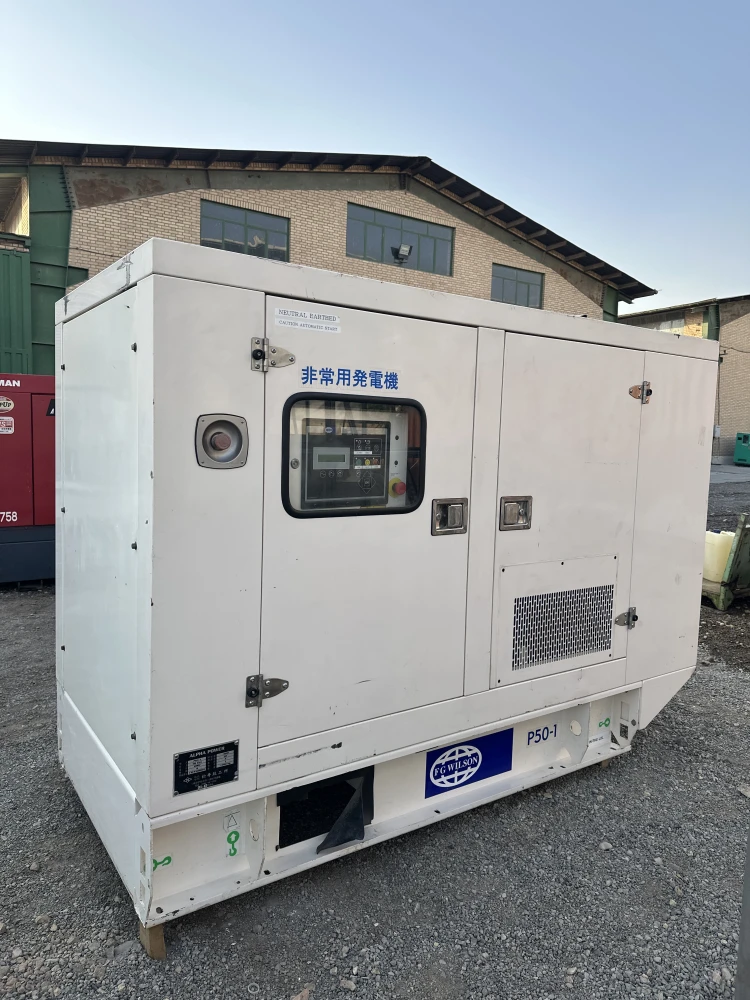

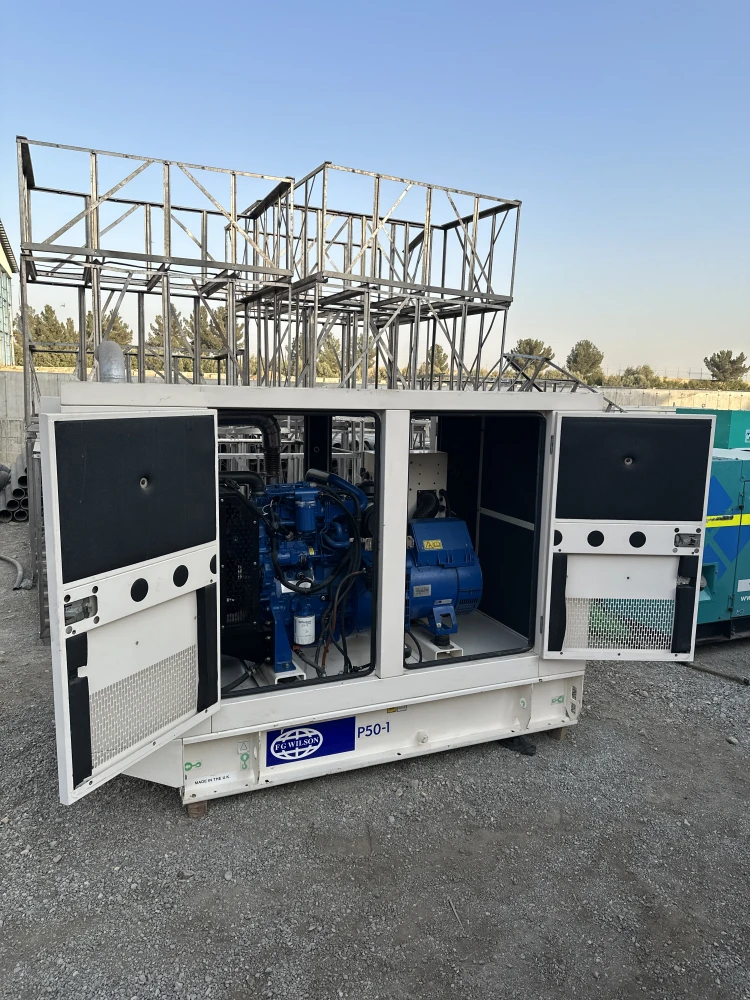

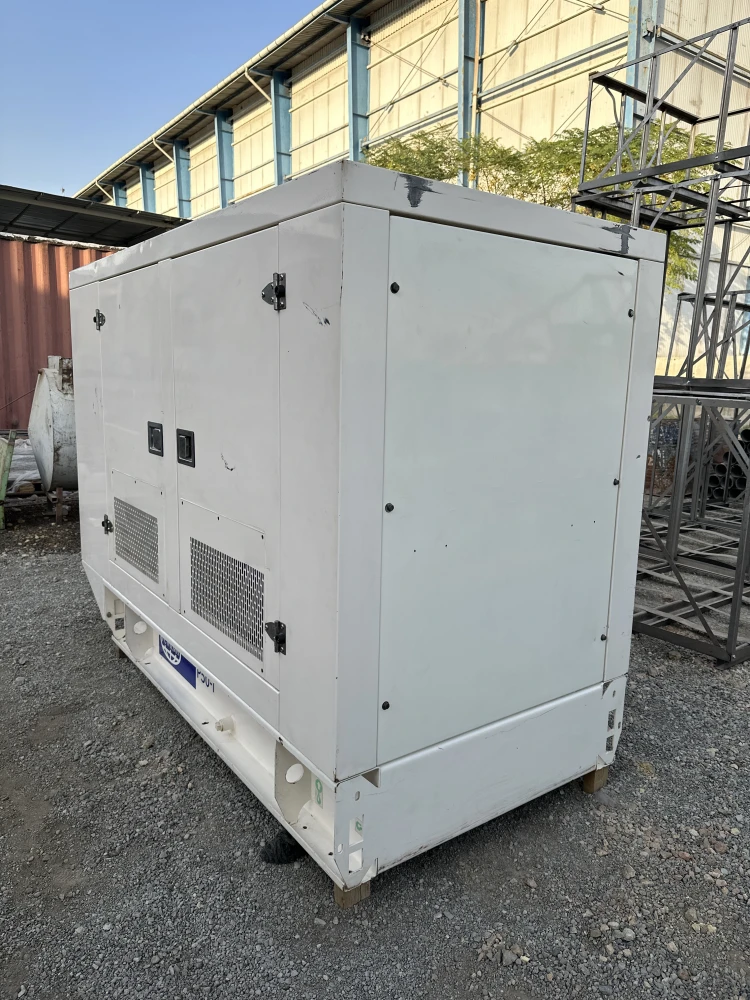

- Configuration (Open-set/Canopy): Silent Canopy Made by FG Wilson
- Year of Manufacture: 2011
- Condition: Used
- Controller: FG Wilson Exclusive Control Panel
- Availability: In Stock – Warehouse 2

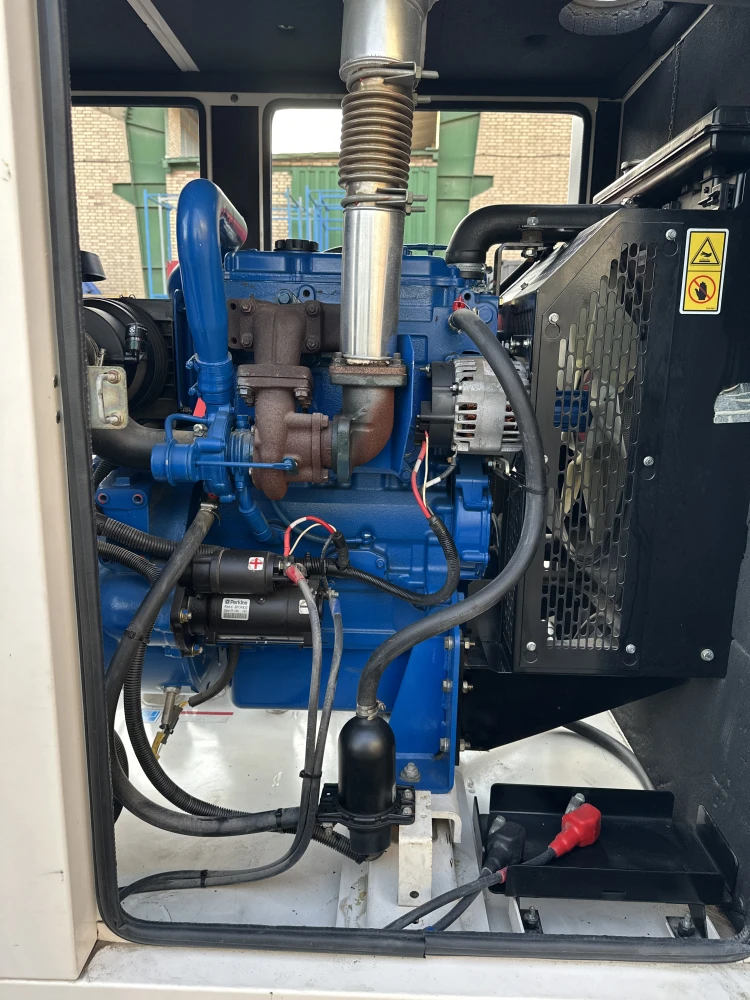

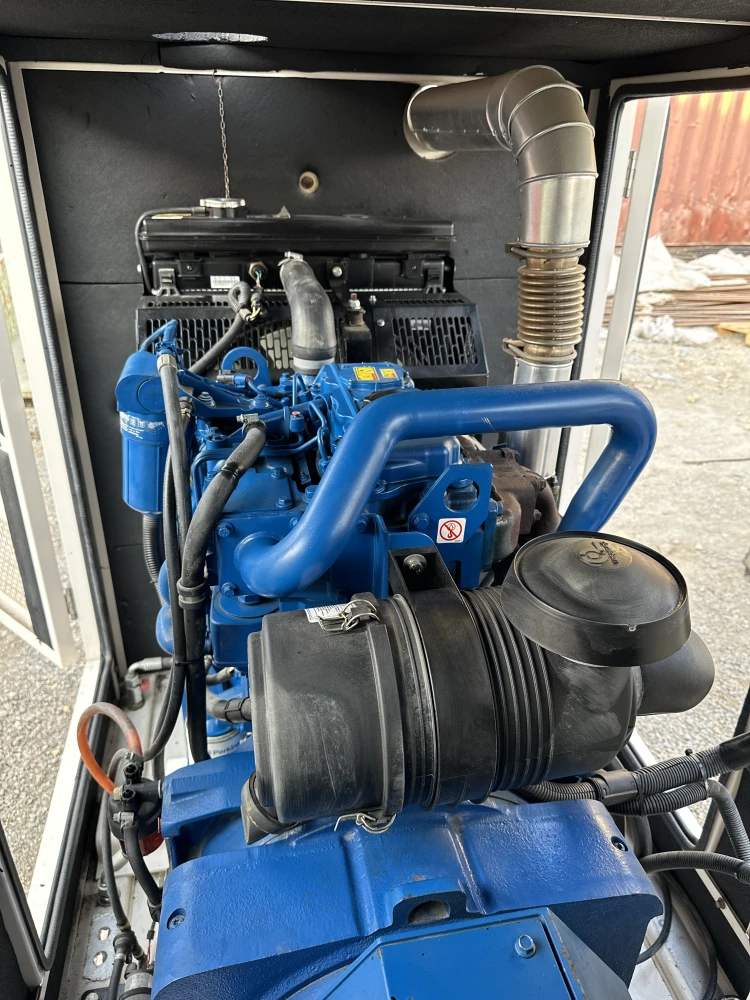

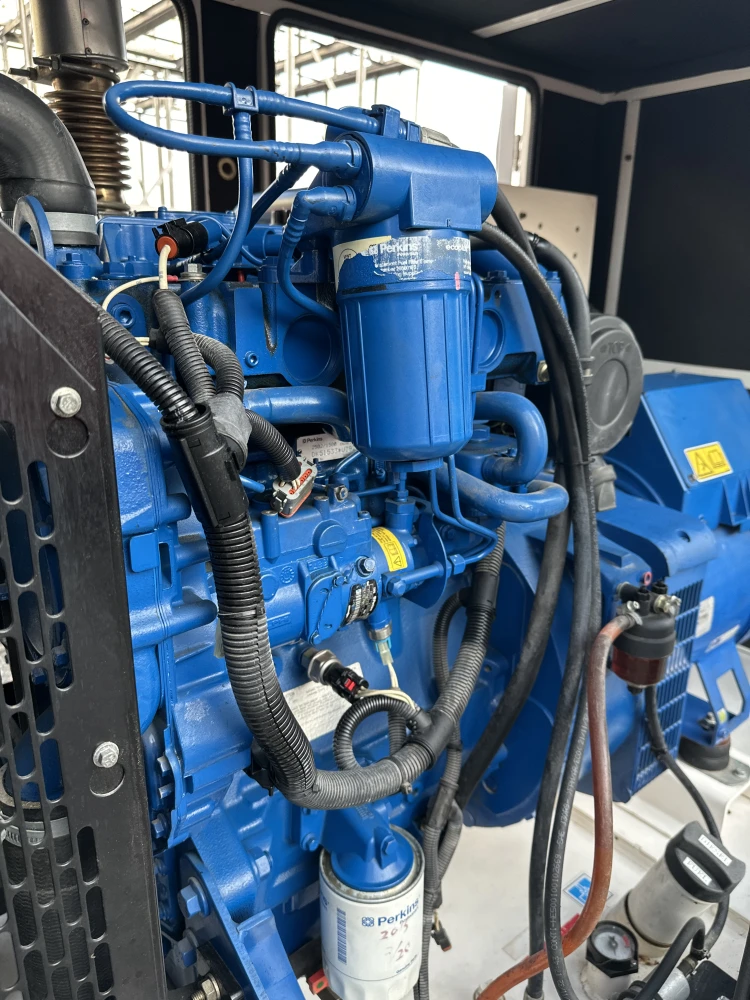

Engine

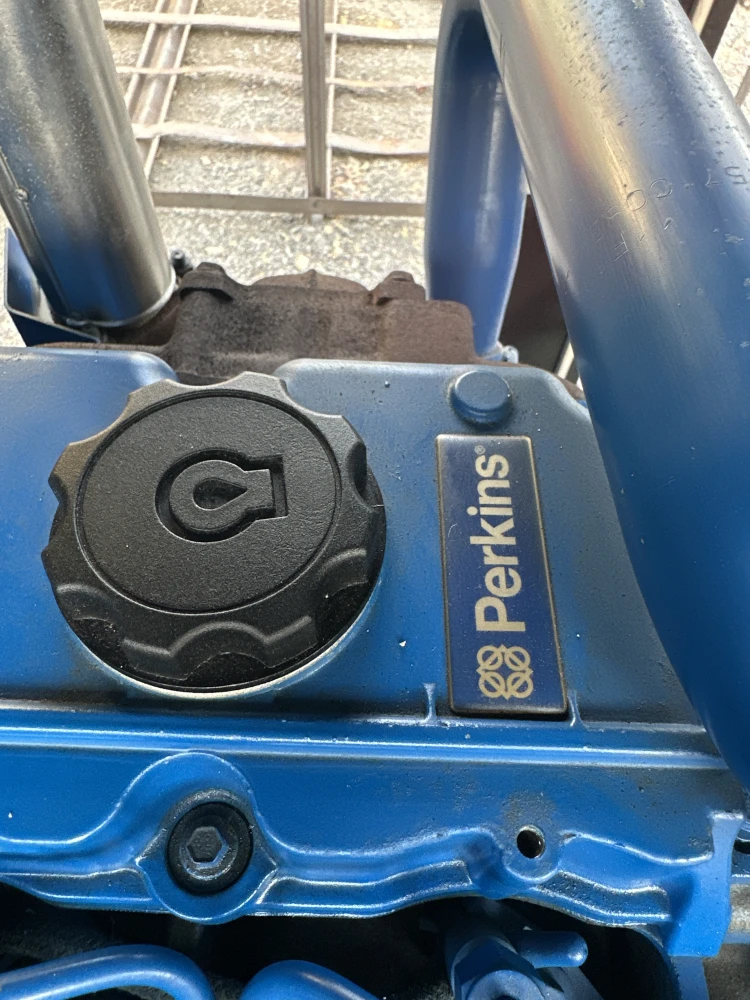

- Make and Model: Perkins 1103A-33TG
- Cylinders: Inline-3
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 105 x 127
- Total Displacement (Litre): 3.29
- Fuel: Diesel

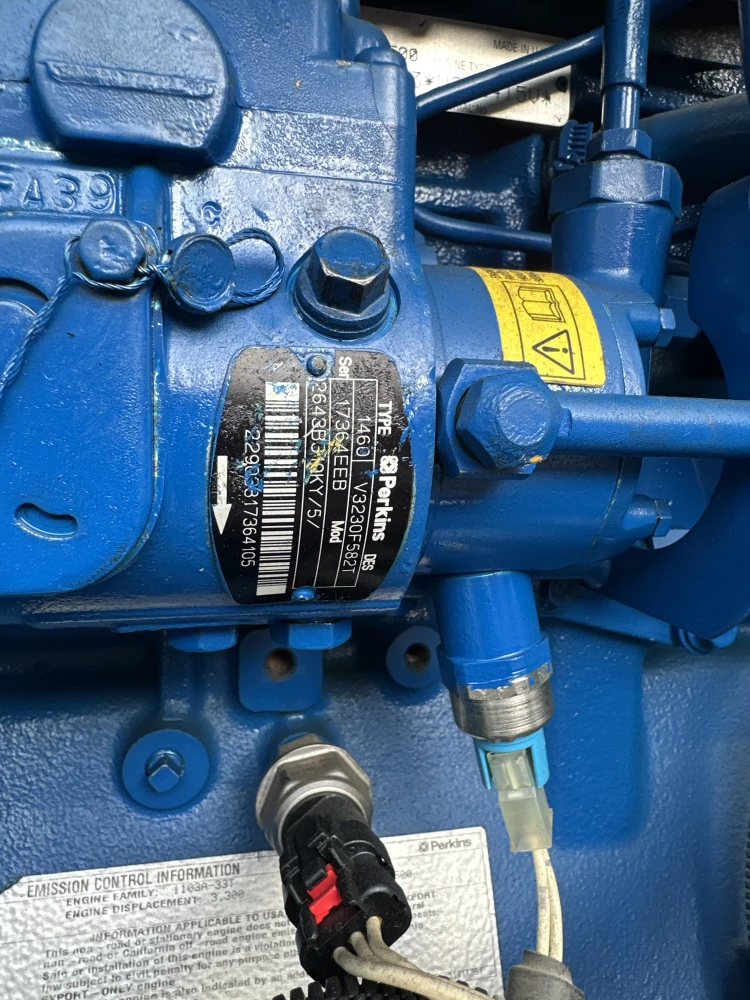

- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 8.3000000000000007
- Coolant Capacity (Litre): 10.199999999999999
- Mounted Fuel Tank Capacity (Litre): 220
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Alternator
- Make and Model: Leroy-Somer LL 2014C
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
