Technical Specifications
Diesel Generator Set
- Make and Model: SDMO X1540
- Standby Rating Output (50Hz): 1,500
- Prime Rating Output (50Hz): 1,375

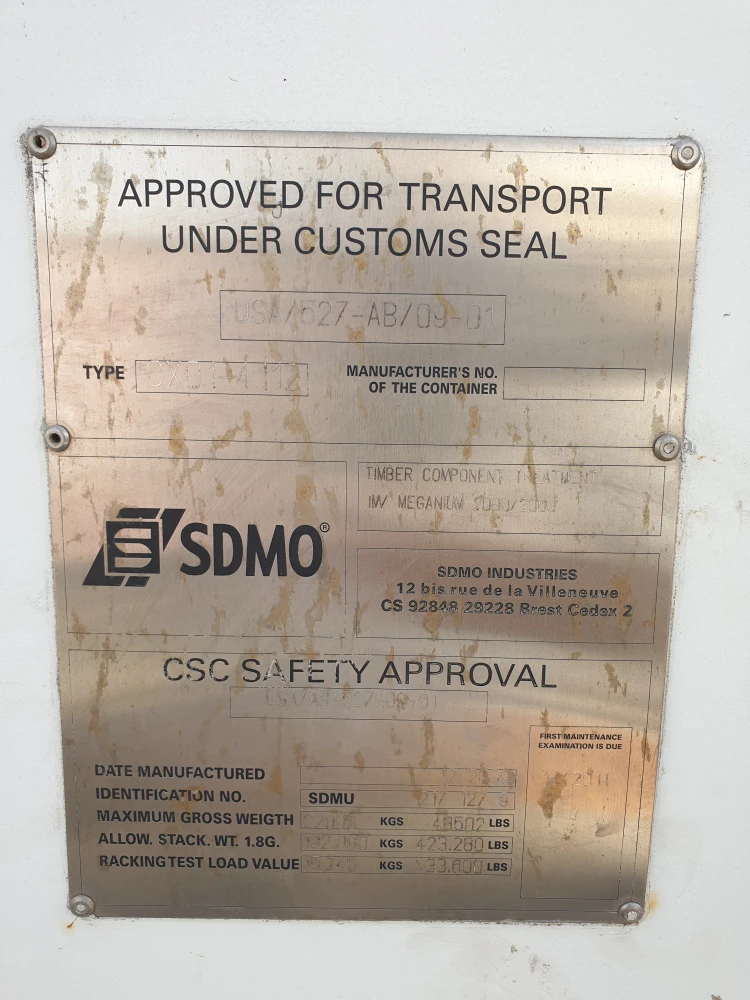

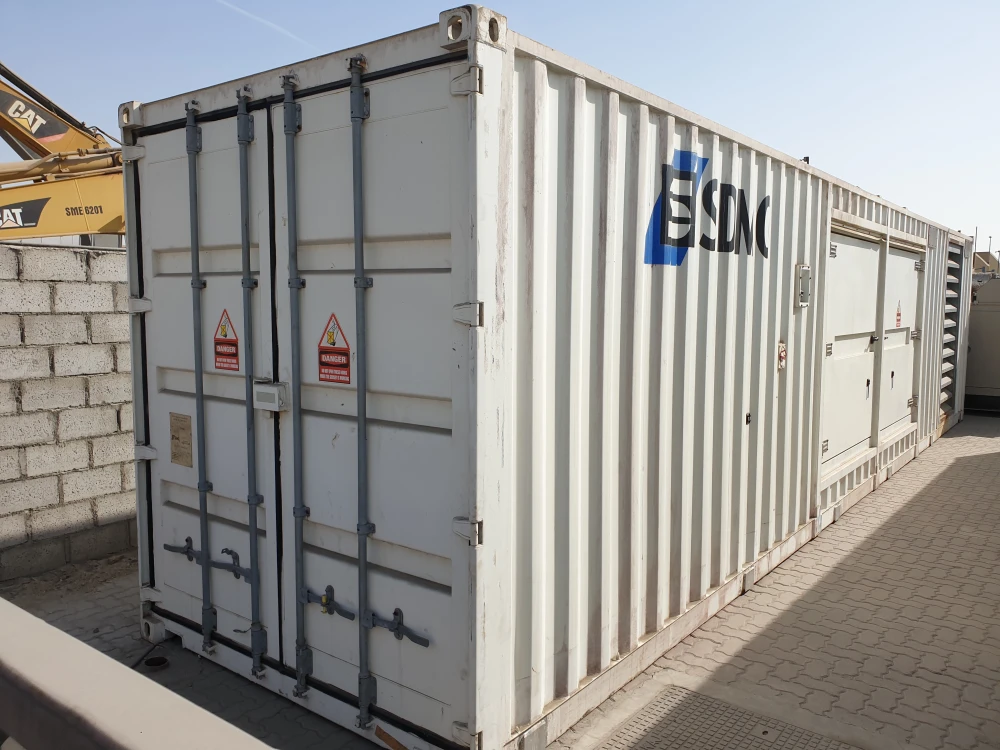

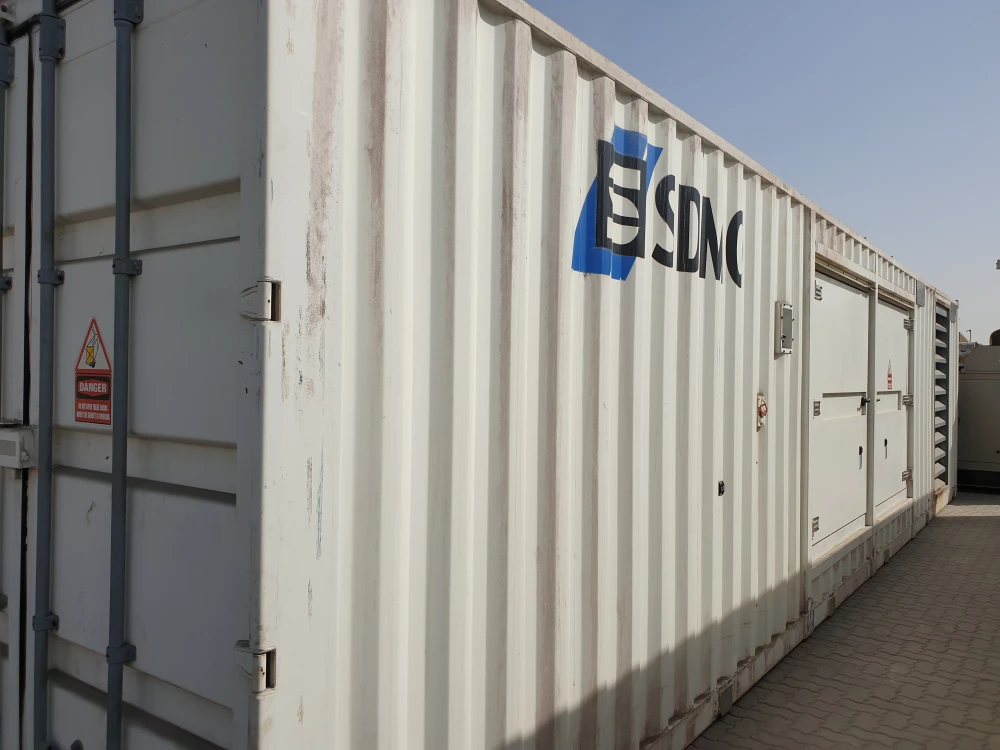

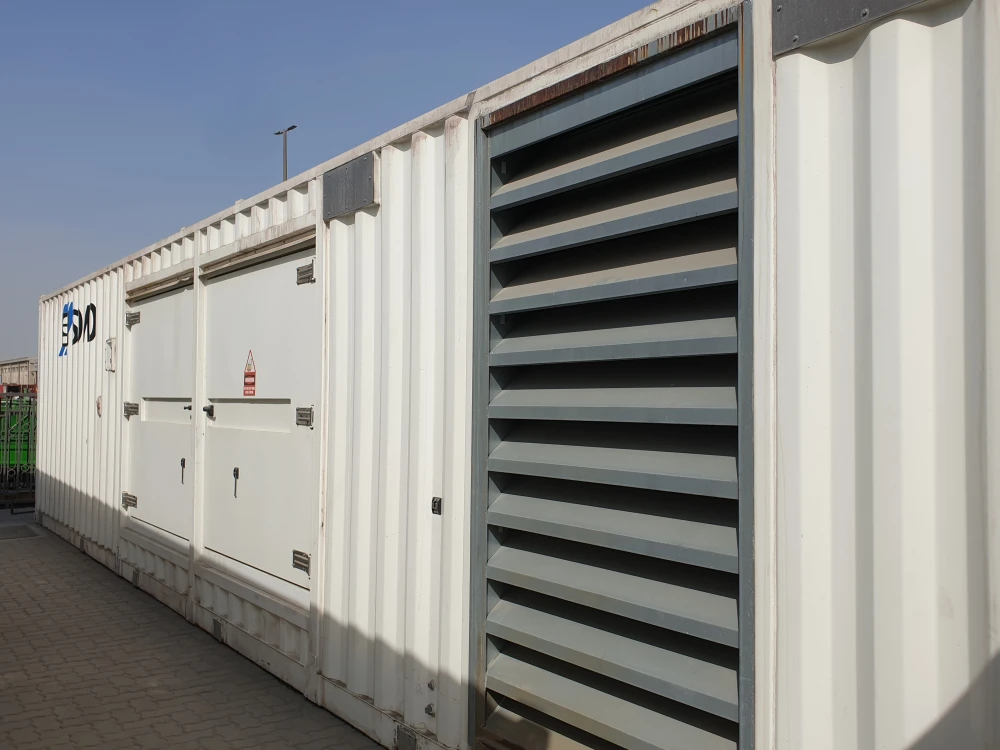

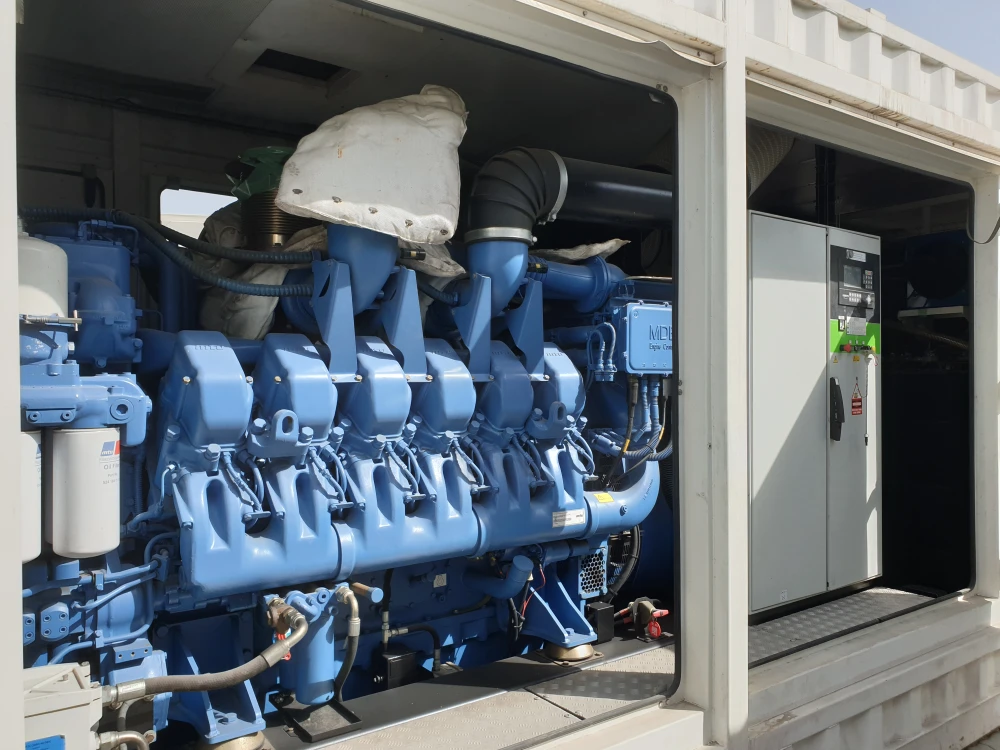

- Configuration (Open-set/Canopy): Containerized Made by SDMO
- Year of Manufacture: 2010
- Condition: Used
- Runtime (hours): 100

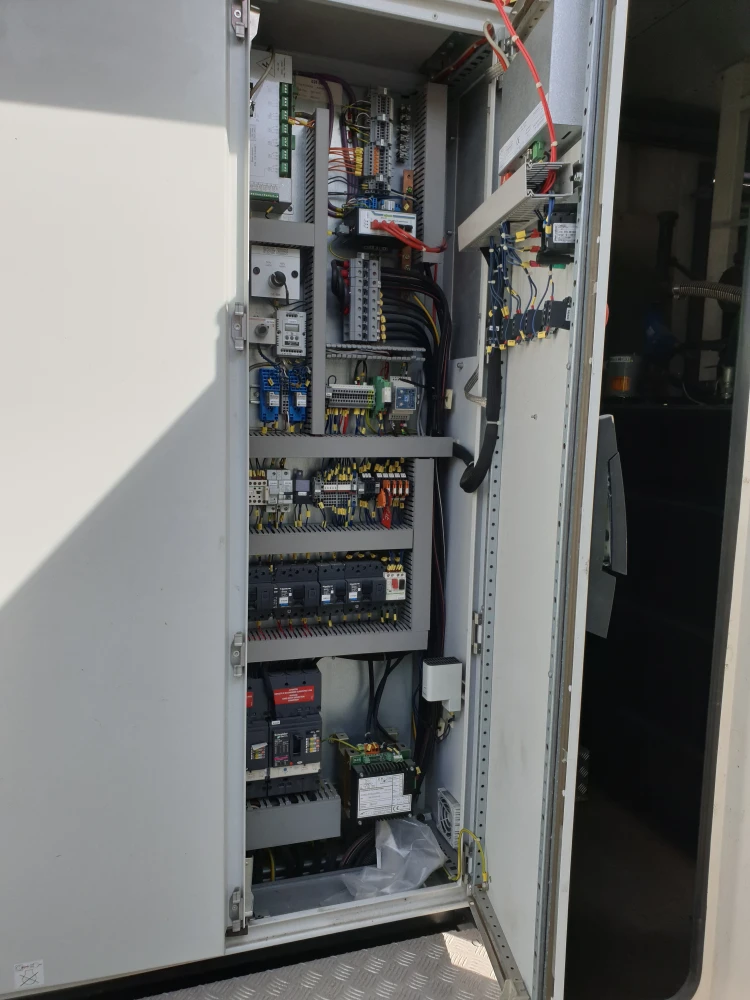

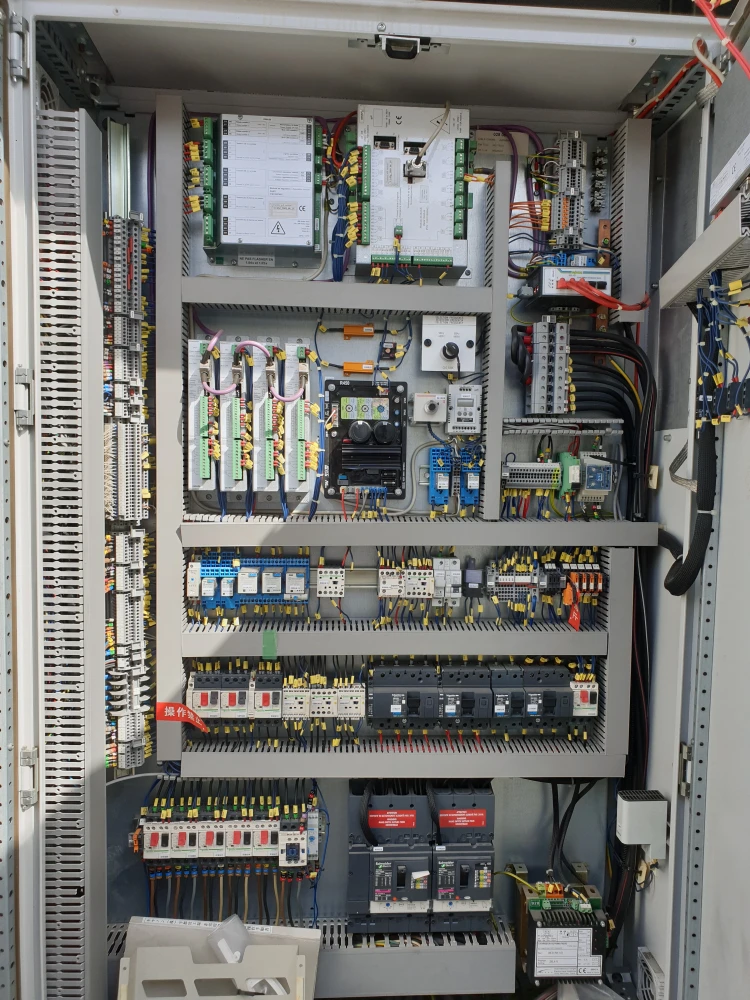

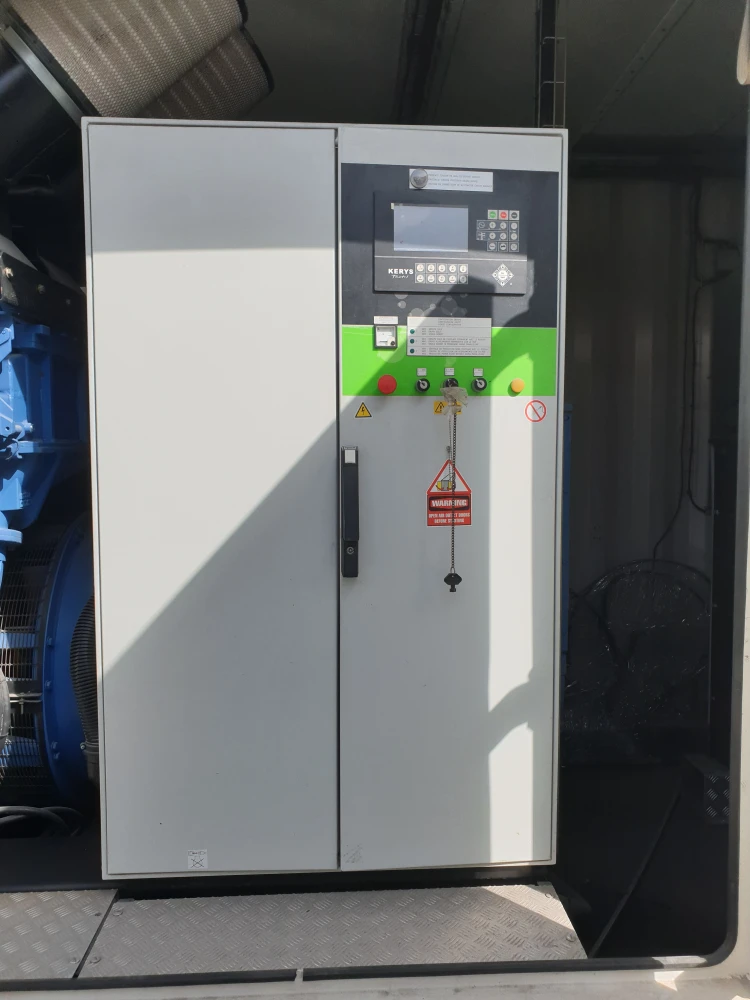

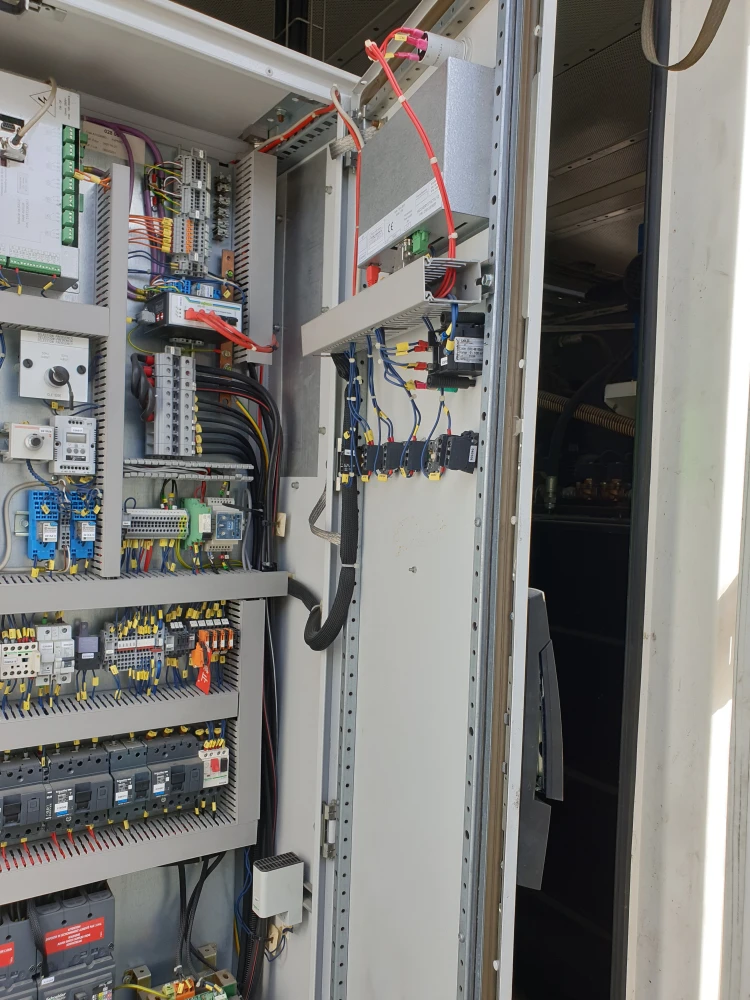

- Controller: KERYS TACTIL Modular Industrial-Grade Genset Controller made by SDMO
- Availability: In Stock – Warehouse 1 (Sharjah)

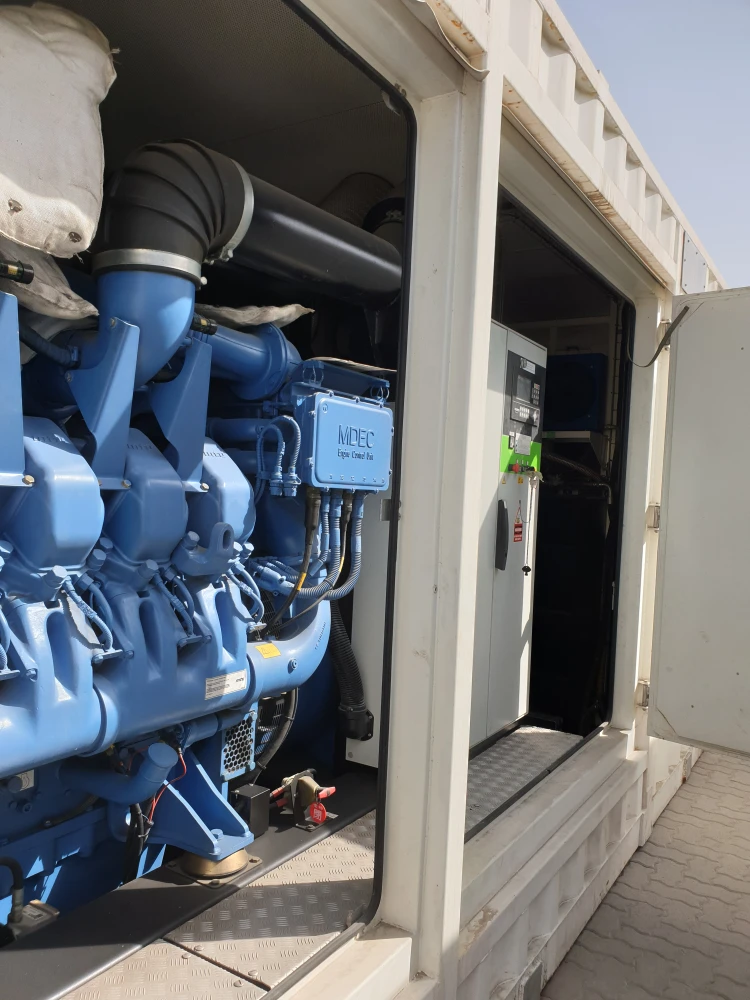

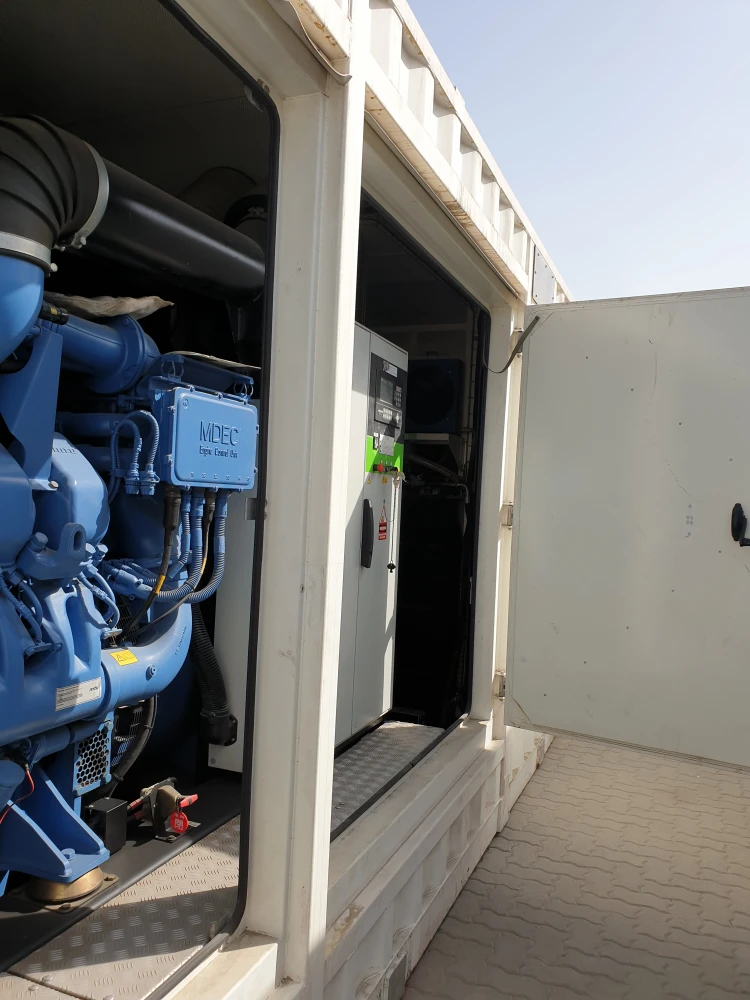

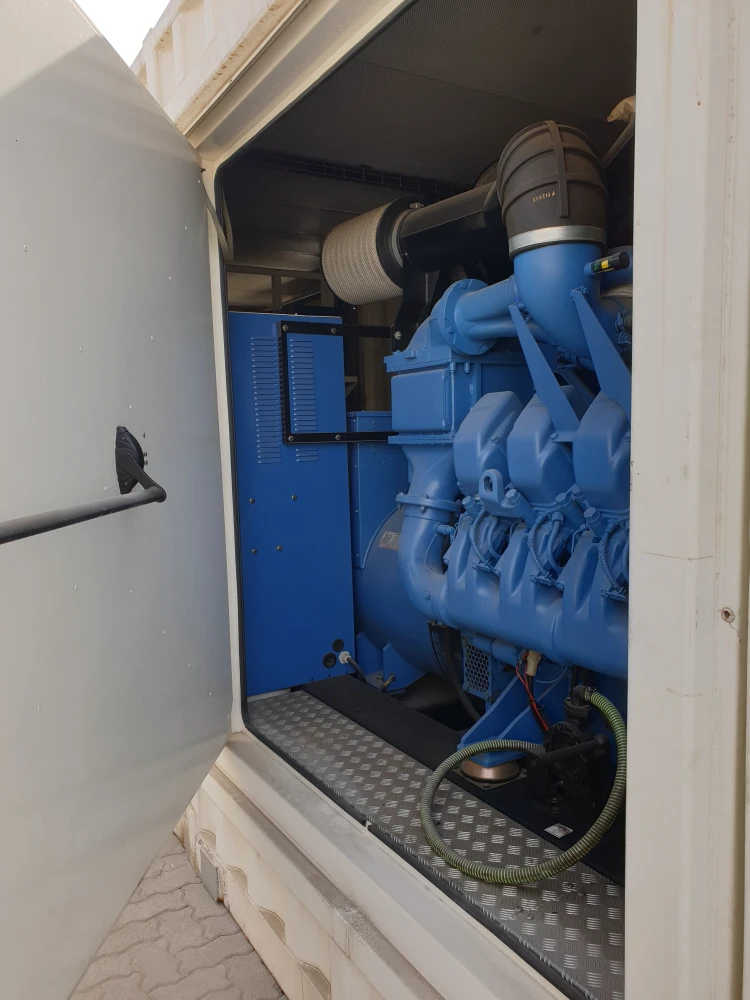

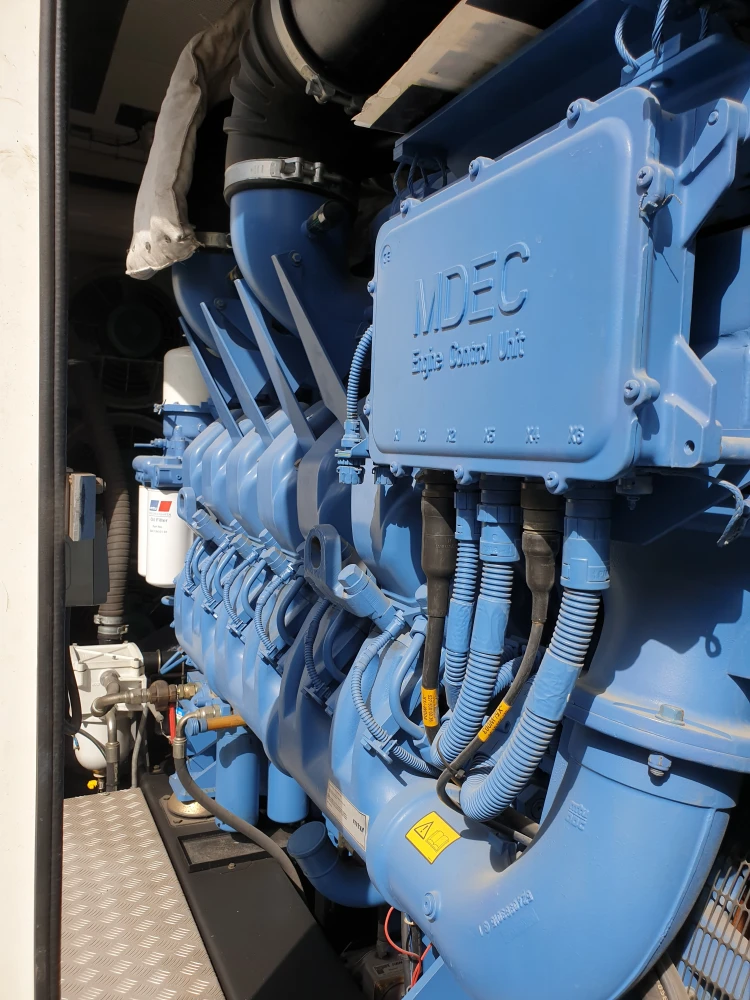

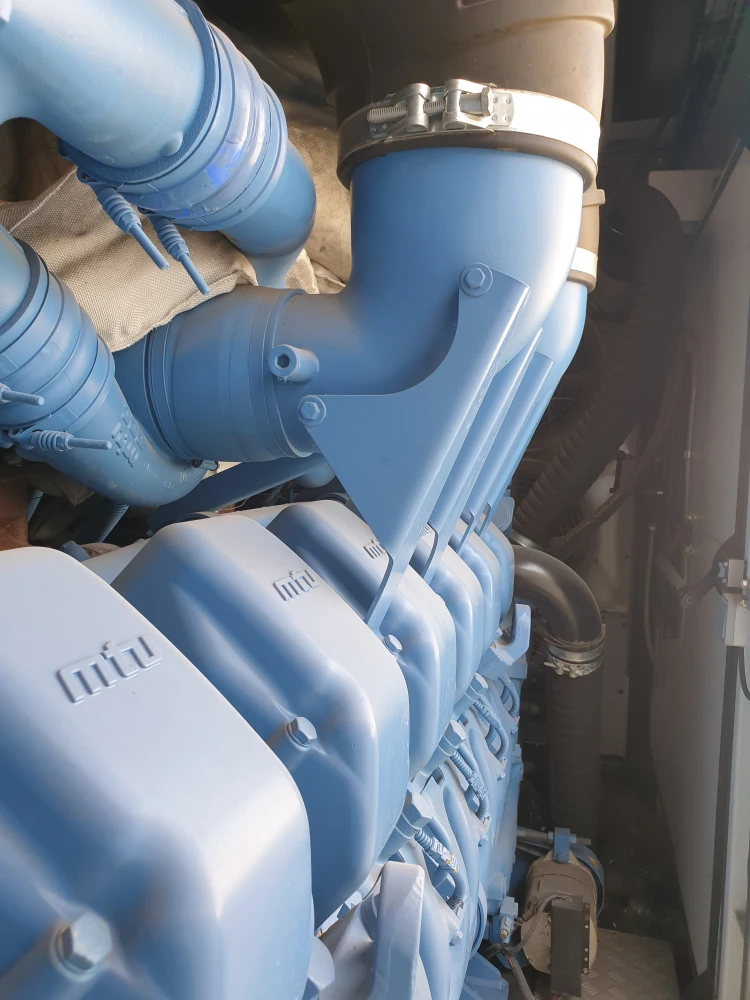

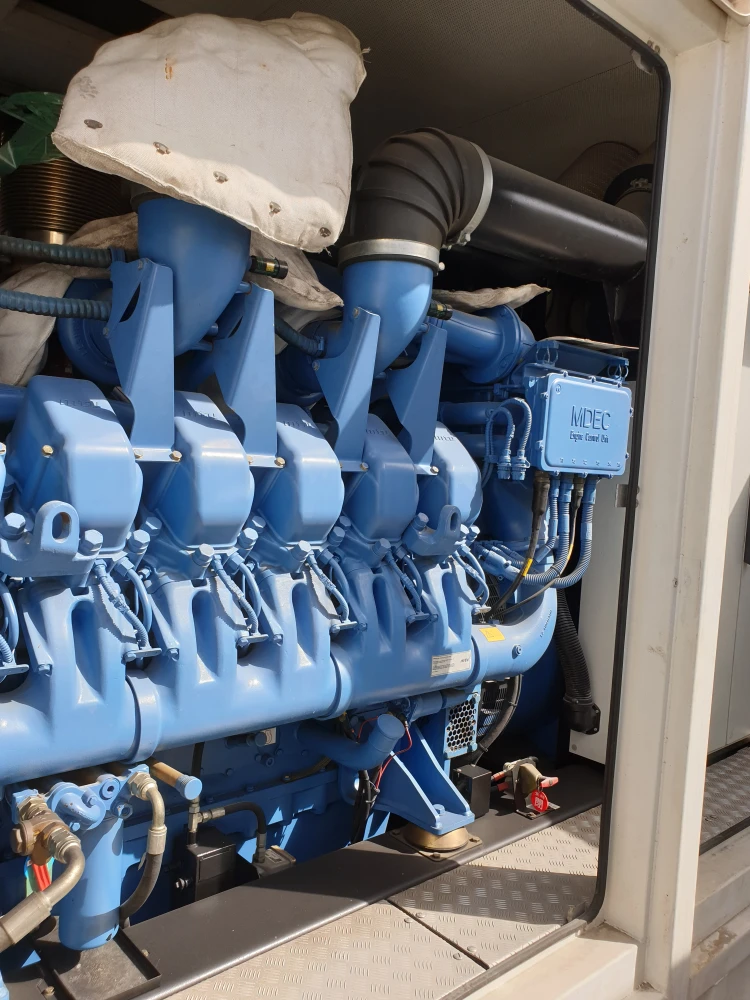

Engine

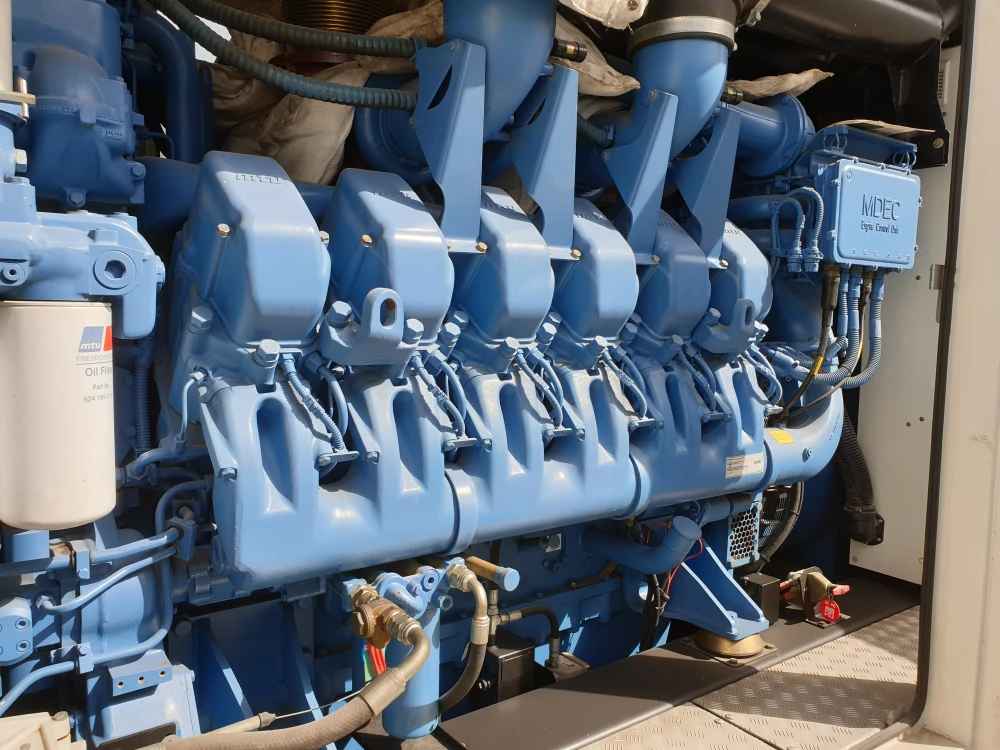

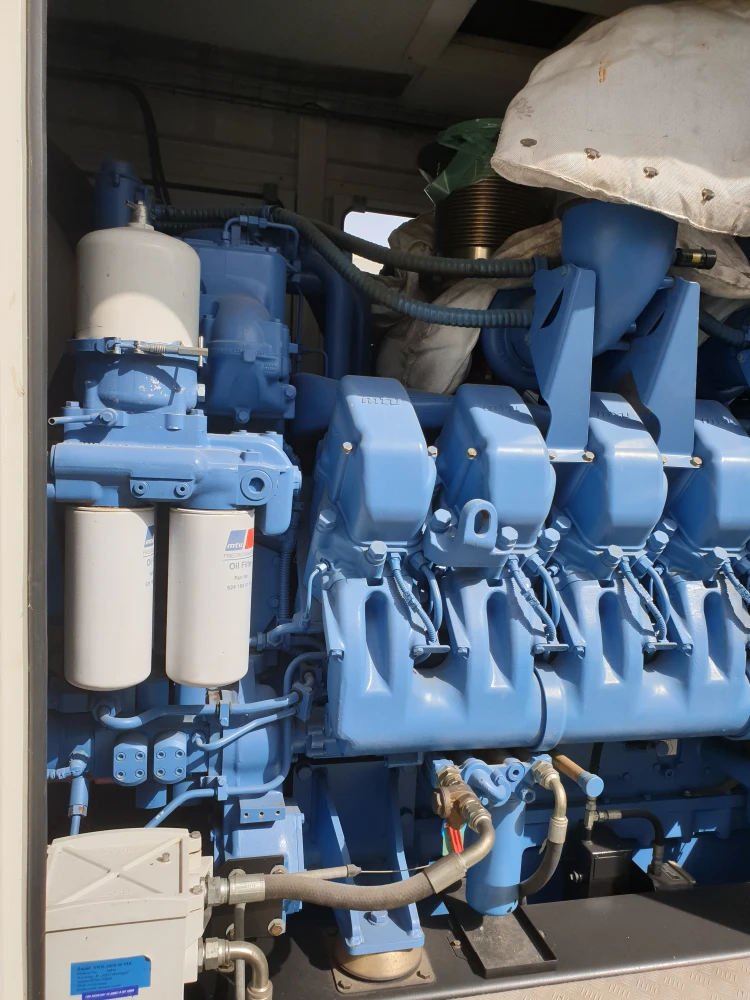

- Make and Model: MTU 12V4000G21R
- Cylinders: V12
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 165 x 190
- Total Displacement (Litre): 48.75
- Fuel: Diesel
- Fuel System Type: Common Rail (Electronic)

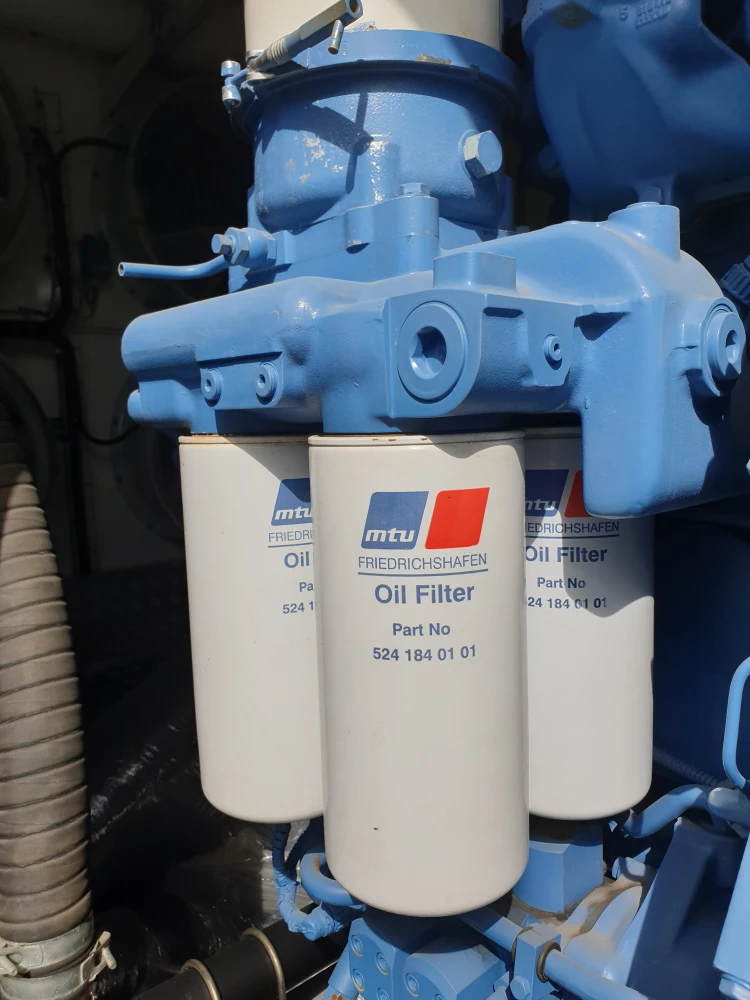

- Lube Oil Capacity (Litre): 260
- Coolant Capacity (Litre): 200
- Governor and Actuator Type: Electronic Governor, Electric Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 23,200

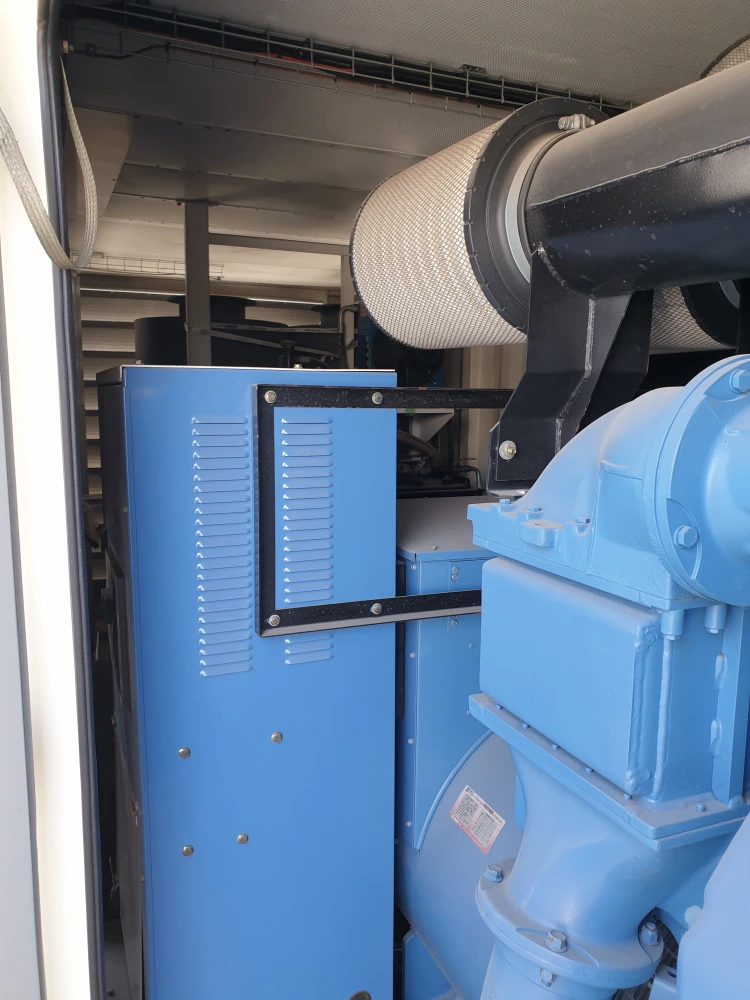

Alternator
- Make and Model: Leroy-Somer 50.2VL10 C 6S/4
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
