Yanmar AP135B-6T | 135 kVA Super Silent Diesel Generator
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Yanmar AP135B-6T
- Standby Rating Output (60Hz): 135
- Prime Rating Output (60Hz): 125
- Standby Rating Output (50Hz): 110
- Prime Rating Output (50Hz): 100

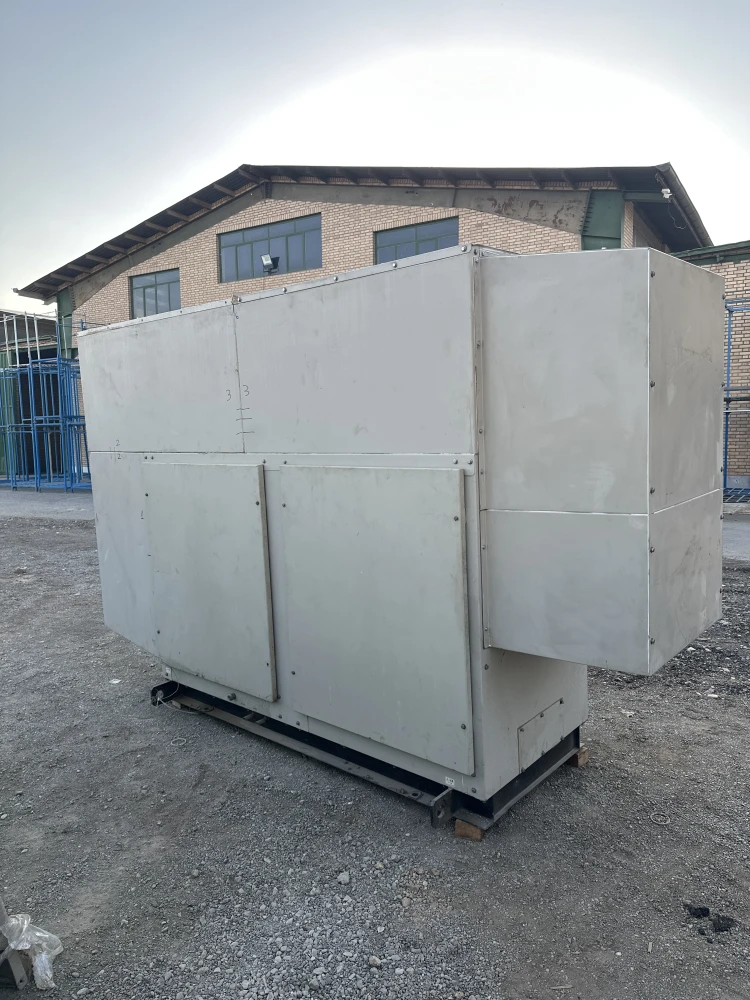

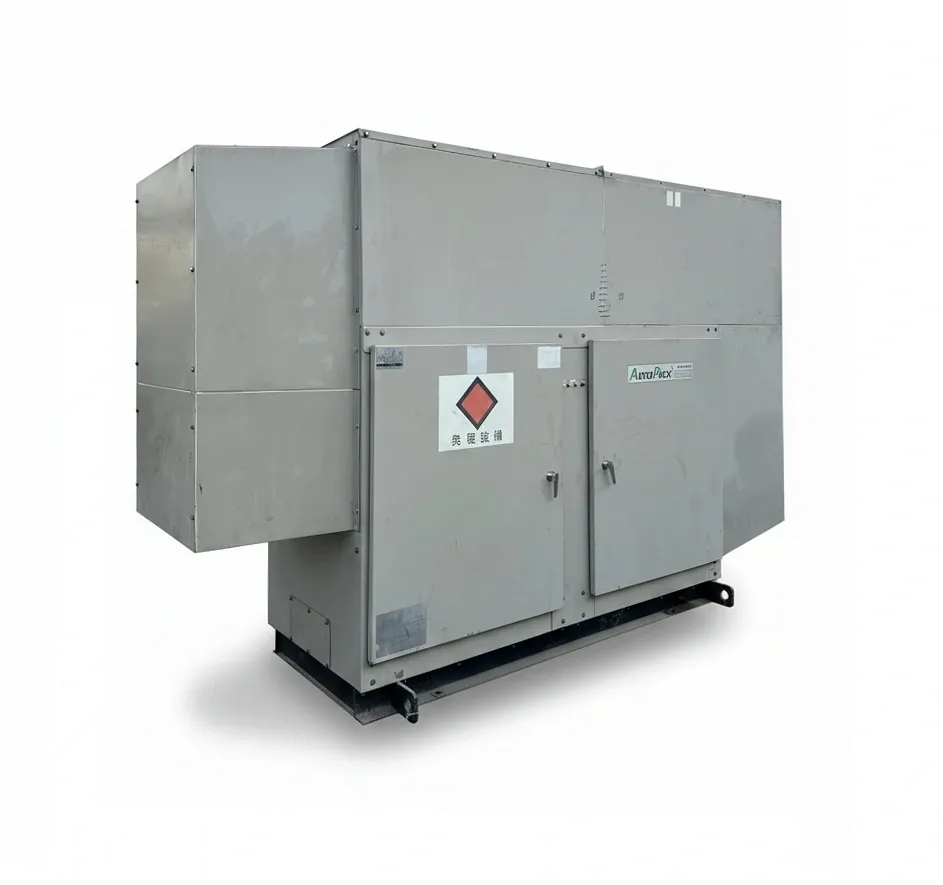

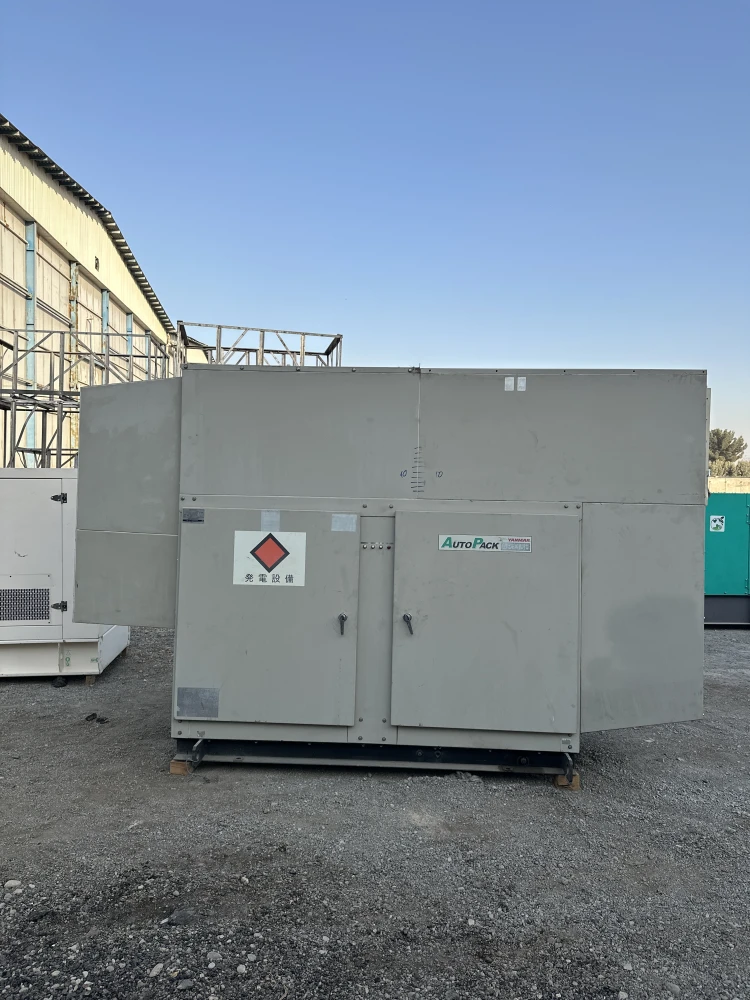

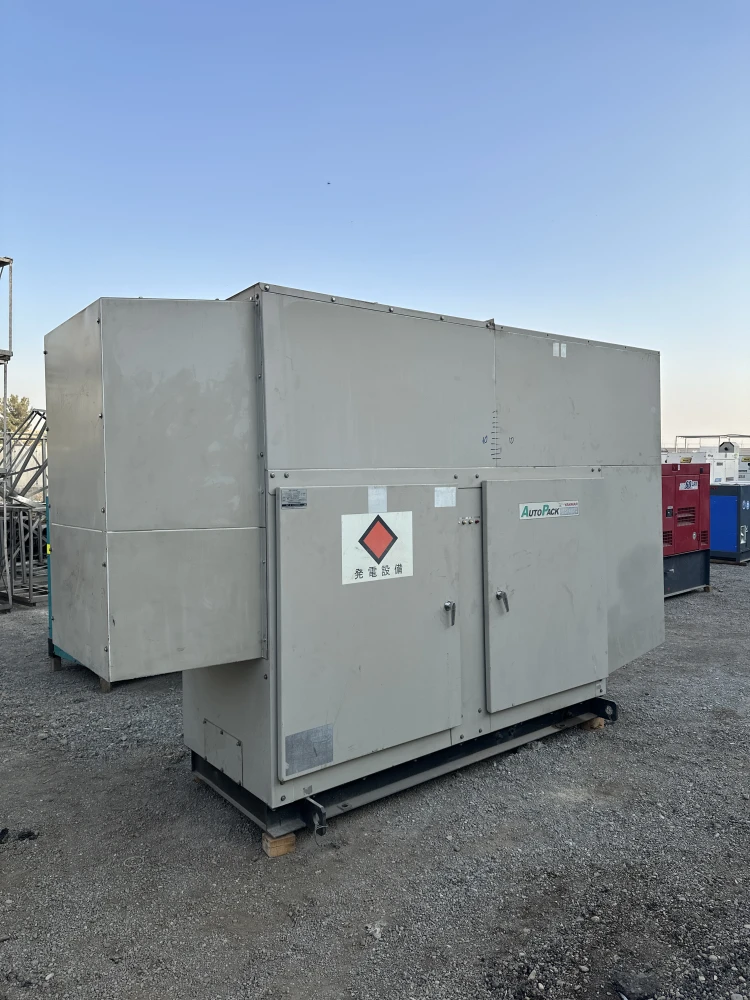

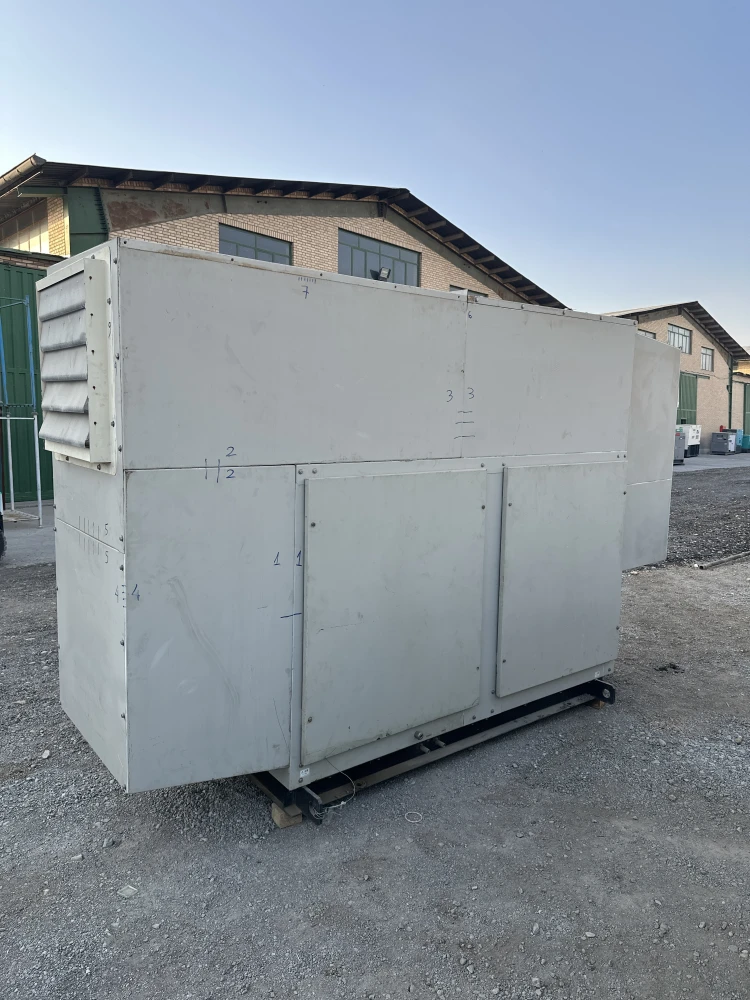

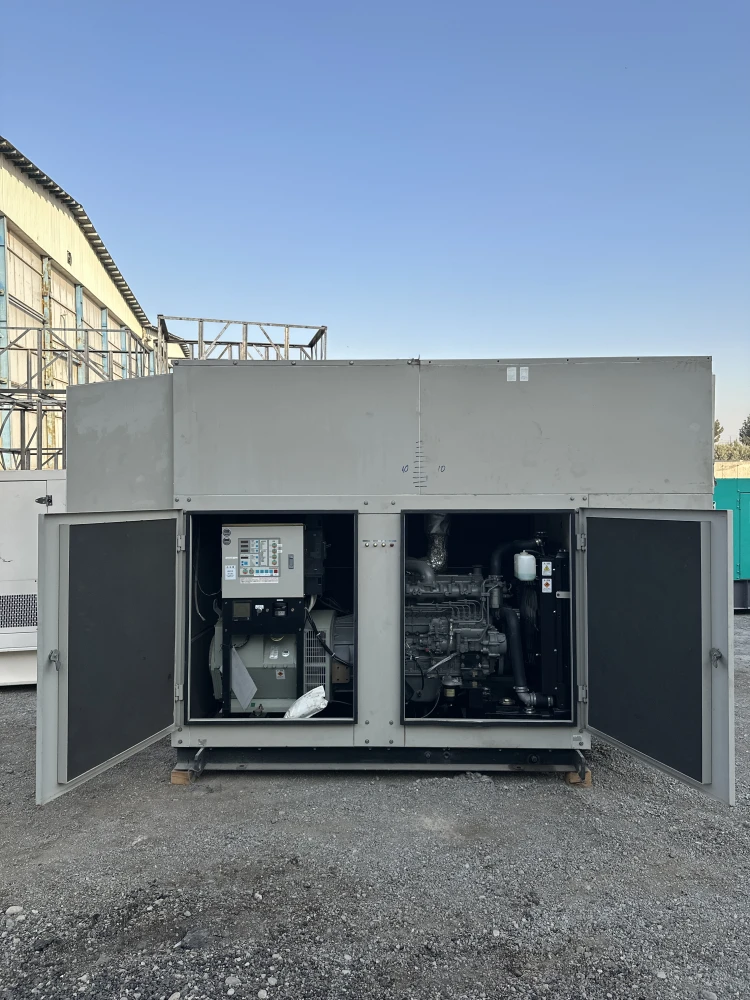

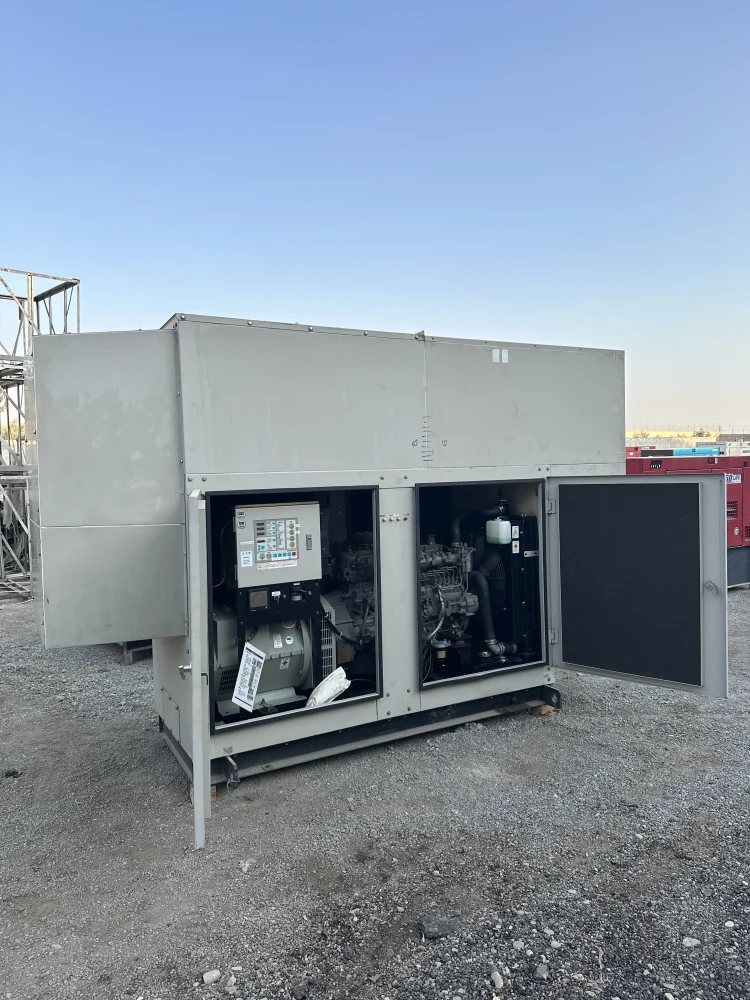

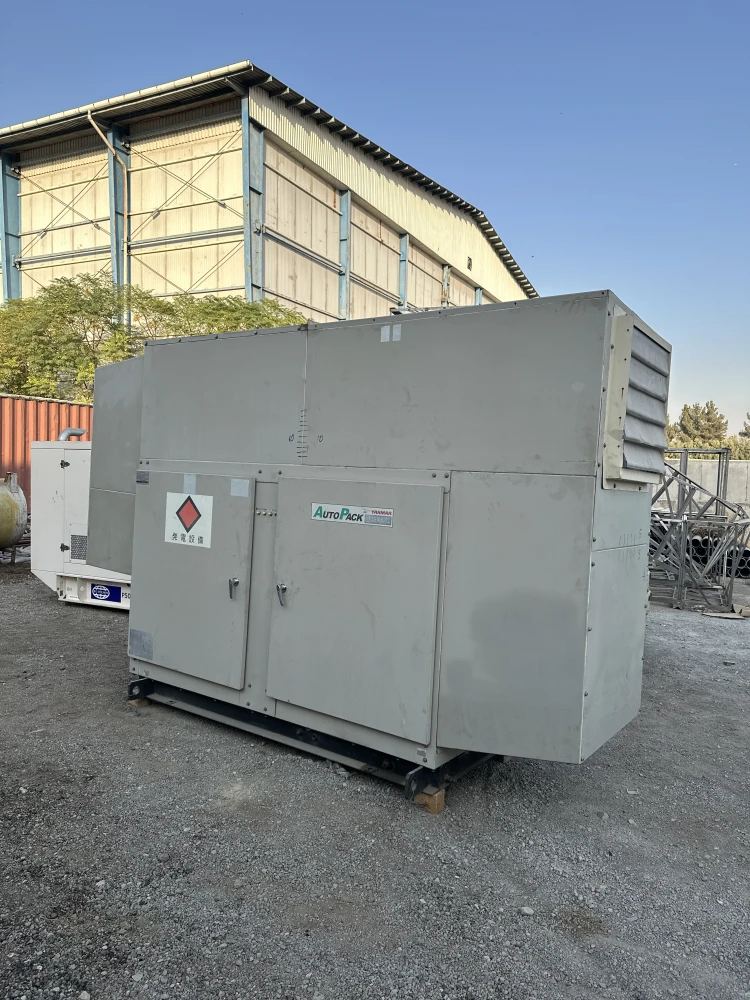

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Yanmar
- Year of Manufacture: 2018
- Condition: Used

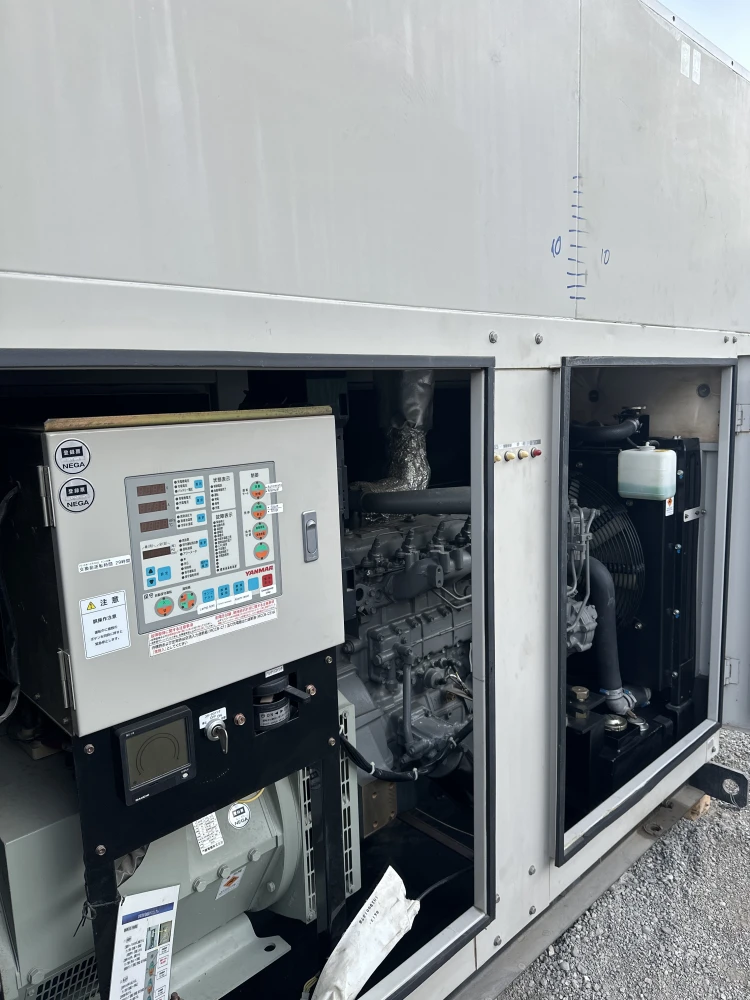

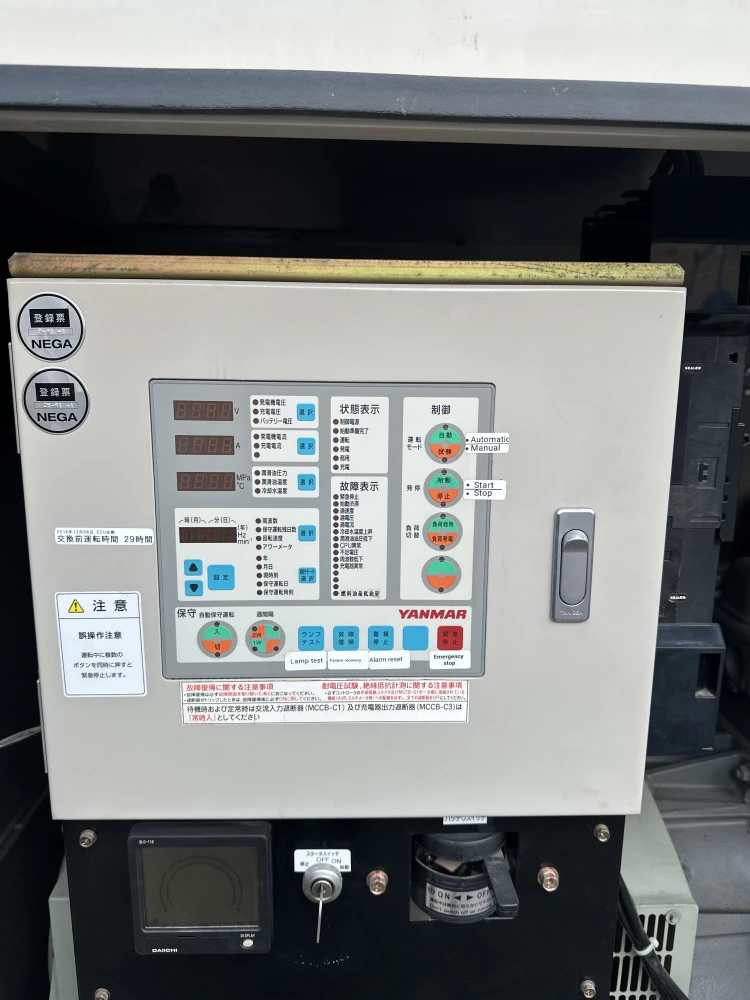

- Controller: Yanmar/Sawafuji Electric Exclusive Control Panel
- Availability: In Stock – Warehouse 2

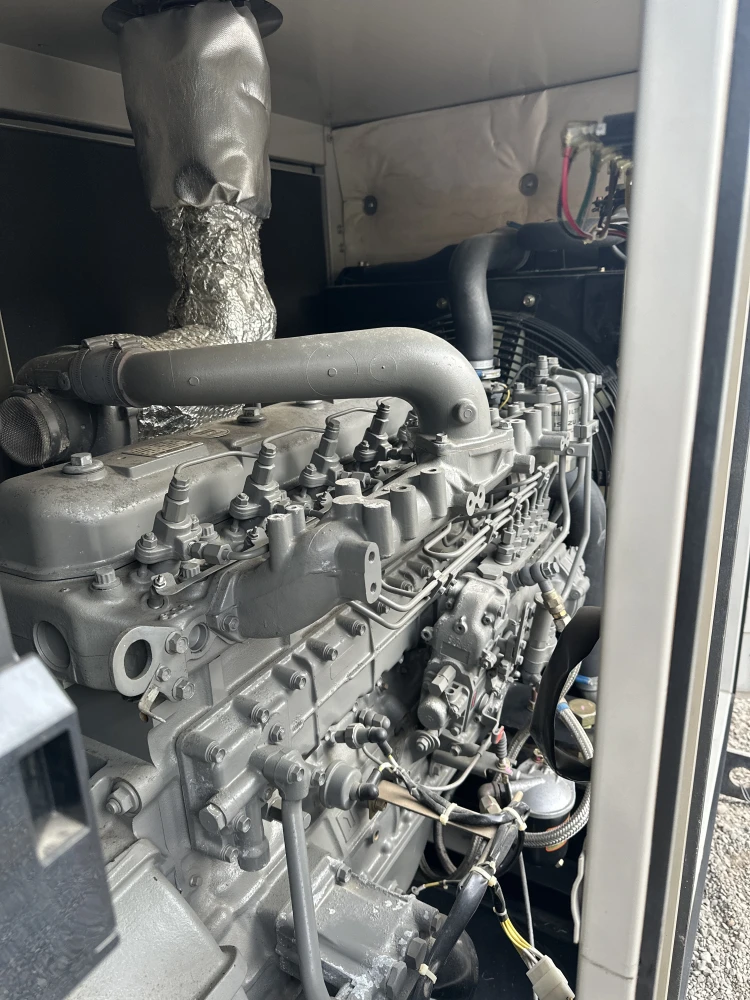

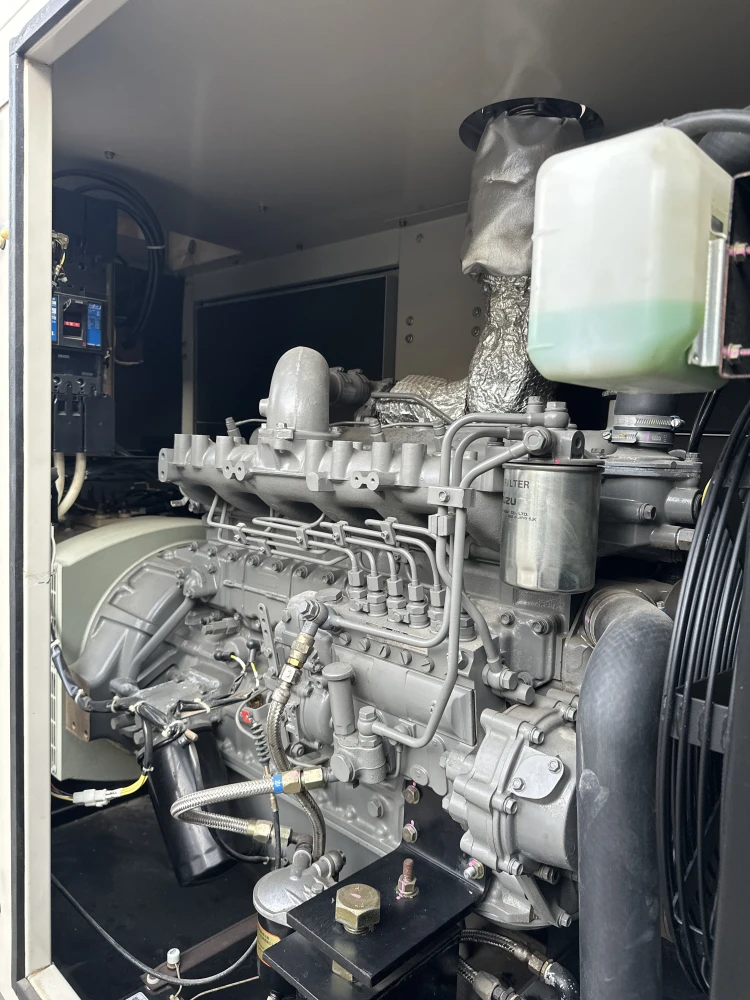

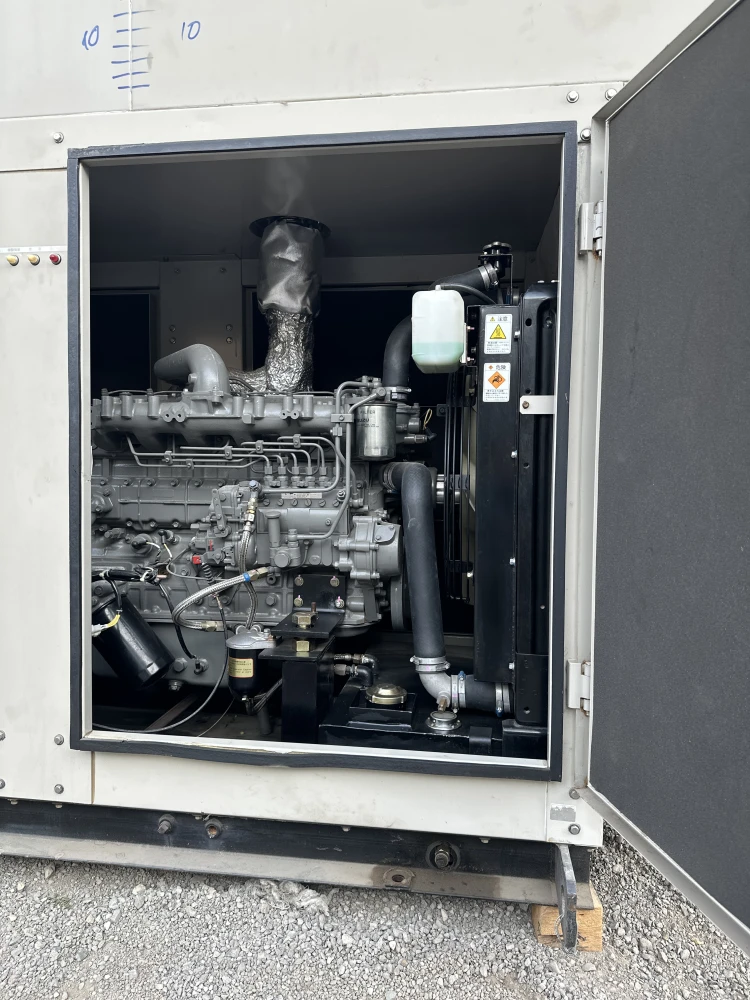

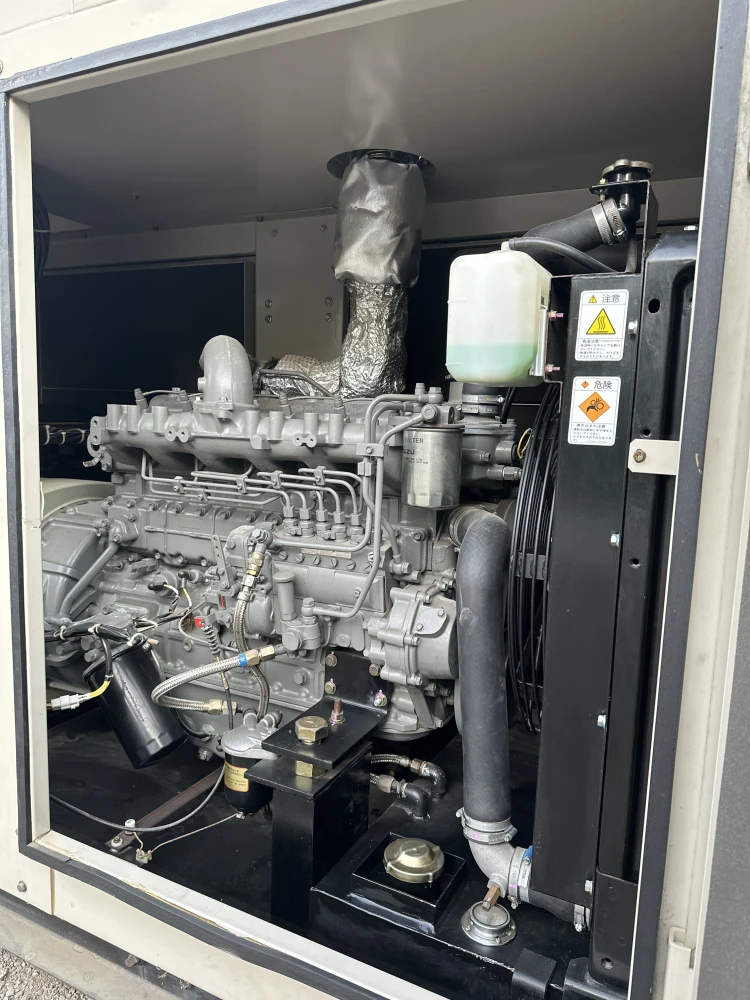

Engine

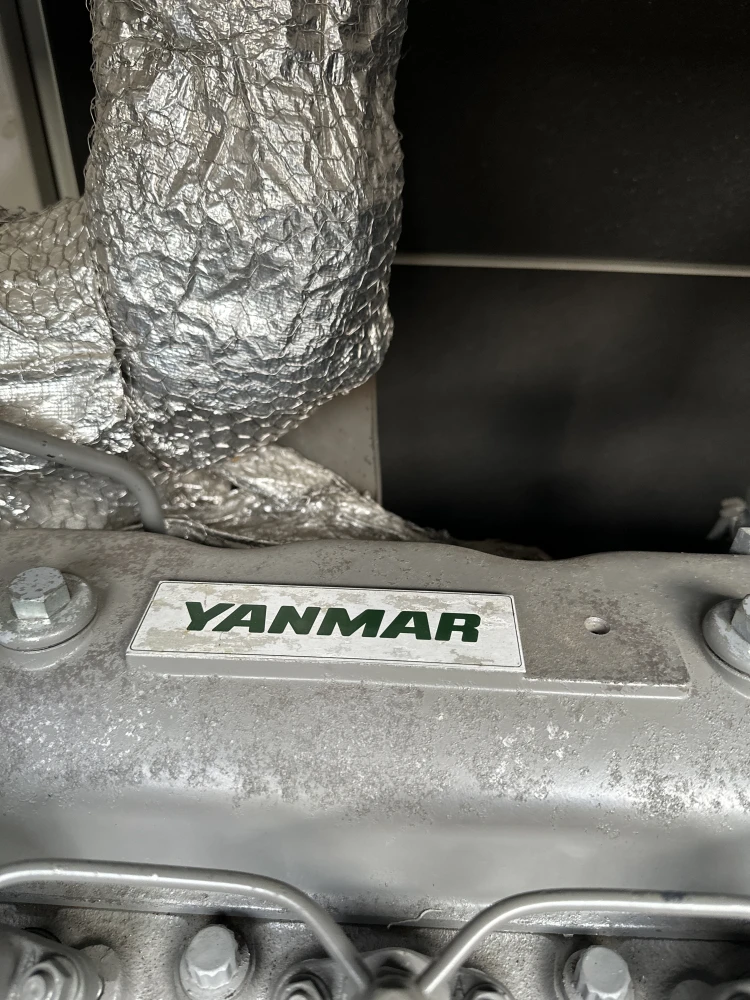

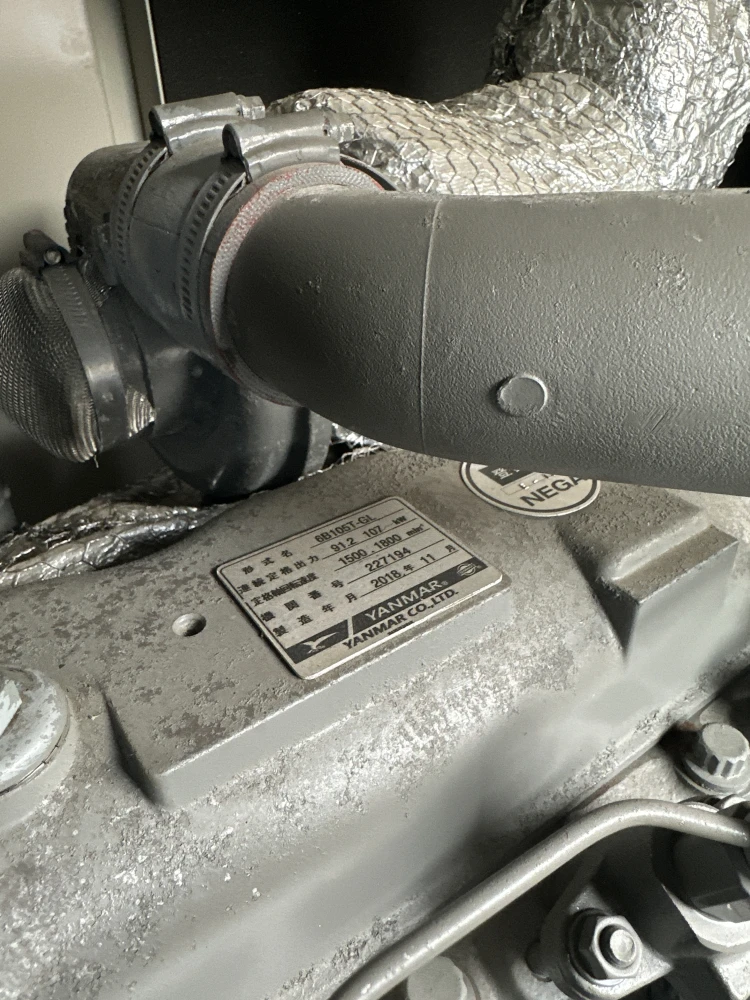

- Make and Model: Yanmar 6B105T-GL
- Cylinders: Inline-6
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 105 x 125
- Total Displacement (Litre): 6.49
- Fuel: Diesel

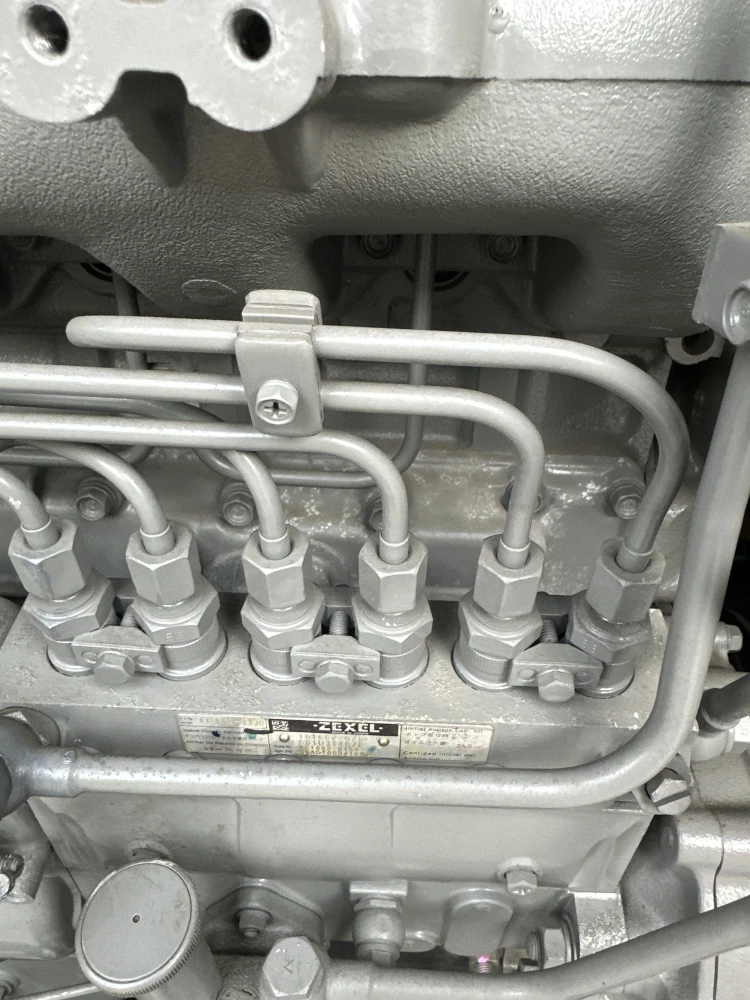

- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 22
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 1,510

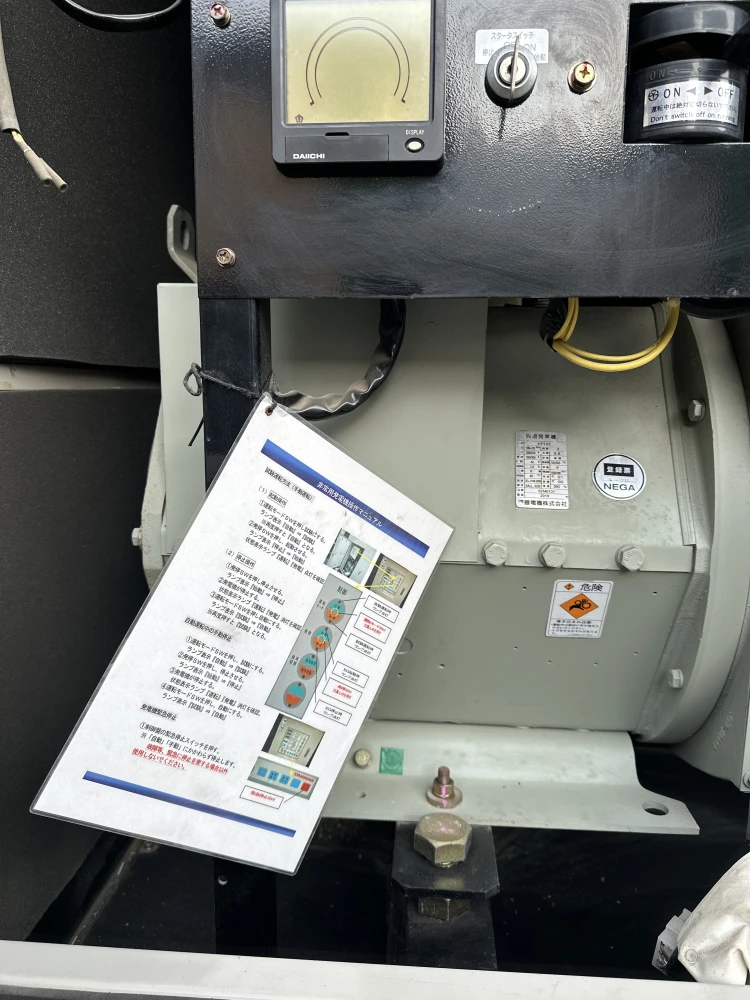

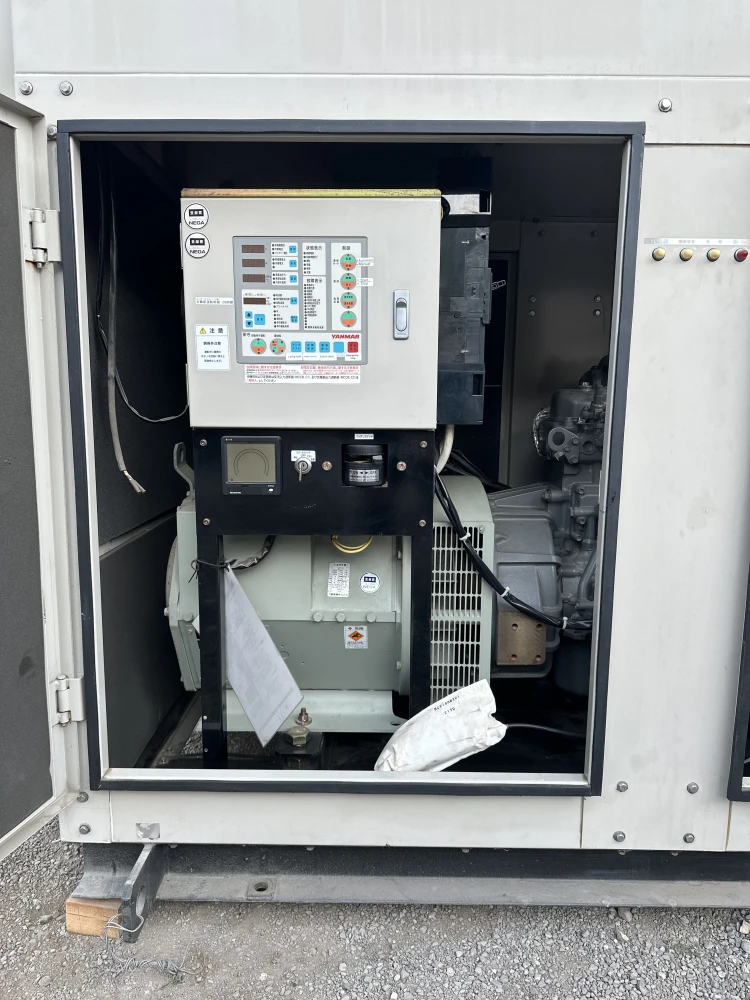

Alternator
- Make and Model: Sawafuji Electric Co. AP135
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
