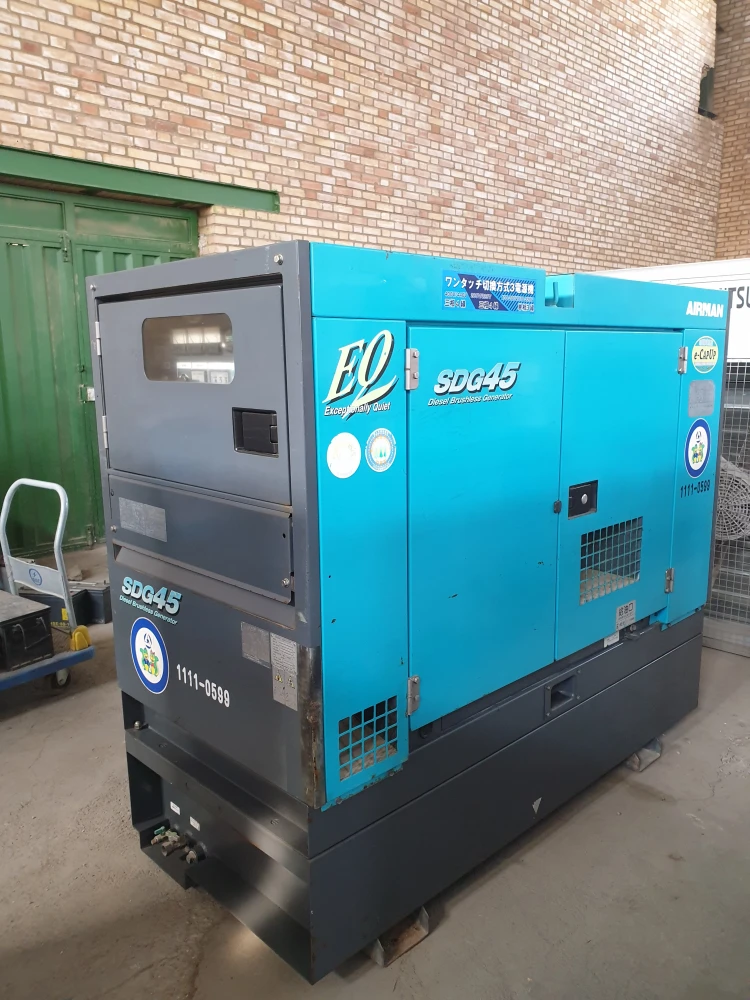

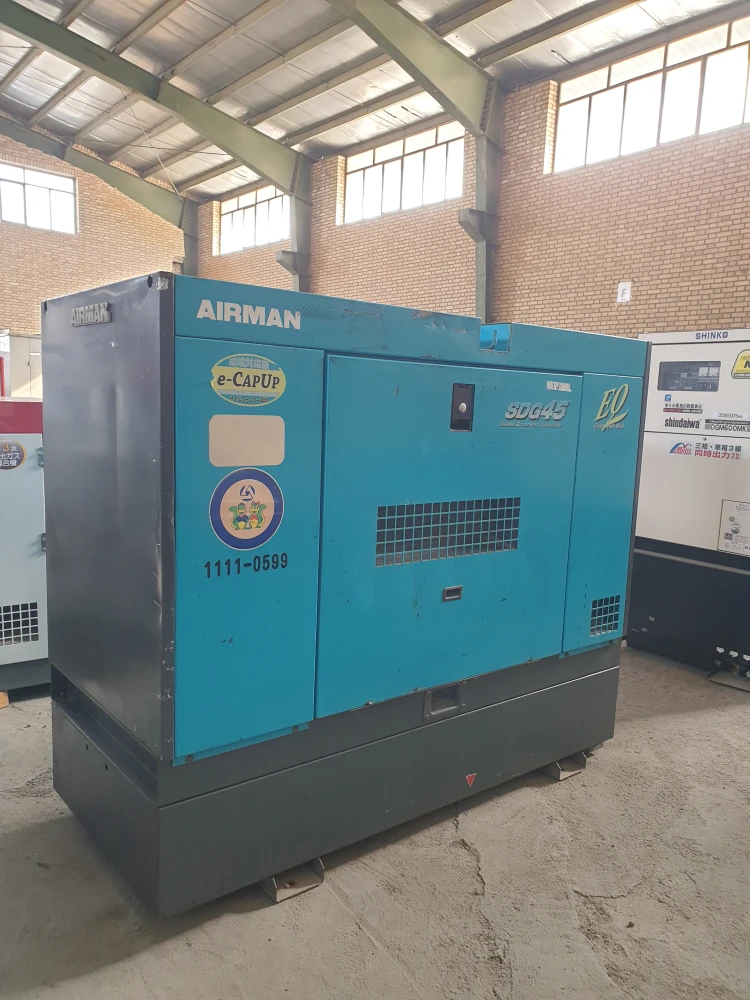

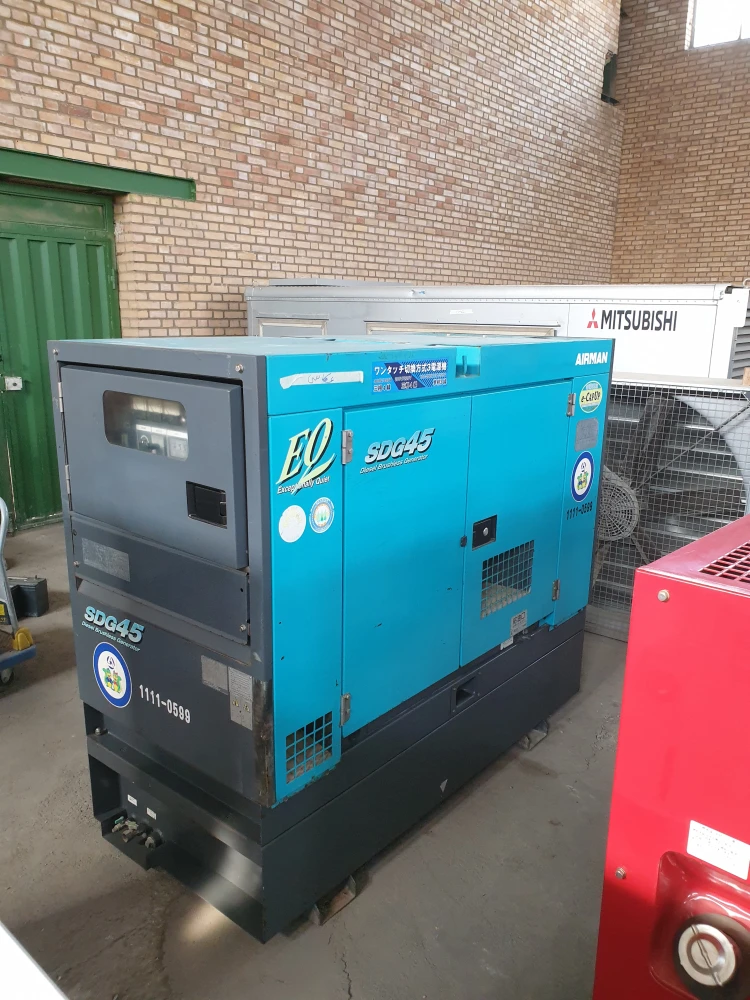

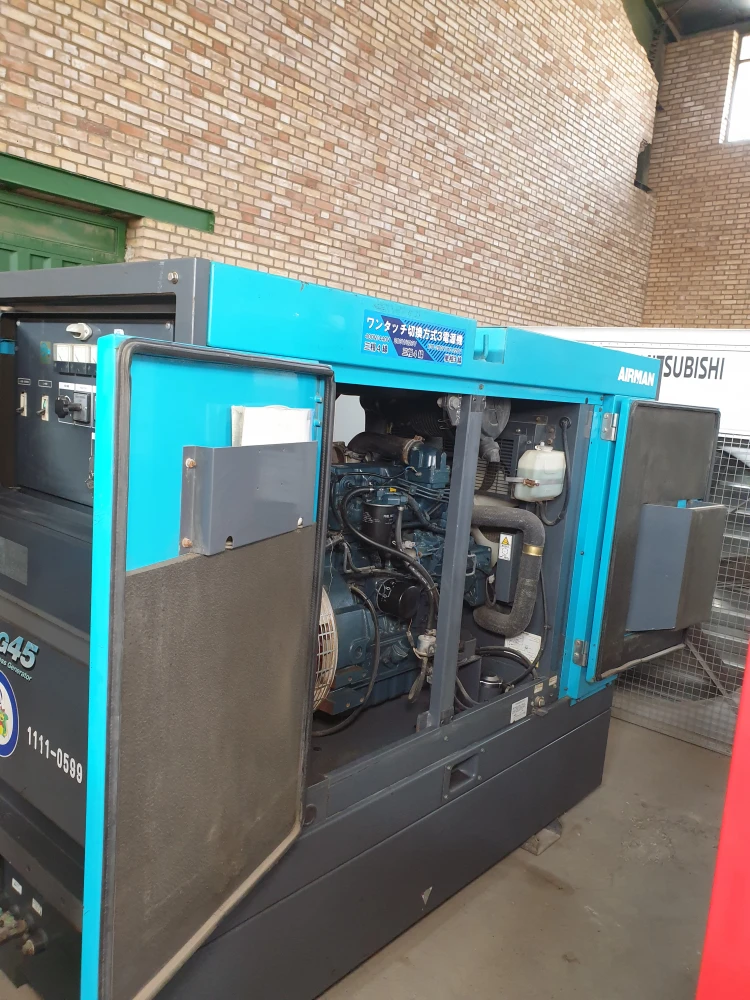

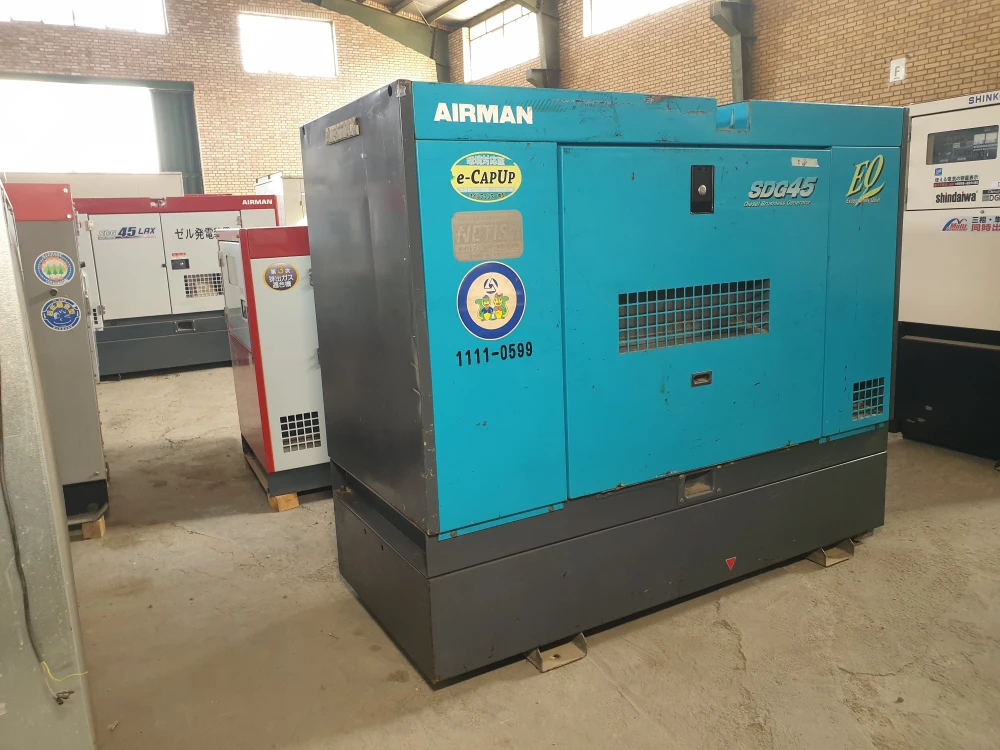

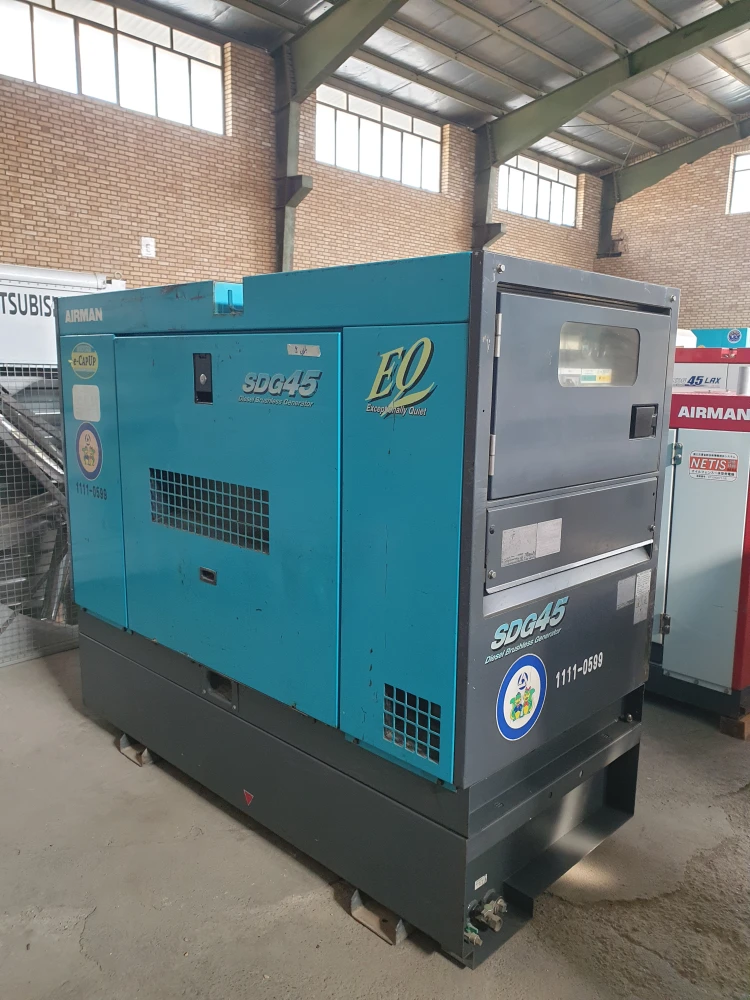

Airman SDG45S | 45 kVA Super Silent Diesel Generator Powered by Kubota
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Airman SDG45S
- Standby Rating Output (60Hz): 50
- Prime Rating Output (60Hz): 45
- Standby Rating Output (50Hz): 41
- Prime Rating Output (50Hz): 37

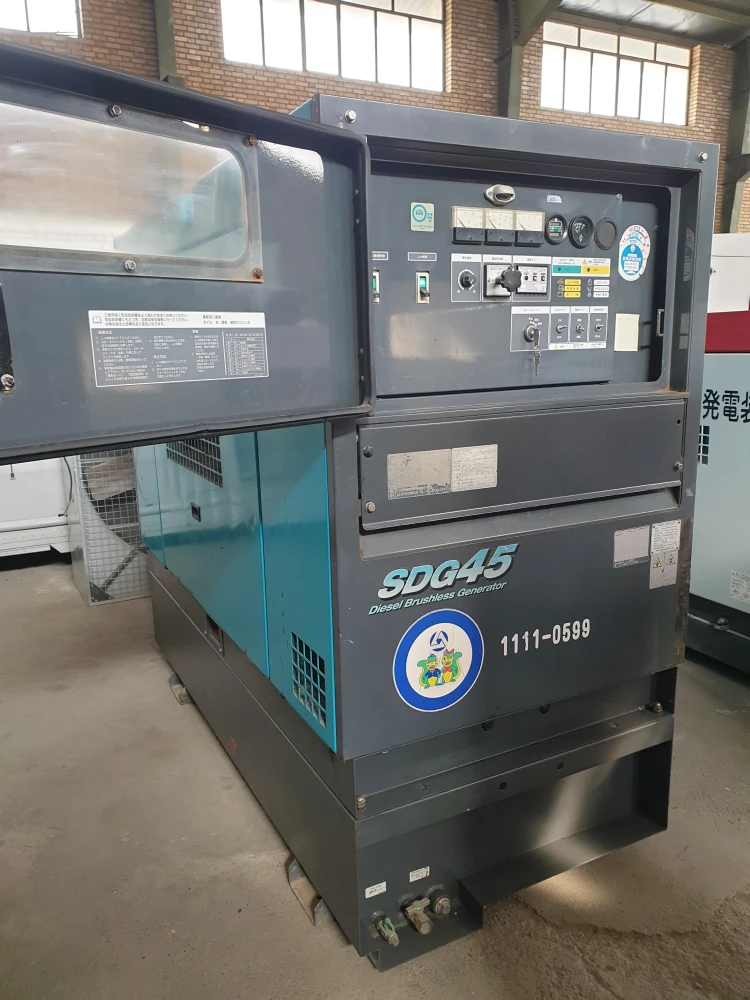

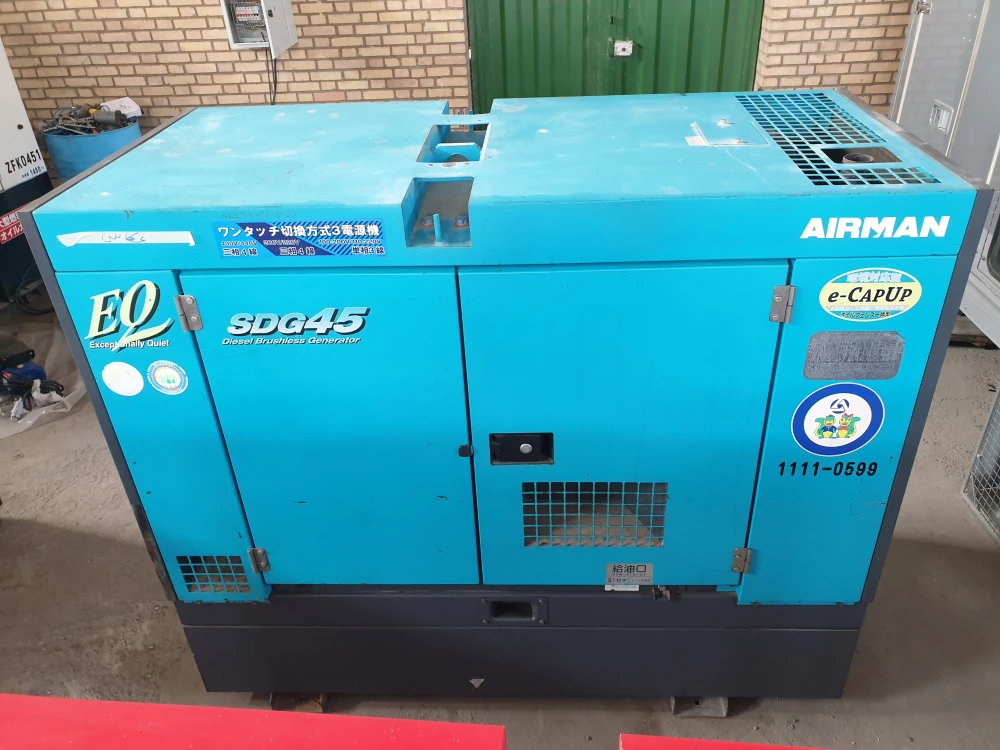

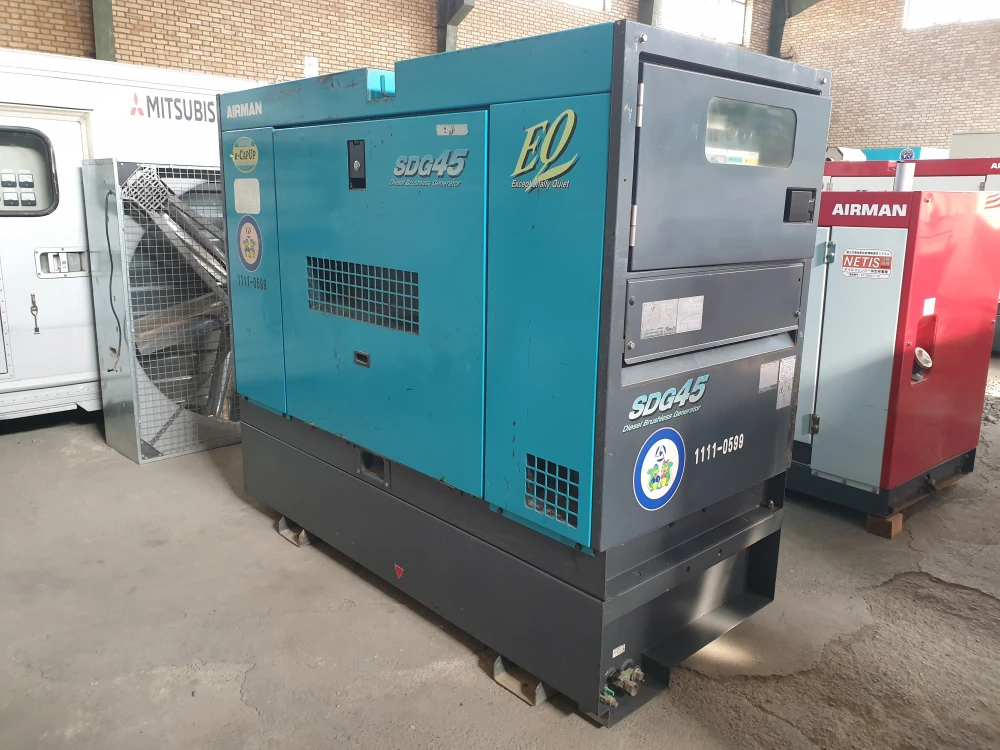

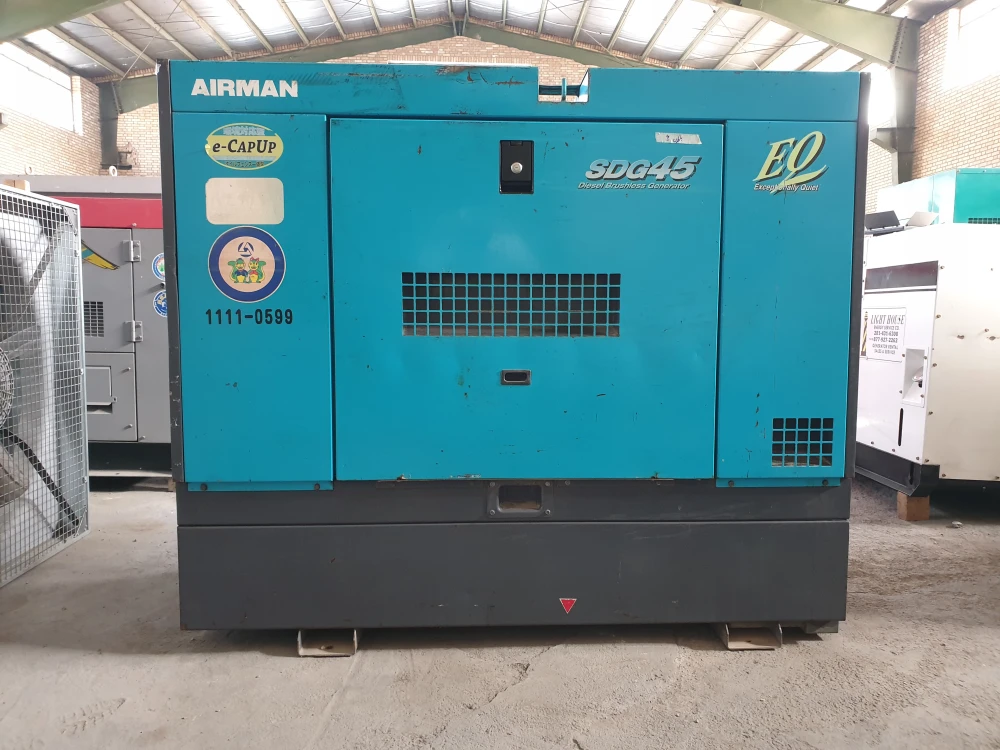

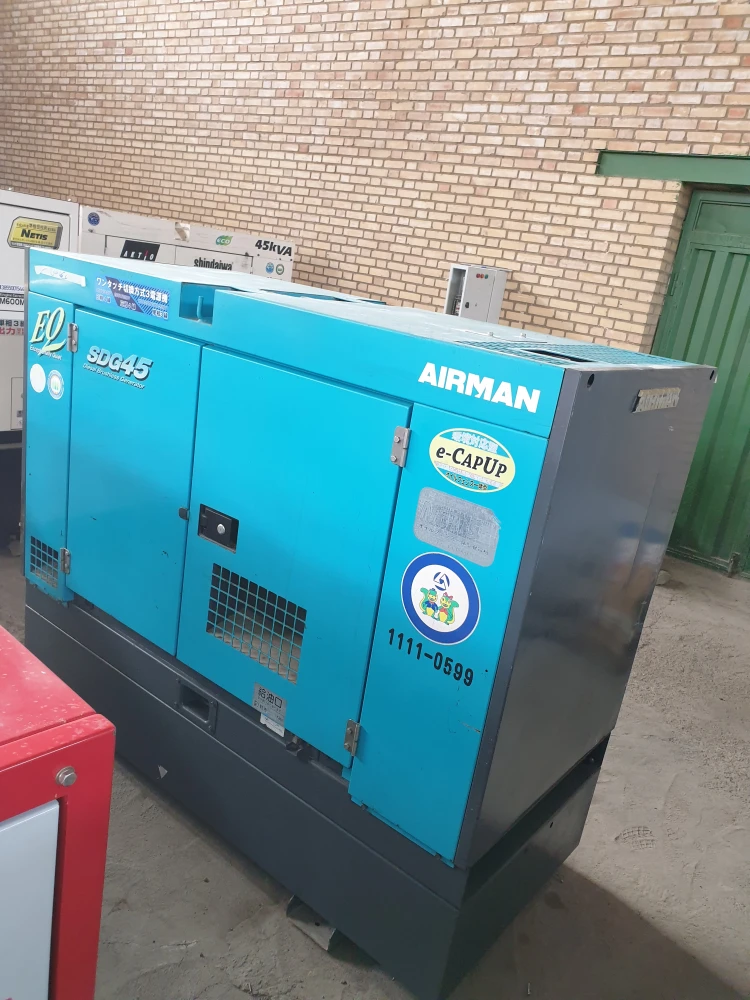

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Airman
- Condition: Used
- Runtime (hours): 20,660

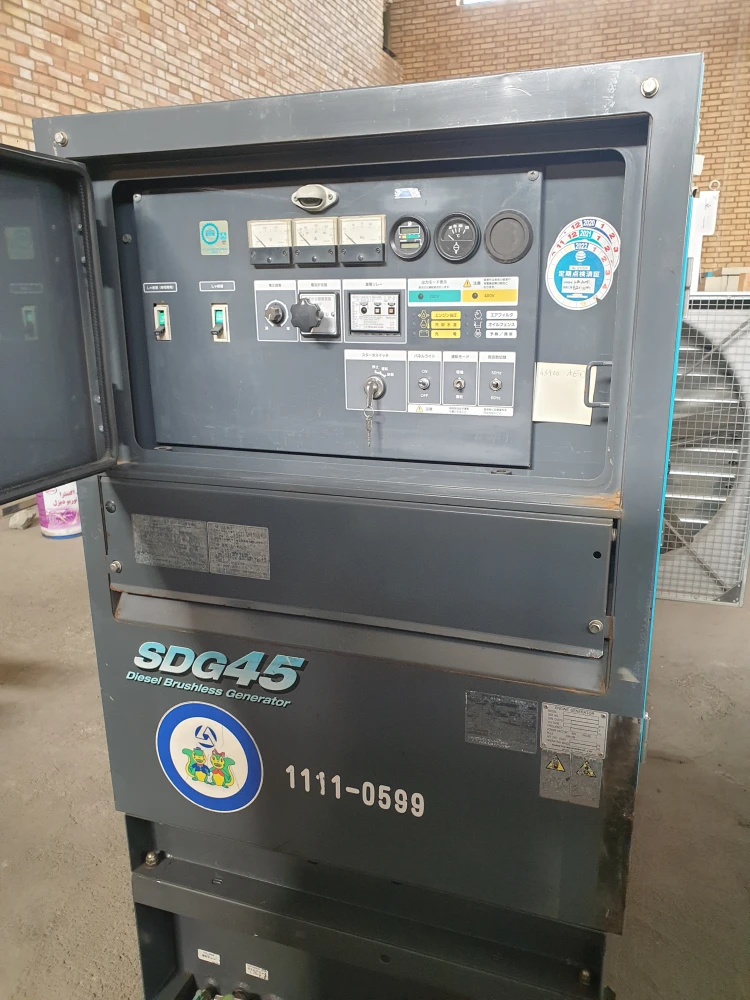

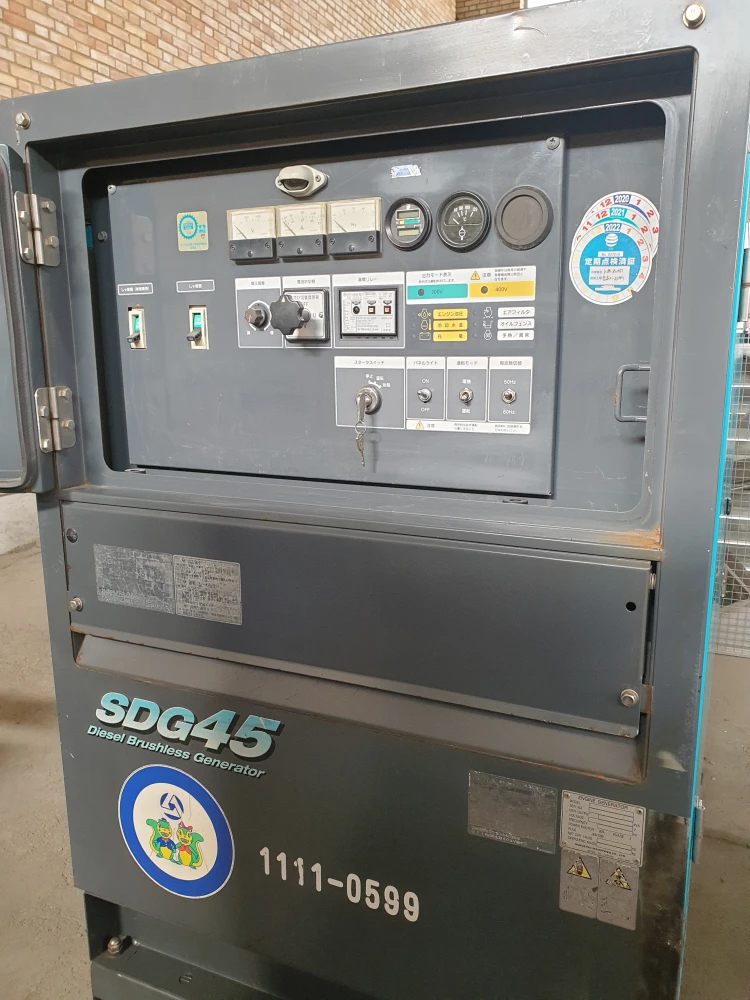

- Controller: Airman Exclusive Control Panel
- Availability: In Stock – Warehouse 2

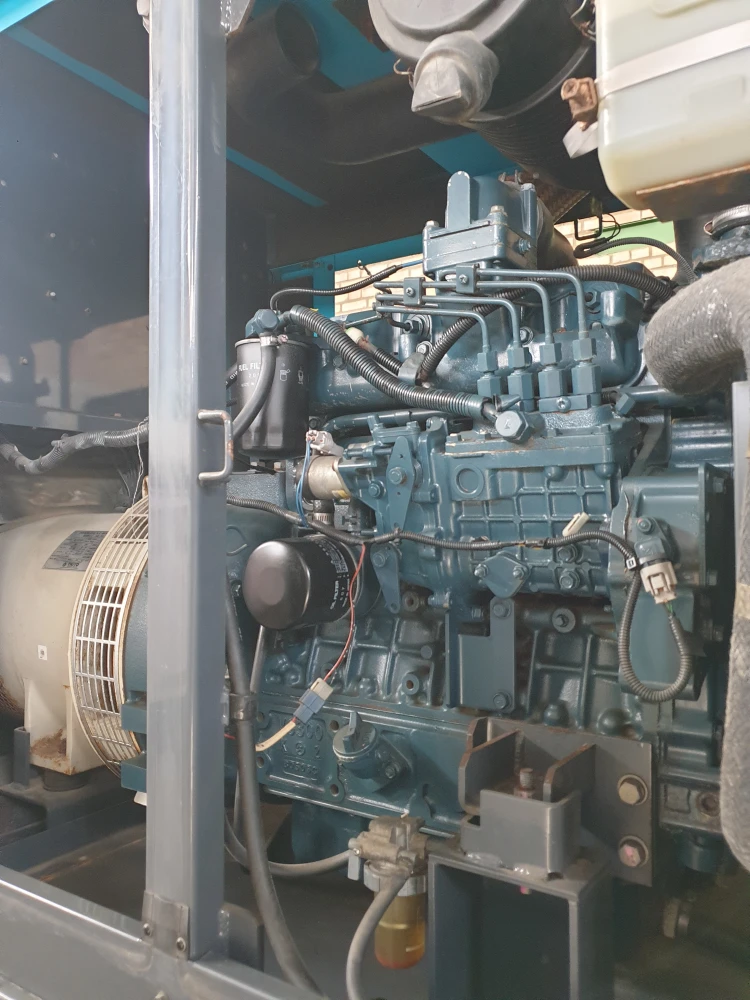

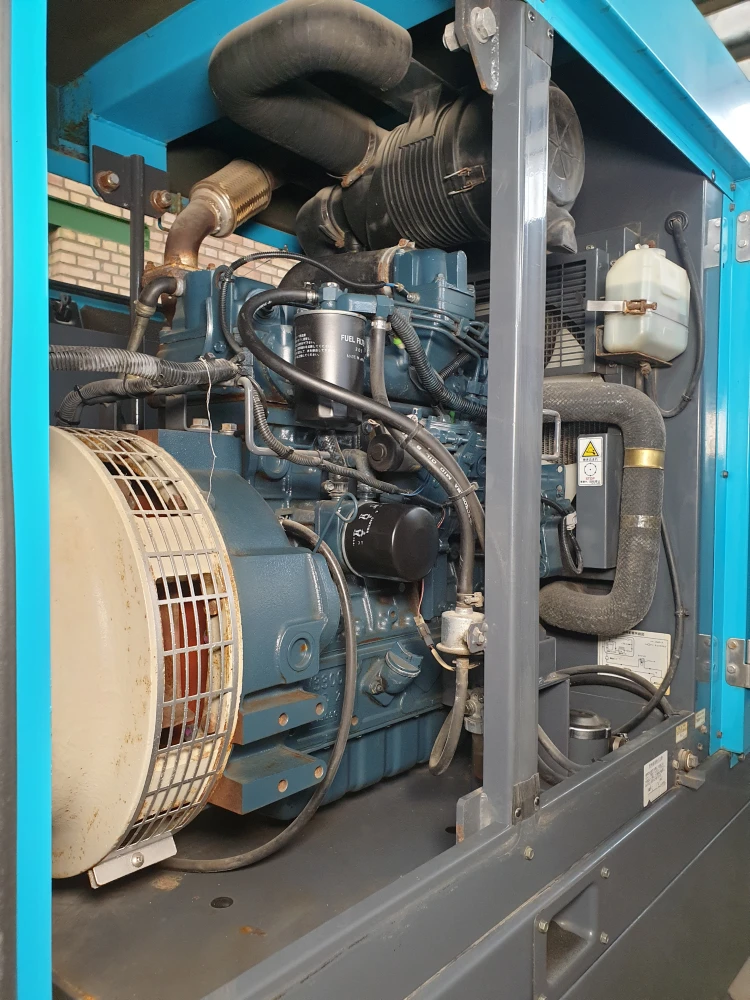

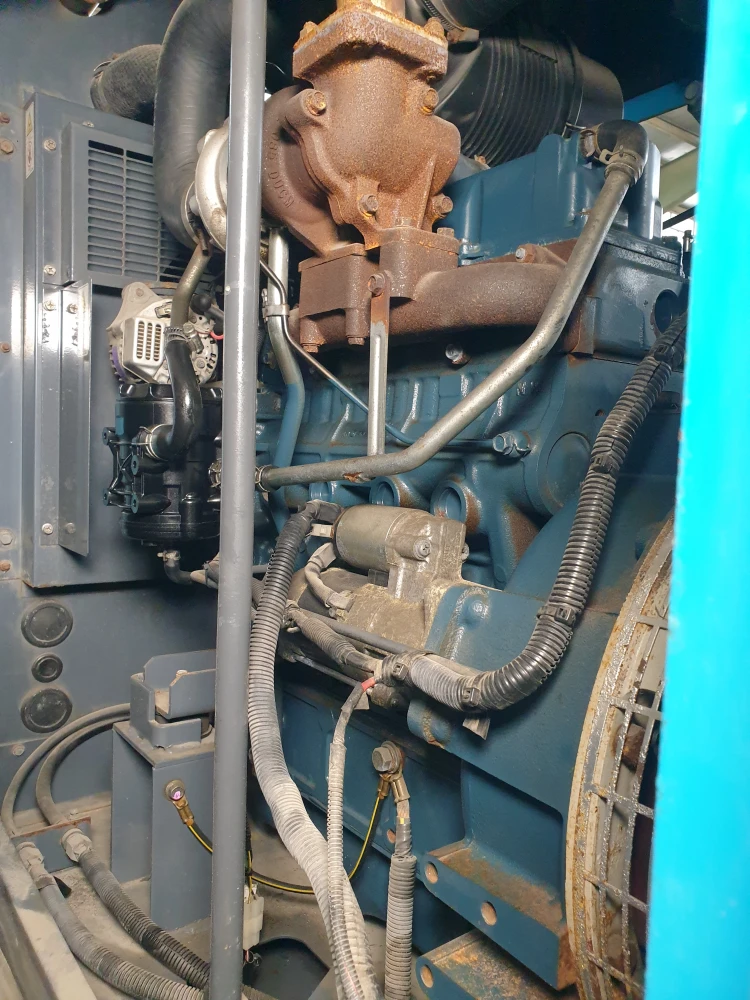

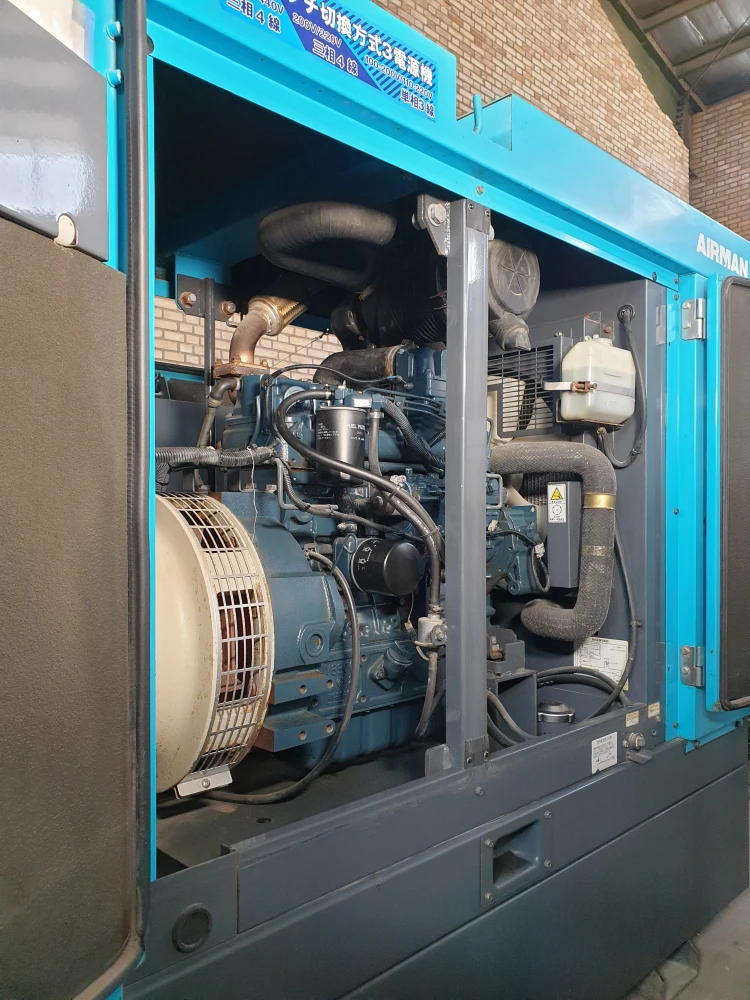

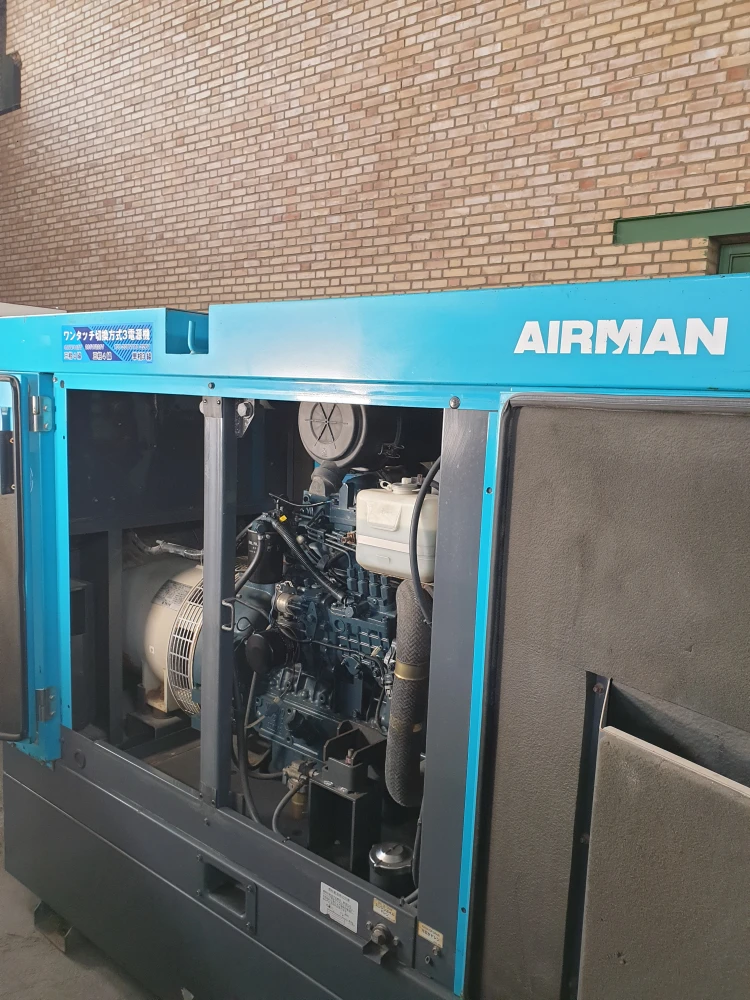

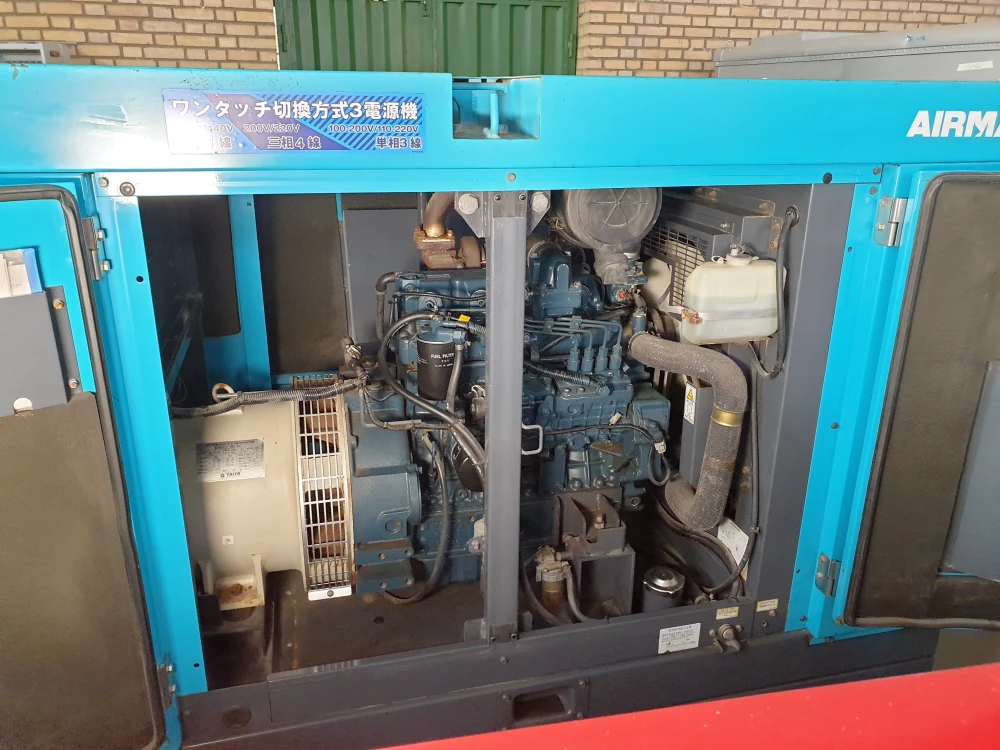

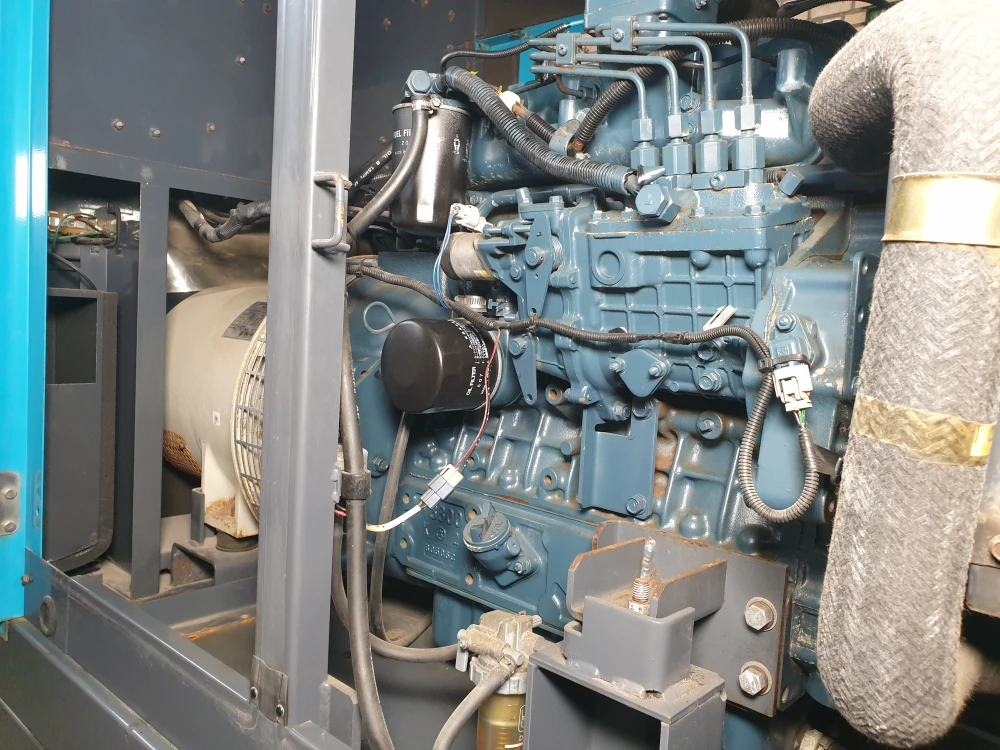

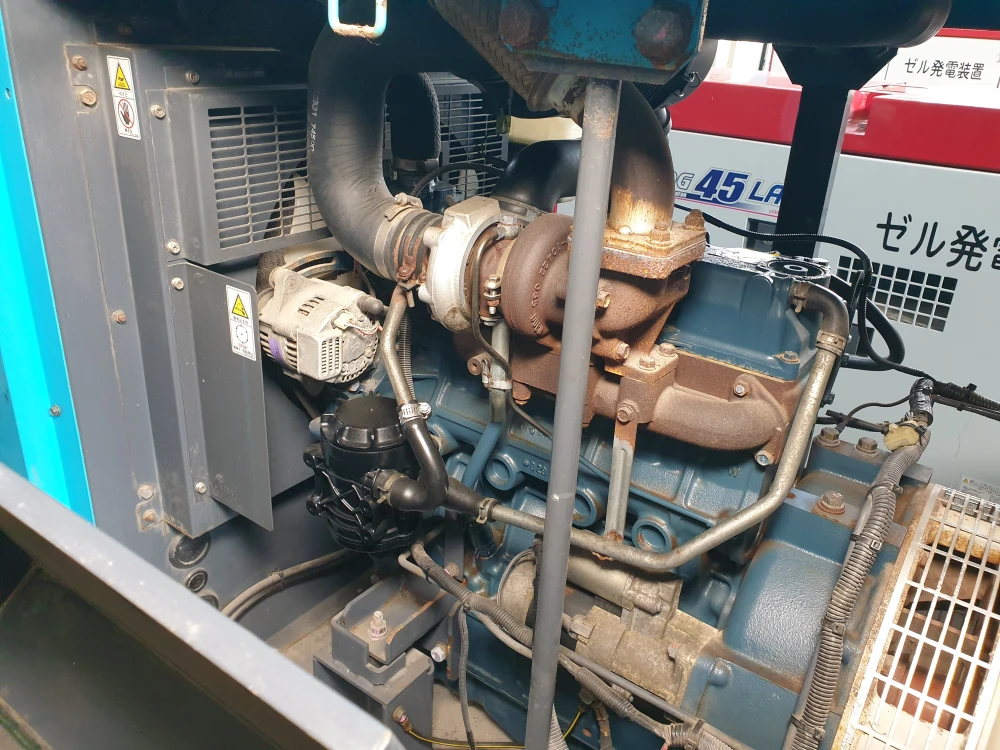

Engine
- Make and Model: Kubota V3800-DI-T-K2B
- Cylinders: Inline-4
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 100 x 120
- Total Displacement (Litre): 3.76
- Fuel: Diesel
- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 13.2
- Coolant Capacity (Litre): 11
- Mounted Fuel Tank Capacity (Litre): 165
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 1,340

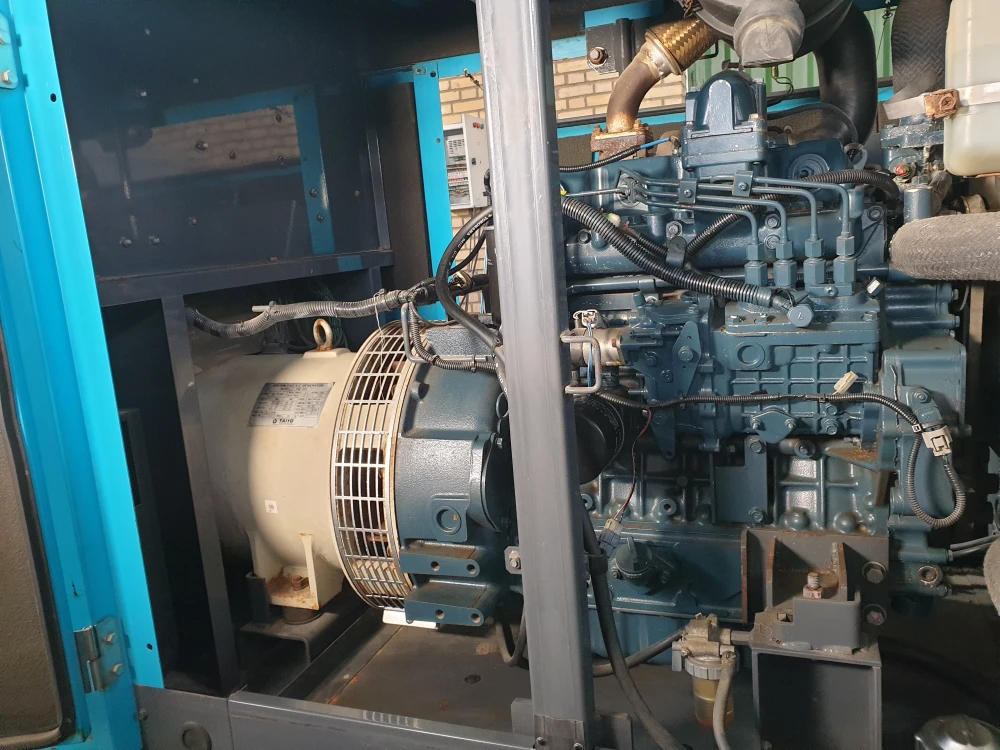

Alternator
- Make and Model: Taiyo Electric Co. TWH 20DL
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class F
