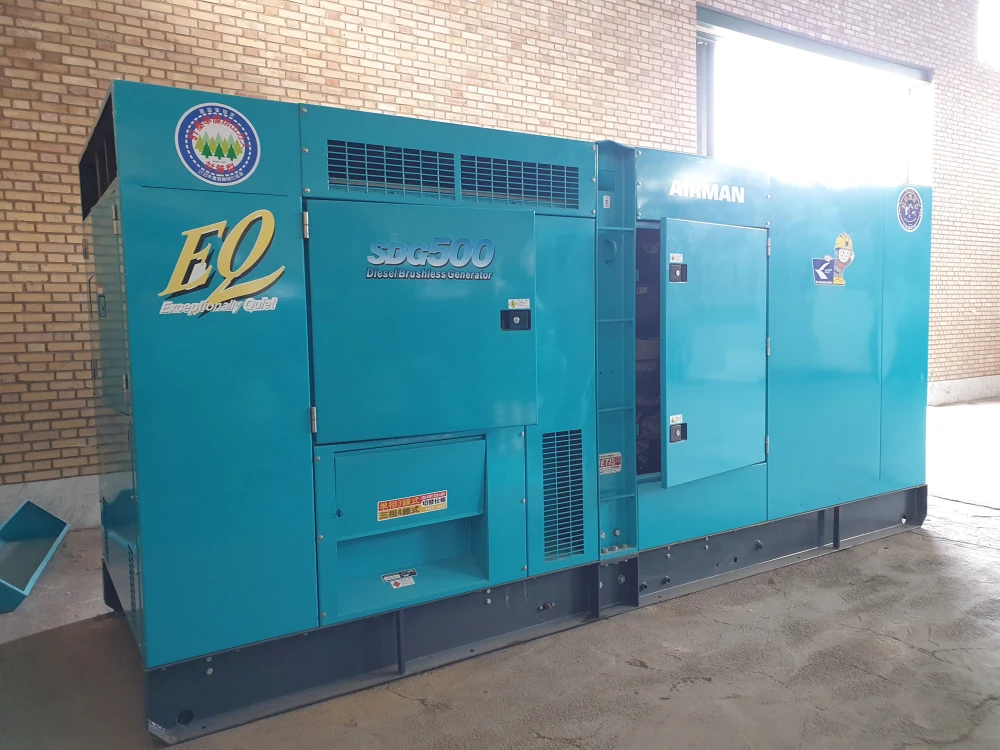

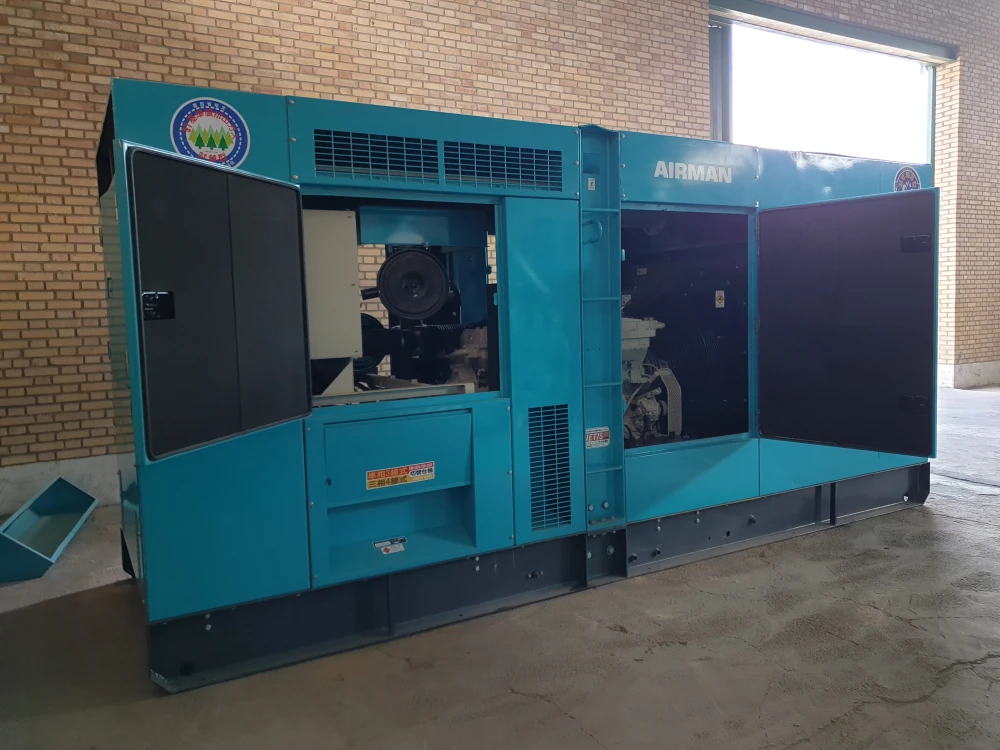

Airman SDG500 | 500 kVA Super Silent Diesel Generator Powered by Mitsubishi
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Airman SDG500
- Standby Rating Output (60Hz): 550
- Prime Rating Output (60Hz): 500
- Standby Rating Output (50Hz): 495
- Prime Rating Output (50Hz): 450

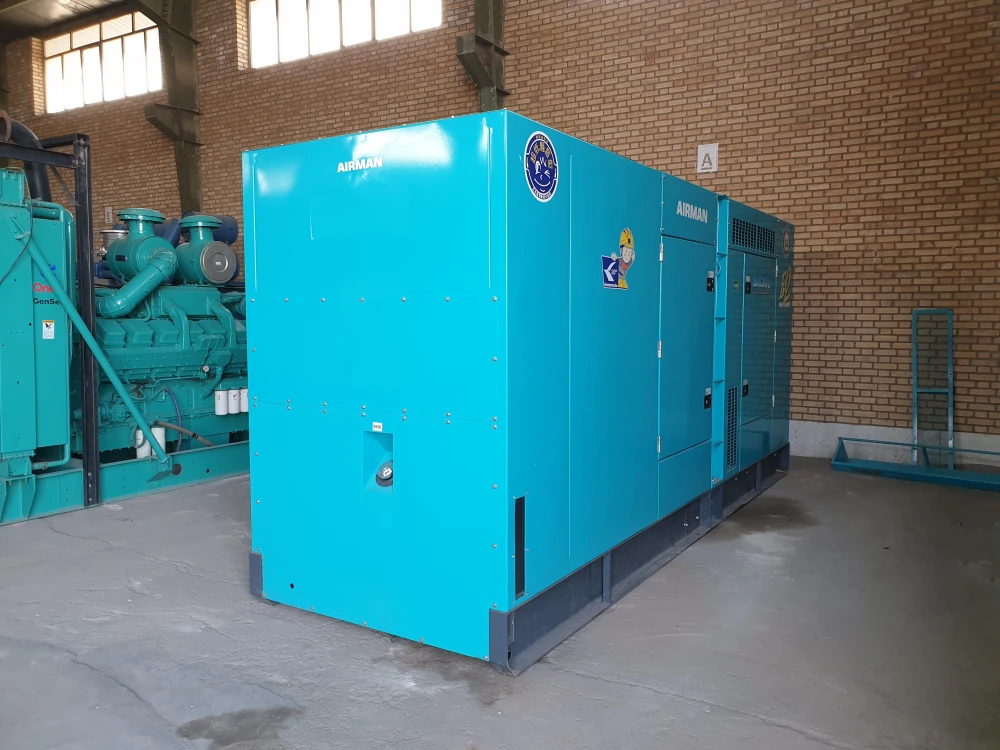

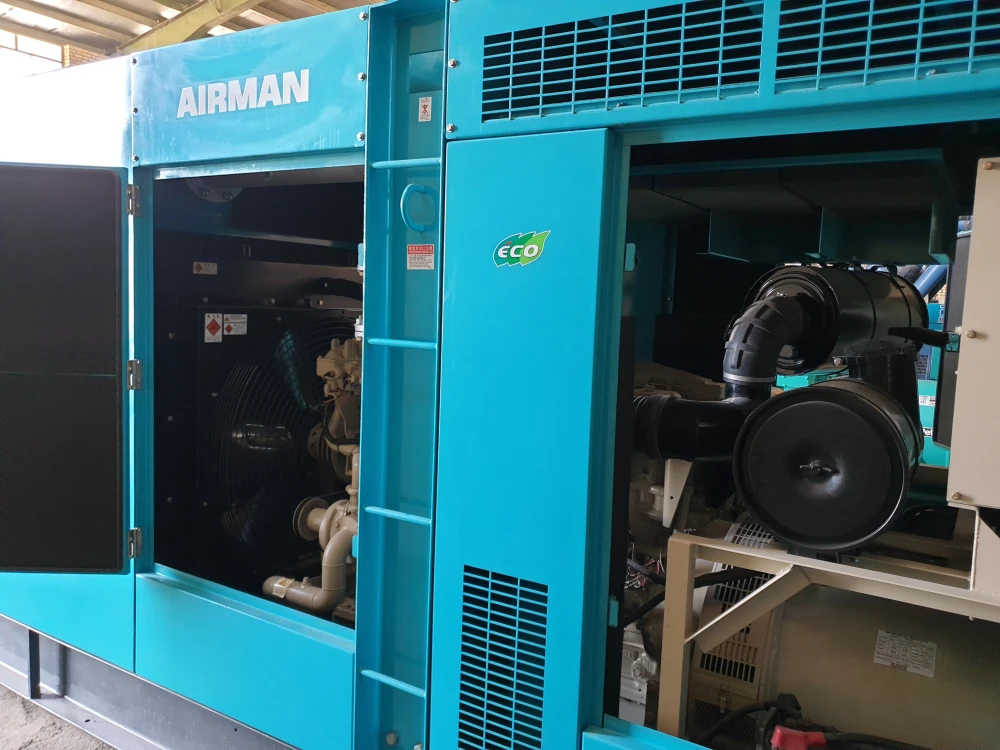

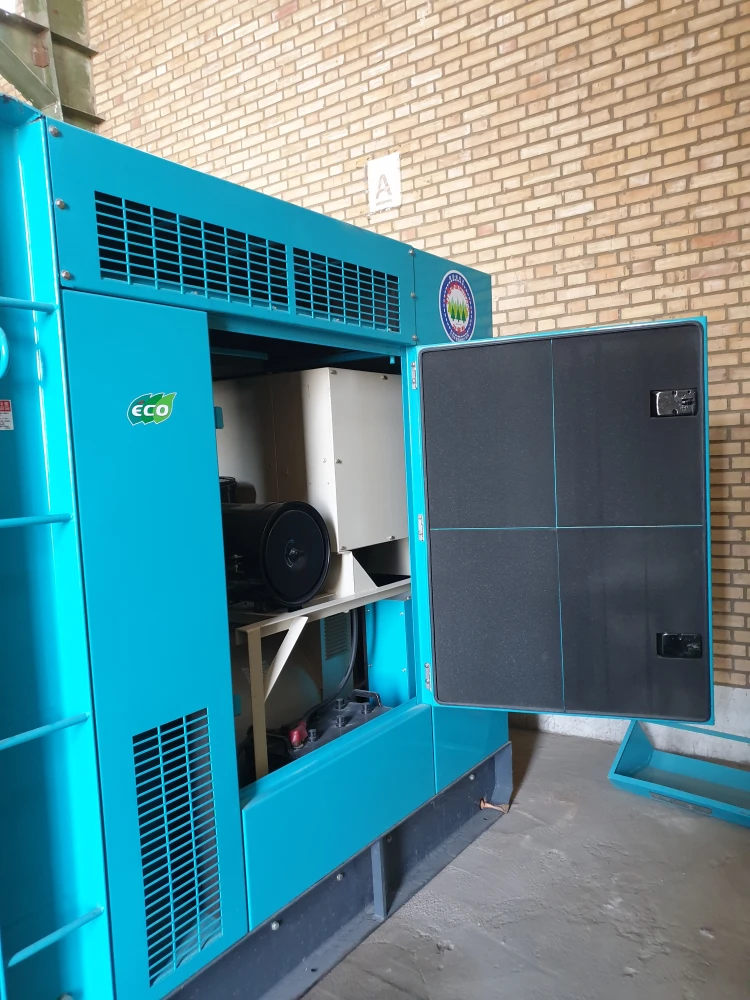

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Airman
- Year of Manufacture: 2010
- Condition: Used
- Runtime (hours): 7,600

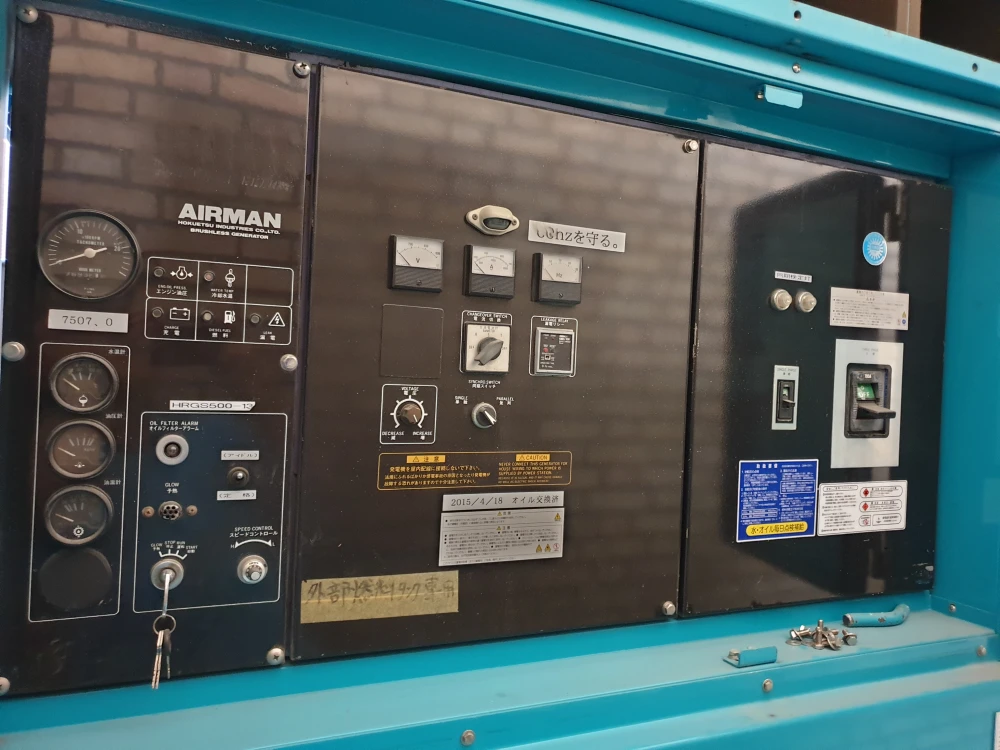

- Controller: Airman Exclusive Control Panel
- Availability: In Stock – Warehouse 2

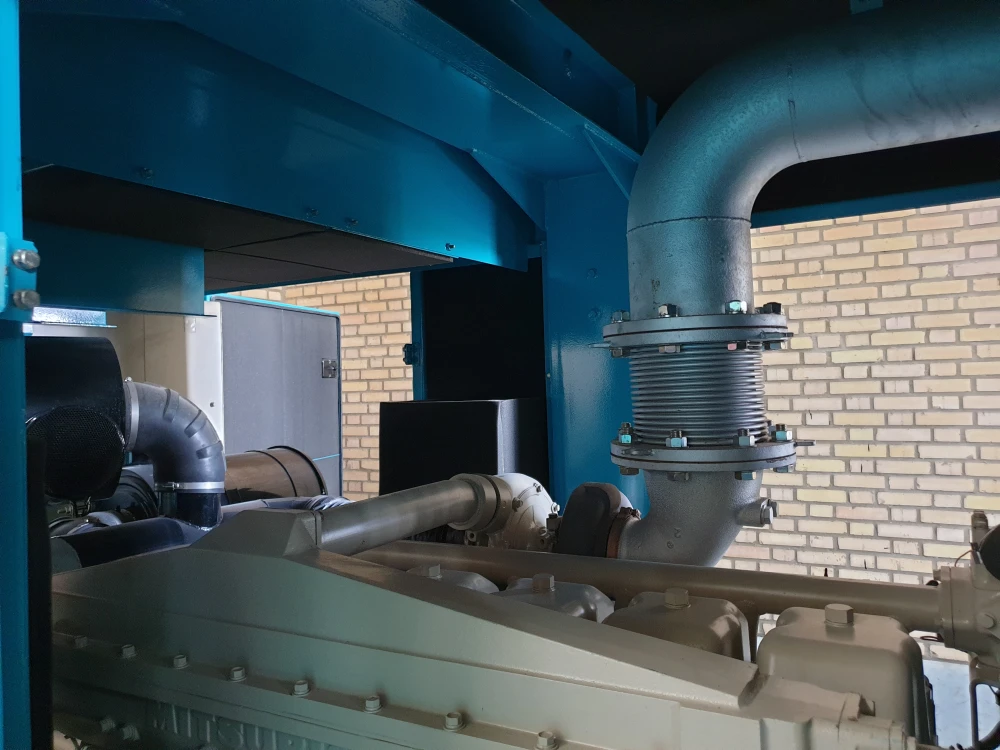

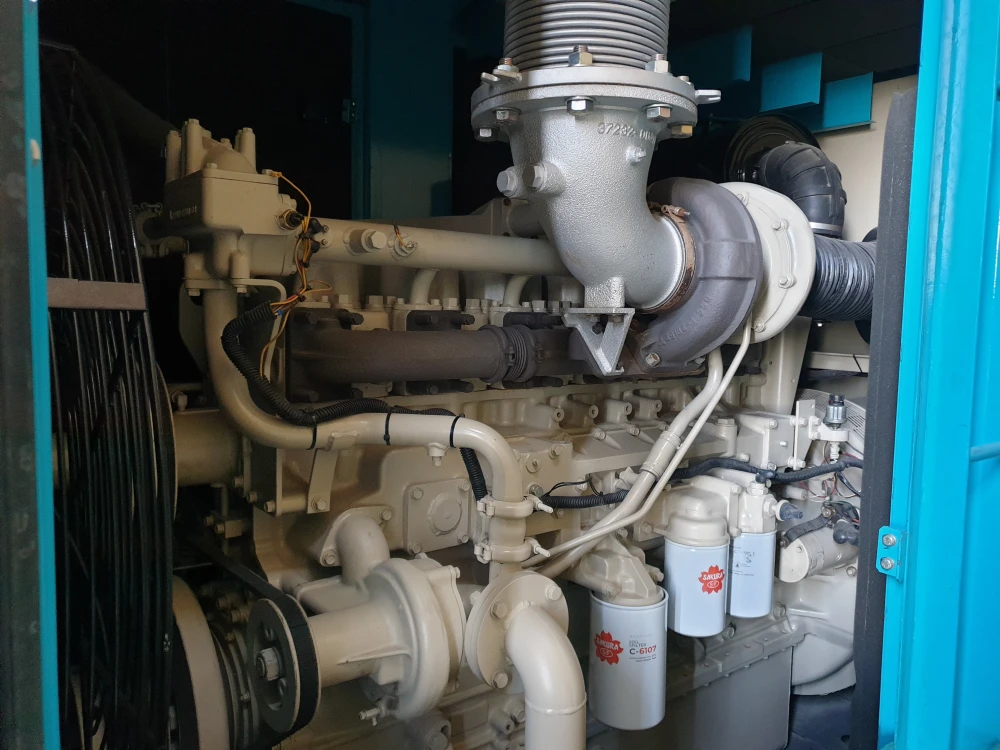

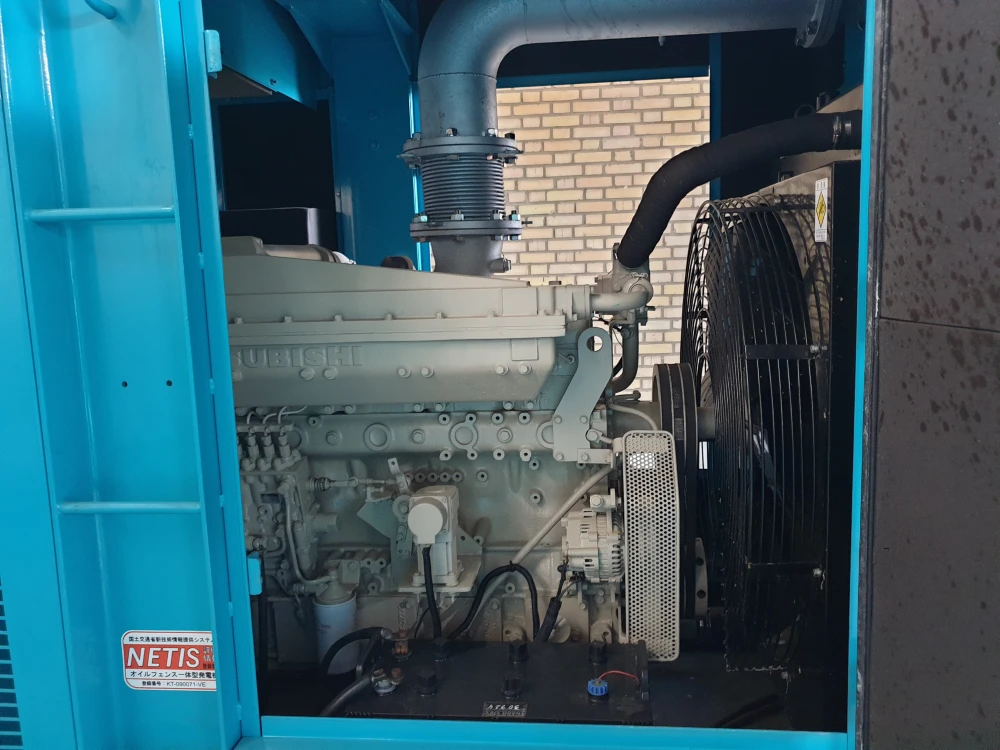

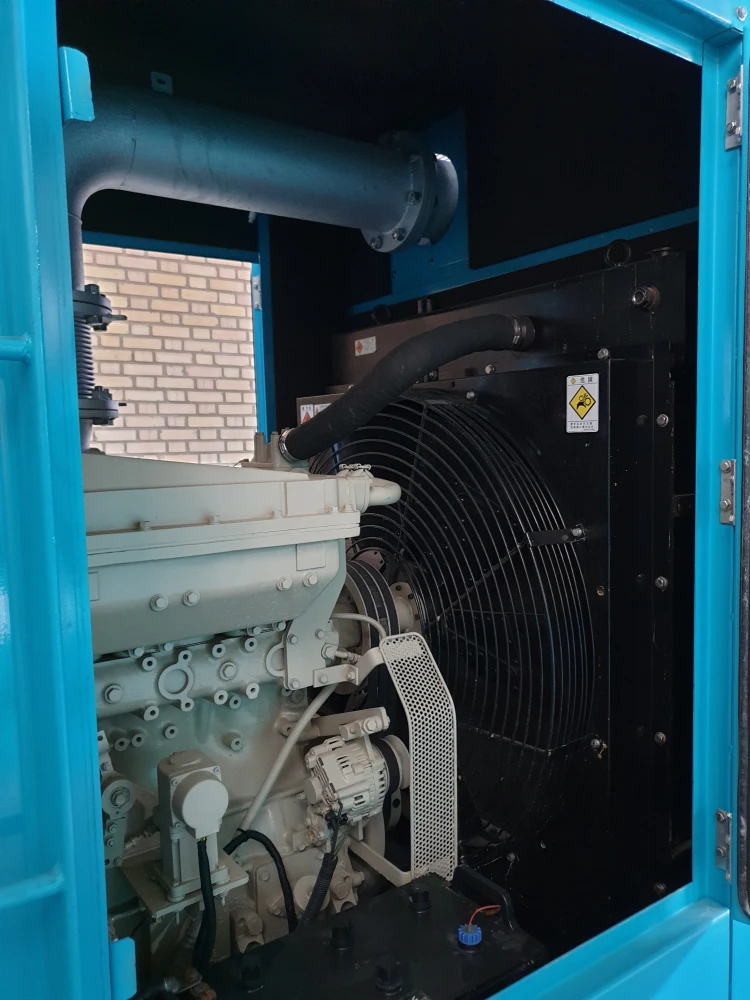

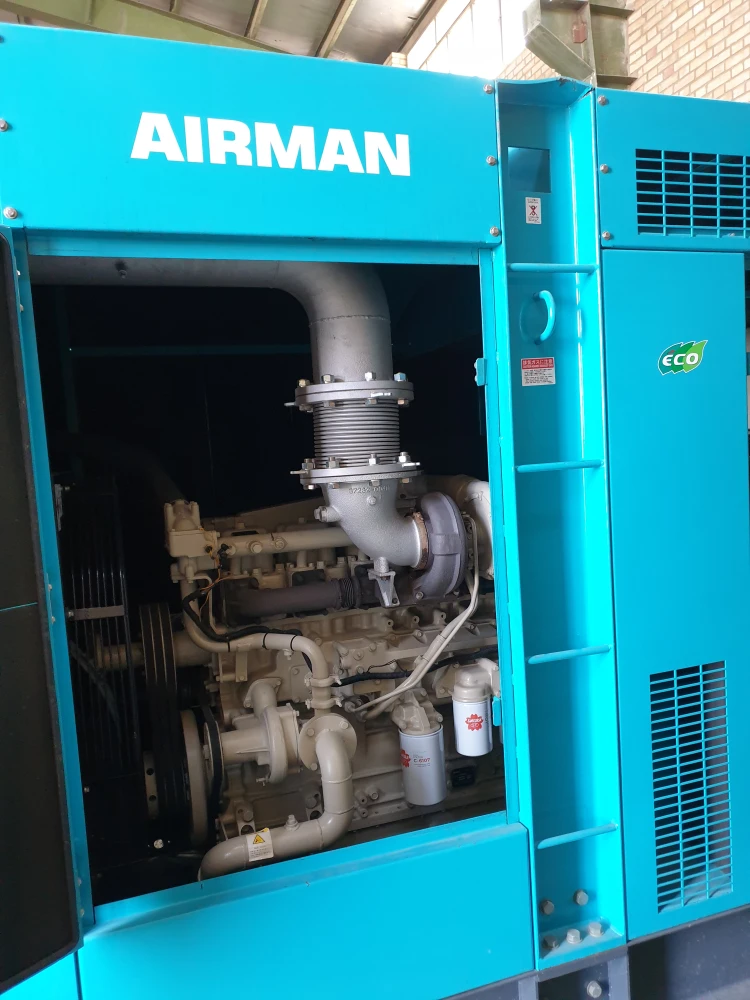

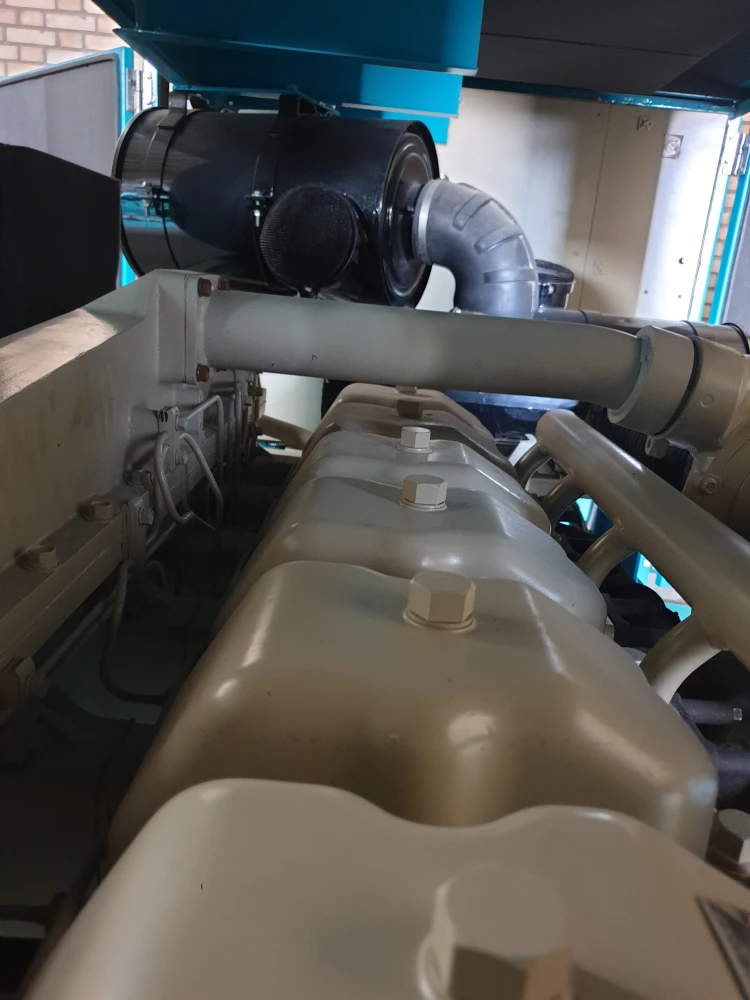

Engine

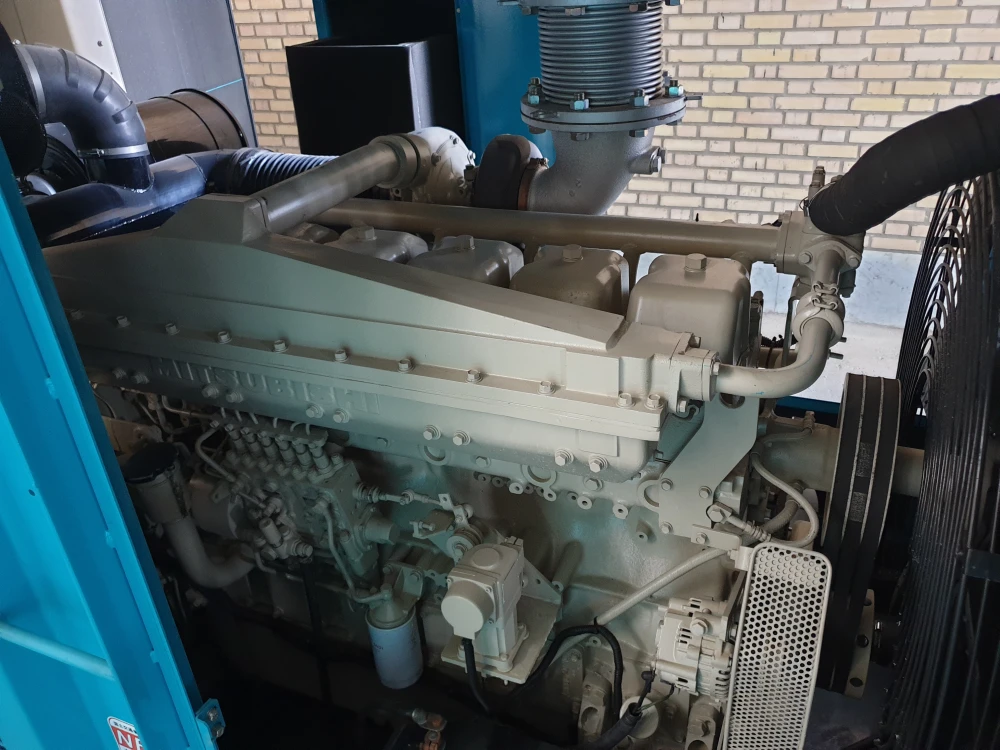

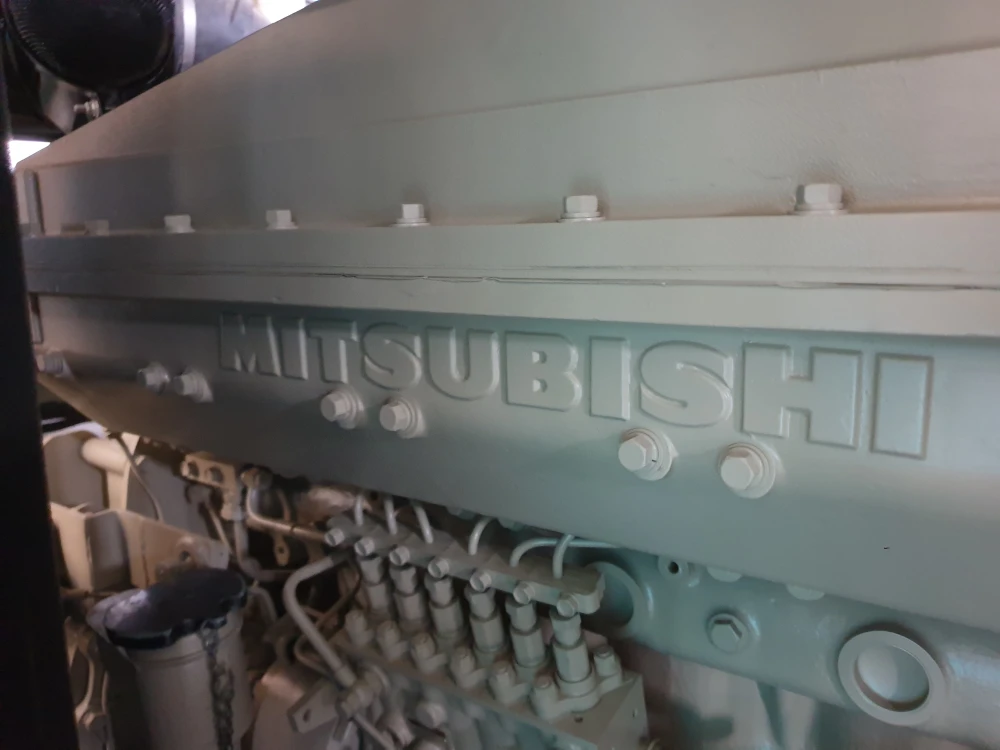

- Make and Model: Mitsubishi S6A3-PTA
- Cylinders: Inline-6
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 150 x 175
- Total Displacement (Litre): 18.55
- Fuel: Diesel
- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 91.5
- Coolant Capacity (Litre): 91.5
- Mounted Fuel Tank Capacity (Litre): 490
- Governor and Actuator Type: Electronic Governor, Electric Actuator
- Exhaust Silencer: Included
Alternator
- Make and Model: Taiyo Electric Co. TWH 58C
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class F
