Meidensha ZX100P9BSS | 100 kVA Super Silent Diesel Generator Powered by Mitsubishi
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Meidensha ZX100P9BSS
- Standby Rating Output (60Hz): 110
- Prime Rating Output (60Hz): 100
- Standby Rating Output (50Hz): 95
- Prime Rating Output (50Hz): 85

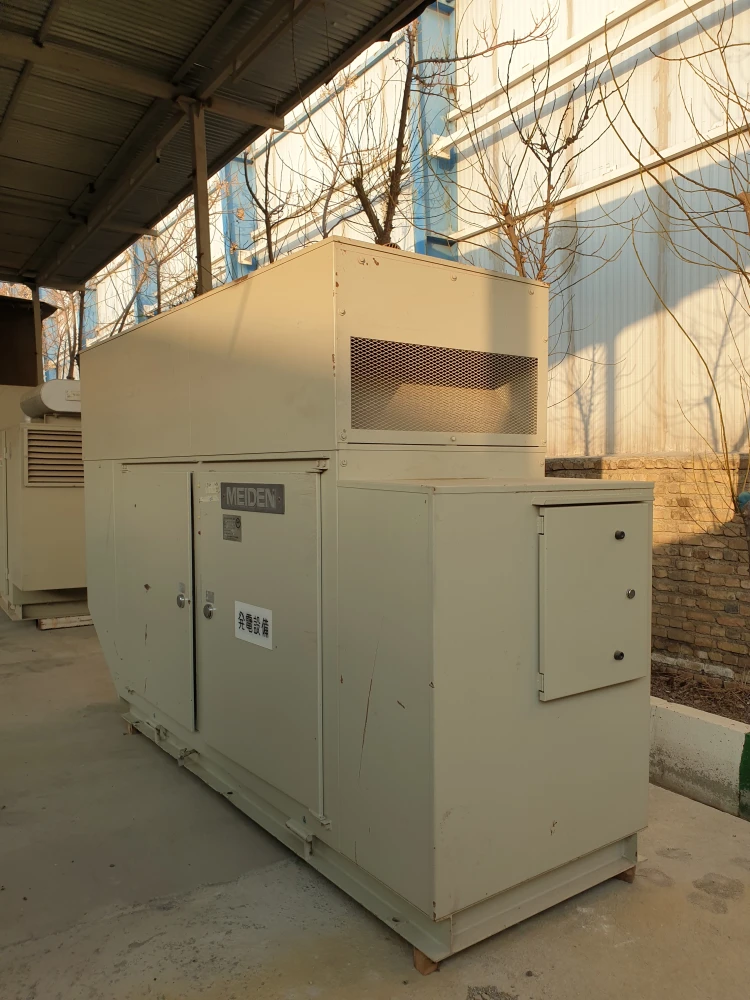

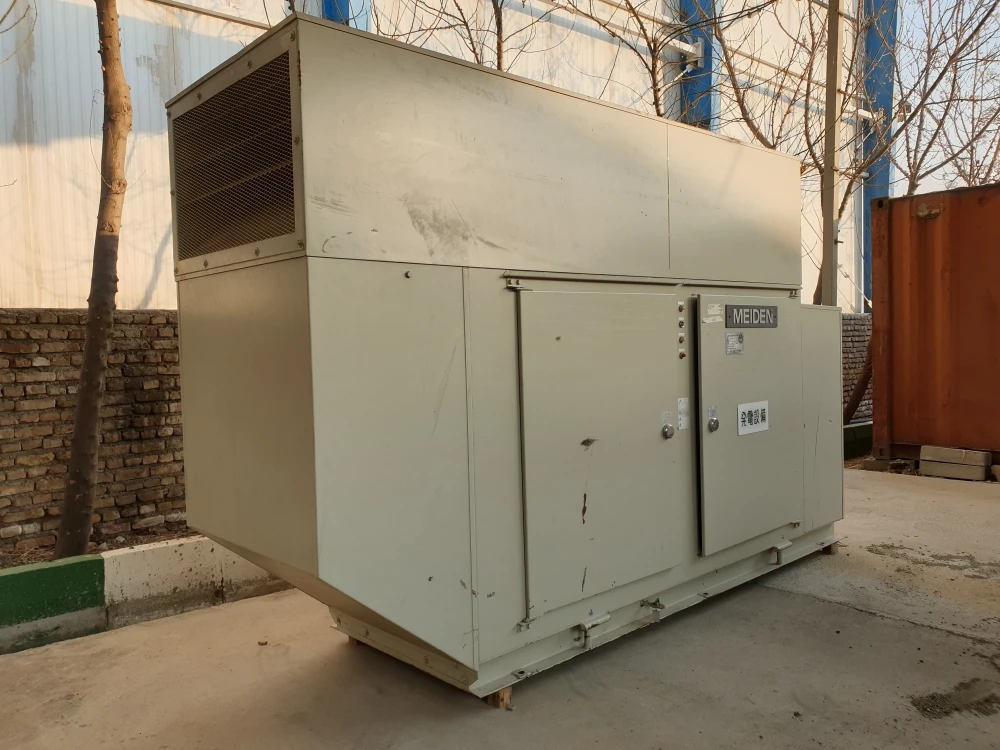

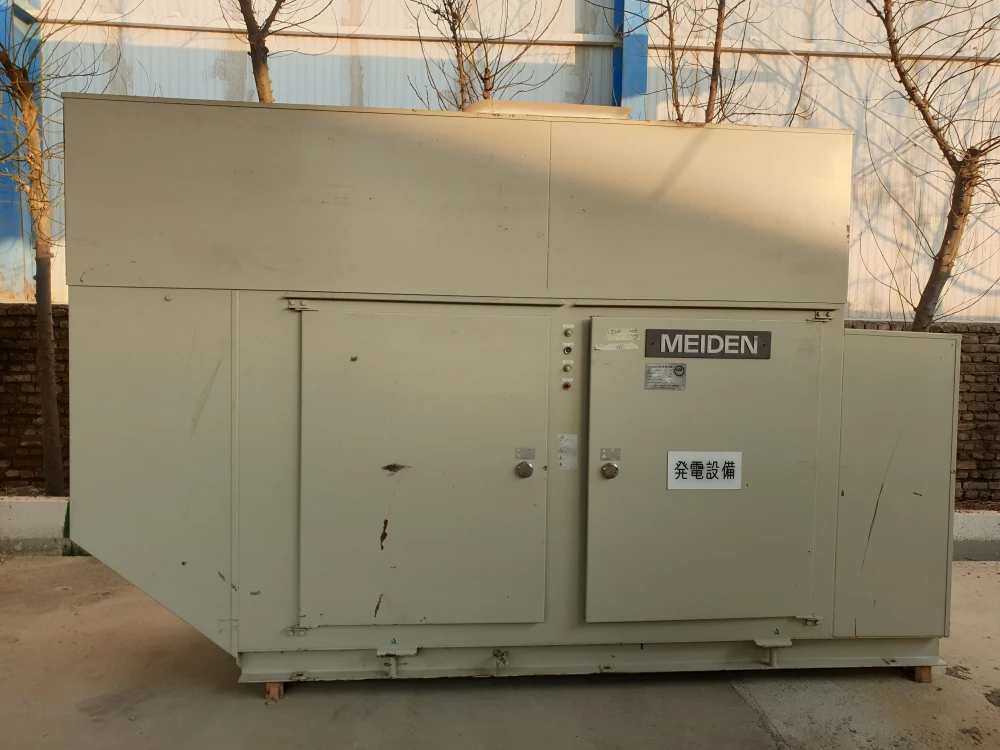

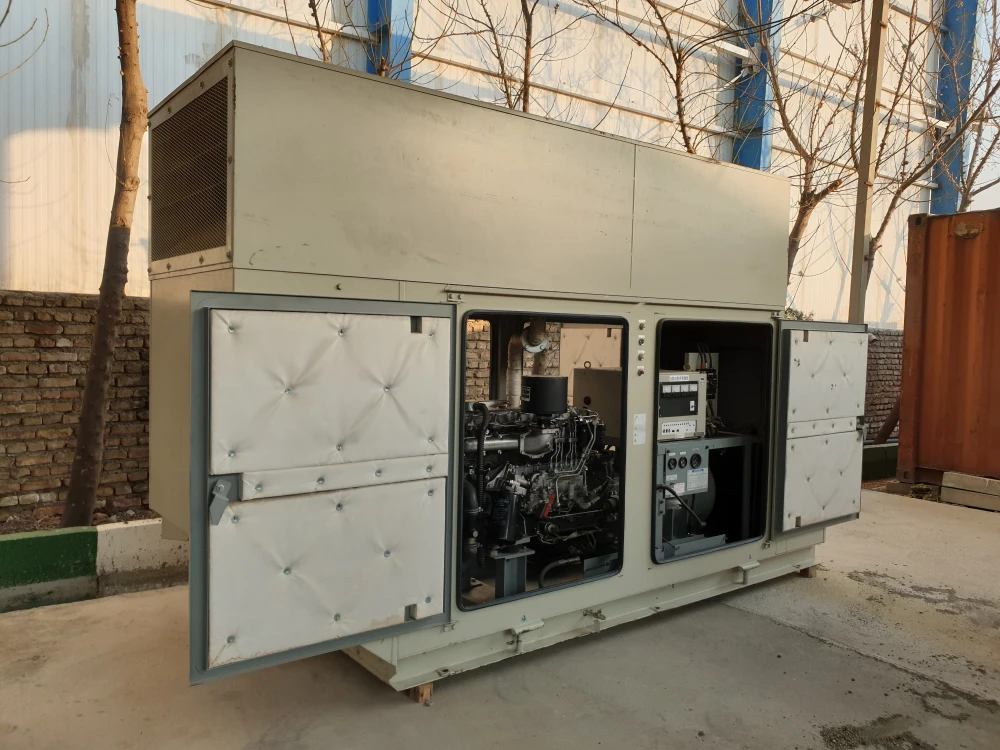

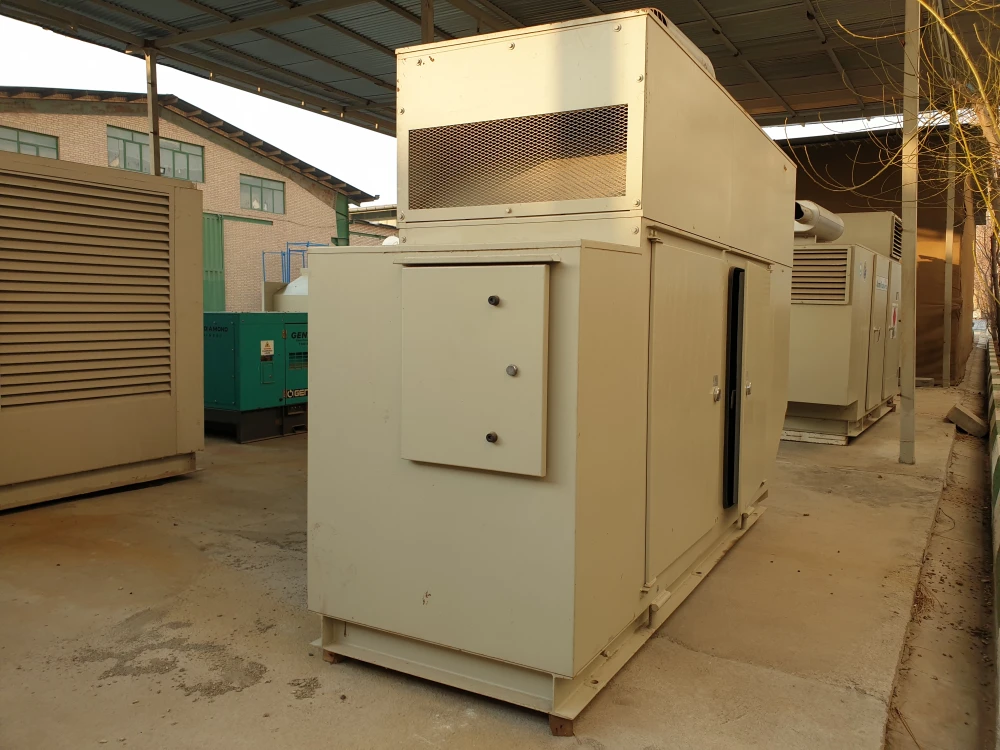

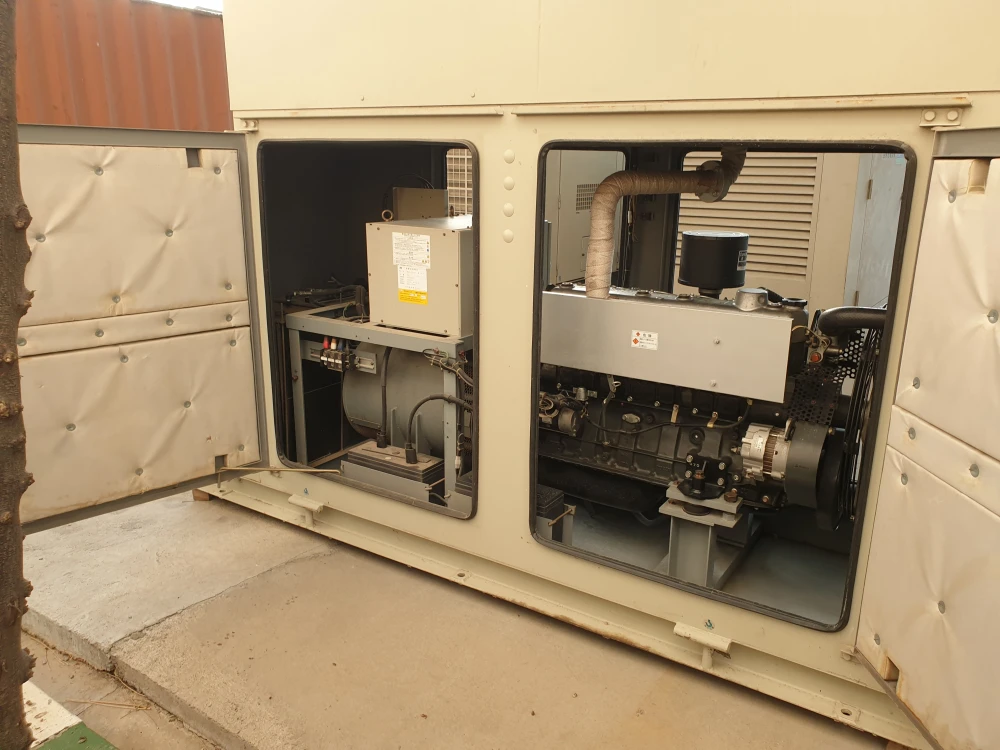

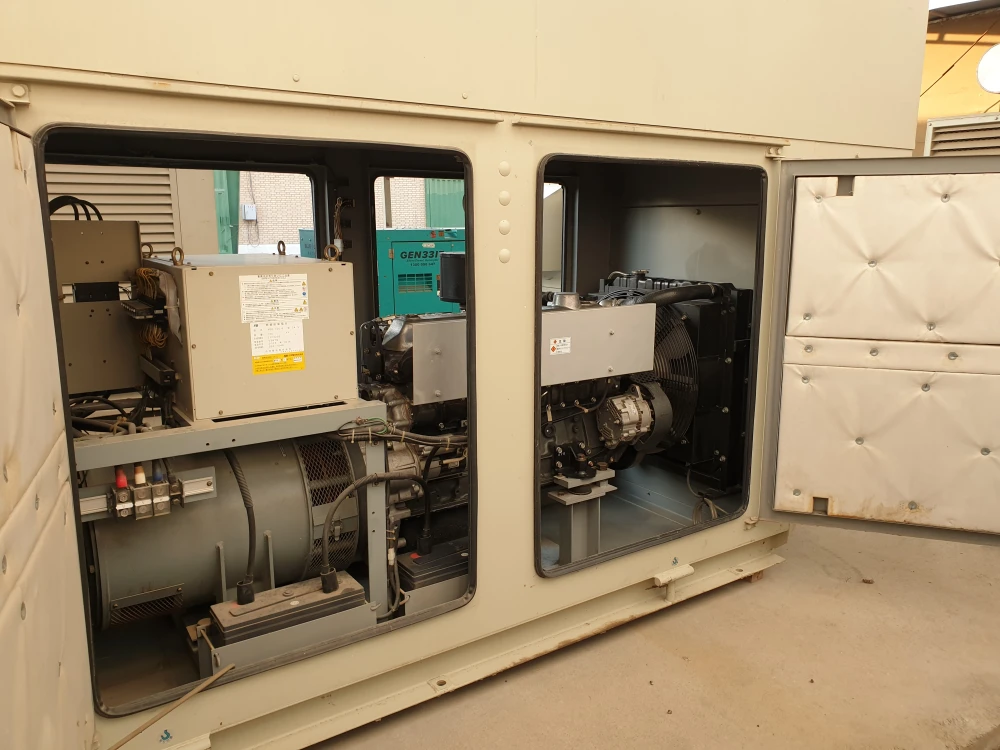

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Meidensha
- Year of Manufacture: 2017
- Condition: Used
- Runtime (hours): 20

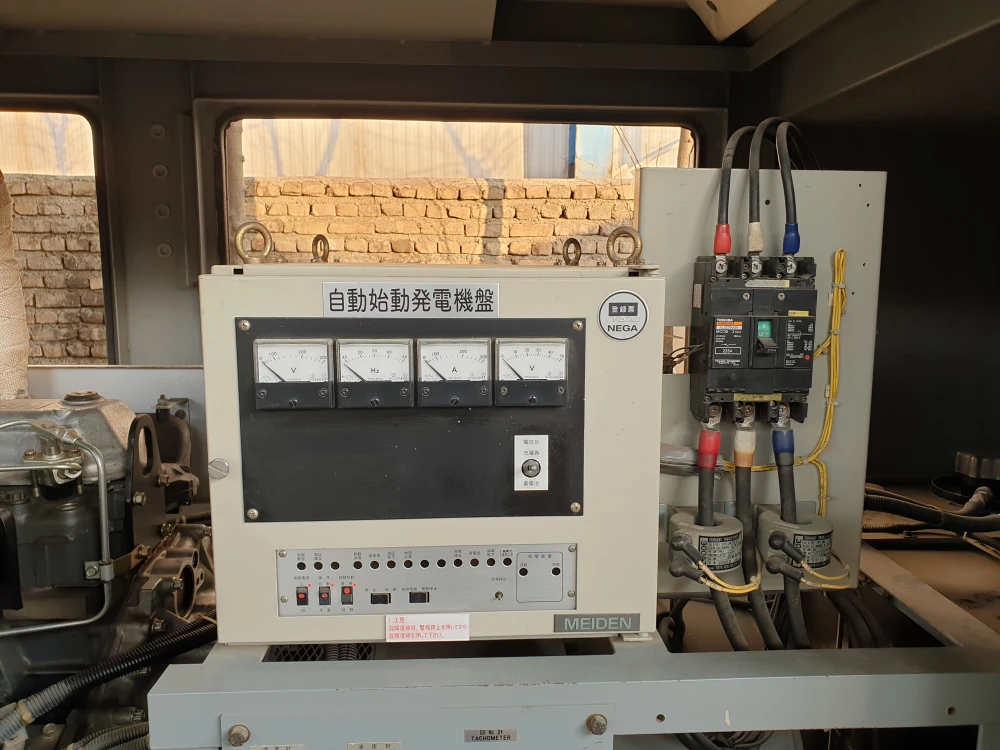

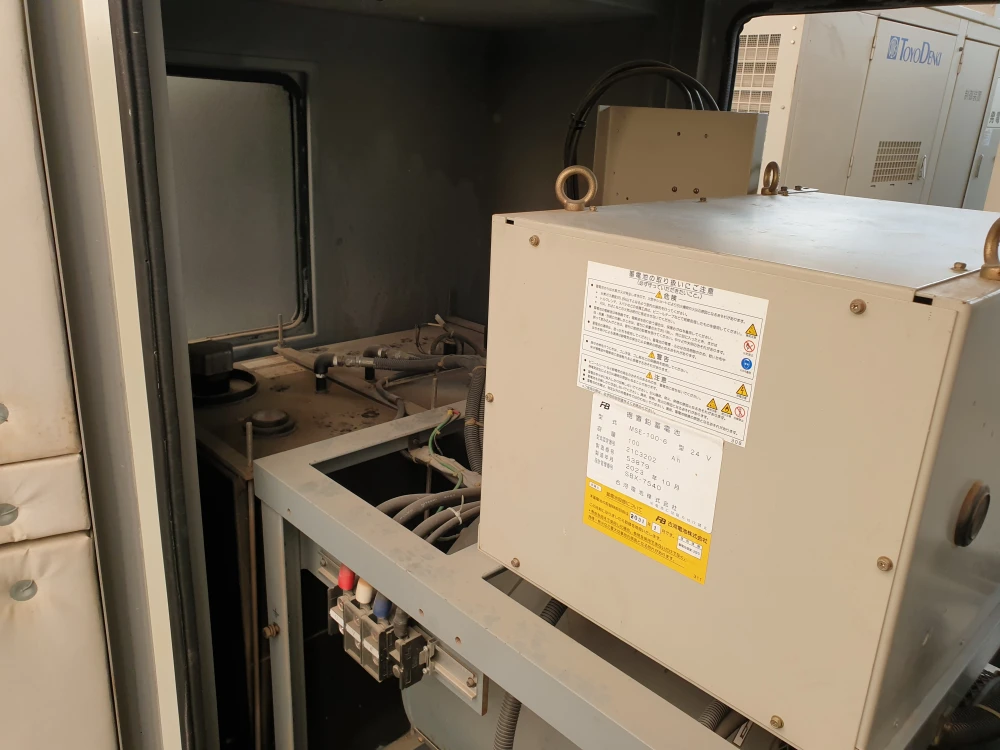

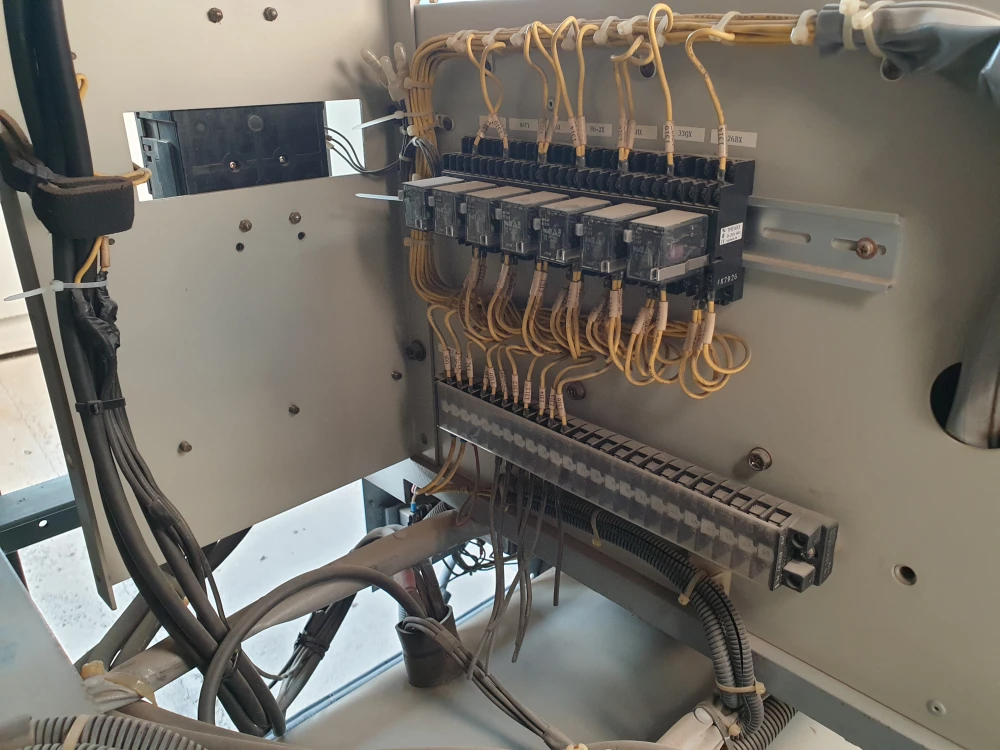

- Controller: MEIDEN Exclusive Control Panel
- Availability: In Stock – Warehouse 2

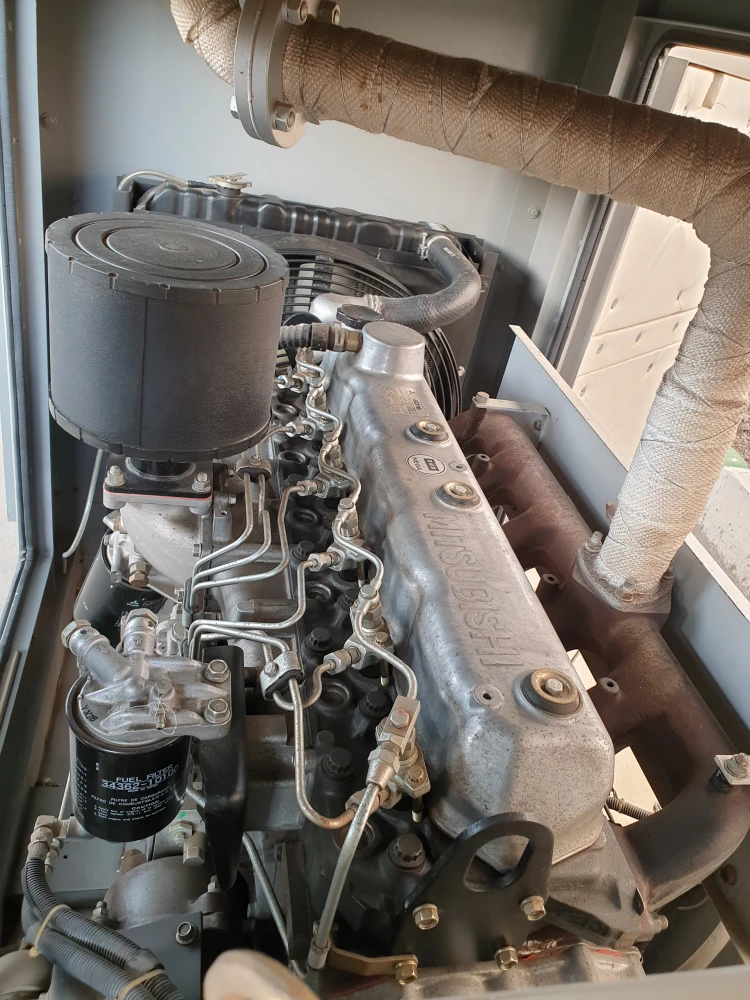

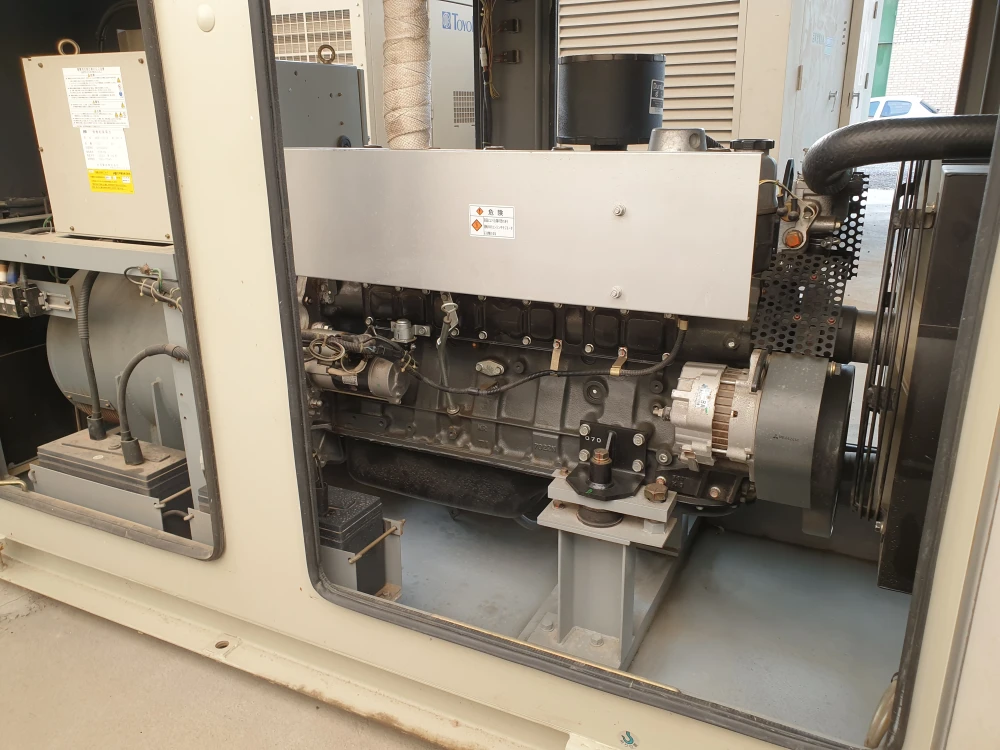

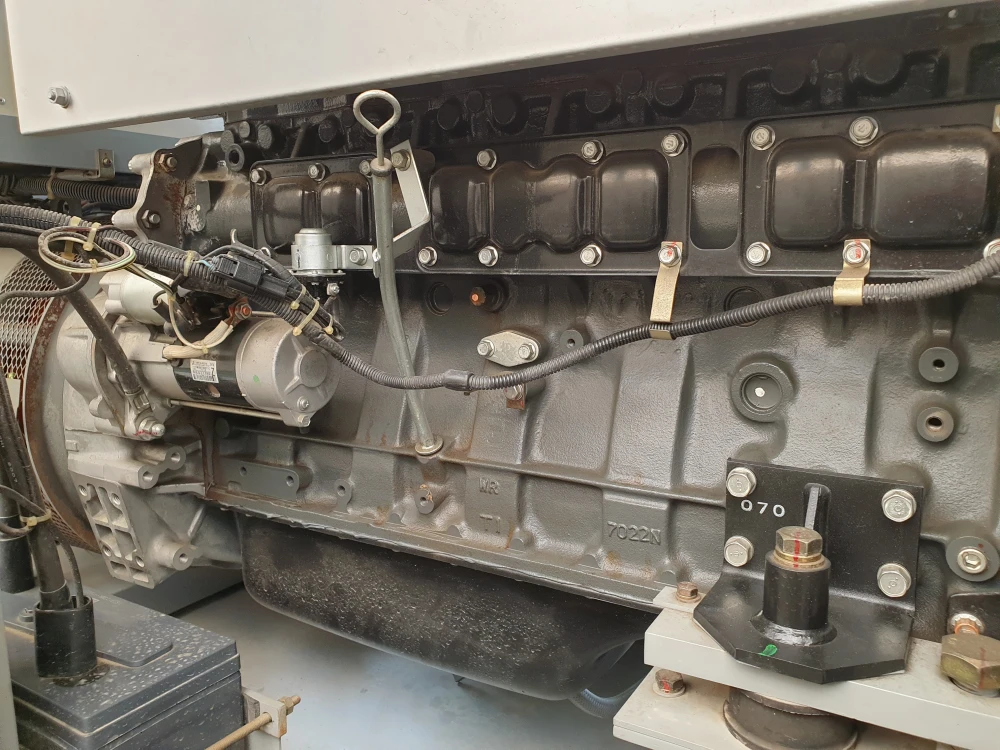

Engine

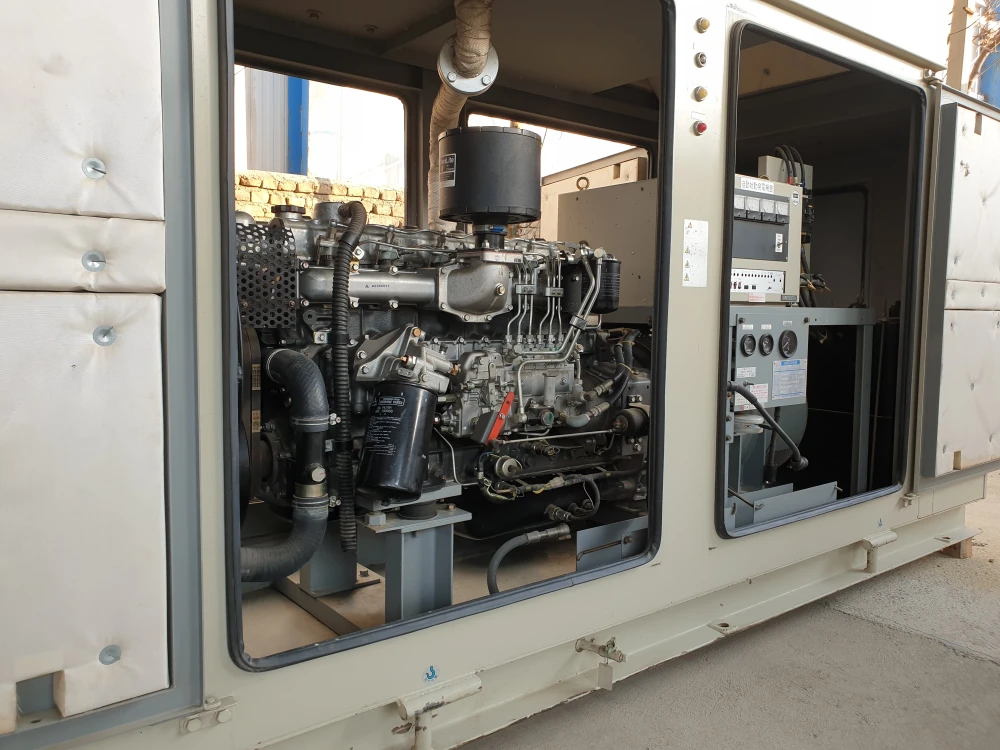

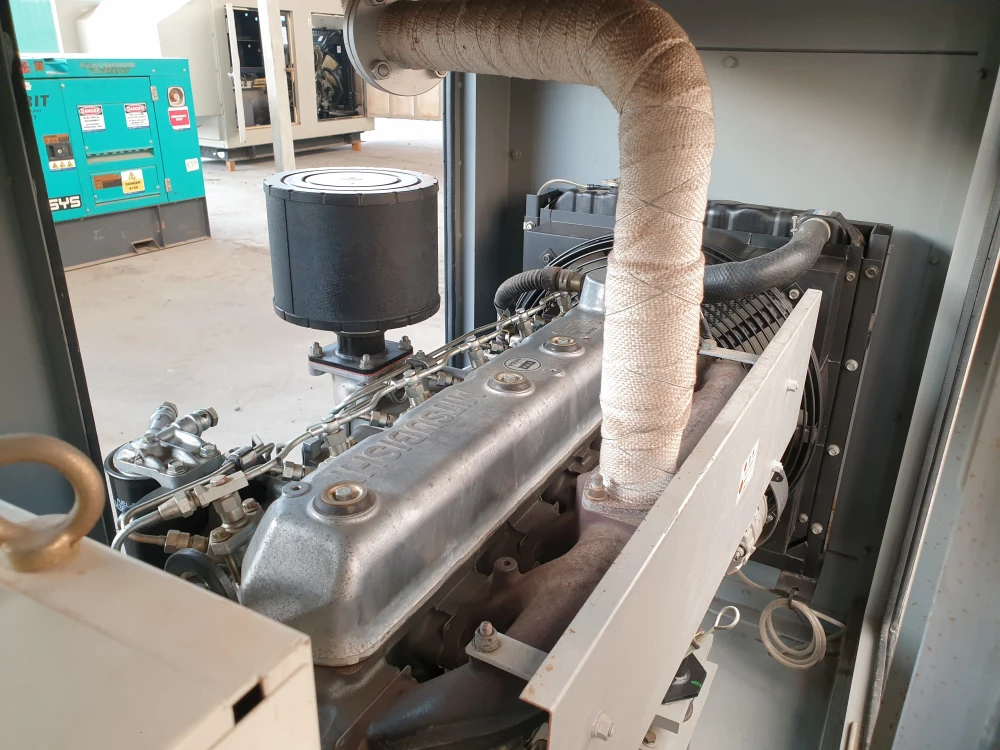

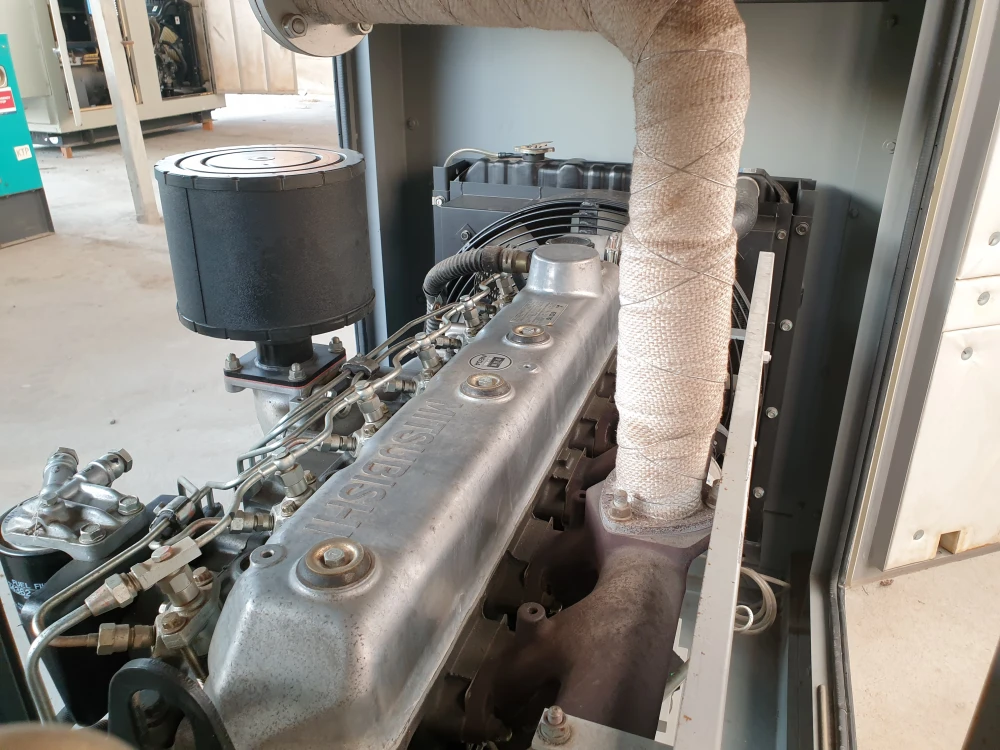

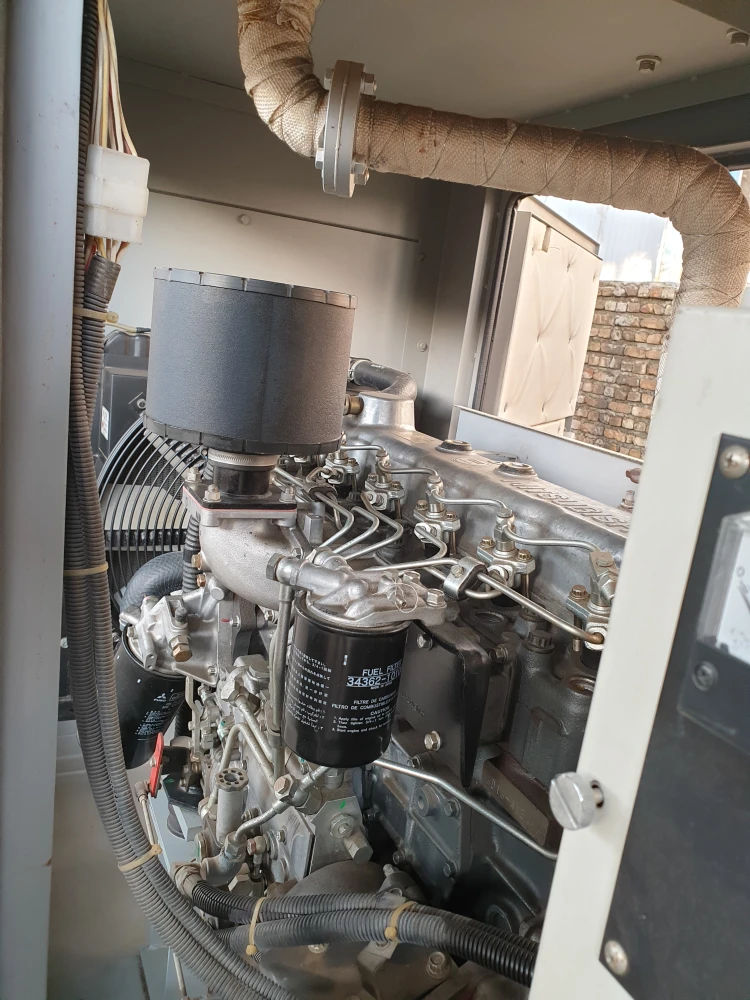

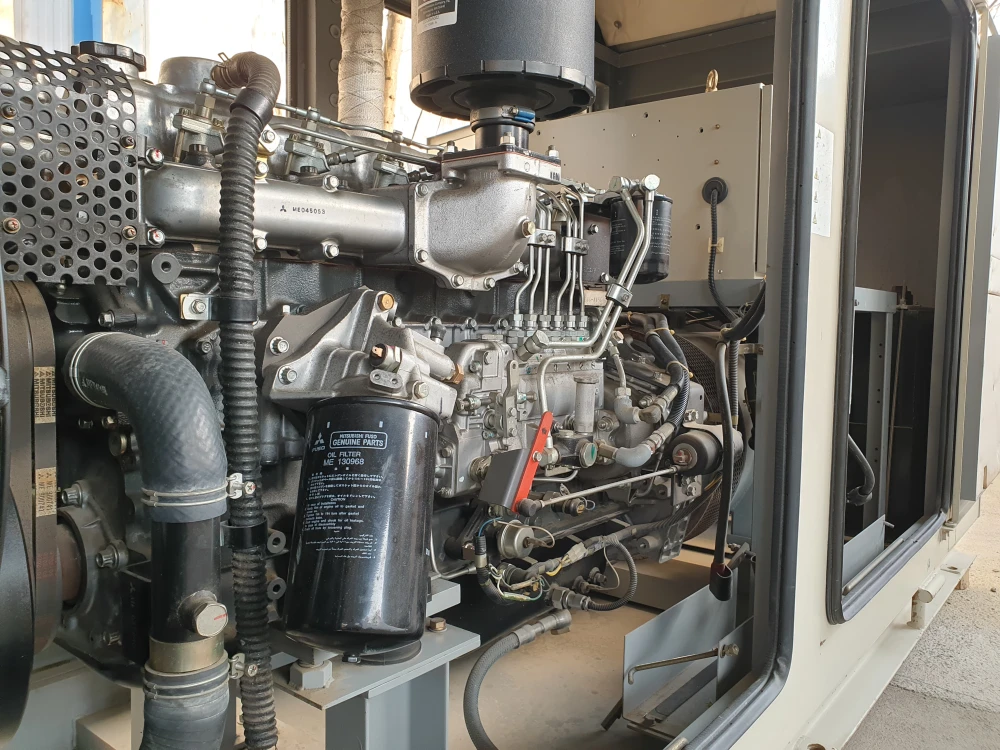

- Make and Model: Mitsubishi 6D16
- Cylinders: Inline-6
- Aspiration: Naturally Aspirated
- Bore x Stroke (mm): 118 x 115
- Total Displacement (Litre): 7.54
- Fuel: Diesel

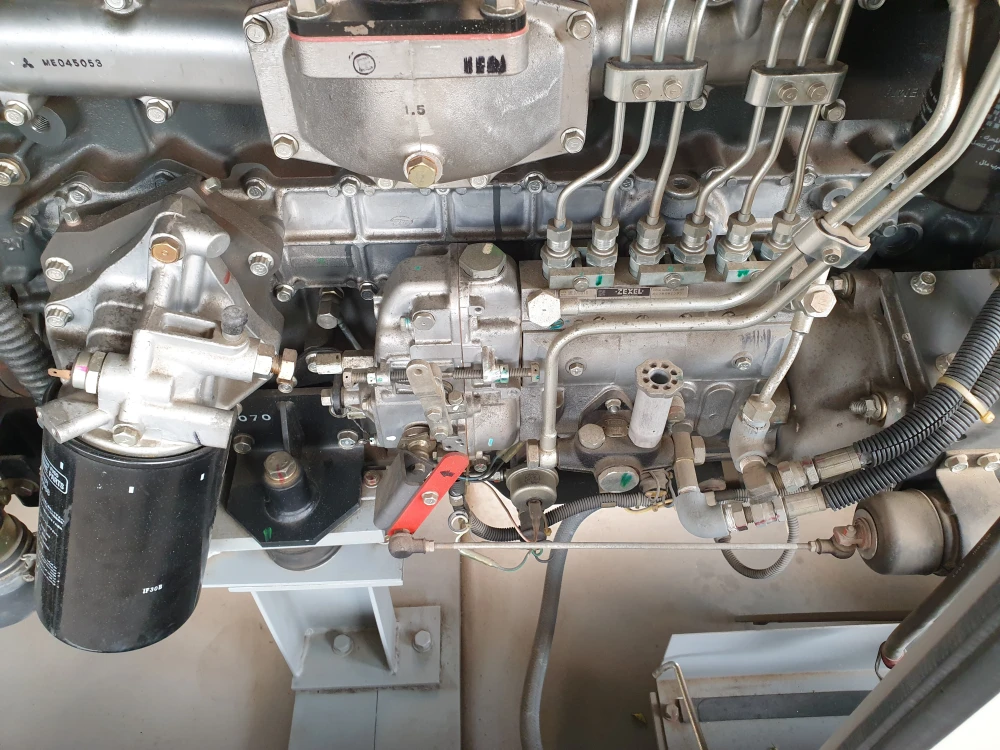

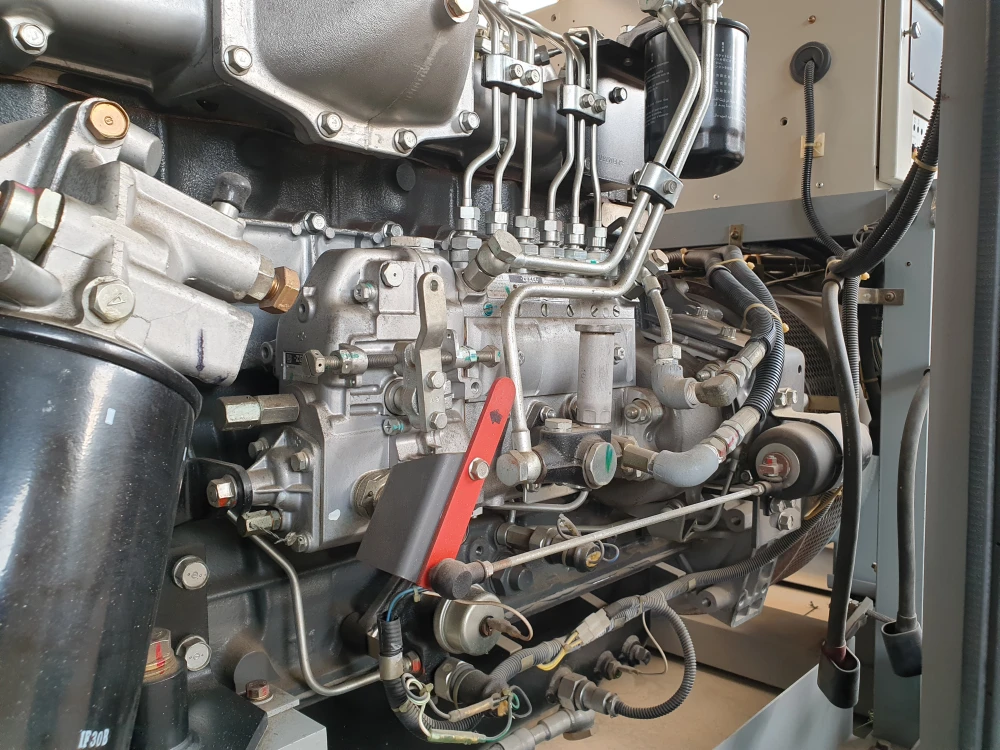

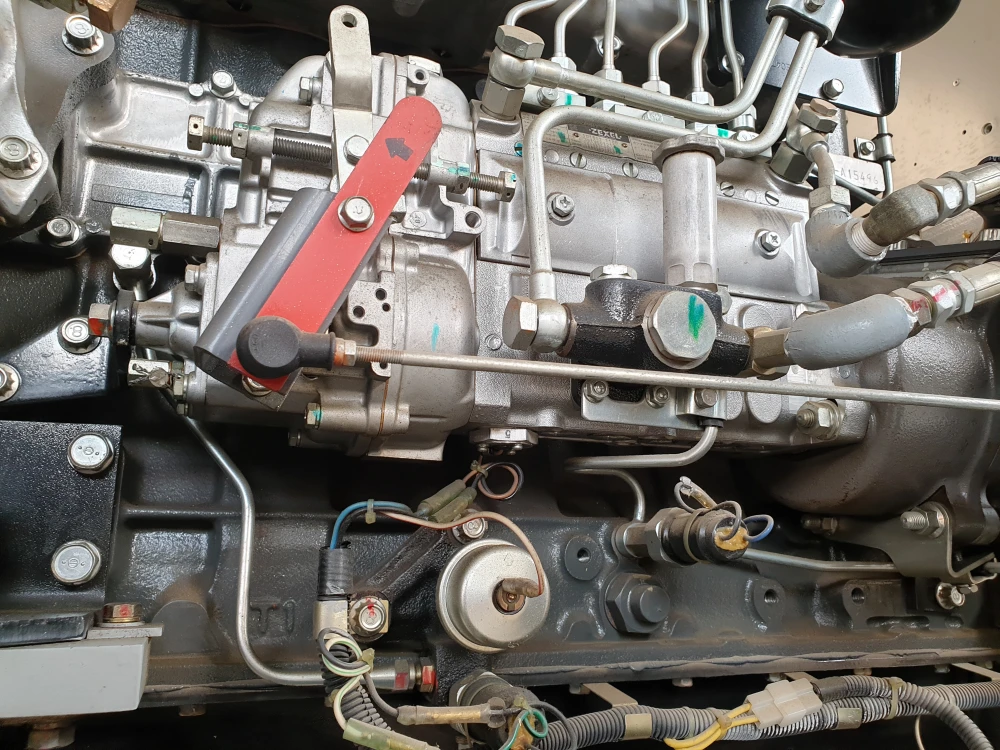

- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 13.5
- Coolant Capacity (Litre): 24
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 2,560
Alternator

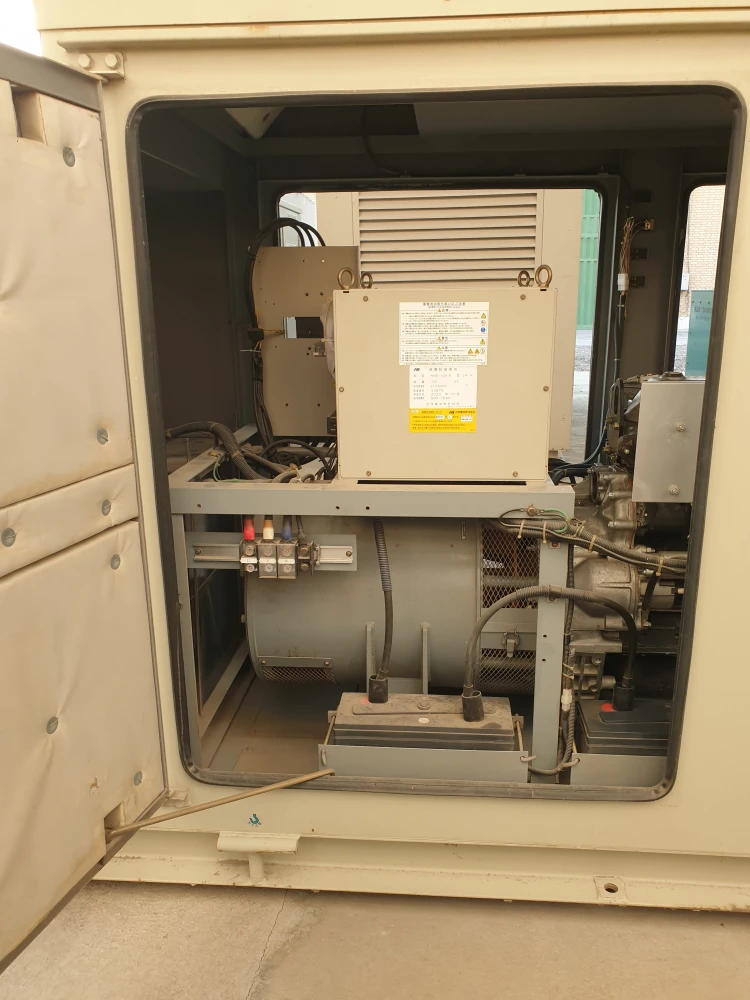

- Make and Model: Meidensha MGB100-4
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class F
