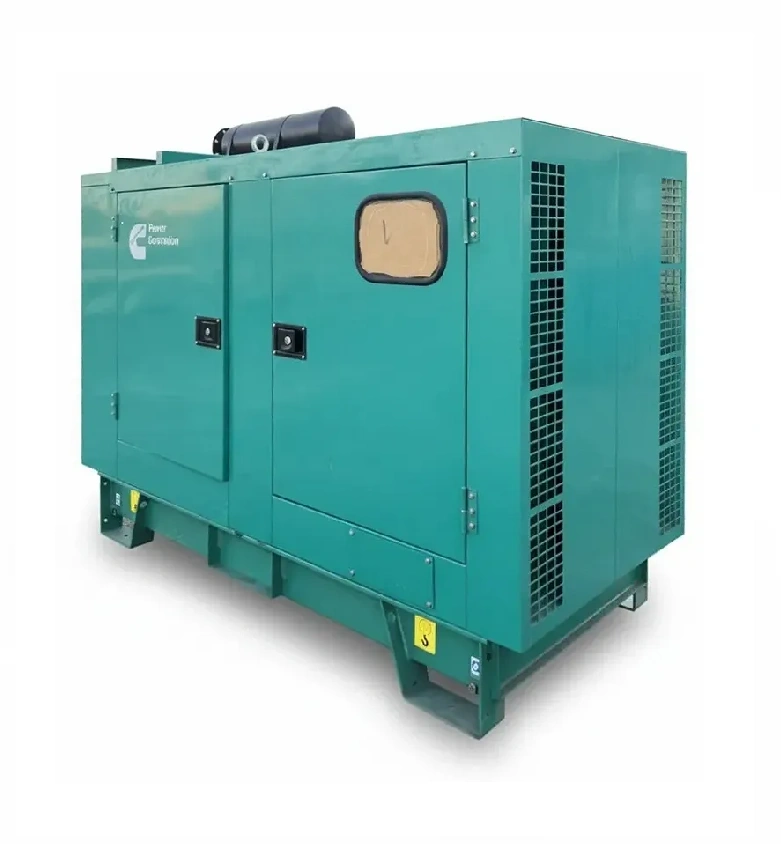

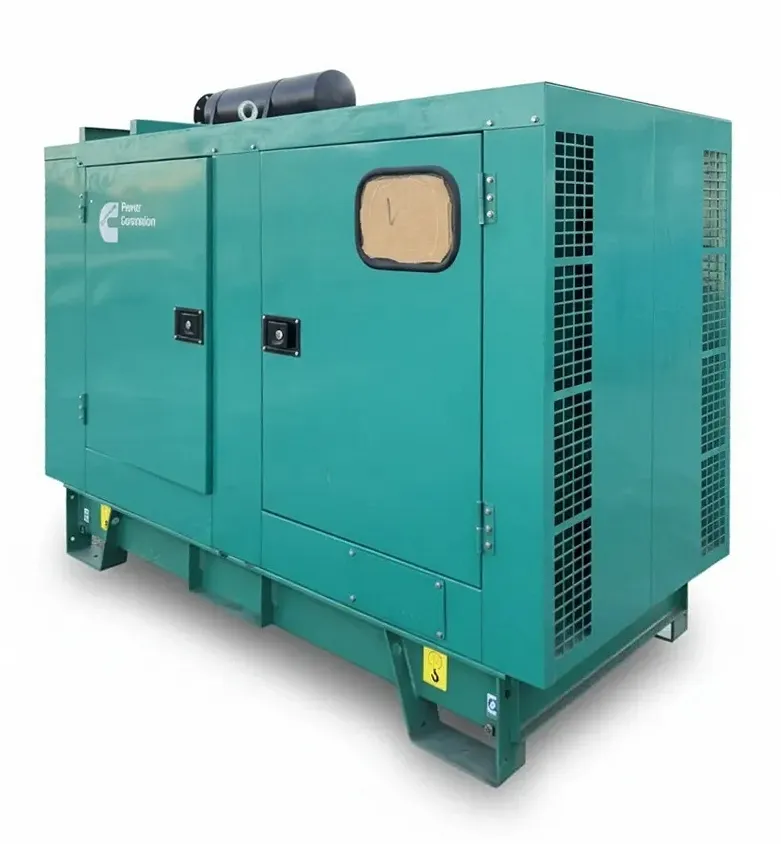

Cummins C90D5 | 90 kVA Silent Diesel Generator
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Cummins C90D5
- Standby Rating Output (50Hz): 90
- Prime Rating Output (50Hz): 82

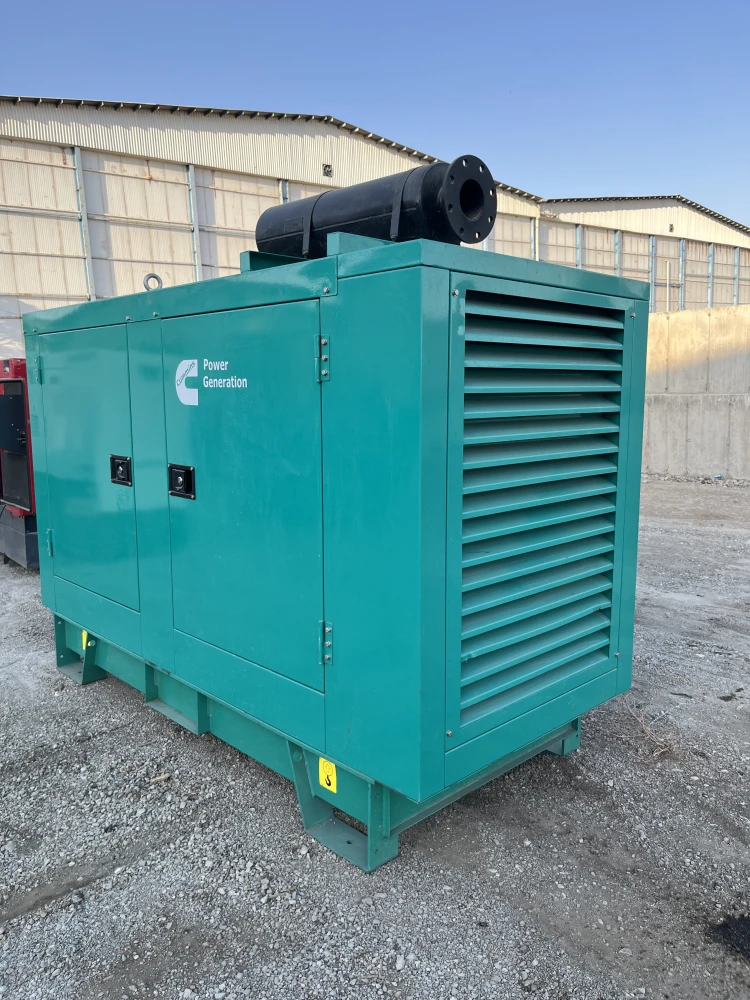

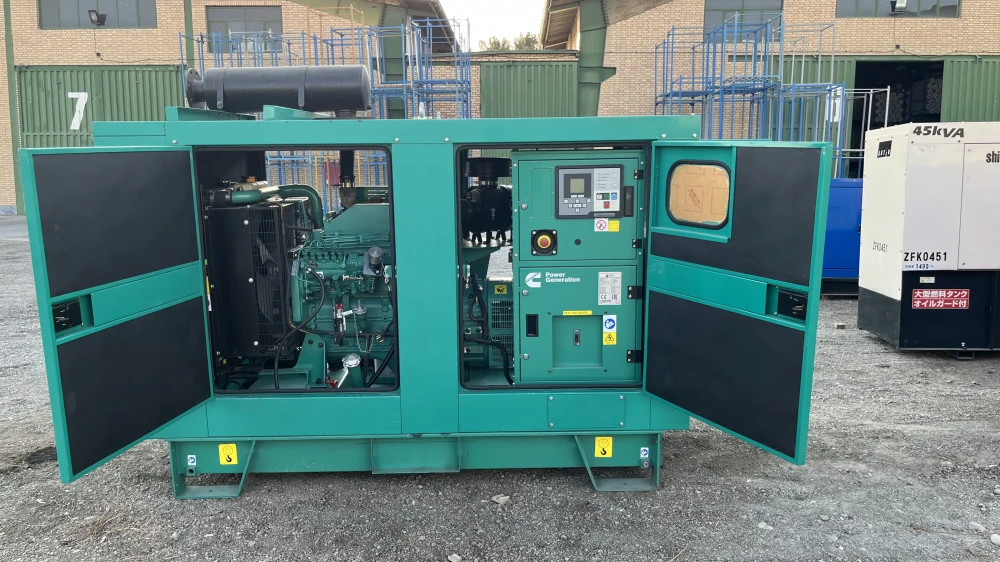

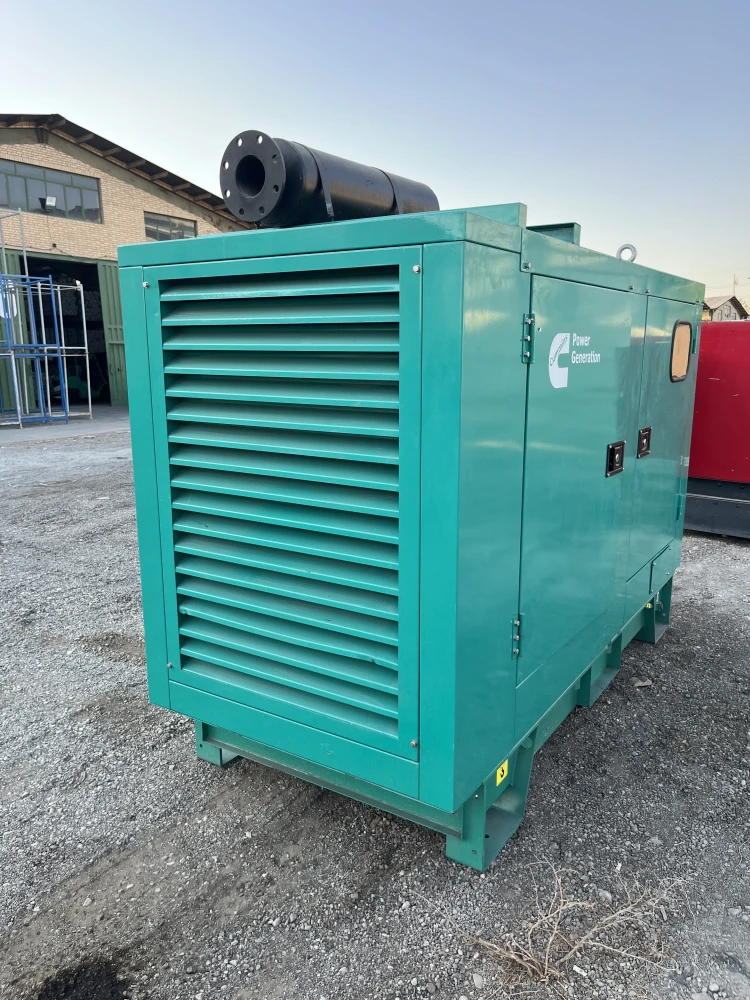

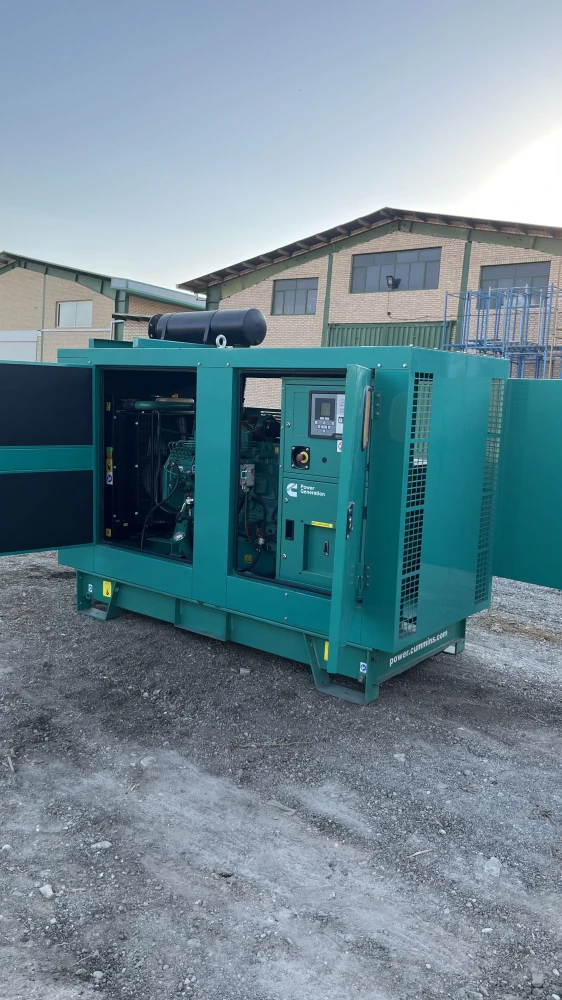

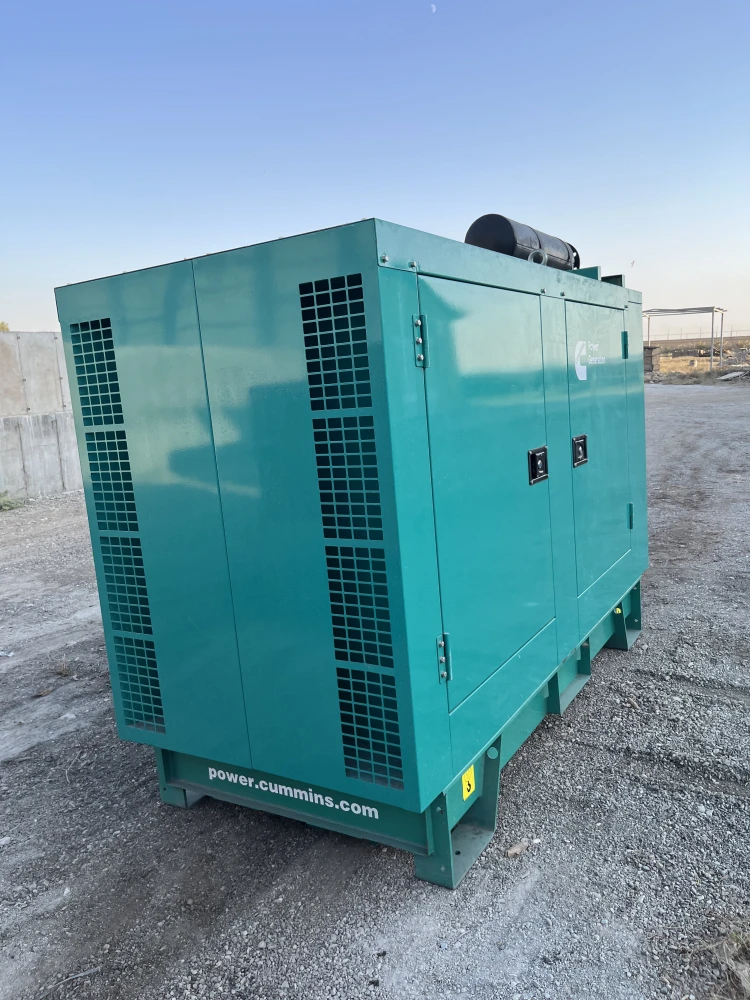

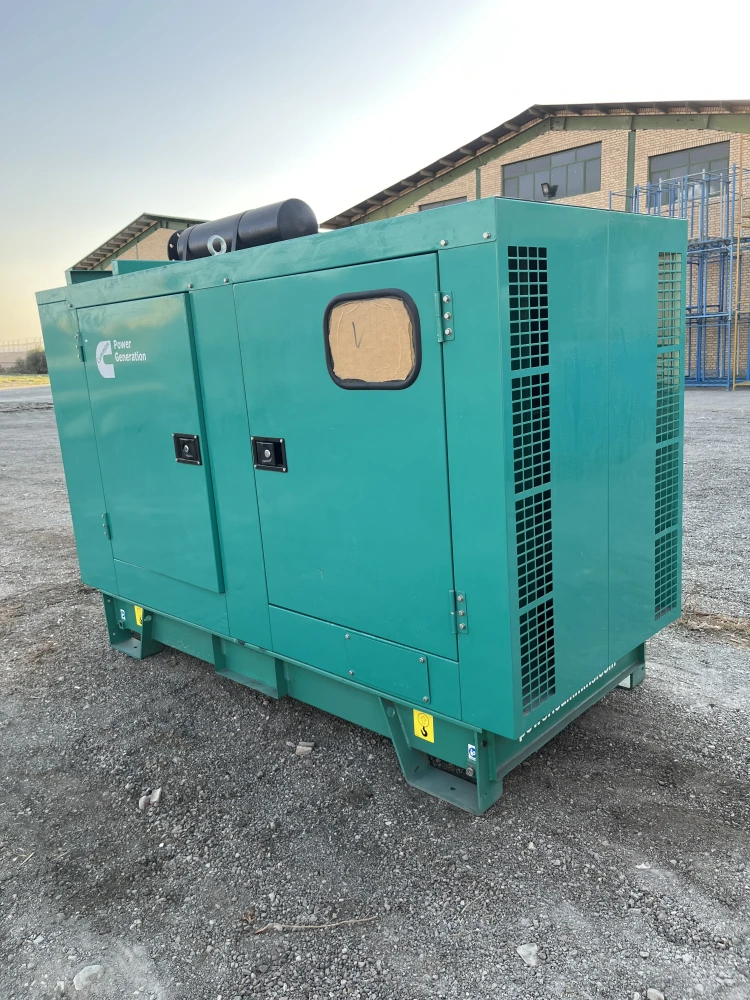

- Configuration (Open-set/Canopy): Silent Canopy Made by TL Power
- Year of Manufacture: 2018
- Condition: New
- Runtime (hours): 1

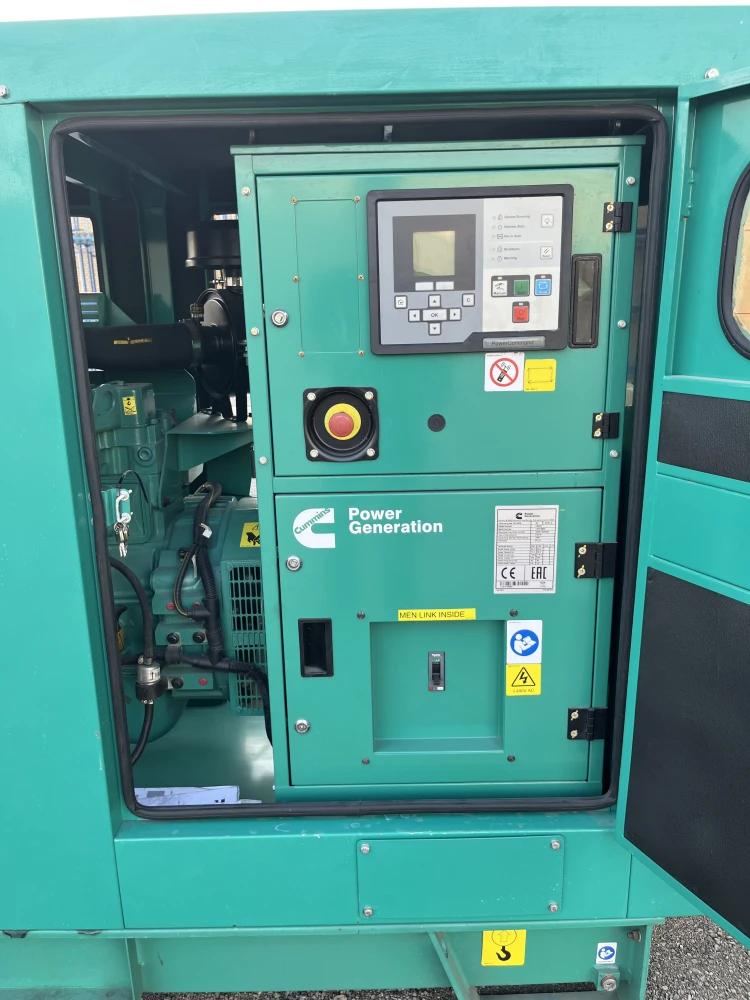

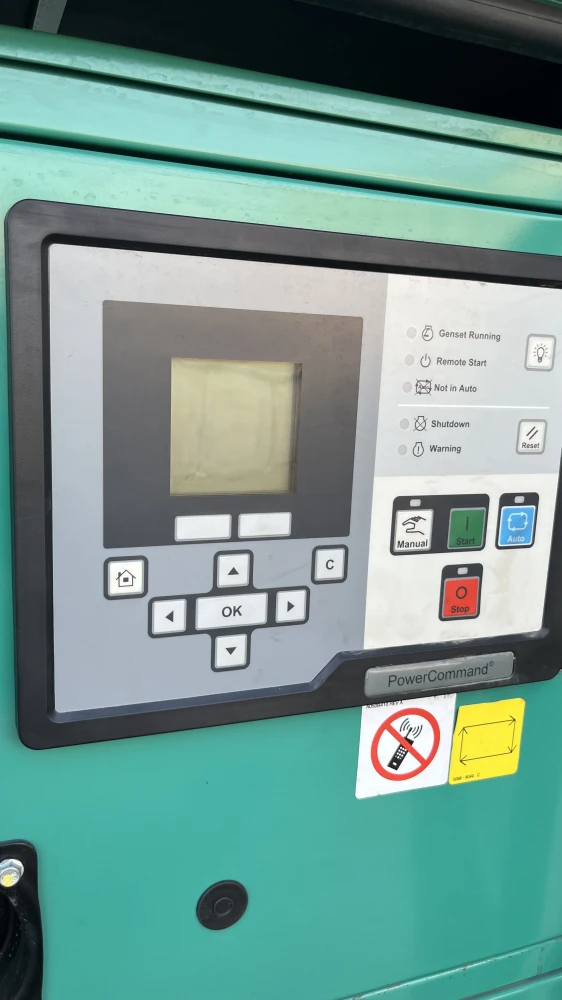

- Controller: Cummins PowerCommand Controller (PCC)
- Availability: In Stock – Warehouse 2

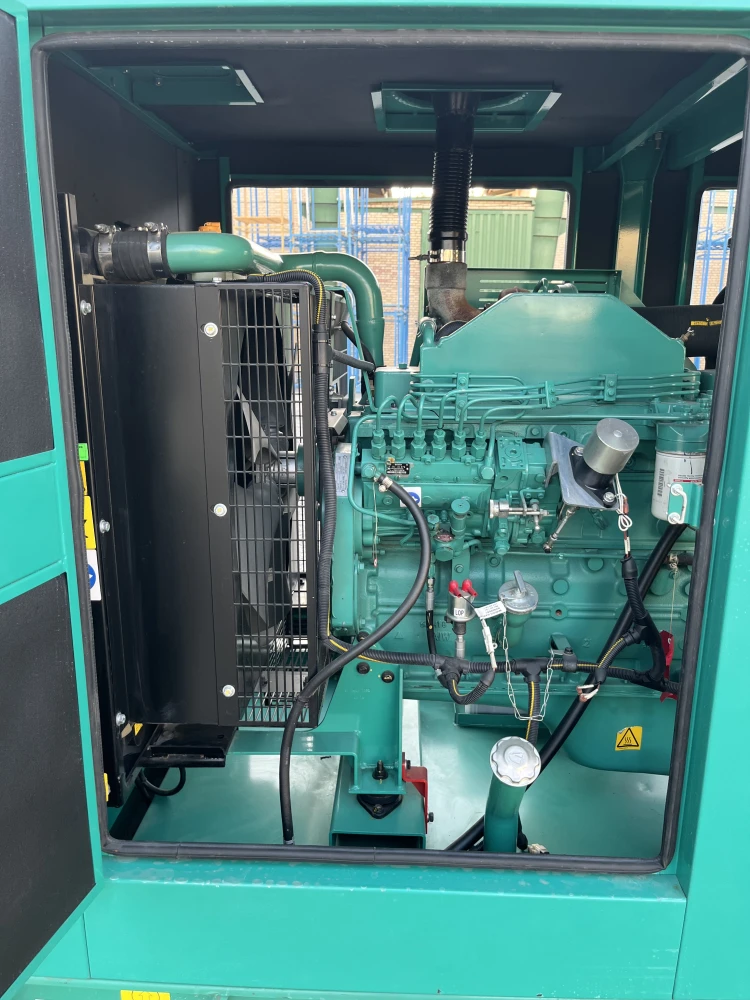

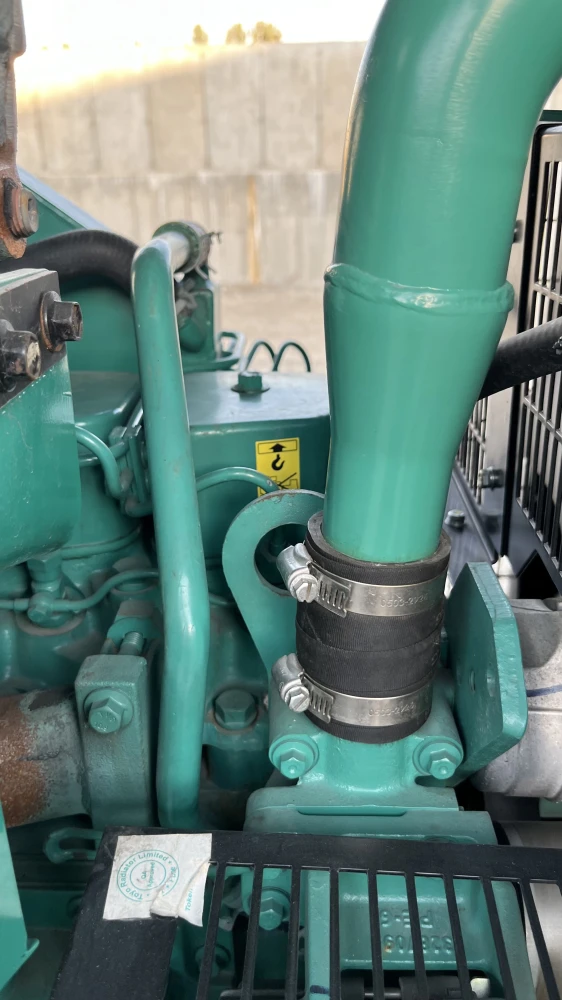

Engine
- Make and Model: Cummins 6BTA5.9-G5
- Cylinders: Inline-6
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 102 x 120
- Total Displacement (Litre): 5.88
- Fuel: Diesel

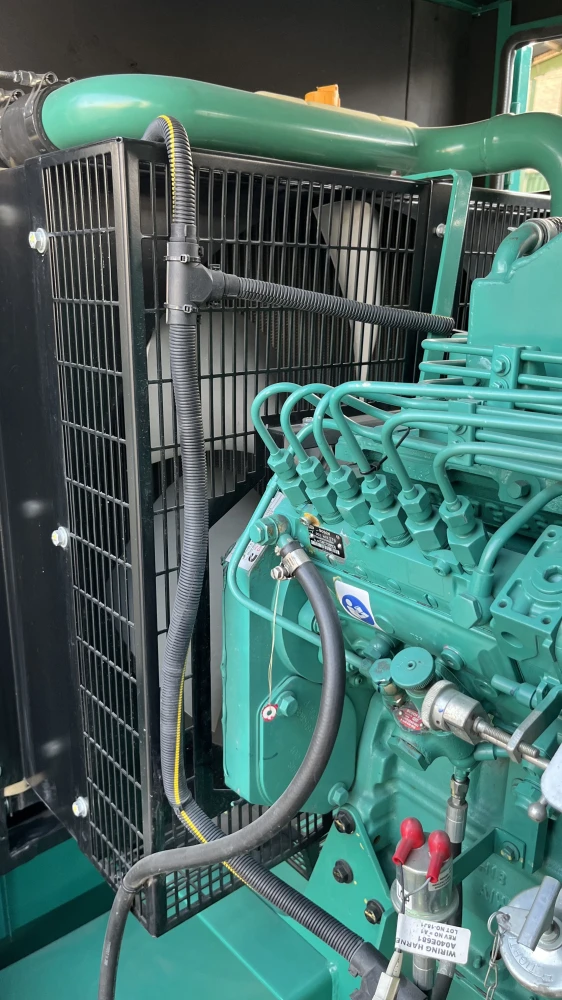

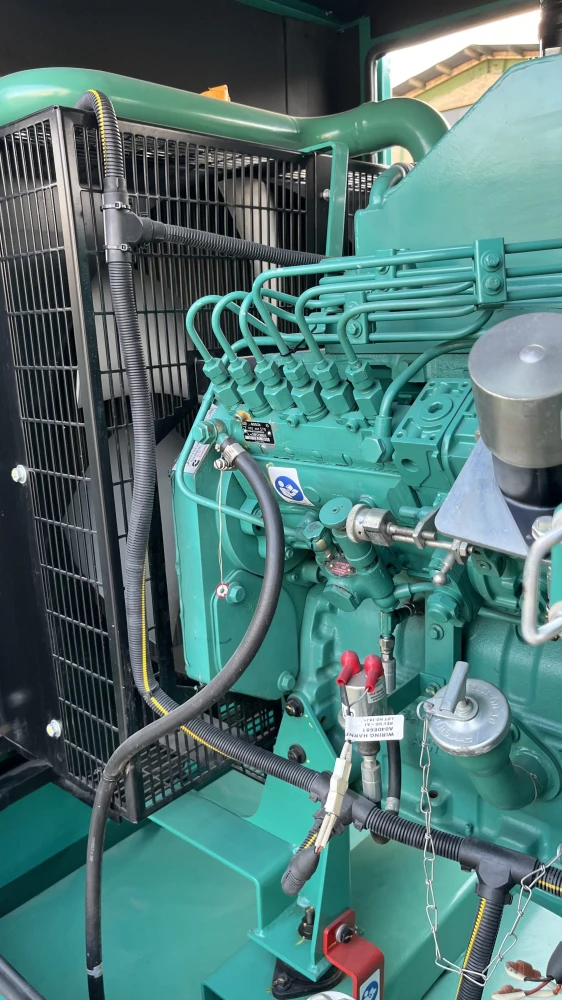

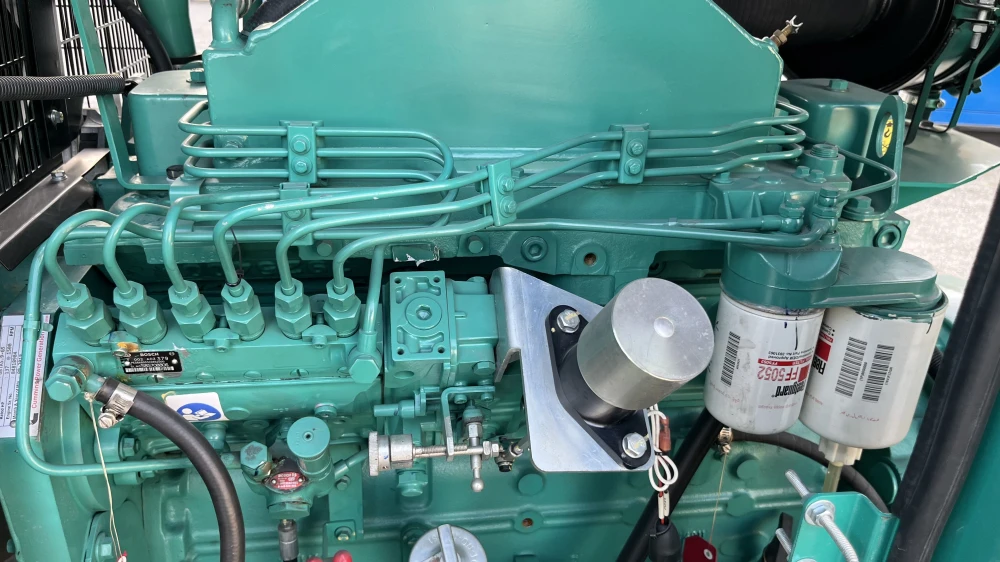

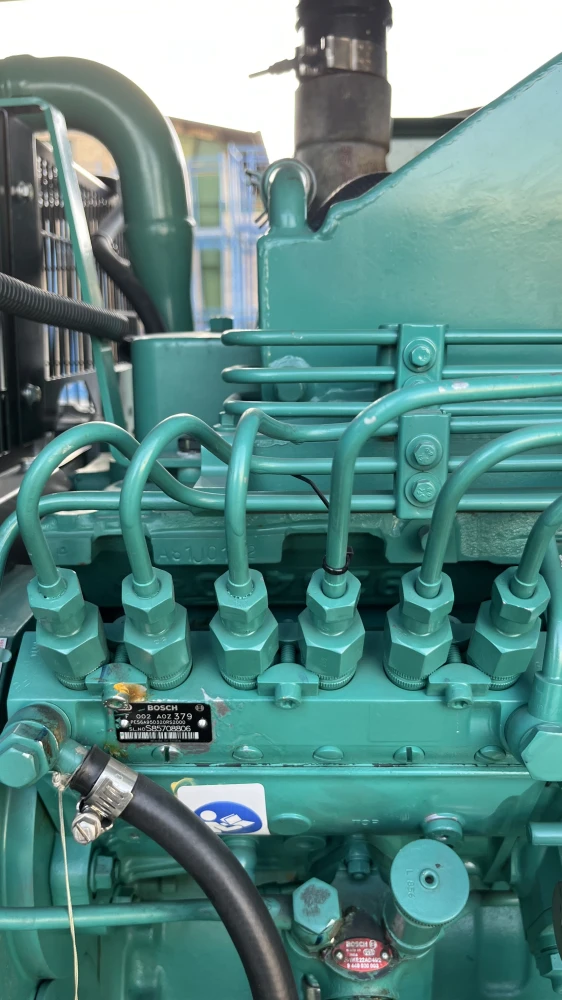

- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 16.399999999999999
- Coolant Capacity (Litre): 20
- Governor and Actuator Type: Electronic Governor, Electric Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 1,680

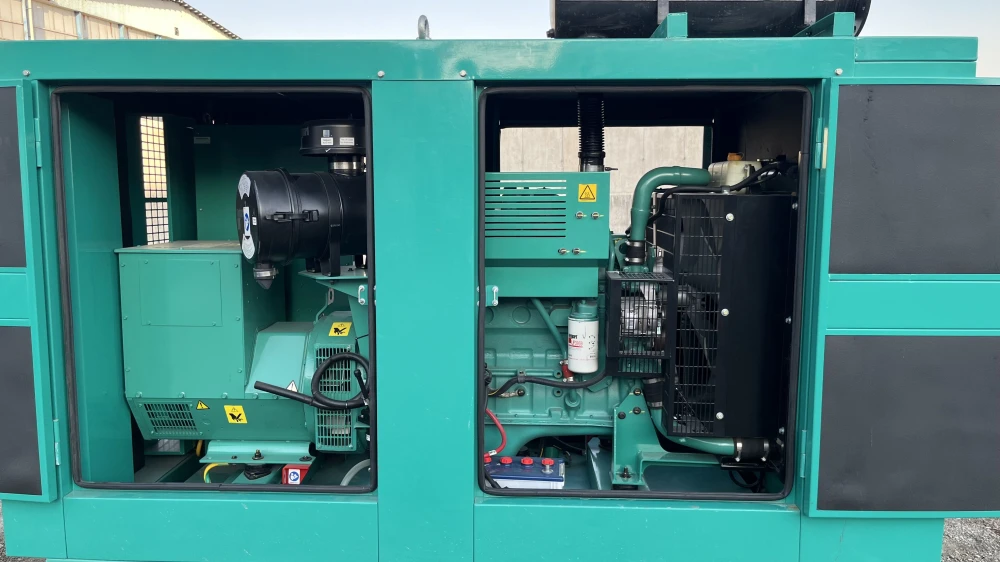

Alternator
- Make and Model: Stamford UCI224G1
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
