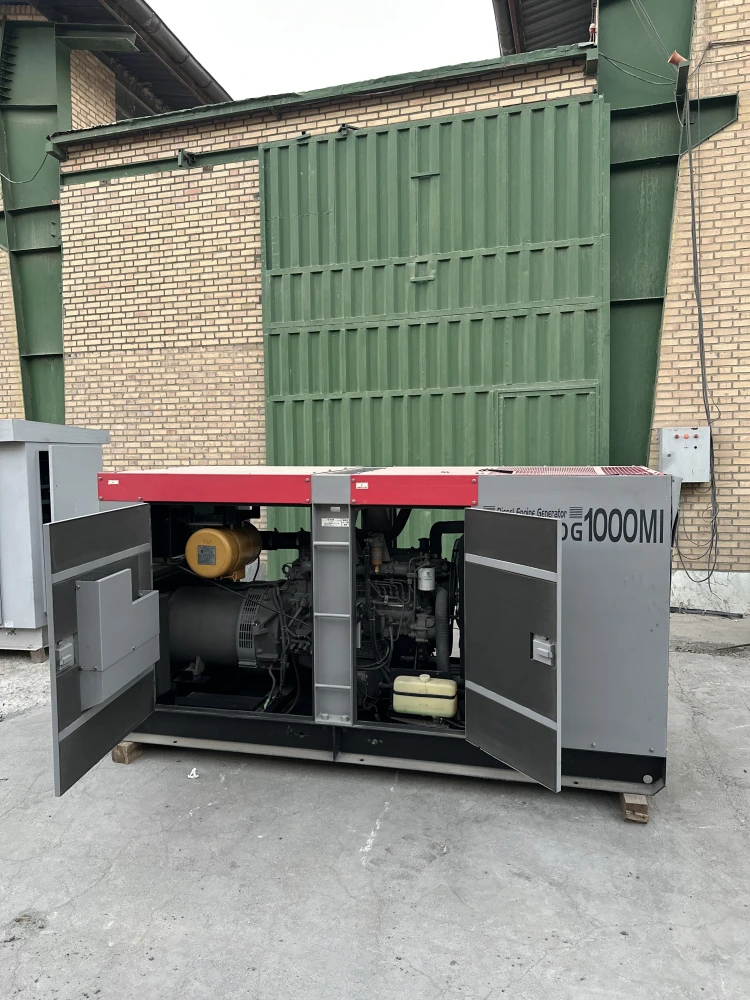

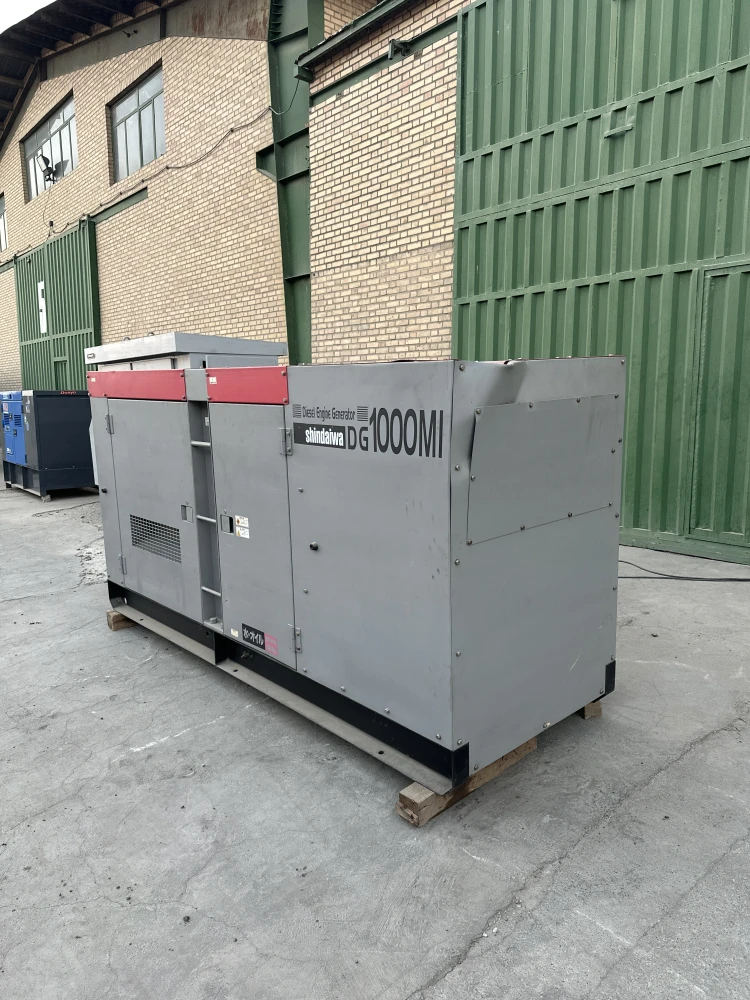

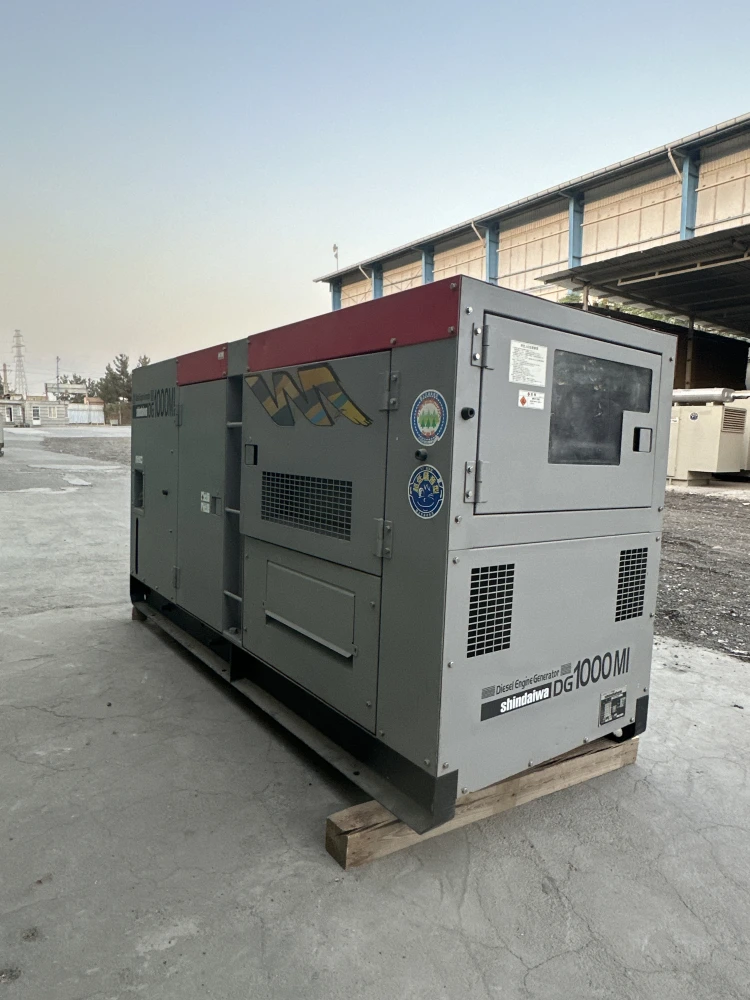

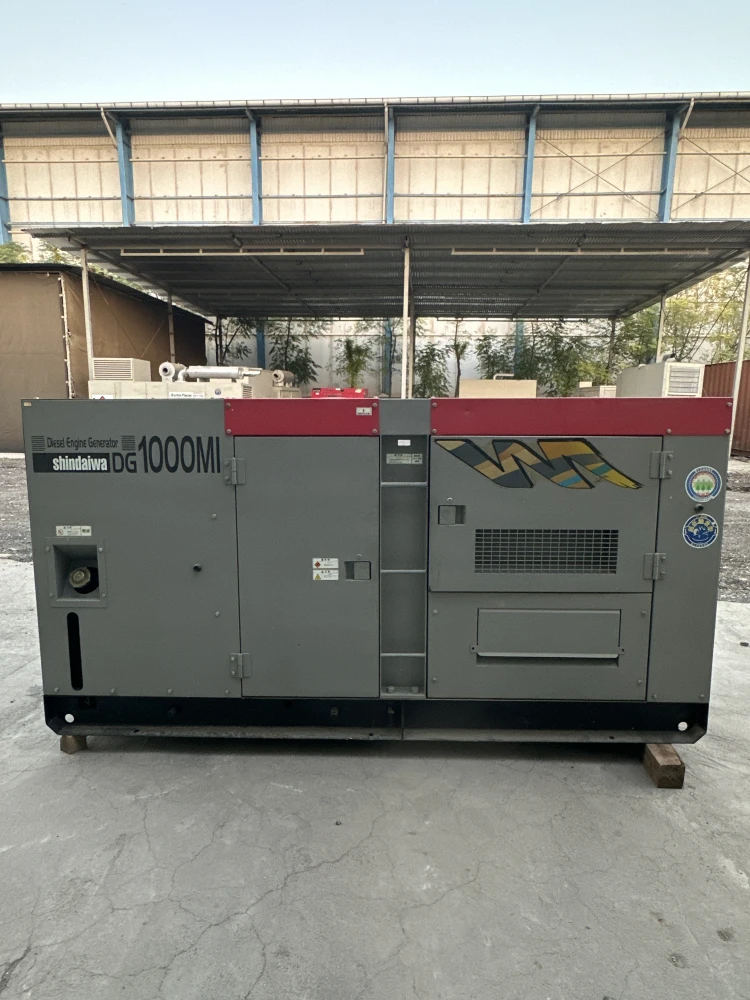

Shindaiwa DG1000MI | 100 kVA Super Silent Diesel Generator Powered by Isuzu
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Shindaiwa DG1000MI
- Standby Rating Output (60Hz): 110
- Prime Rating Output (60Hz): 100
- Standby Rating Output (50Hz): 95
- Prime Rating Output (50Hz): 85

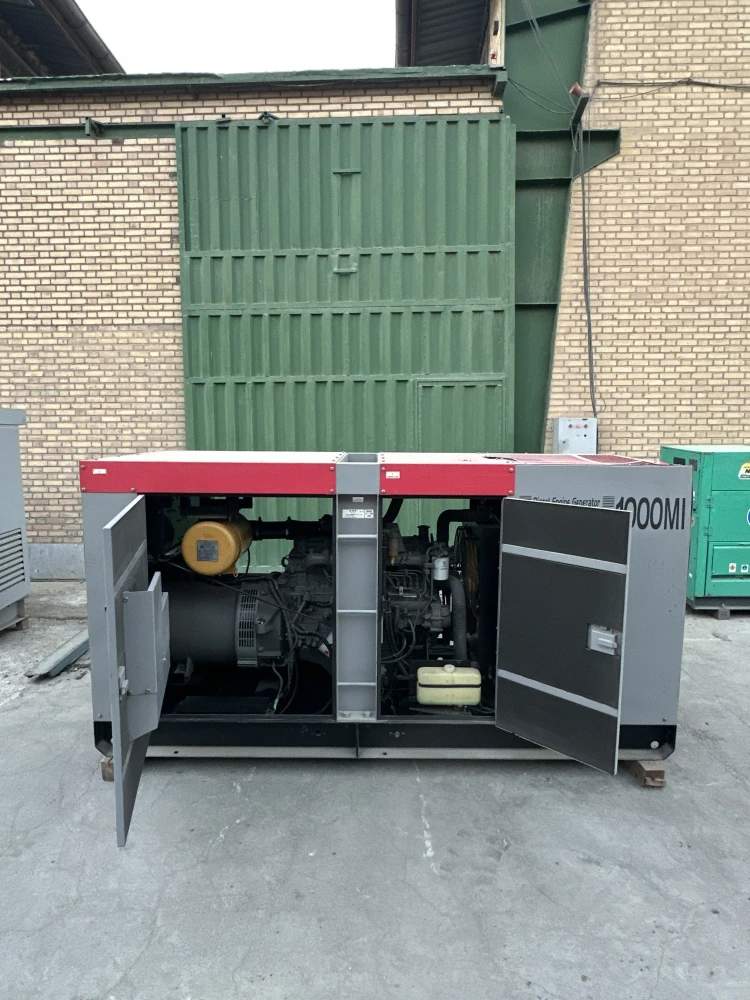

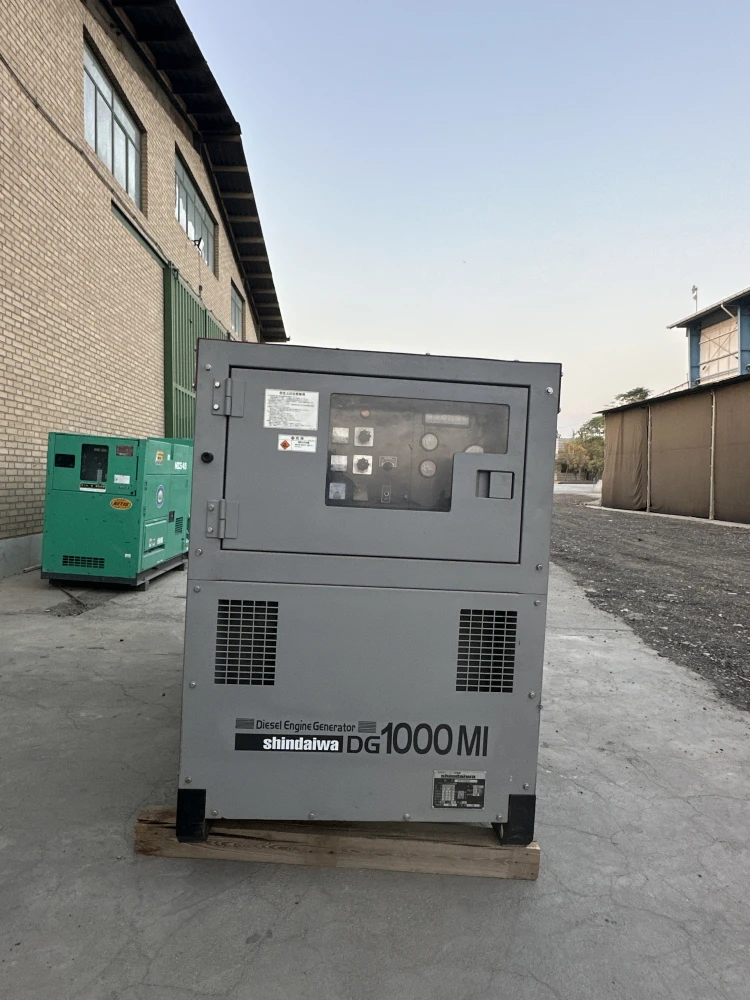

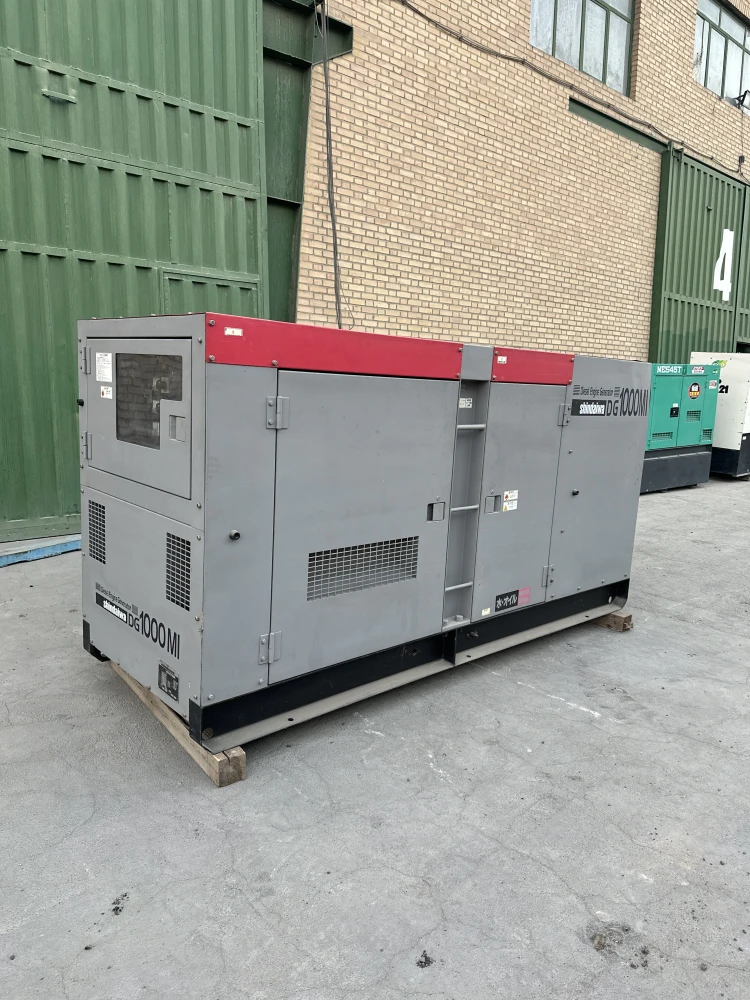

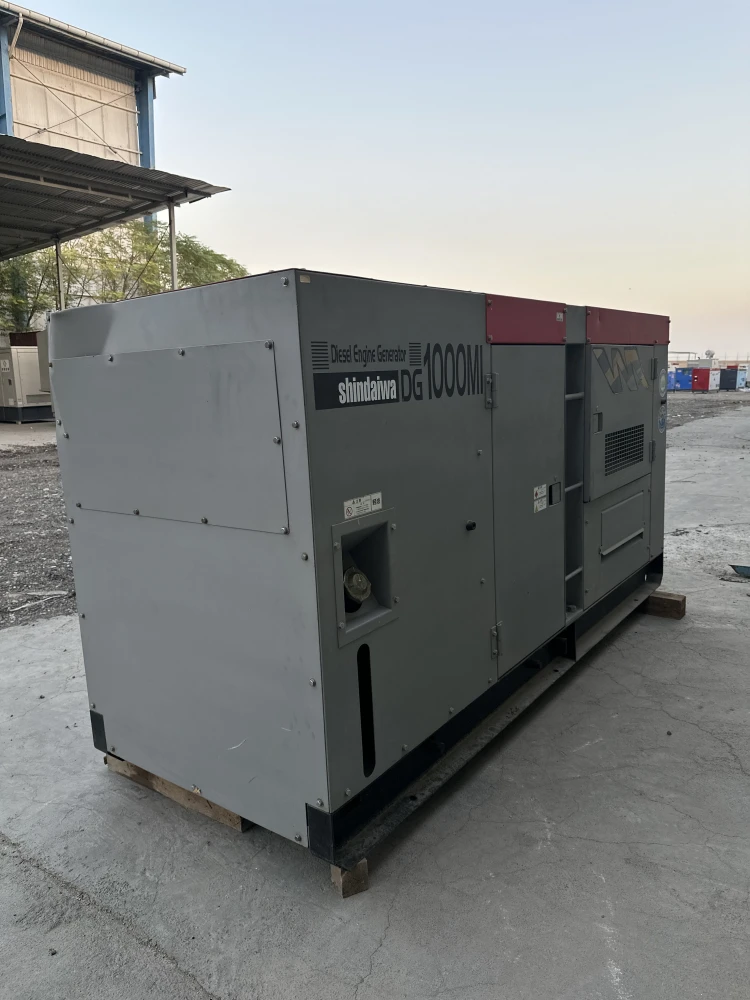

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Shindaiwa
- Condition: Used
- Runtime (hours): 3,773

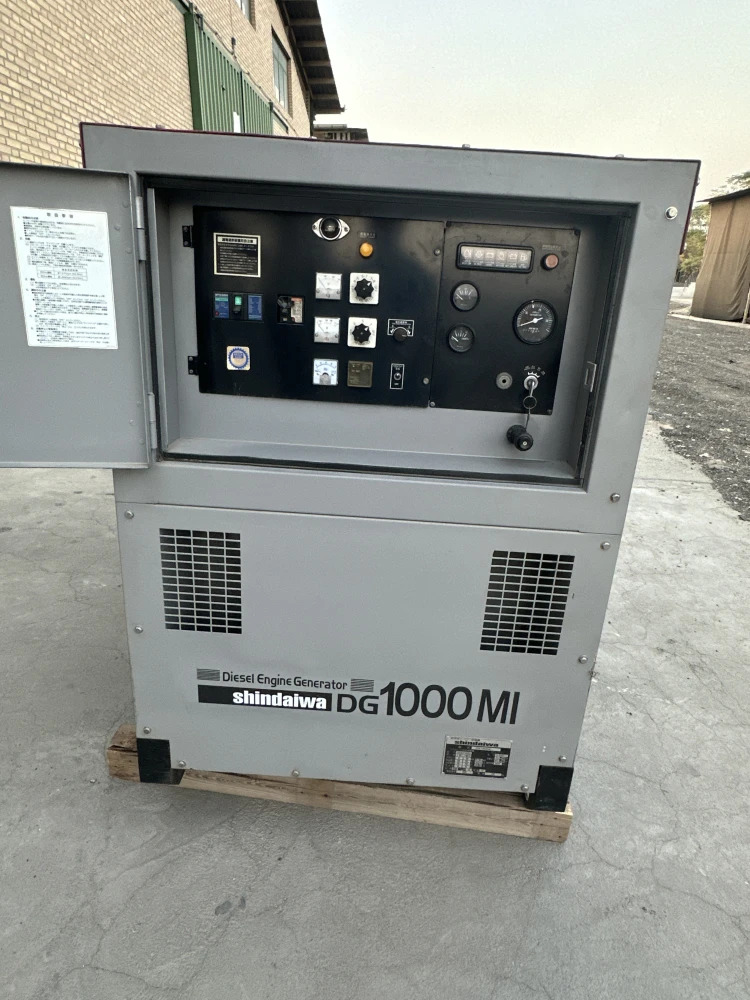

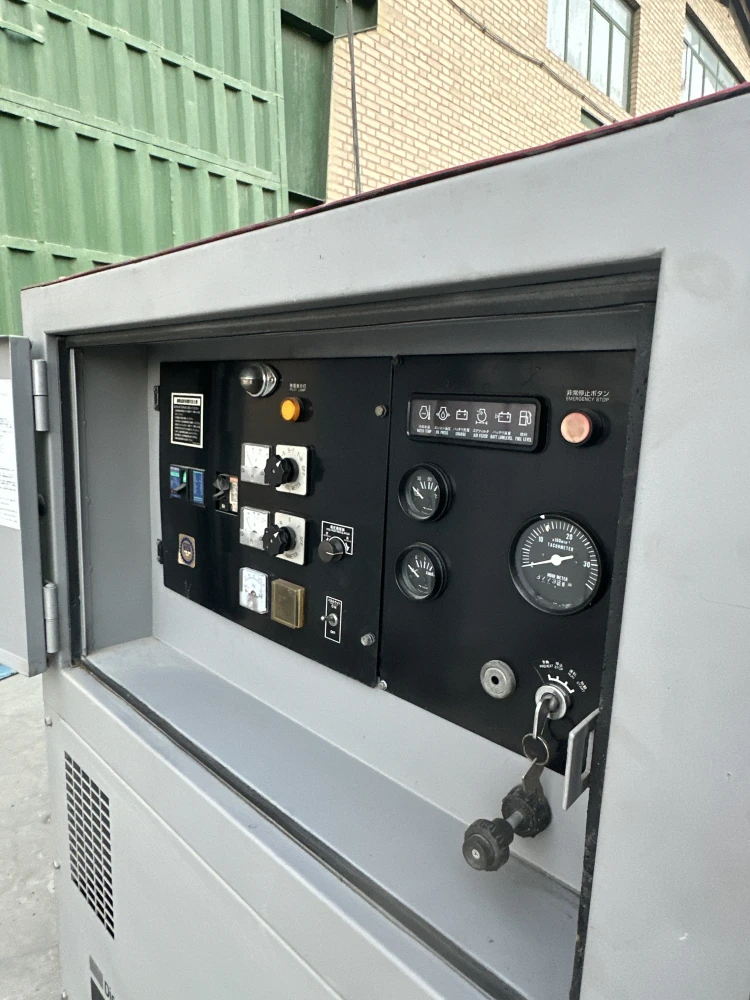

- Controller: Shindaiwa Exclusive Control Panel
- Availability: In Stock – Warehouse 2

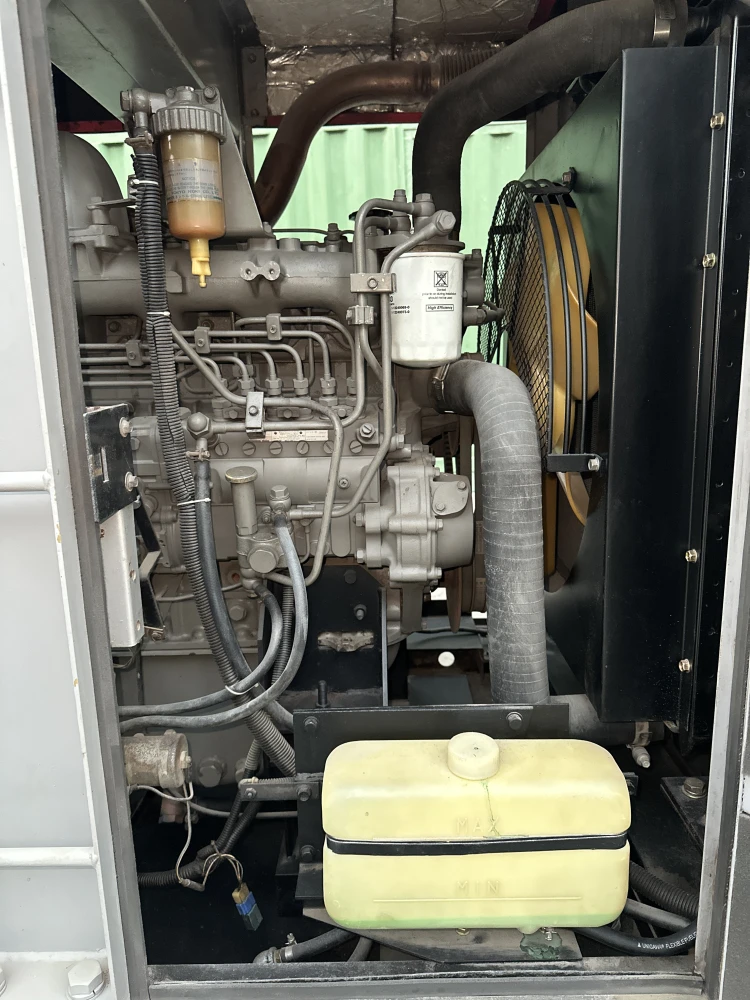

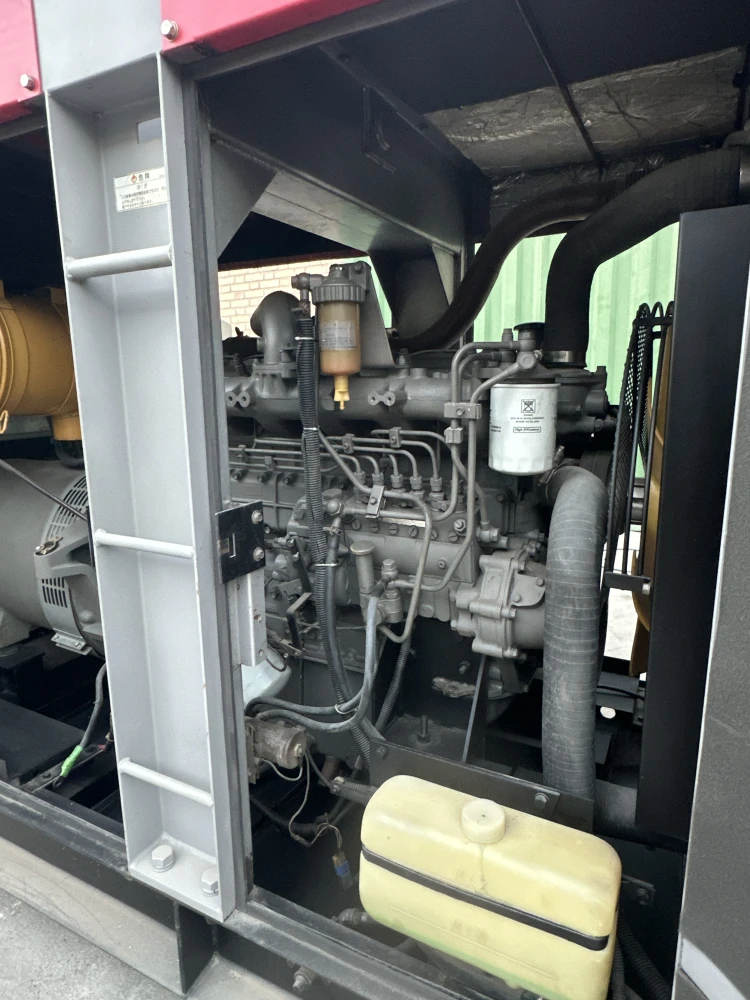

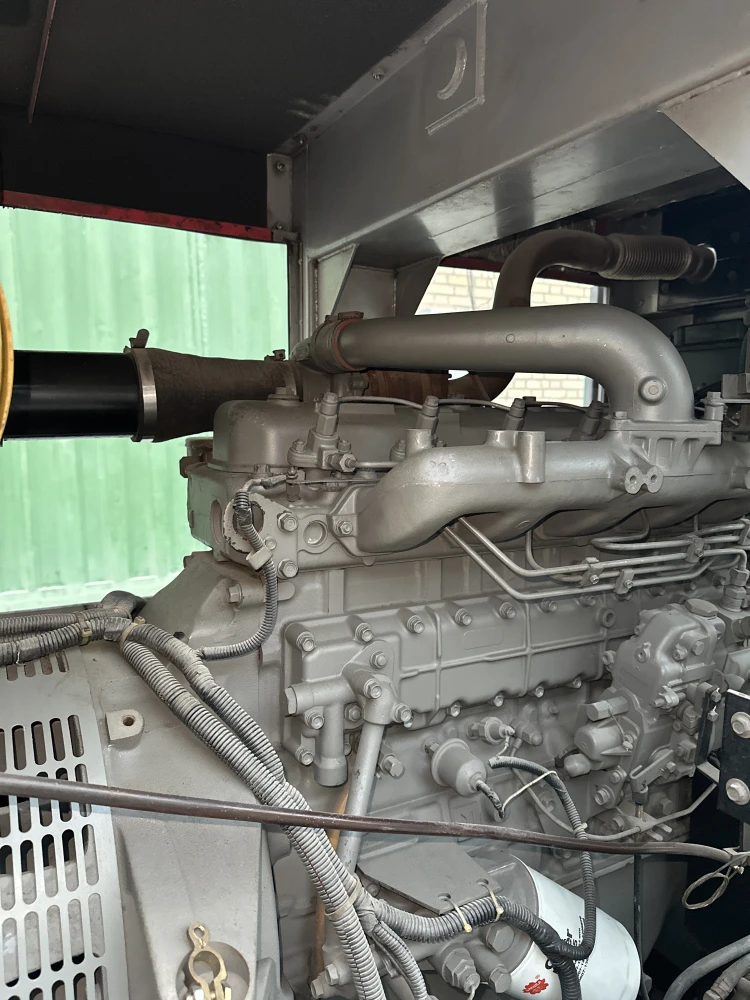

Engine
- Make and Model: Isuzu A-6BG1T
- Cylinders: Inline-6

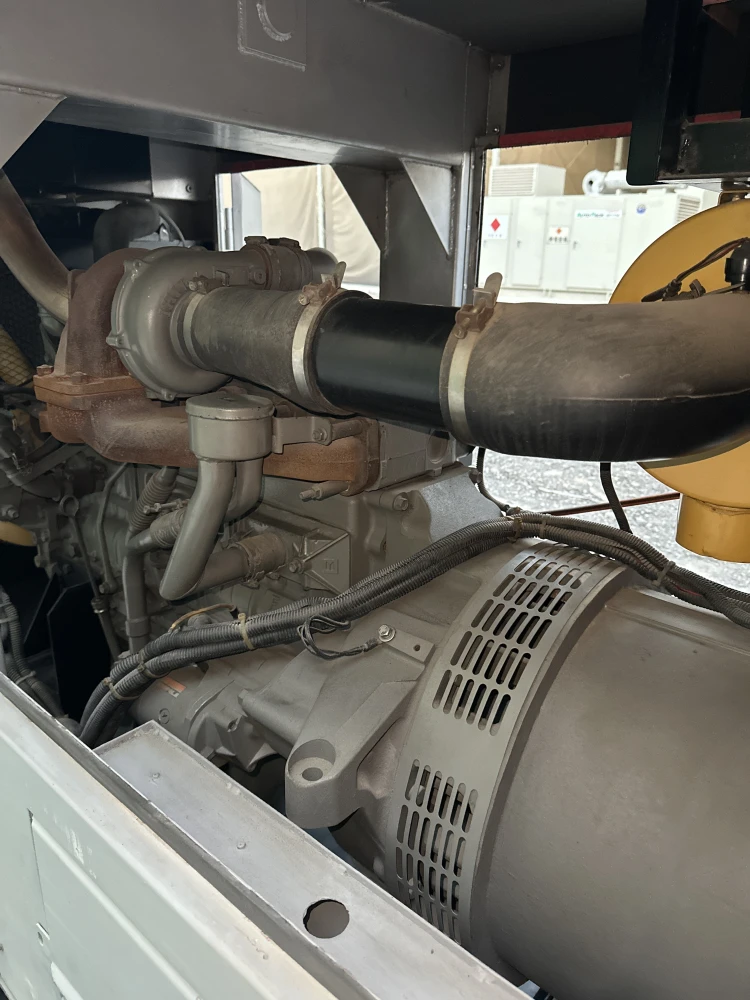

- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 105 x 125
- Total Displacement (Litre): 6.49
- Fuel: Diesel
- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 22.4
- Coolant Capacity (Litre): 22
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 1,750

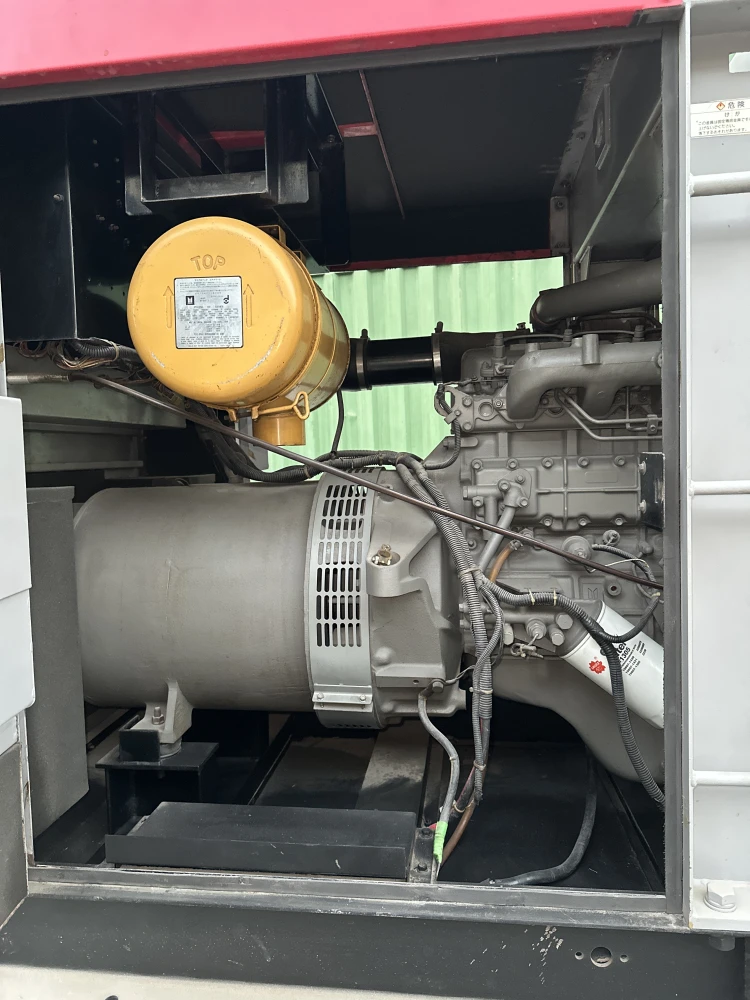

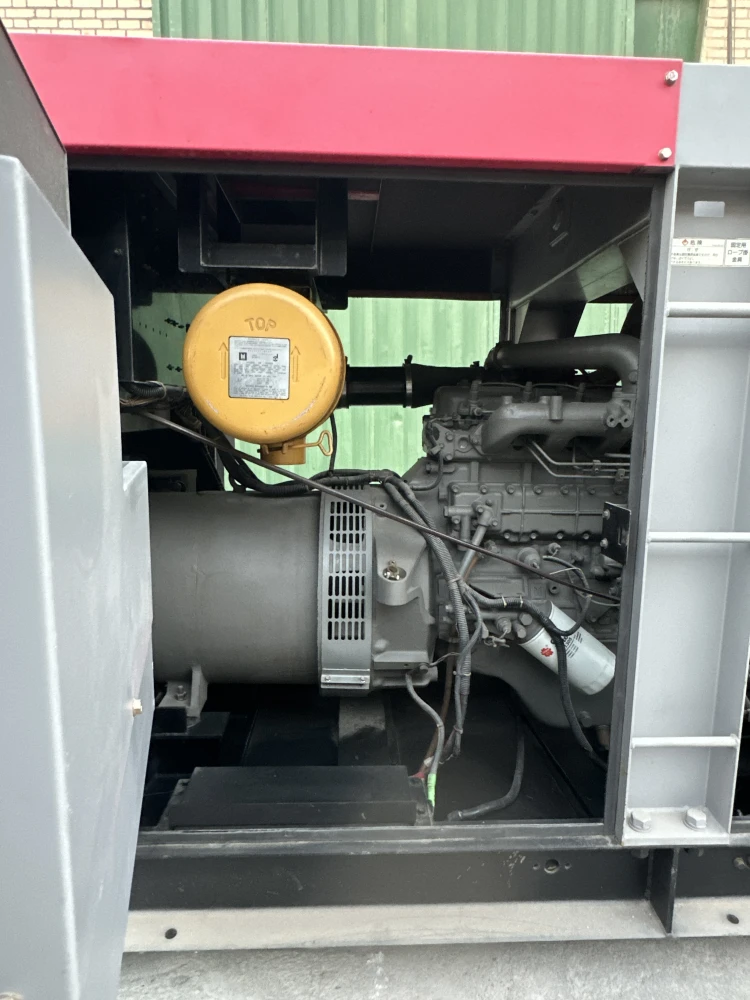

Alternator
- Make and Model: Shindaiwa SSG3100SI
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class F
