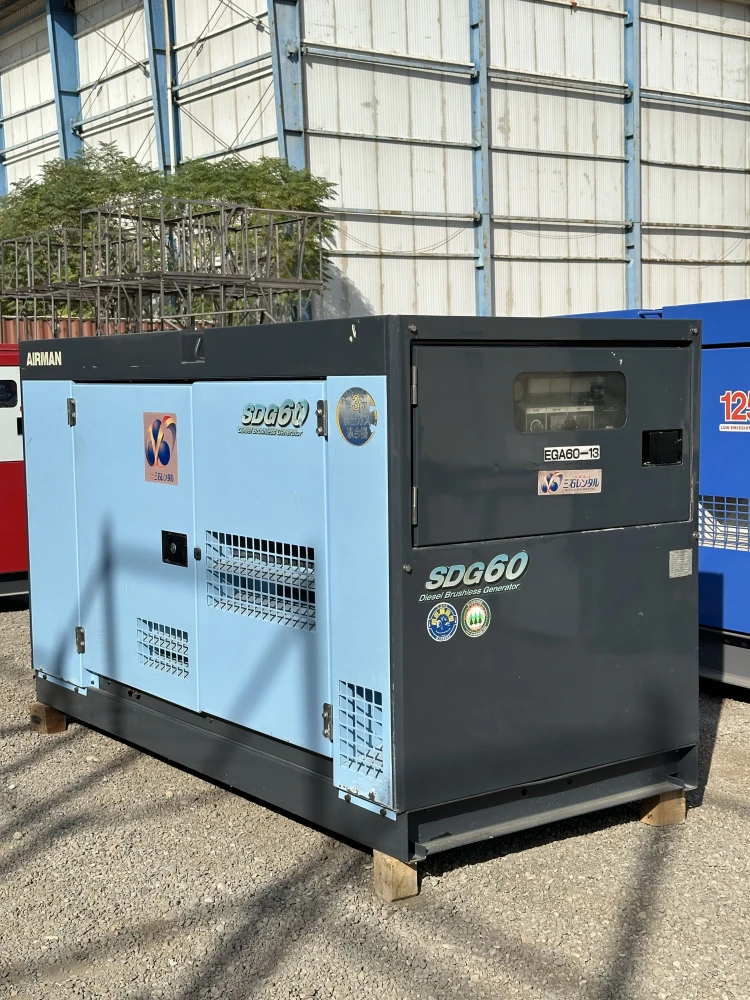

Airman SDG60S-3B1 | 60 kVA Super Silent Diesel Generator Powered by Isuzu
Technical Specifications
Diesel Generator Set
- Make and Model: Airman SDG60S-3B1
- Standby Rating Output (60Hz): 66
- Prime Rating Output (60Hz): 60
- Standby Rating Output (50Hz): 55
- Prime Rating Output (50Hz): 50

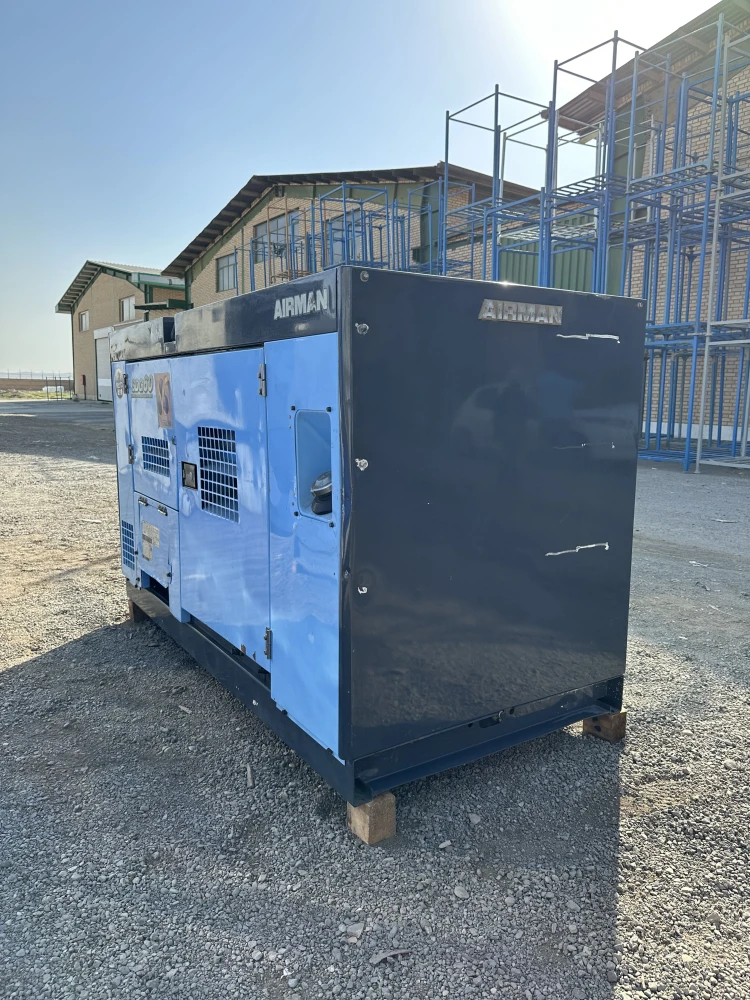

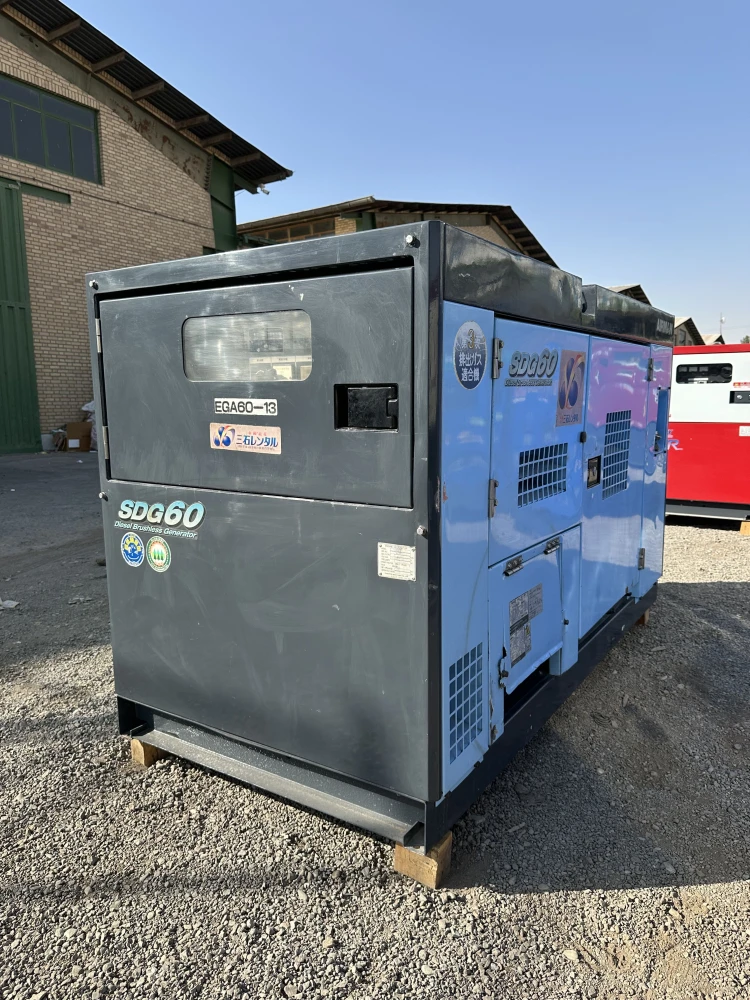

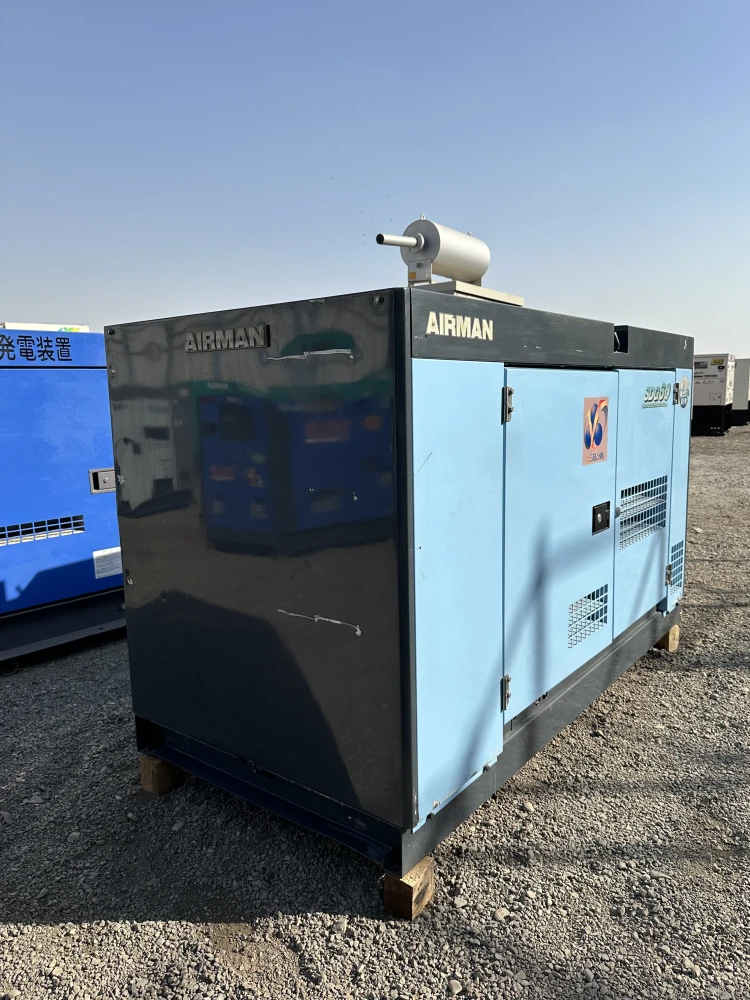

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Airman
- Condition: Used
- Runtime (hours): 4,050

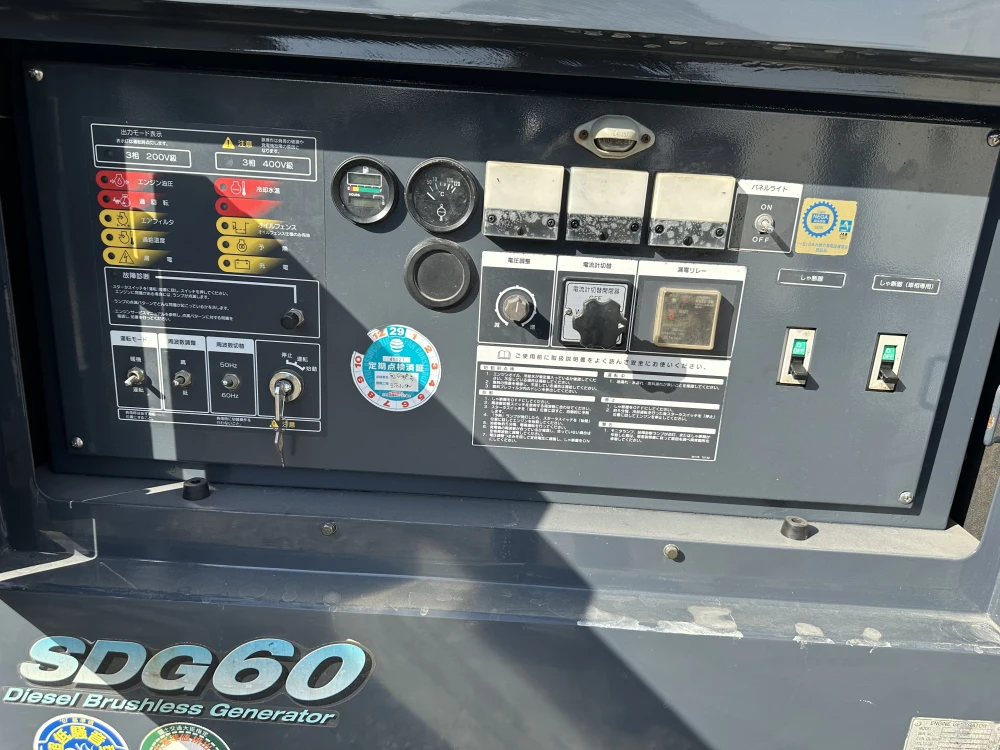

- Controller: Airman Exclusive Control Panel
- Availability: In Stock – Warehouse 2

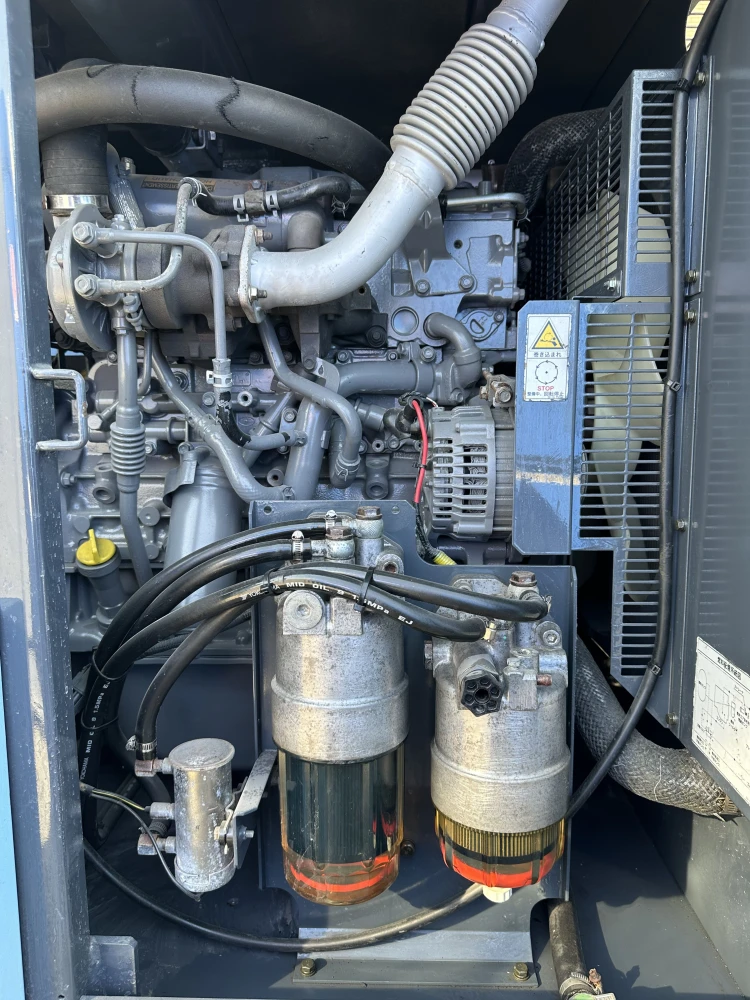

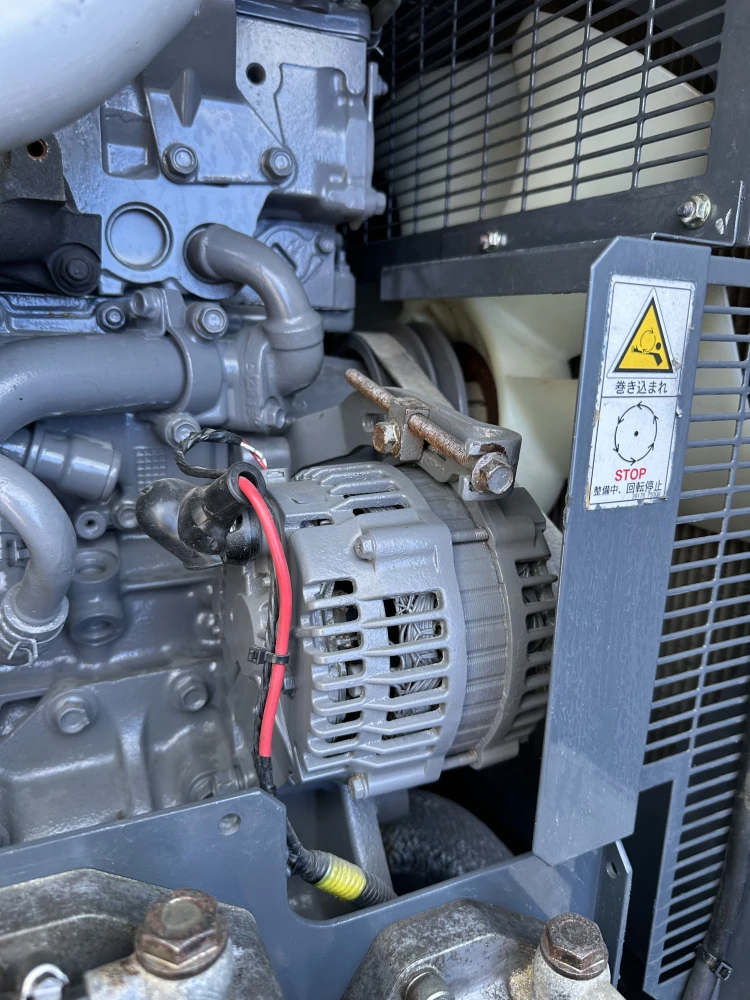

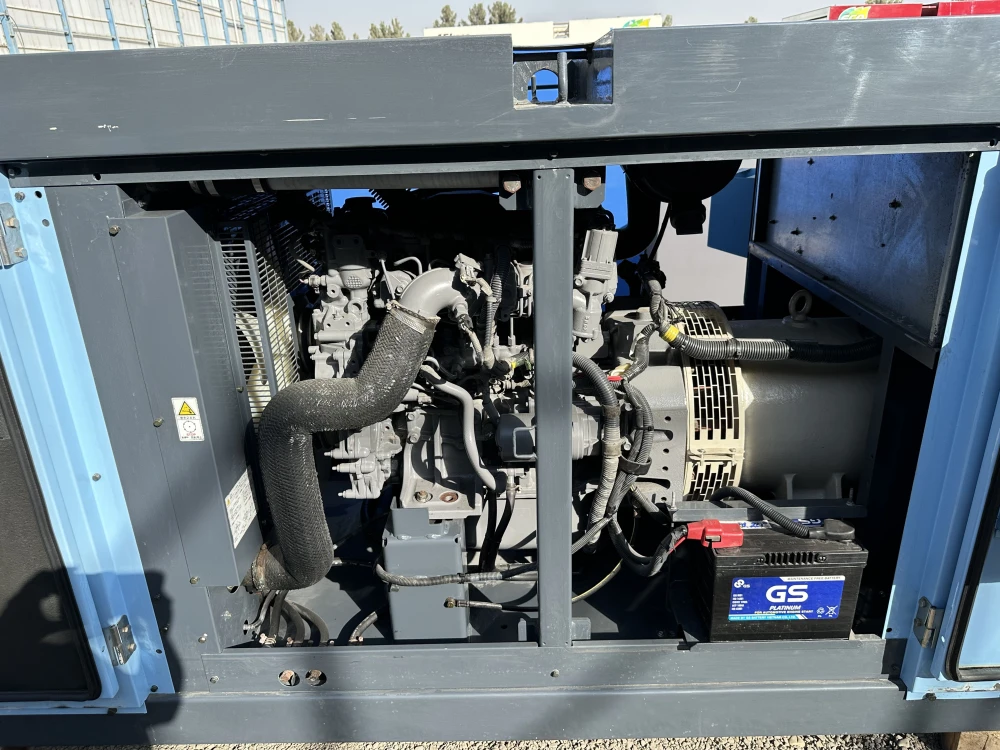

Engine
- Make and Model: Isuzu BJ-4JJ1XYGD
- Cylinders: Inline-4
- Aspiration: Turbocharged, Intercooled
- Bore x Stroke (mm): 95.4 x 104.9
- Total Displacement (Litre): 2.99
- Fuel: Diesel

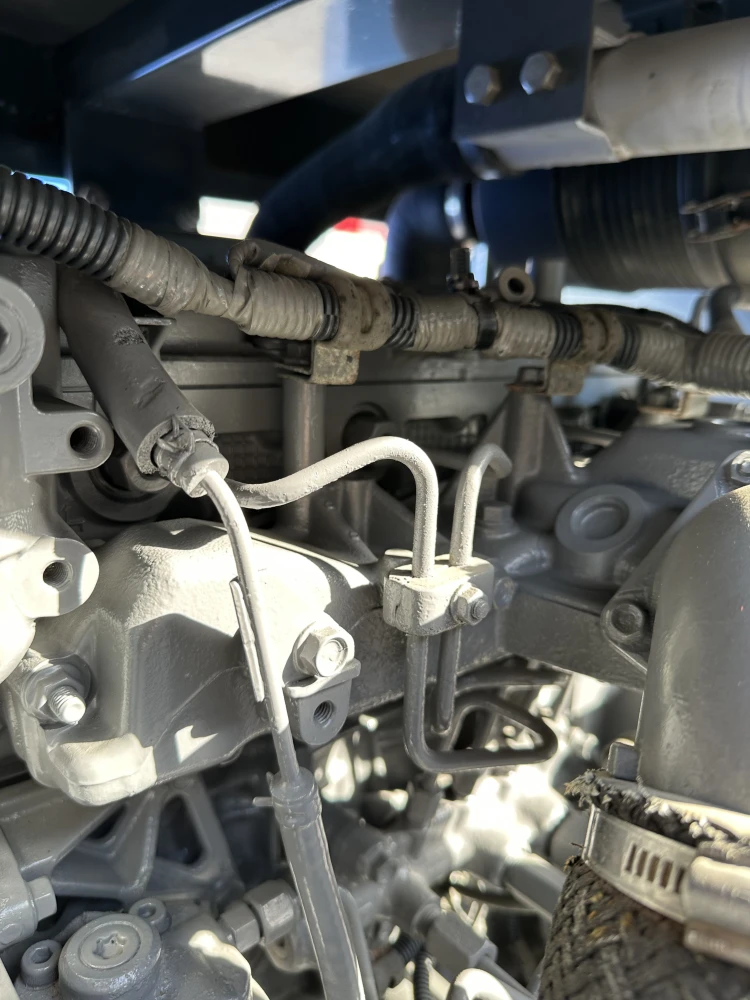

- Fuel System Type: Common Rail (CR)
- Lube Oil Capacity (Litre): 15
- Coolant Capacity (Litre): 13.2
- Mounted Fuel Tank Capacity (Litre): 170
- Governor and Actuator Type: Electronic Governor, Electric Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Length (mm): 2,080
- Width (mm): 1,080
- Height (mm): 1,300
- Weight (kg): 1,240

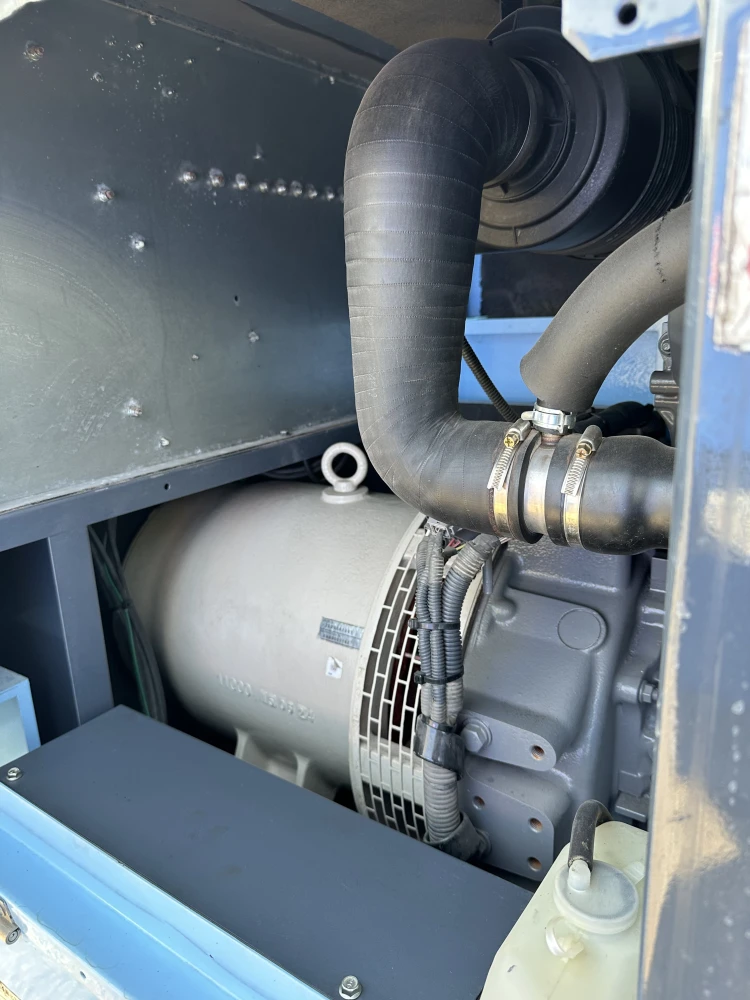

Alternator
- Make and Model: Hokuetsu Industries Co. -
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class F
