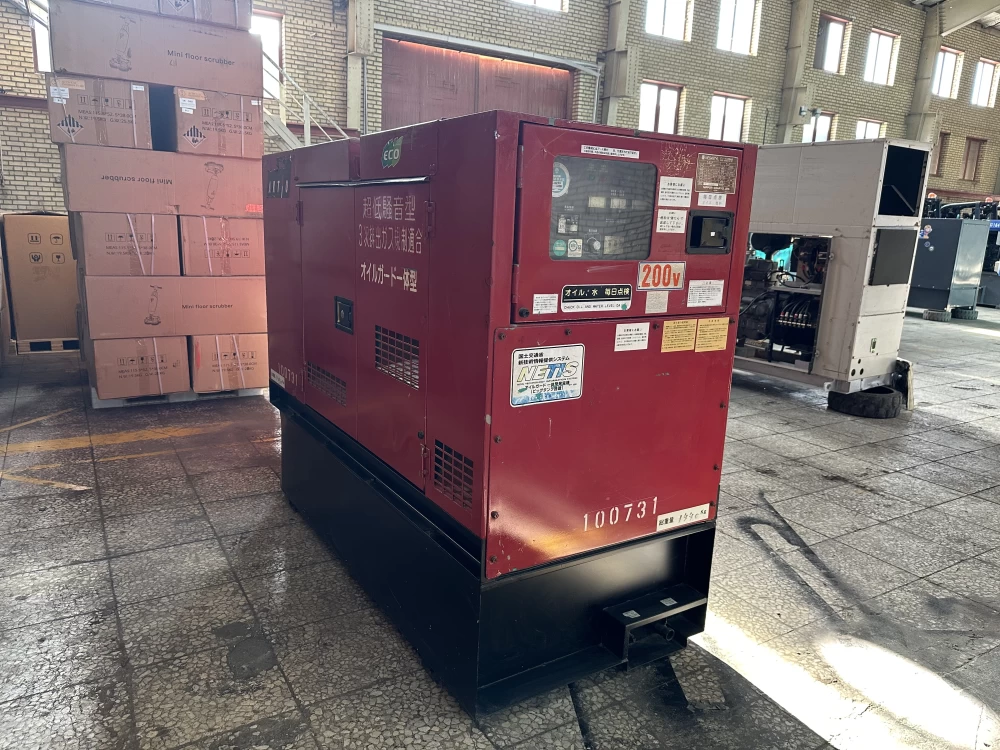

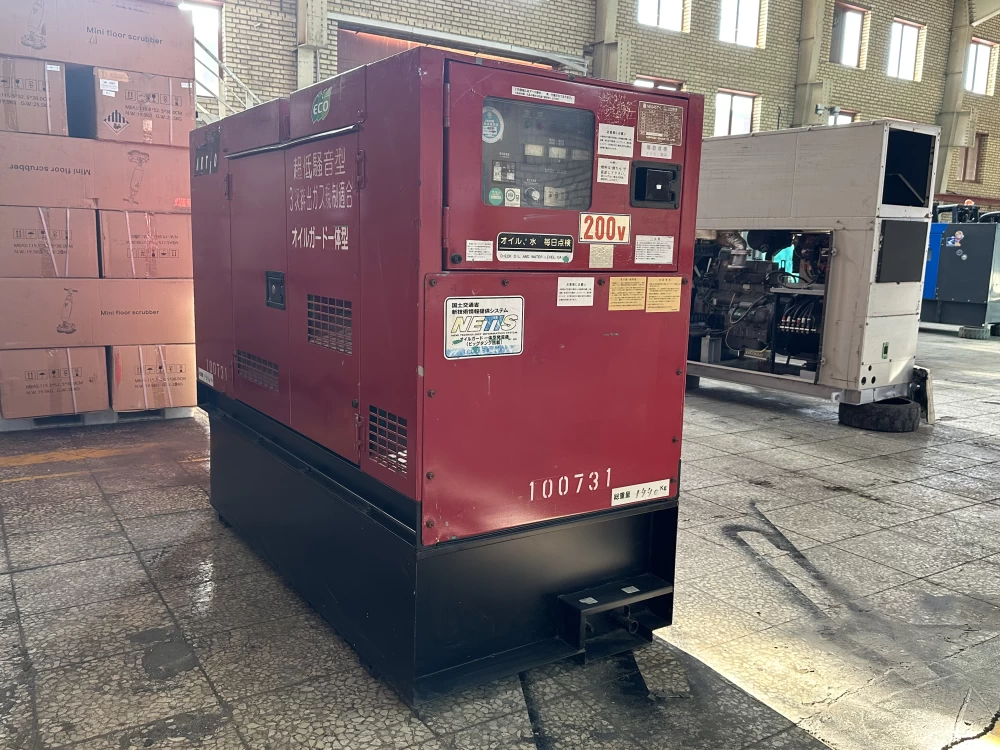

Nippon Sharyo NES45TYL | 45 kVA Super Silent Diesel Generator Powered by Yanmar
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Nippon Sharyo NES45TYL
- Standby Rating Output (60Hz): 50
- Prime Rating Output (60Hz): 45
- Standby Rating Output (50Hz): 41
- Prime Rating Output (50Hz): 37

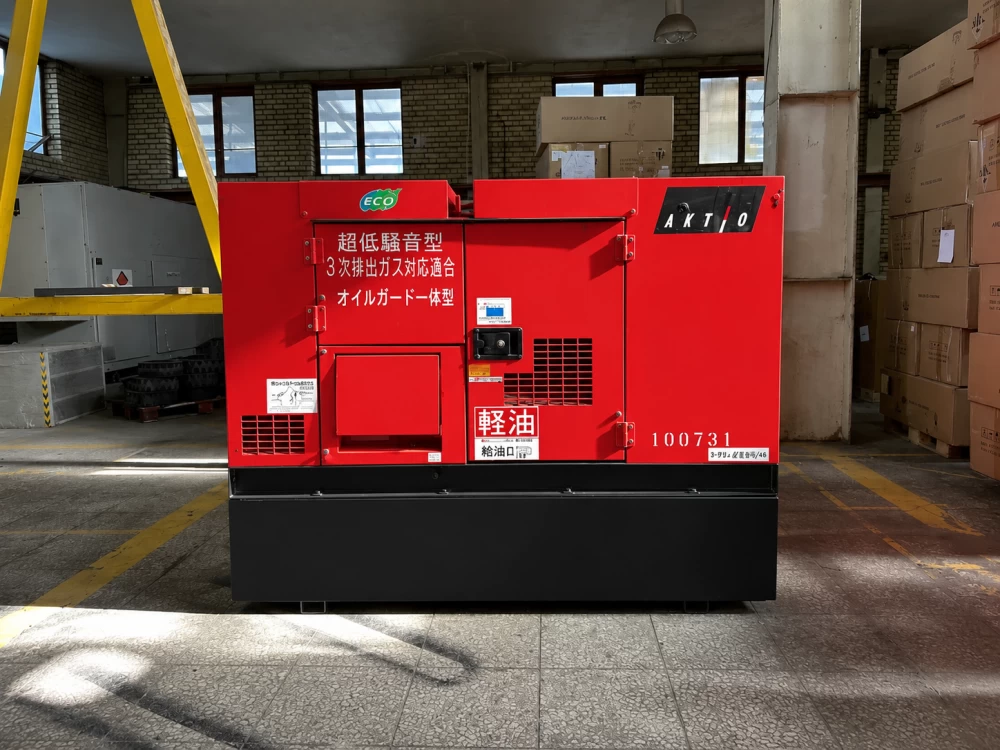

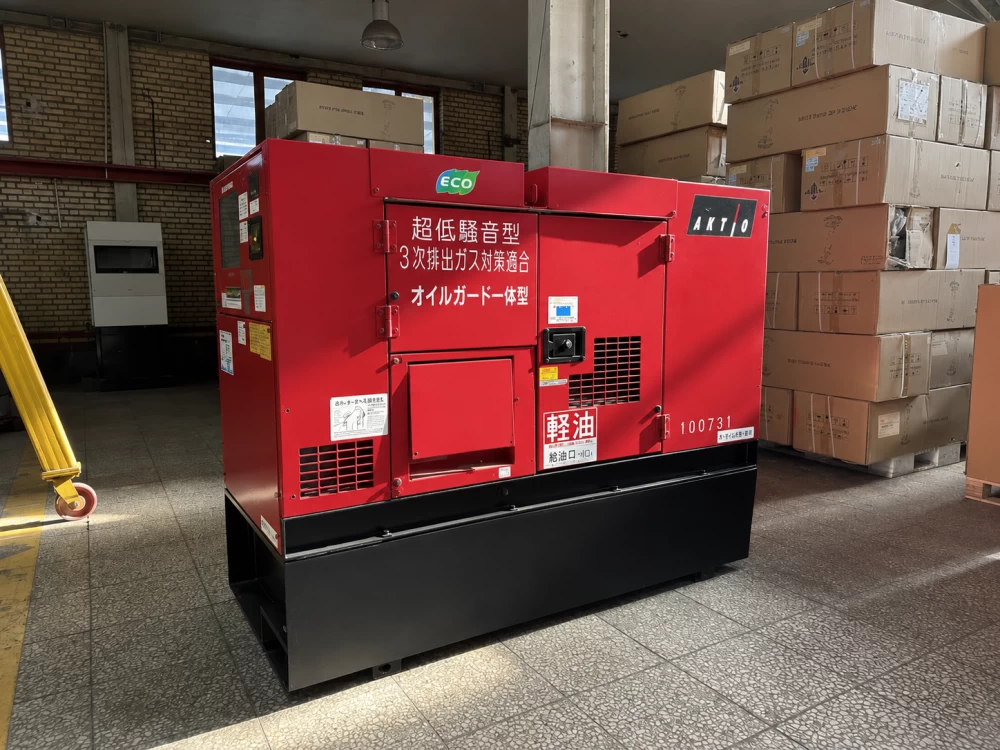

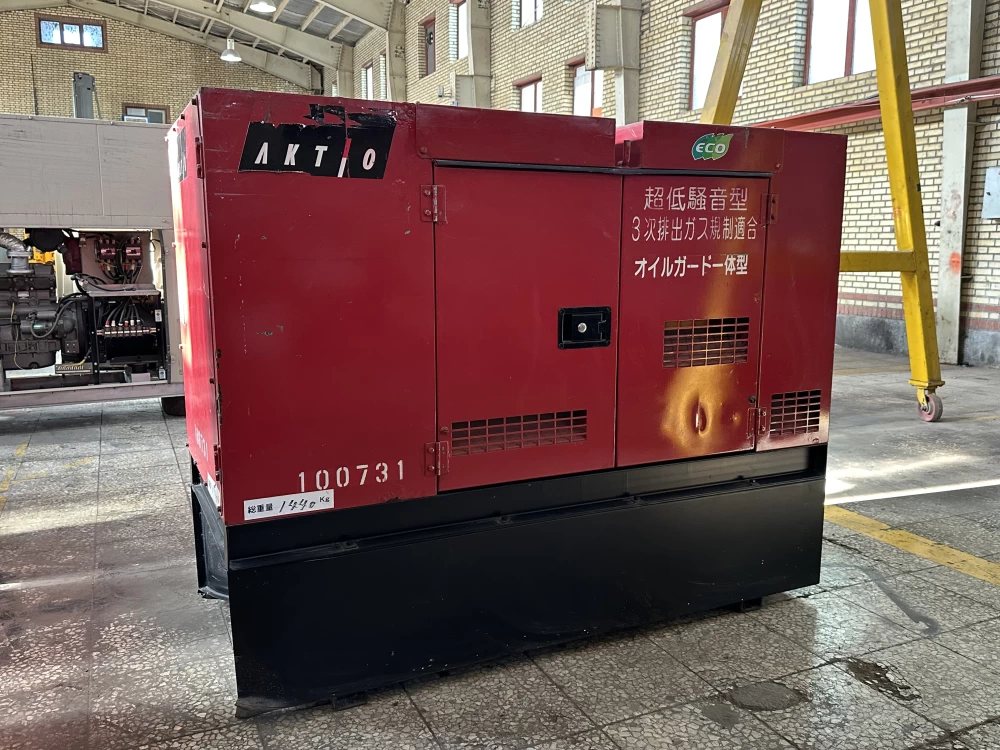

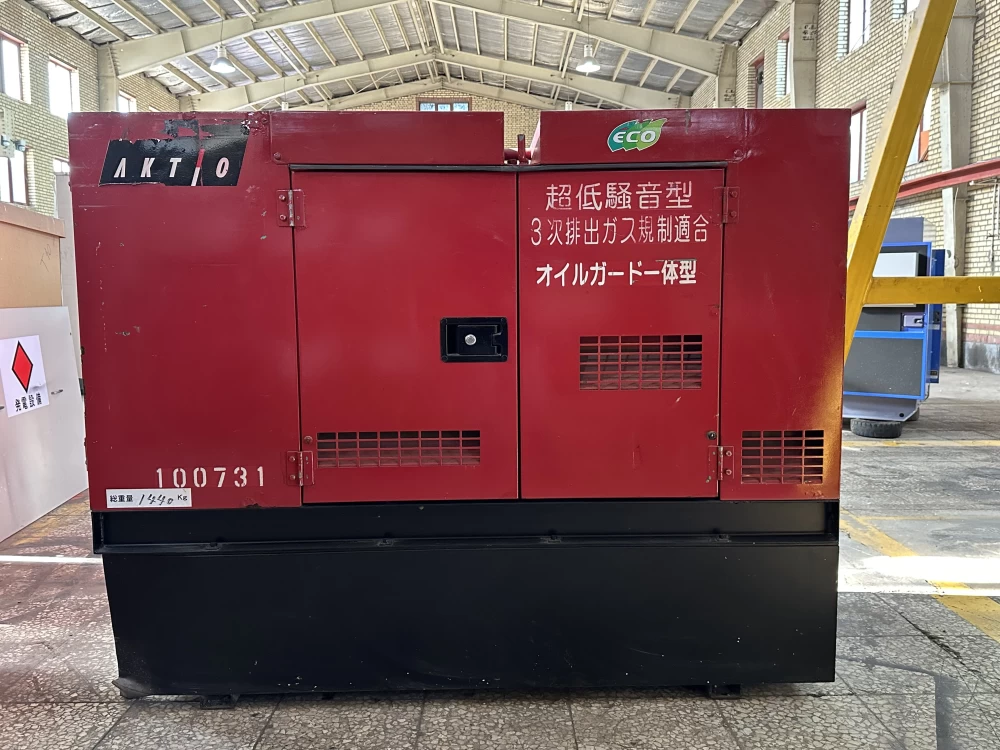

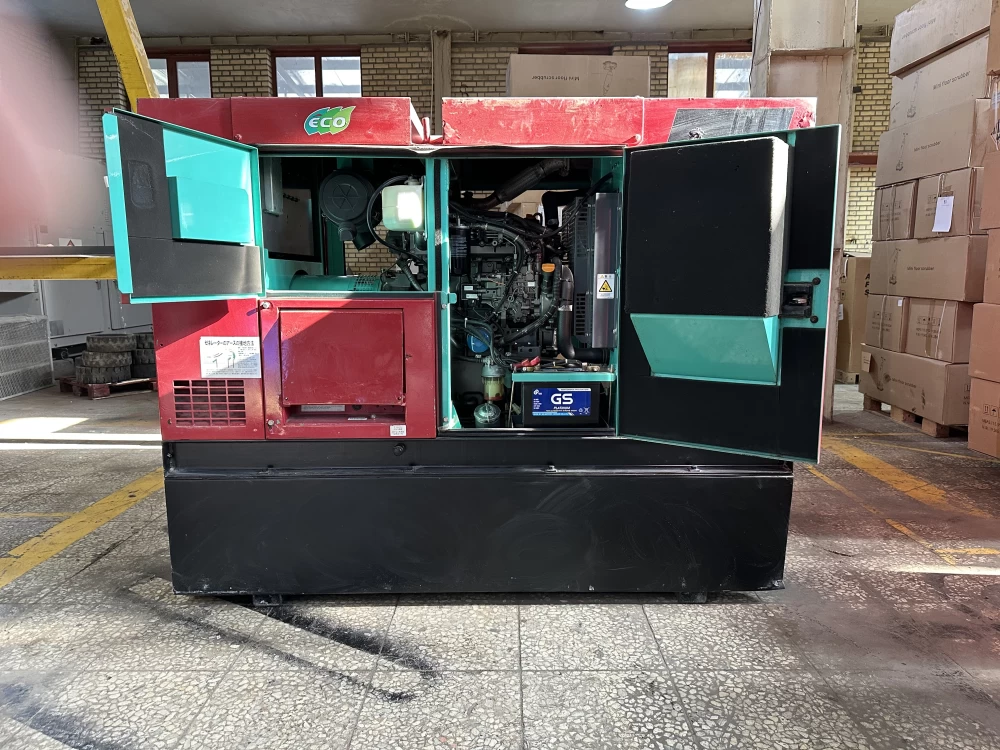

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Nippon Sharyo
- Condition: Used
- Runtime (hours): 15,935

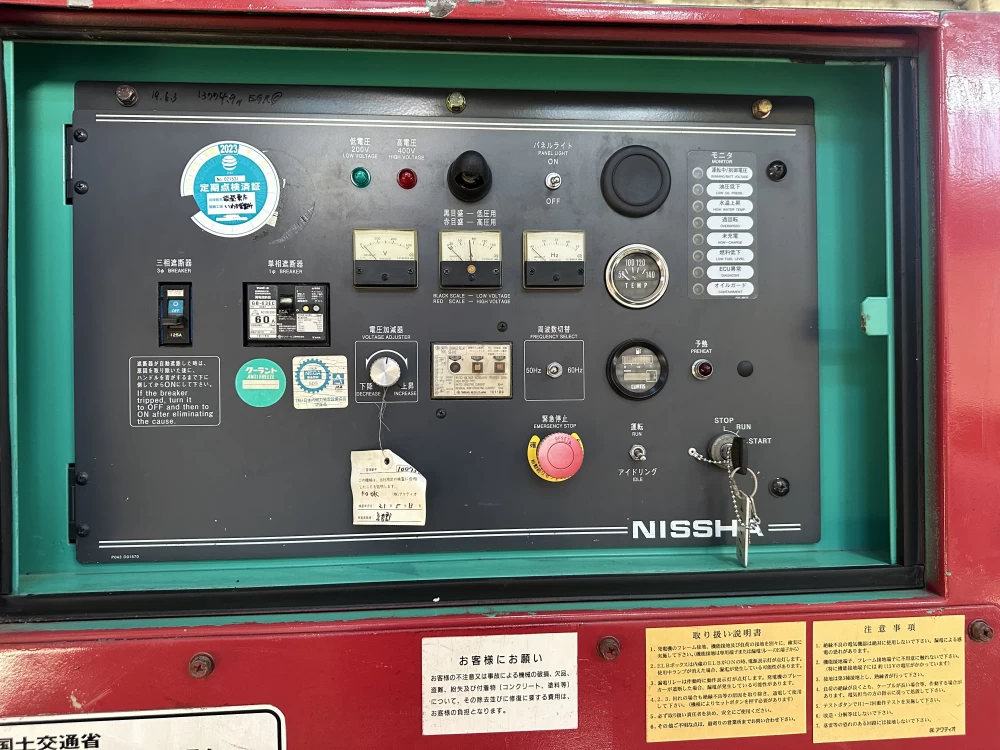

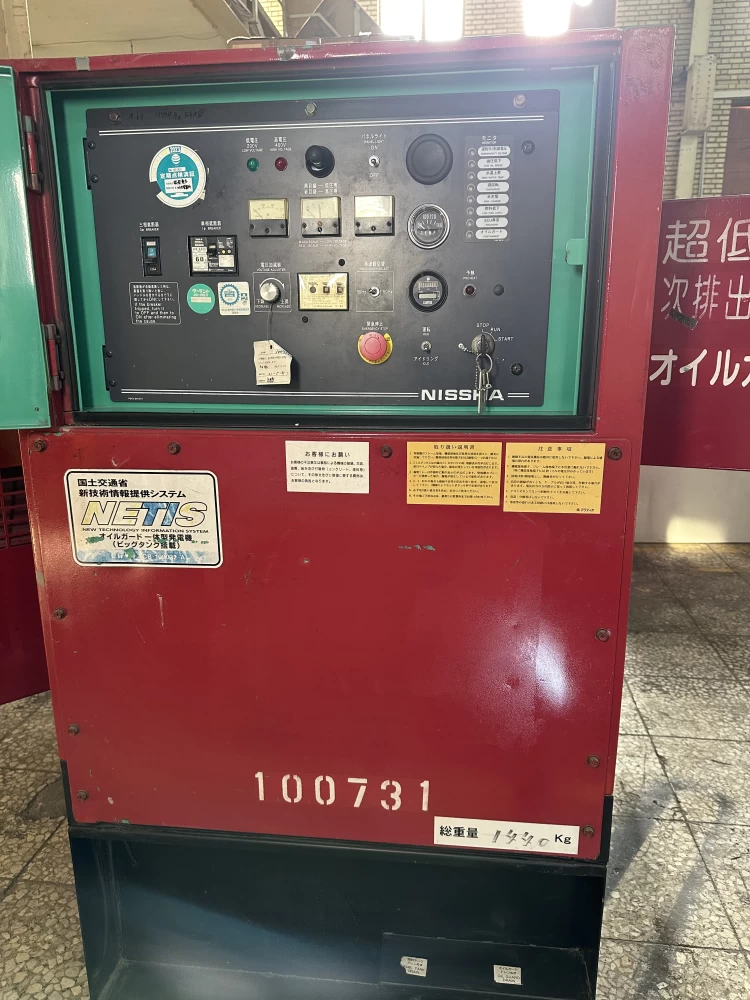

- Controller: Nippon Sharyo Exclusive Control Panel
- Availability: In Stock – Warehouse 3 (K)

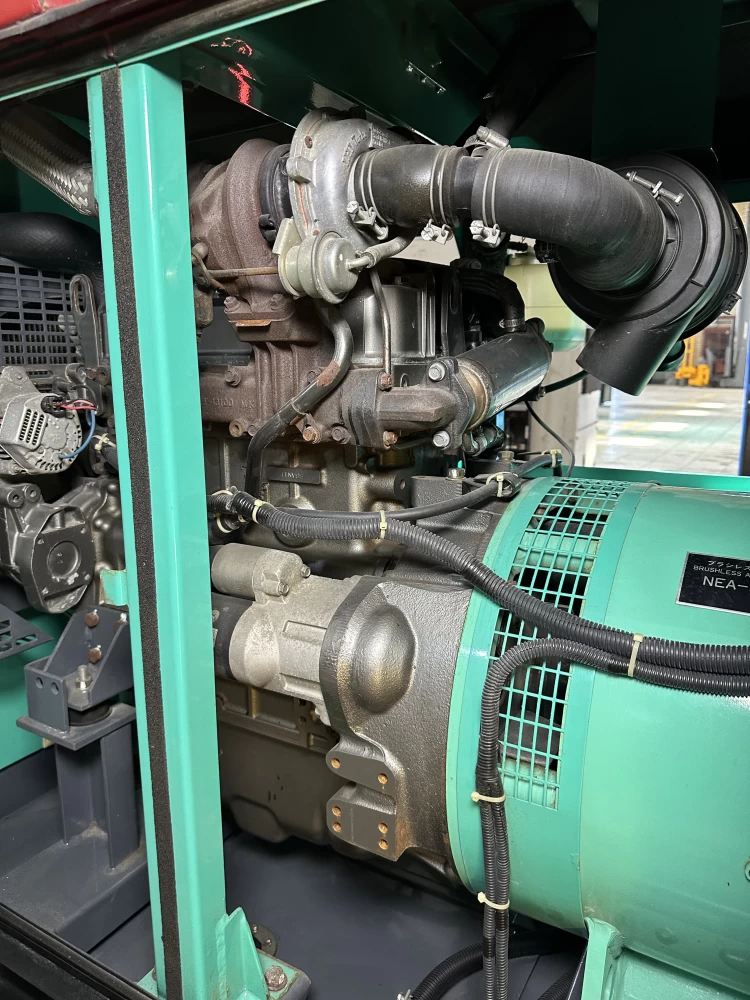

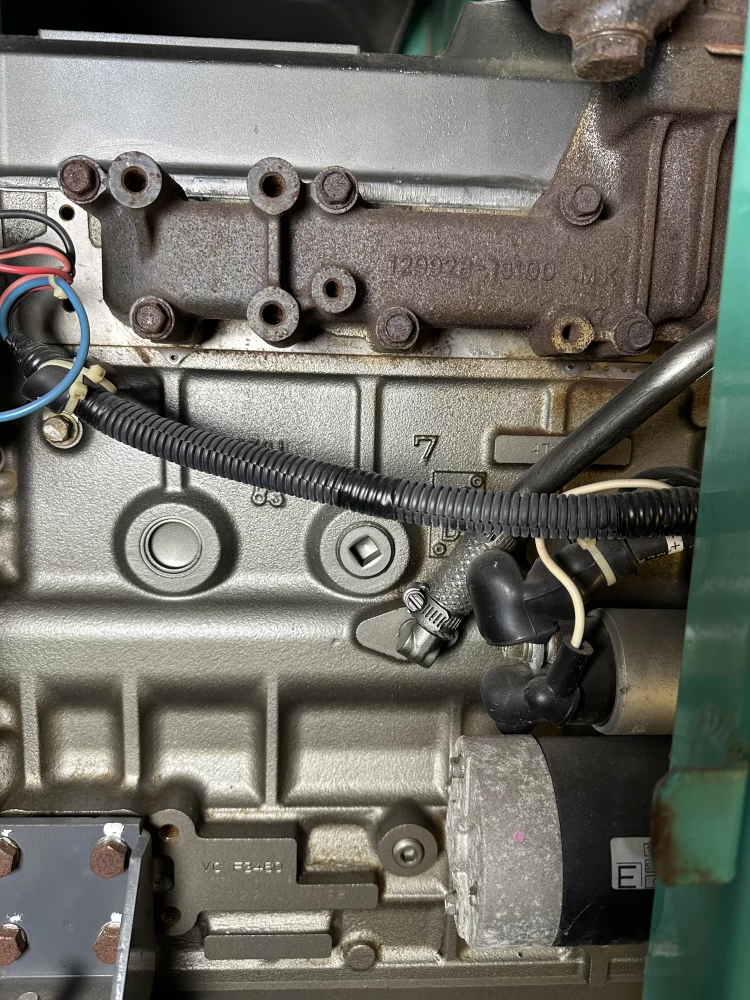

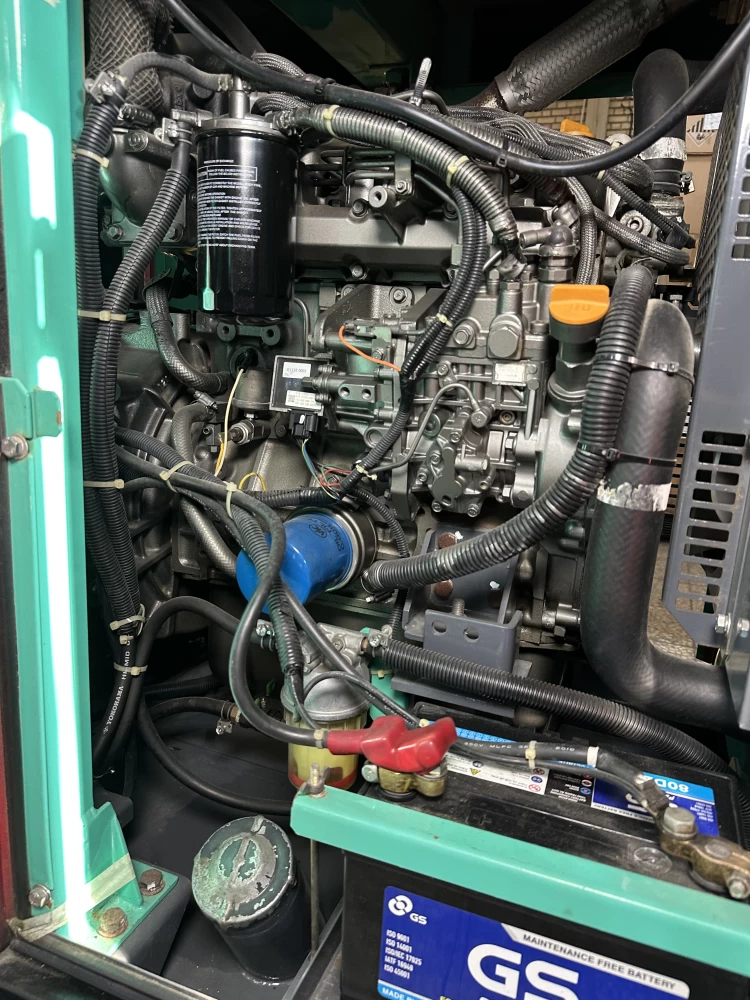

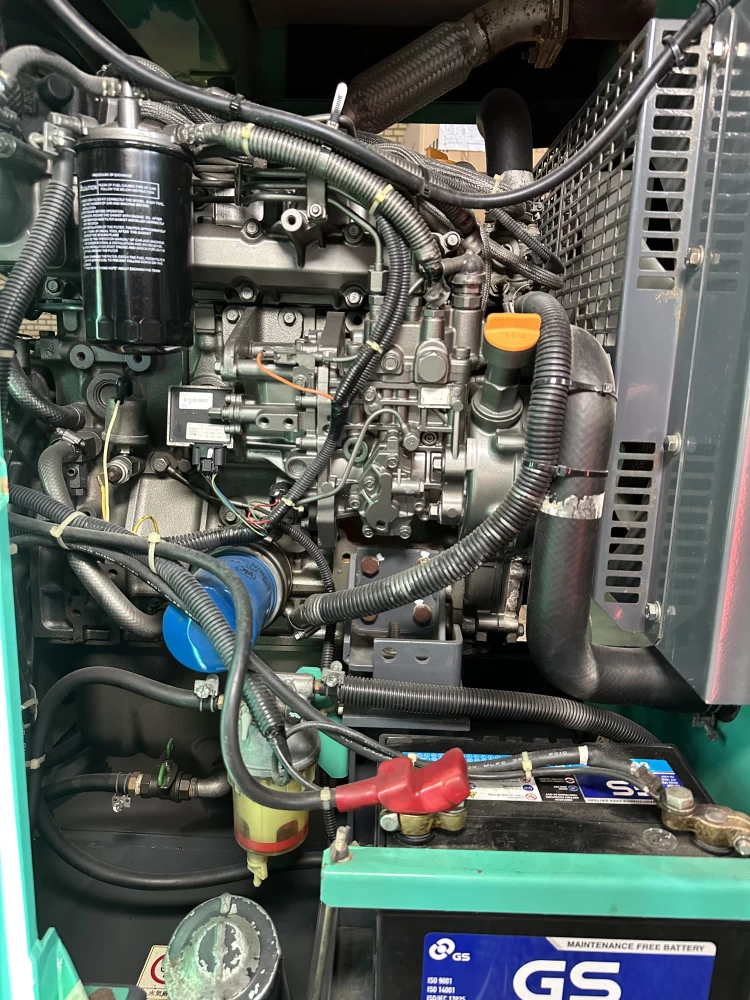

Engine

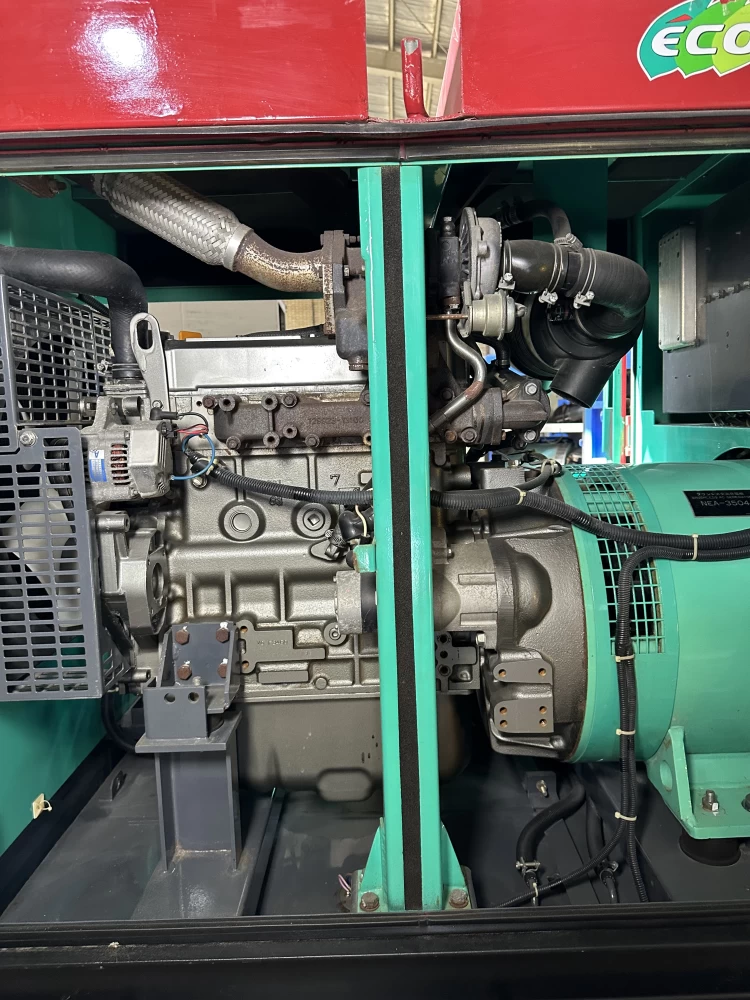

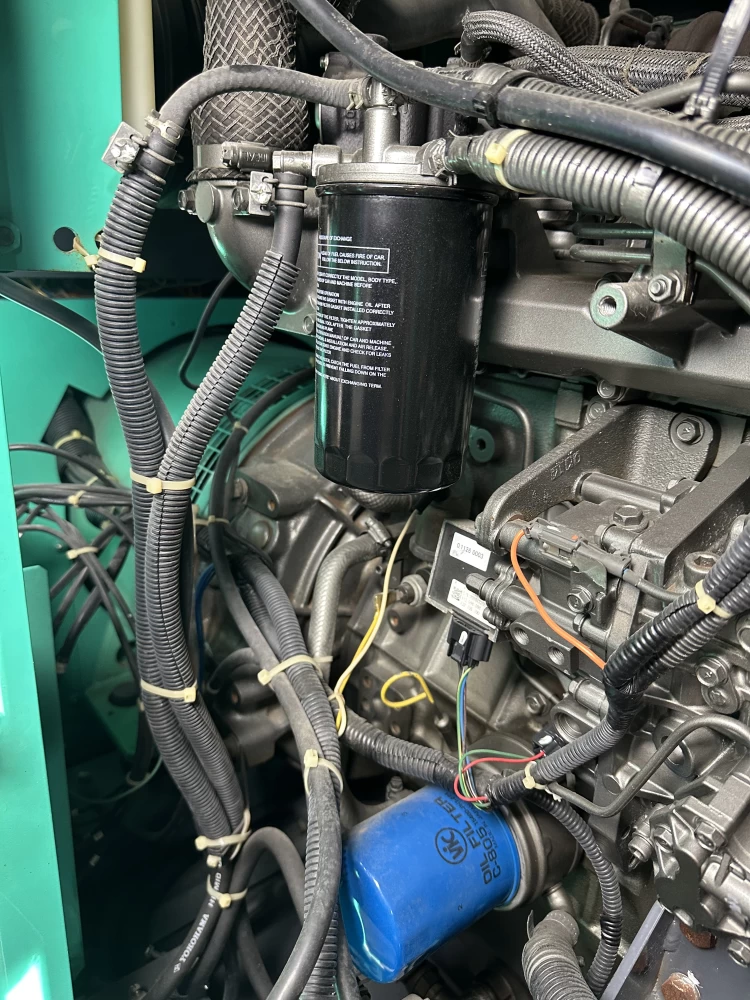

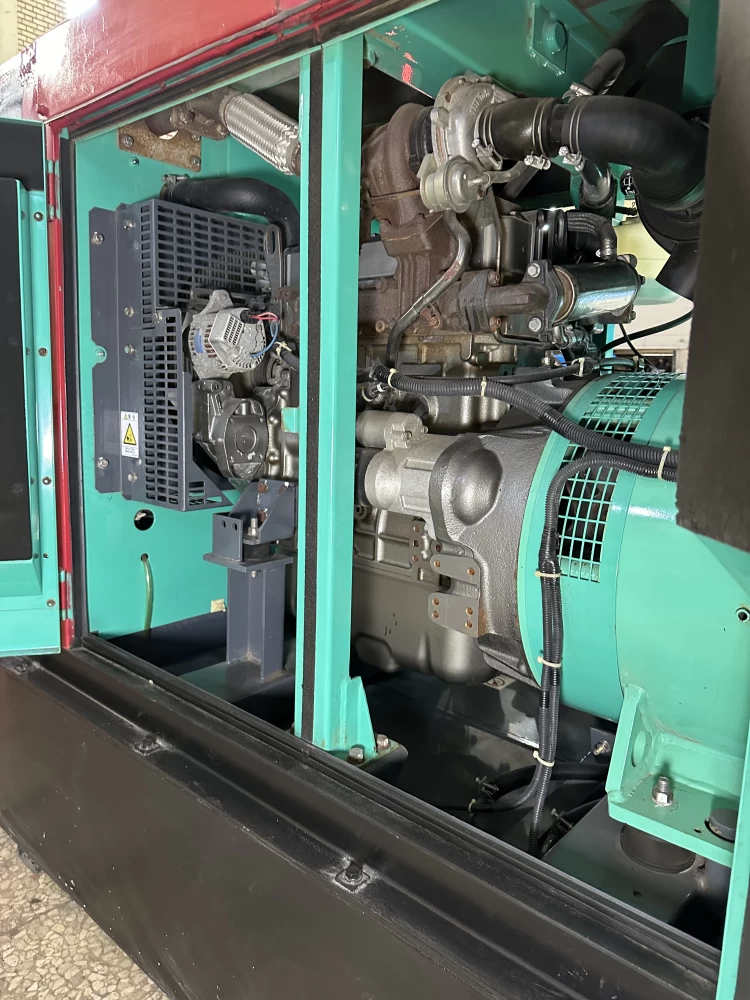

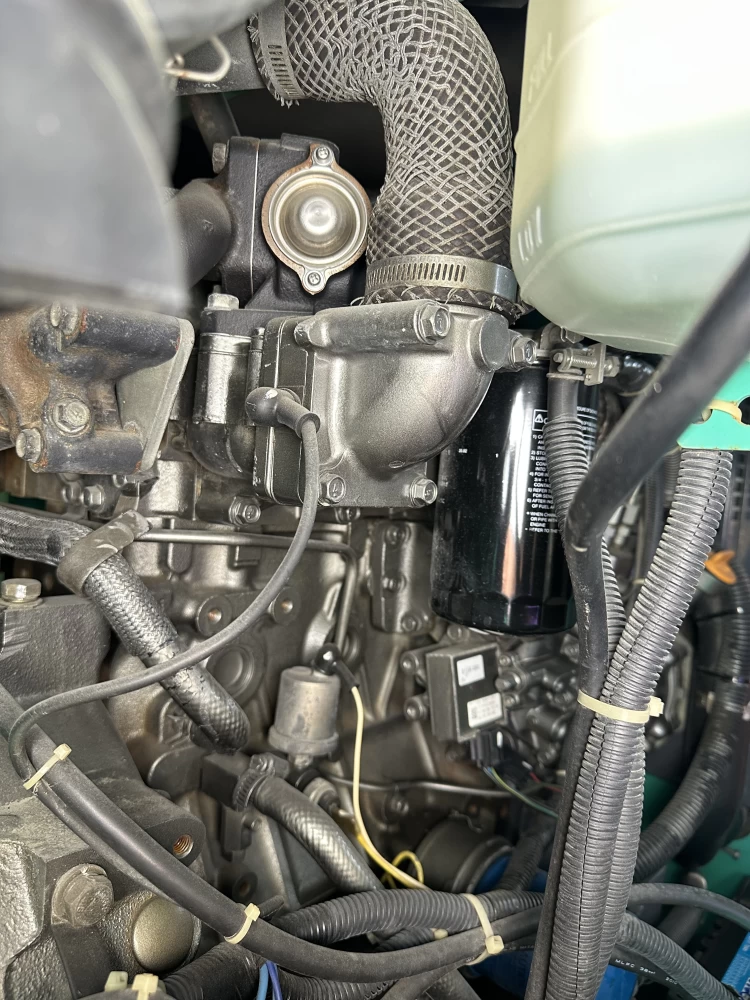

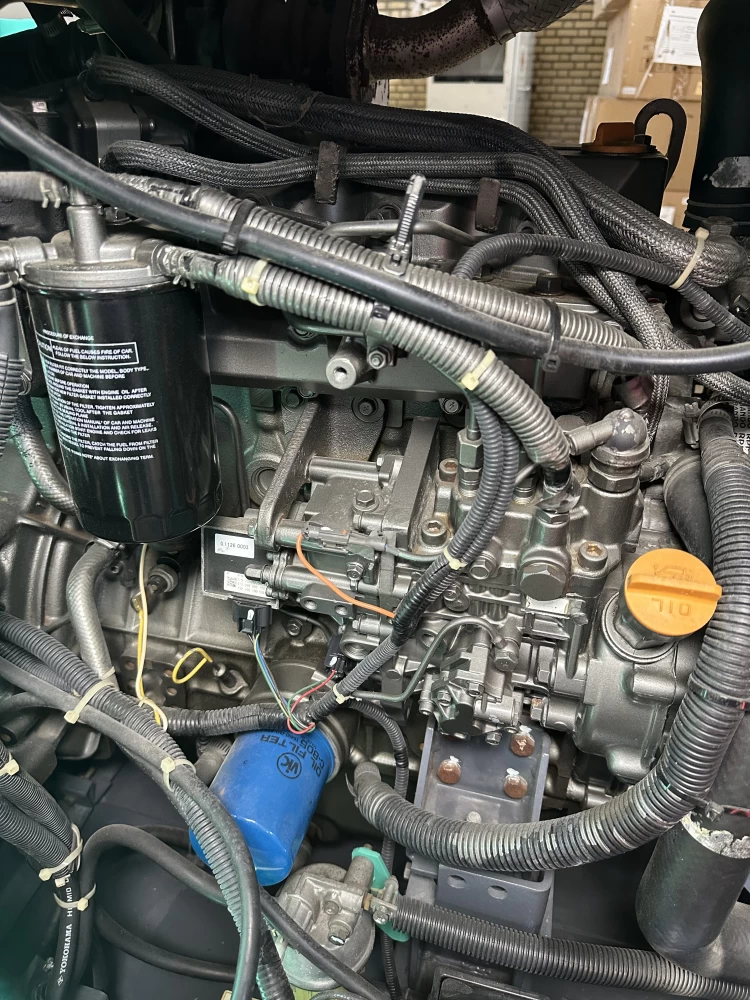

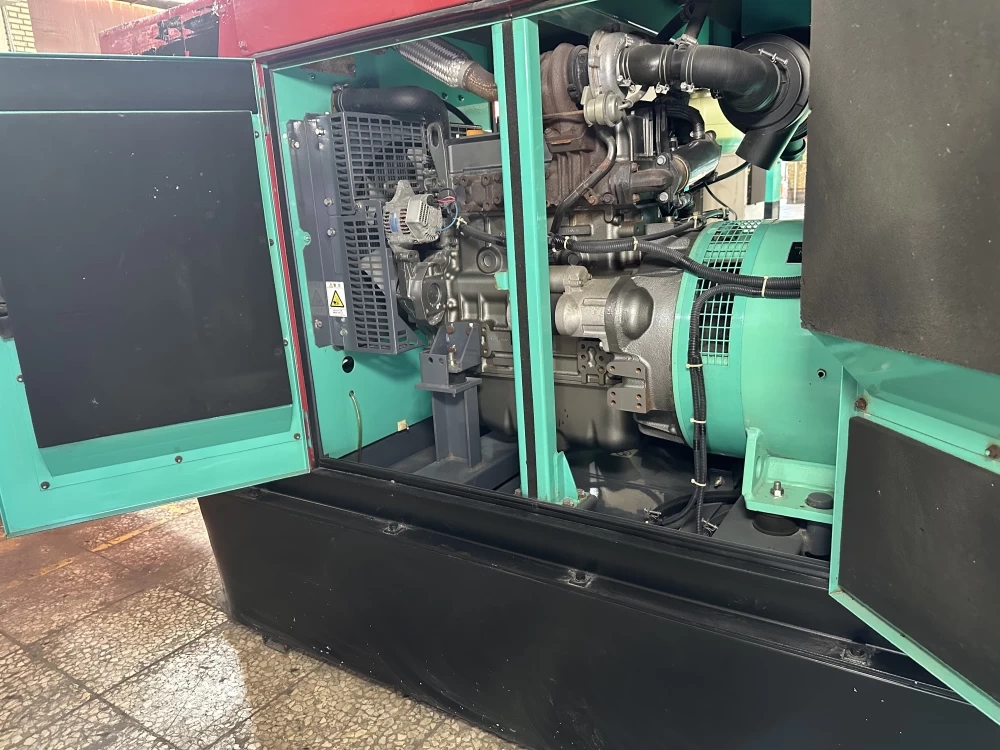

- Make and Model: Yanmar 4TNV98T-ZGNE1
- Cylinders: Inline-4

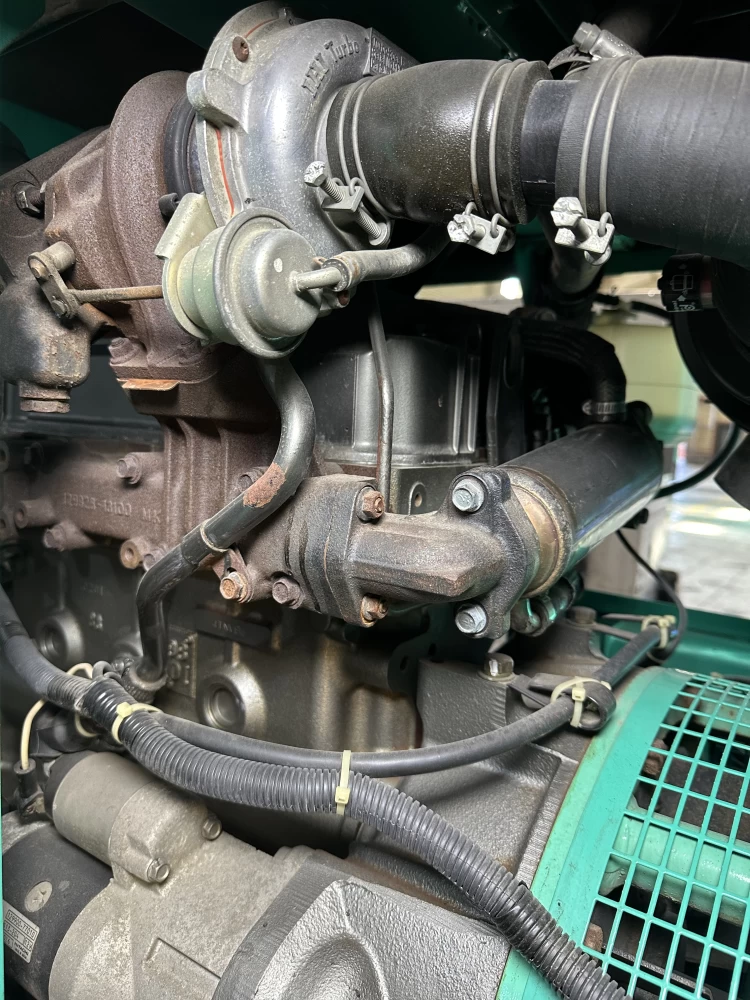

- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 98 x 110
- Total Displacement (Litre): 3.31
- Fuel: Diesel

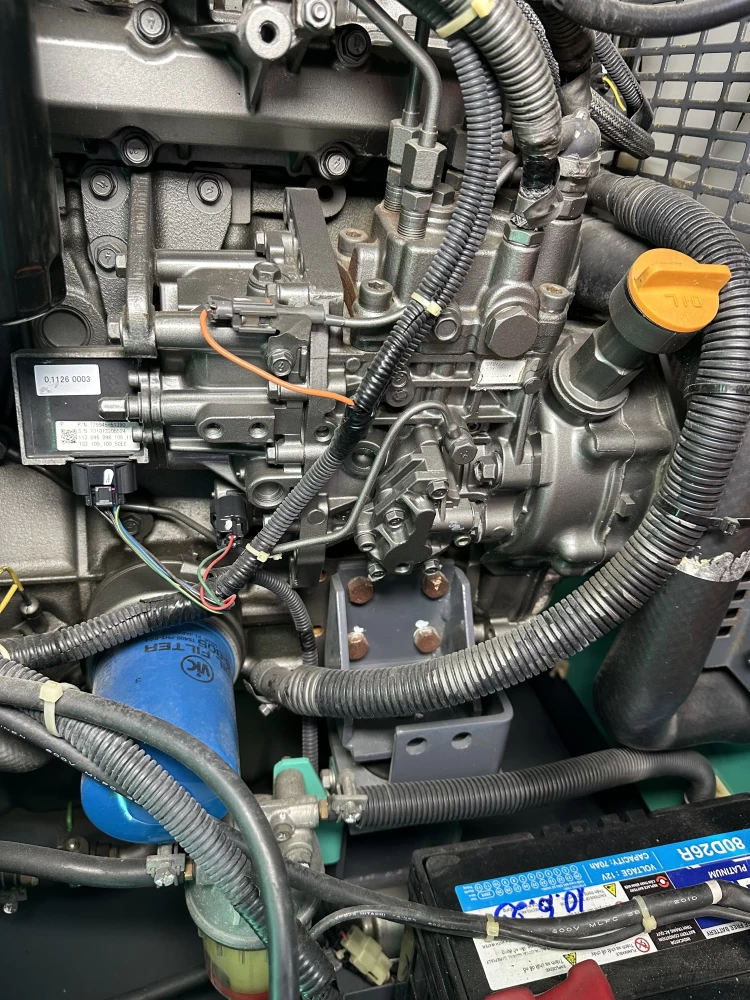

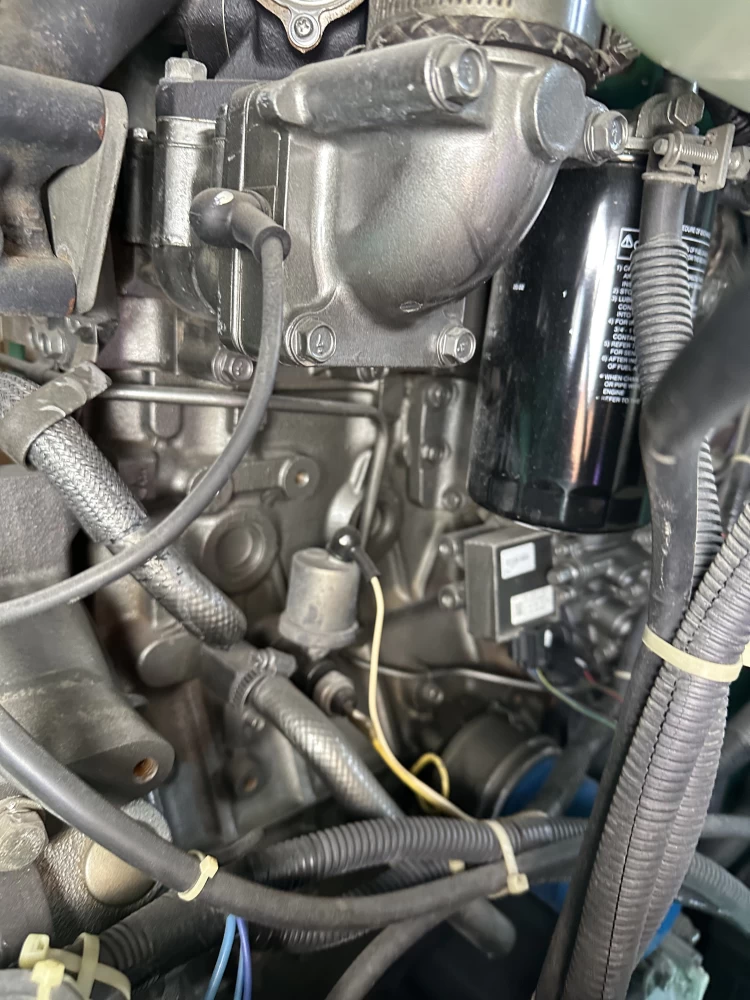

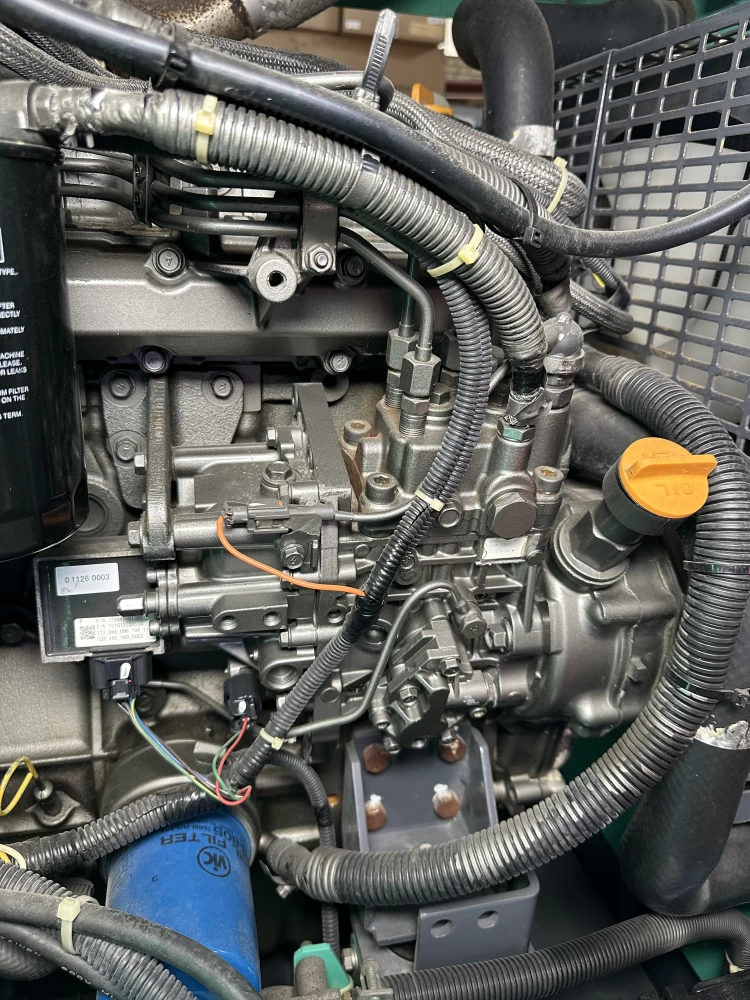

- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical Rotary Pump
- Lube Oil Capacity (Litre): 10.5
- Coolant Capacity (Litre): 14
- Mounted Fuel Tank Capacity (Litre): 330
- Governor and Actuator Type: Electronic Governor, Electric Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 1,440
Alternator

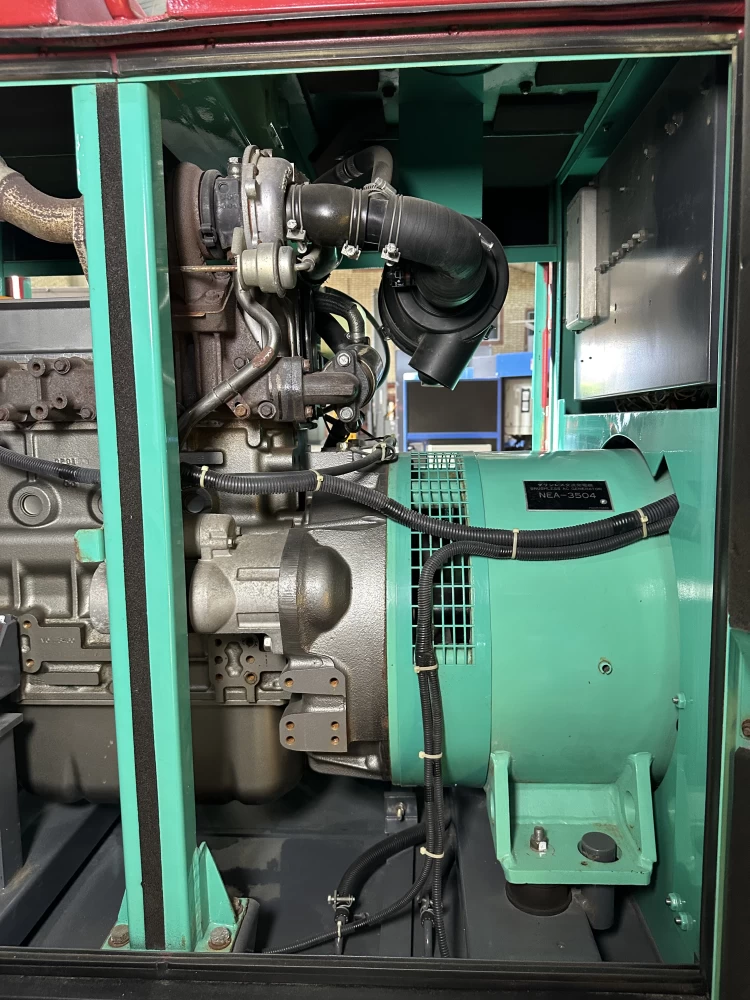

- Make and Model: Nippon Sharyo NEA-3504
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class F
