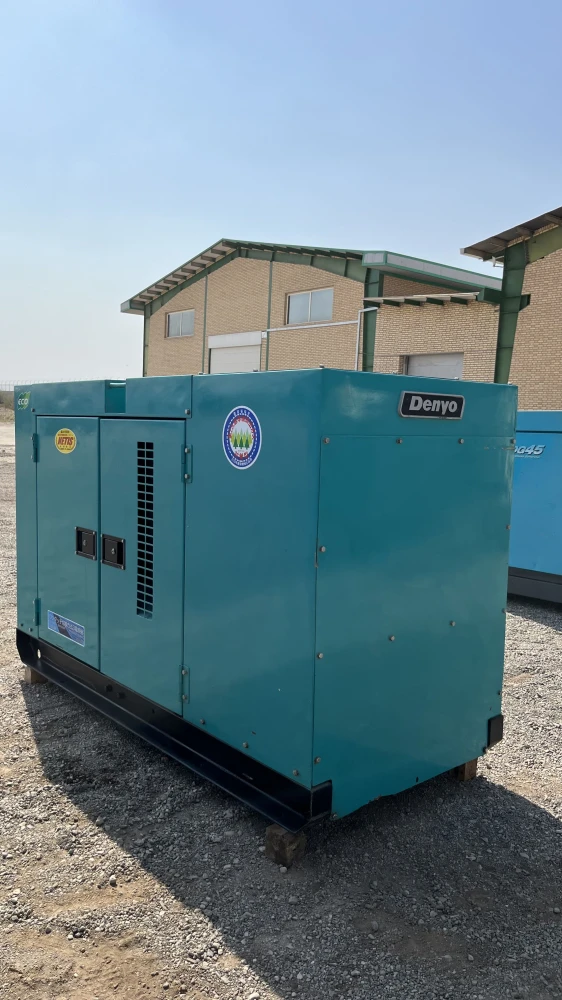

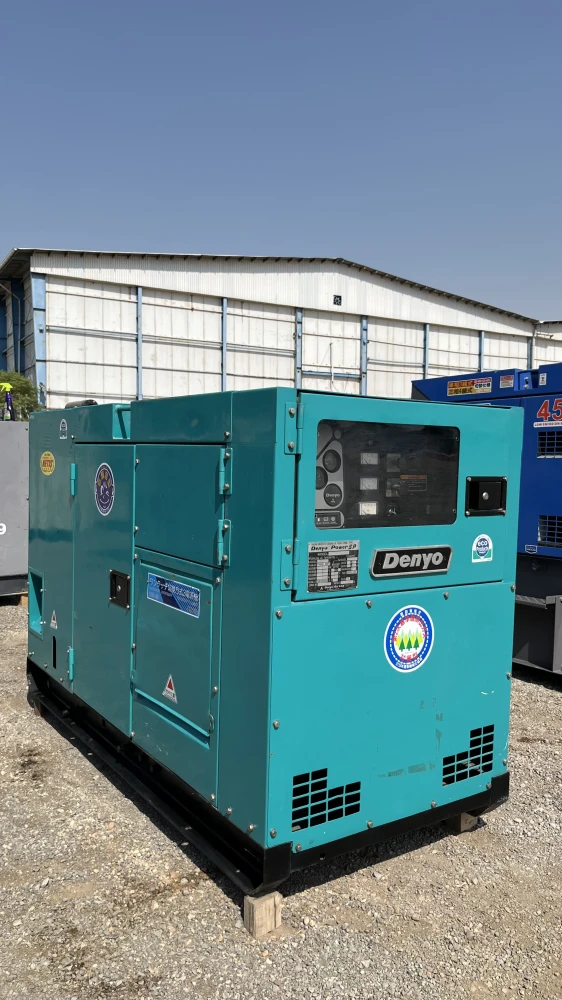

Denyo DCA-45SPI | 45 kVA Super Silent Diesel Generator Powered by Isuzu
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Denyo DCA-45SPI
- Standby Rating Output (60Hz): 50
- Prime Rating Output (60Hz): 45
- Standby Rating Output (50Hz): 41
- Prime Rating Output (50Hz): 37

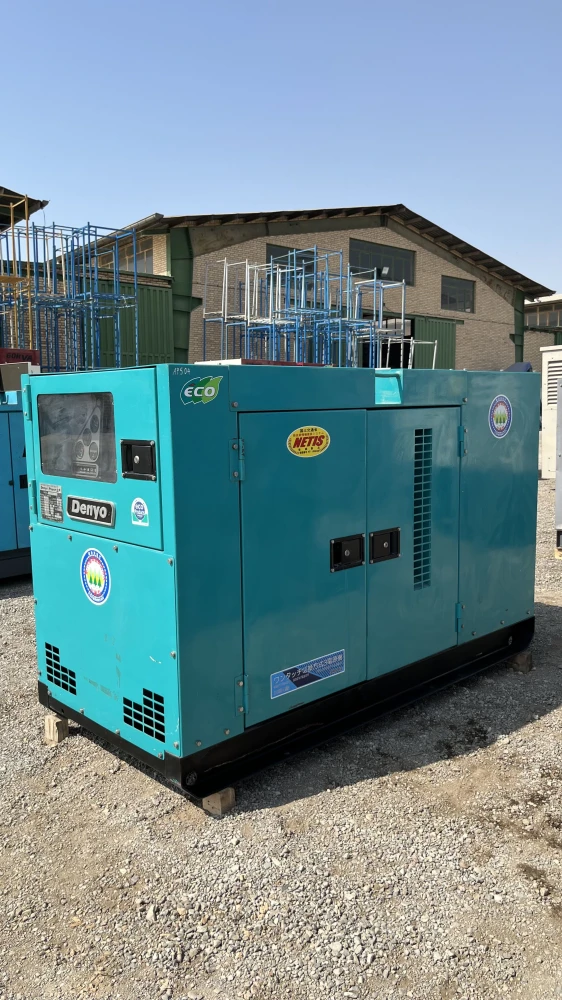

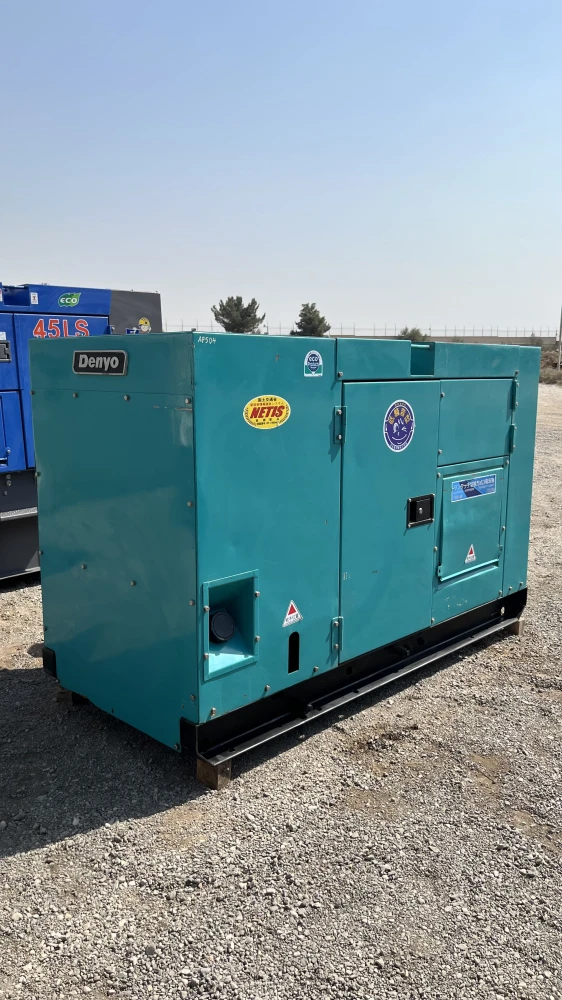

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Denyo
- Condition: Used
- Runtime (hours): 819

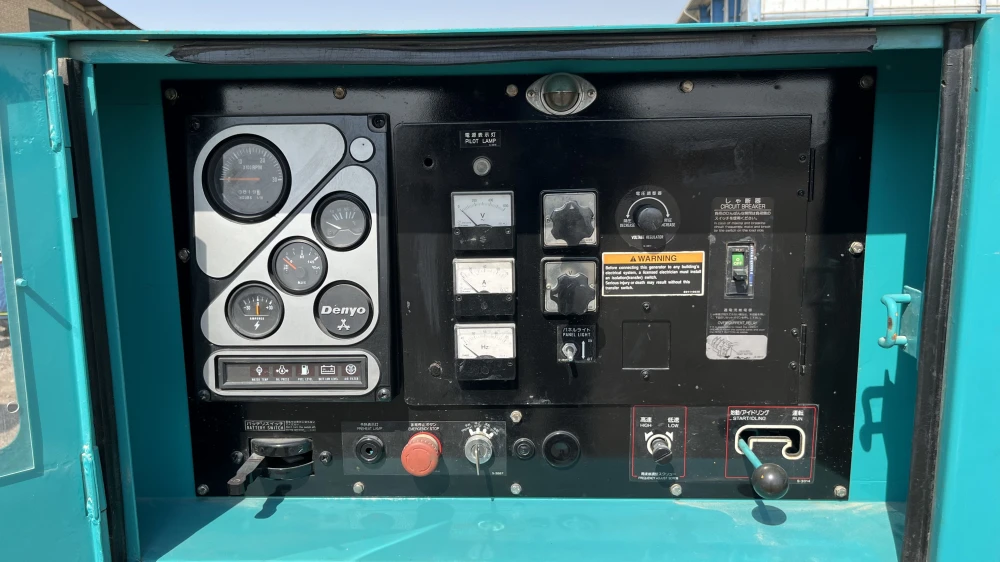

- Controller: Denyo Exclusive Control Panel
- Availability: In Stock – Warehouse 4 (YZD)

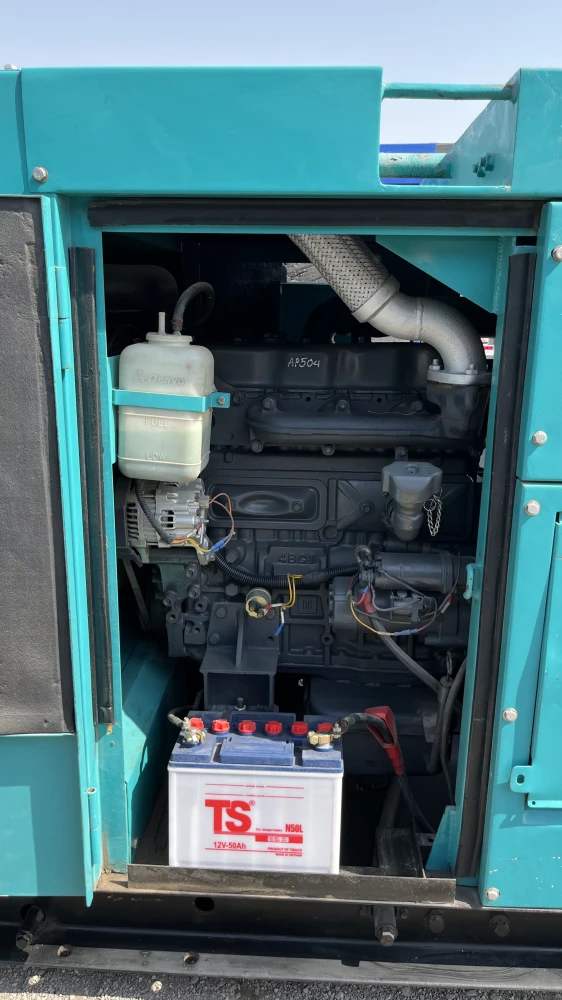

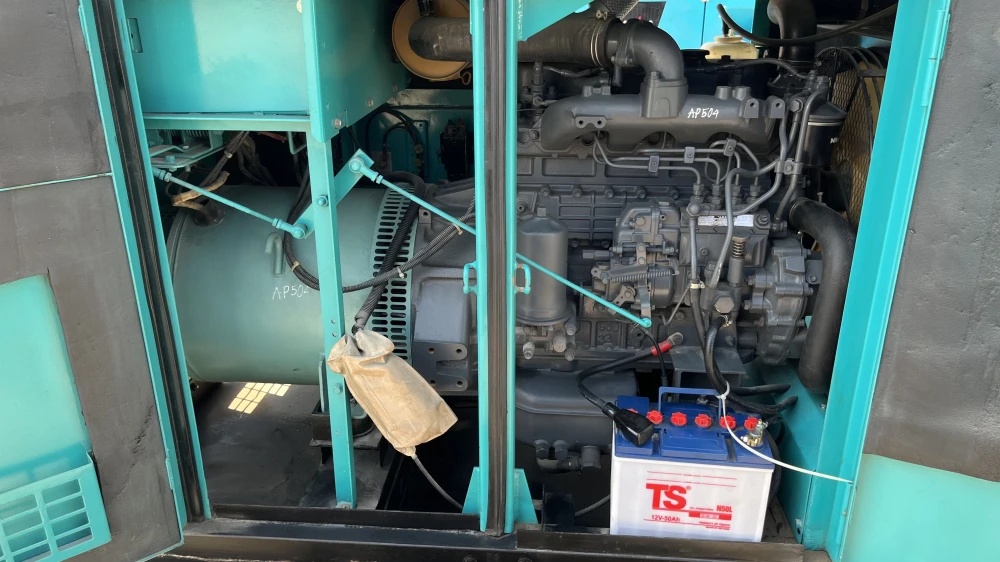

Engine
- Make and Model: Isuzu B-4BG1
- Cylinders: Inline-4
- Aspiration: Naturally Aspirated
- Bore x Stroke (mm): 105 x 125
- Total Displacement (Litre): 4.32
- Fuel: Diesel

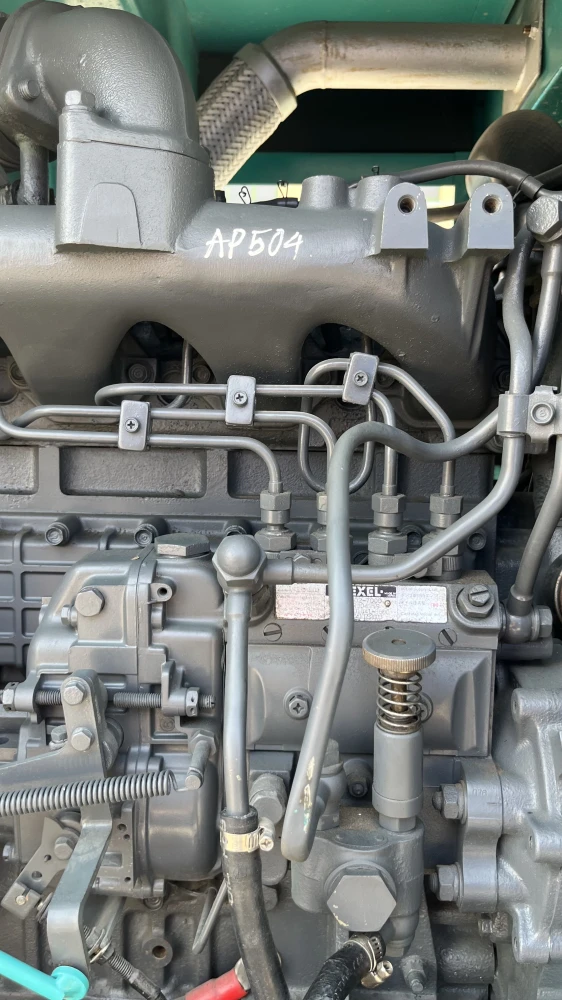

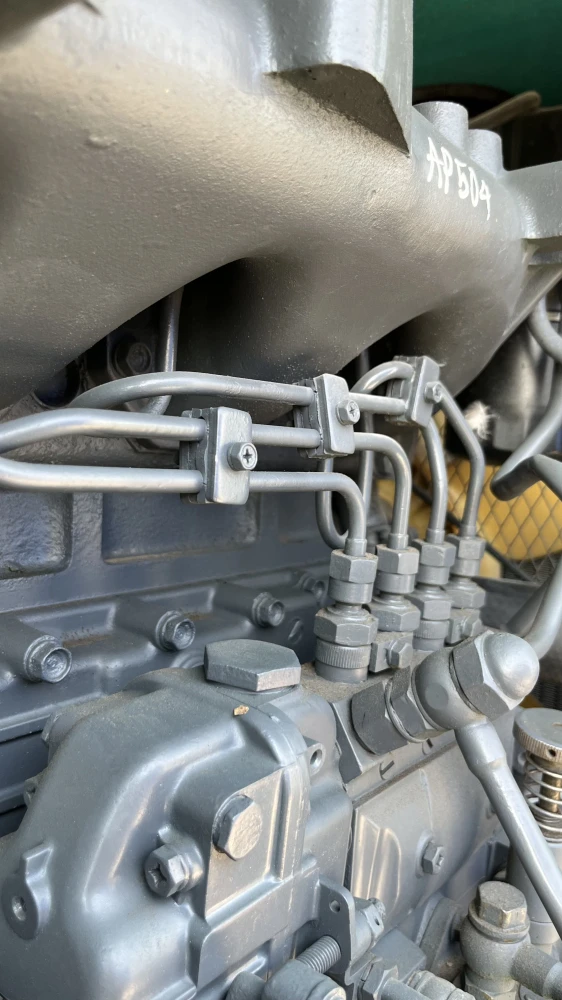

- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 13.2
- Coolant Capacity (Litre): 15.4
- Mounted Fuel Tank Capacity (Litre): 125

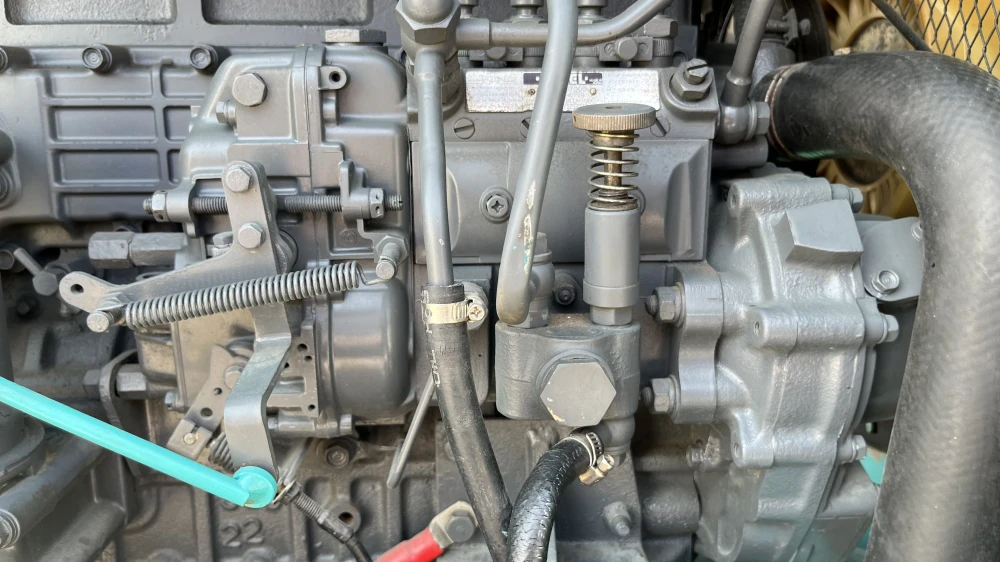

- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 1,180
Alternator
- Make and Model: Denyo DB-0501I
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
